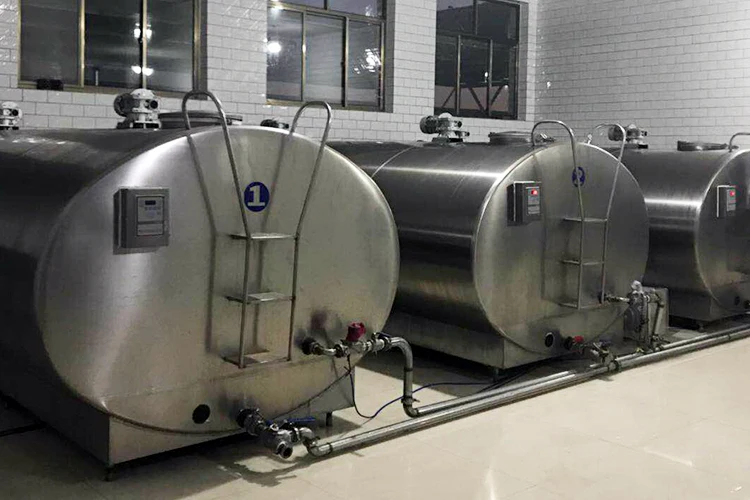

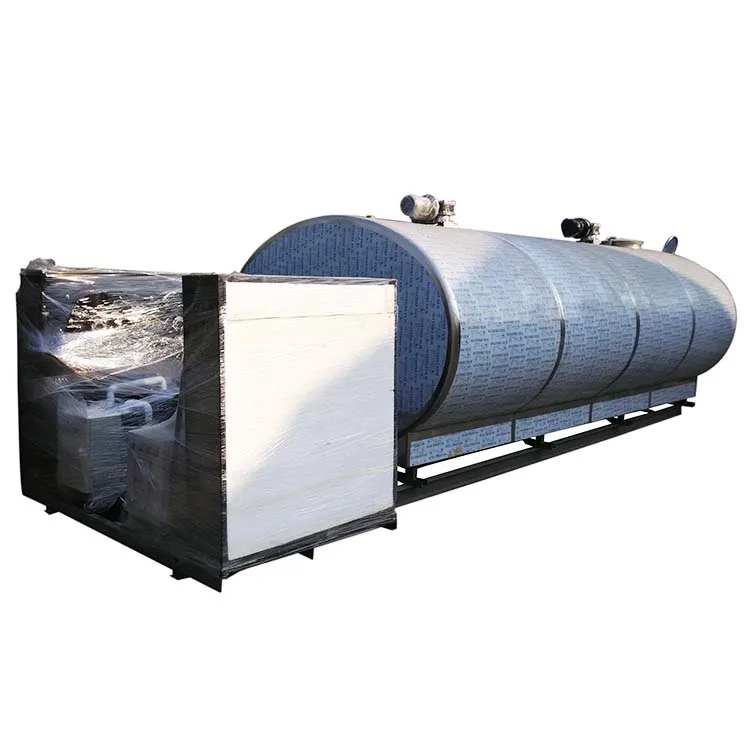

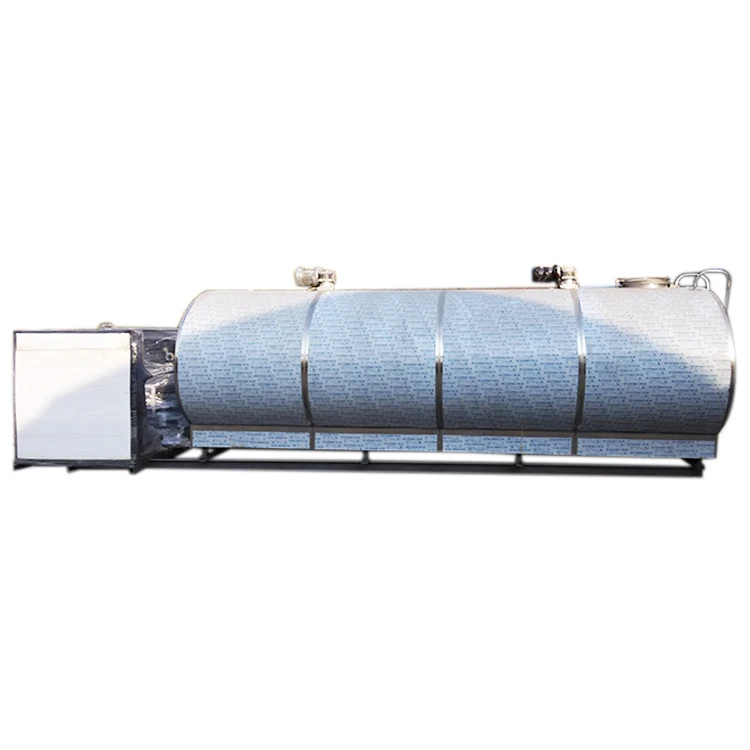

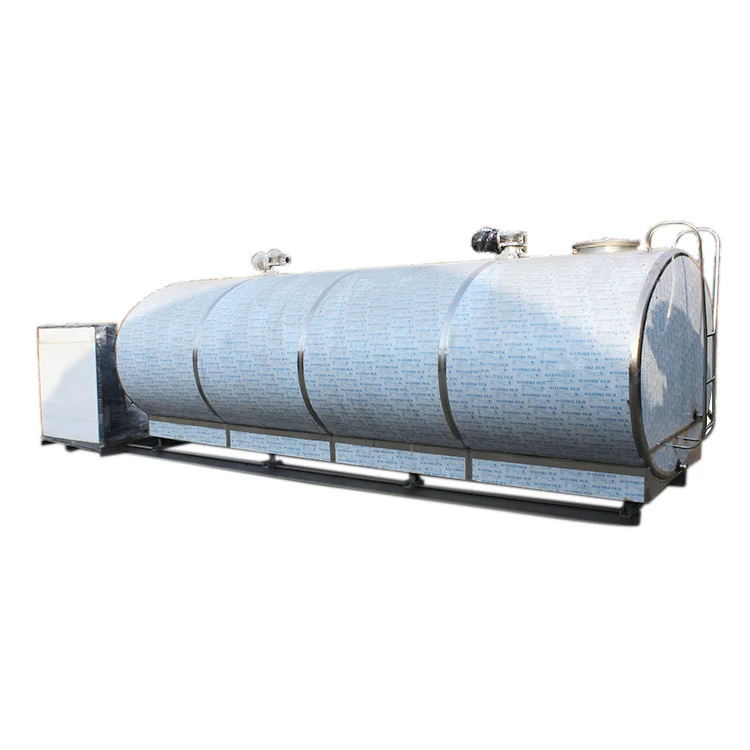

Stainless steel KLN milk chiller raw bulk milk cooling tank

Product Overview

Description

                        Stainless steel KLN milk chiller raw bulk milk cooling tank

Description:

Milk cooling tank composed of refrigeration units and tank body as two major parts. Tank body made of high quality AISI stainless steel (food grade); insulation layer use polyurethane foam one time forming; compressor unit using the most advanced U.S. Copeland flexible scroll compressor; optional device including automatic cleaning devices, electronic metering device and heat recovery system; independent computer control system makes our milk cooling tank in intelligent automatic working condition. Our milk cooling tank features are:quick cooling speed,high efficiency and insulation ability, low noise, reliable, simple operation, no maintenance and on-site installation, long service life. Capacity from 500L to 12000L to meet the different needs of various customer groups.

Parameter for milk cooling tank:

Model	Normal Volume	Refrigerating capacity	Heat reservation Performance	Blending Rotation speed	power	Power supply	Refrigerating medium
KLN-500	500L	4500W	≤1°C/14H	43R/MIN	3KW	220V	R22
KLN-800	800L	8000W	≤1°C/14H	43R/MIN	4KW	220V	R22
KLN-1000	1000L	12000W	≤1°C/14H	43R/MIN	4.8KW	3*380V	R22
KLN-2000	2000L	15000W	≤1°C/14H	43R/MIN	5.55KW	3*380V	R22
KLN-3000	3000L	15000W	≤1°C/14H	43R/MIN	5.55KW	3*380V	R22
KLN-6000	6000L	15000*2W	≤1°C/14H	43R/MIN	12KW	3*380V	R22
KLN-8000	8000L	15000*2W	≤1°C/14H	43R/MIN	12KW	3*380V	R22
KLN-10000	10000L	21700*2W	≤1°C/14H	43R/MIN	12.8KW	3*380V	R22



Features and benefits of milk cooling tank/ milk cooler :

Compact design;

Rapid and efficient cooling,( from +32ºC To +4ºC within 2 hours);

Low energy and operation costs;

High quality materials and quality craftsmanship;

Microprocessor driven cooling and cleaning controls;

Available in wide range of capacities.

Scope:

1. Bulk milk cooling tank is mainly used for freshness retaining, cooling and storage of liquid materials. It can be used in meadow, milk station, slaughter house, dairy products, food, beverage, etc.

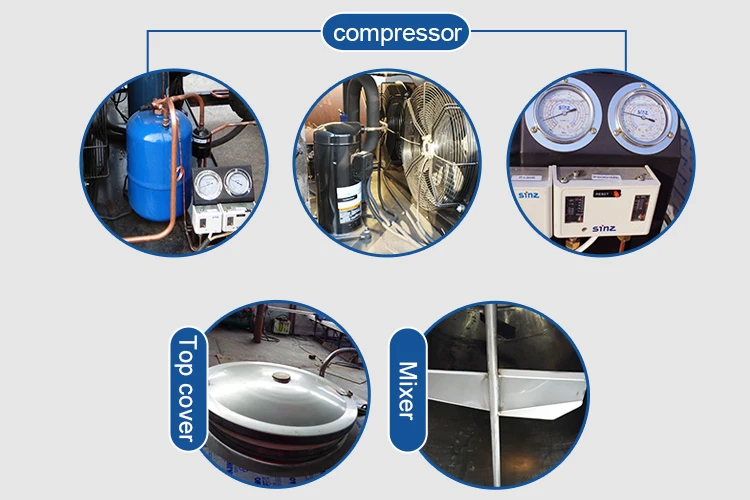

2. It contains tank body, agitation equipment, refrigerating unit, and electric control cabinet, etc.

3. Thank body is made of SUS304 (OR SUS316). It has precise polishing treatment so that dirties not easily accumulated in the tank. It has cleaning ball, and really easy to be cleaned.

4. The heat preservation layer of the tank is filled by hard foam plastics of low heat-conducting coefficient and light weight  to achieve a good  heat  preservation performance.





Click here to send inquiry:

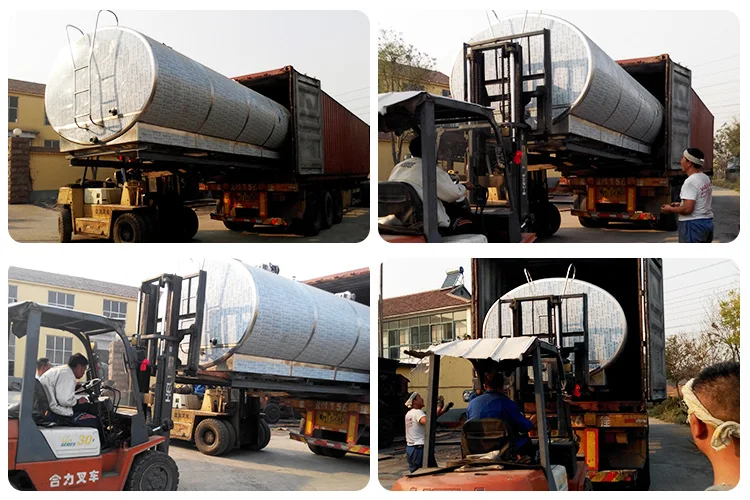

Package and shipping:

All tanks will be packaged with soft protection material and mounted on strong carbon steel frame

All accessories and spare parts will be packaged with separated box

After loaded into containers, all equipment will be well fixed to the containers

Related products:

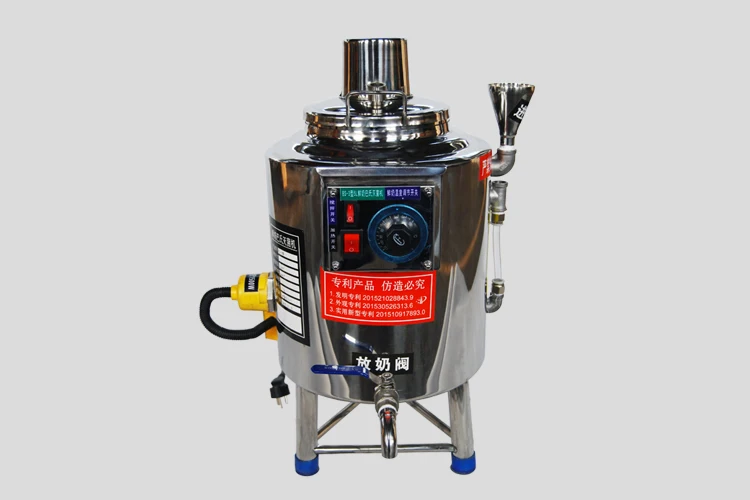

 milk pasteurizer



TMR mixer

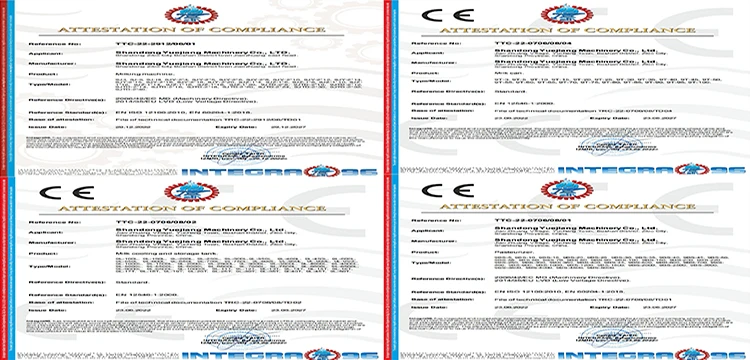

Certification:

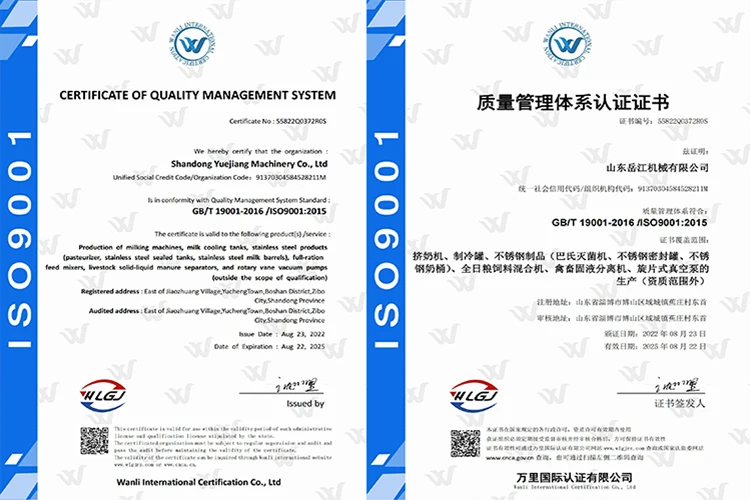

Our milking equipment and stainless steel milk chiller have obtained CE certification and ISO9001 certification.



Exhibition and international trade:

Our products have been exported to Malaysia, Indonesia, Mongolia, Jordan, South America, Libya, etc. Welcome friends from home and abroad to visit our company or negotiate with us. We will participate in Russian and Indian exhibitions every year.



Company information:

The company has been committed to the development and production of stainless steel products, the main products are pasteurized milk sterilization machine, stainless steel containers and stainless steel fittings in various fields. The Pap's fresh milk sterilizer produced by our company won the utility model patent certificate and design patent certificate in 2016. The company pays attention to creating high-quality stainless steel production enterprises, providing reliable service system and high-quality product experience for domestic and foreign users.
