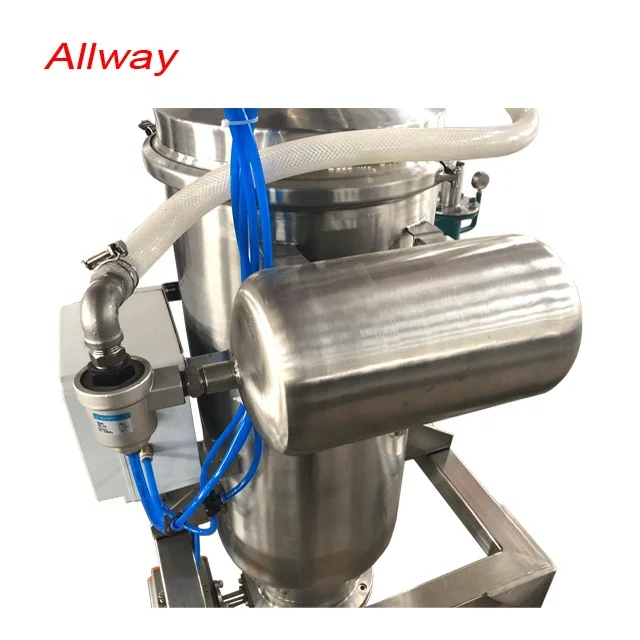

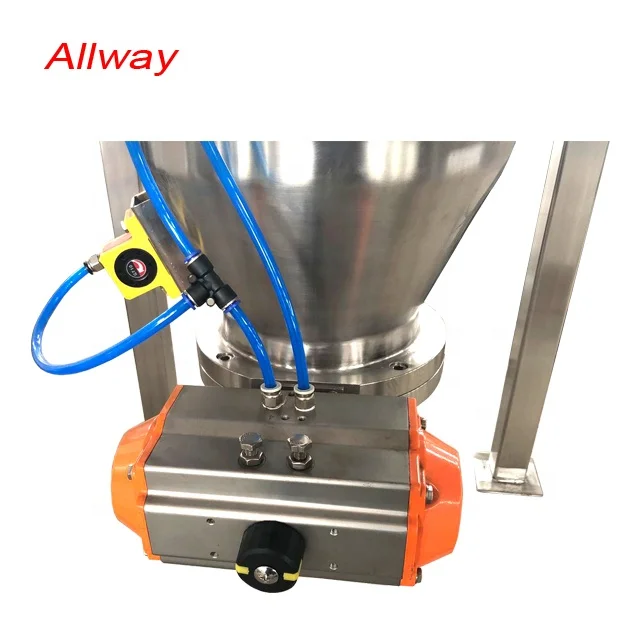

customized pneumatic vacuum conveyor for powder or granule
- Category: >>>
- Supplier: Nanjing Allway Environmental Technology Equipment Co. Ltd.
Share on (60841461069):
Product Overview
Description
Product Description

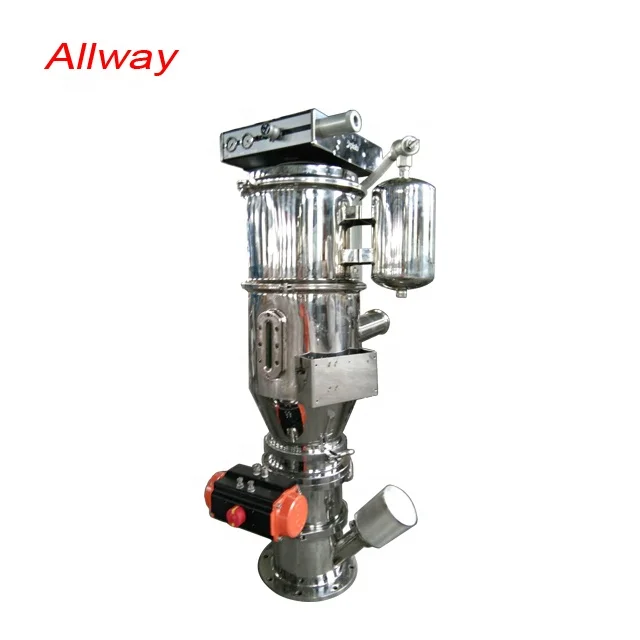

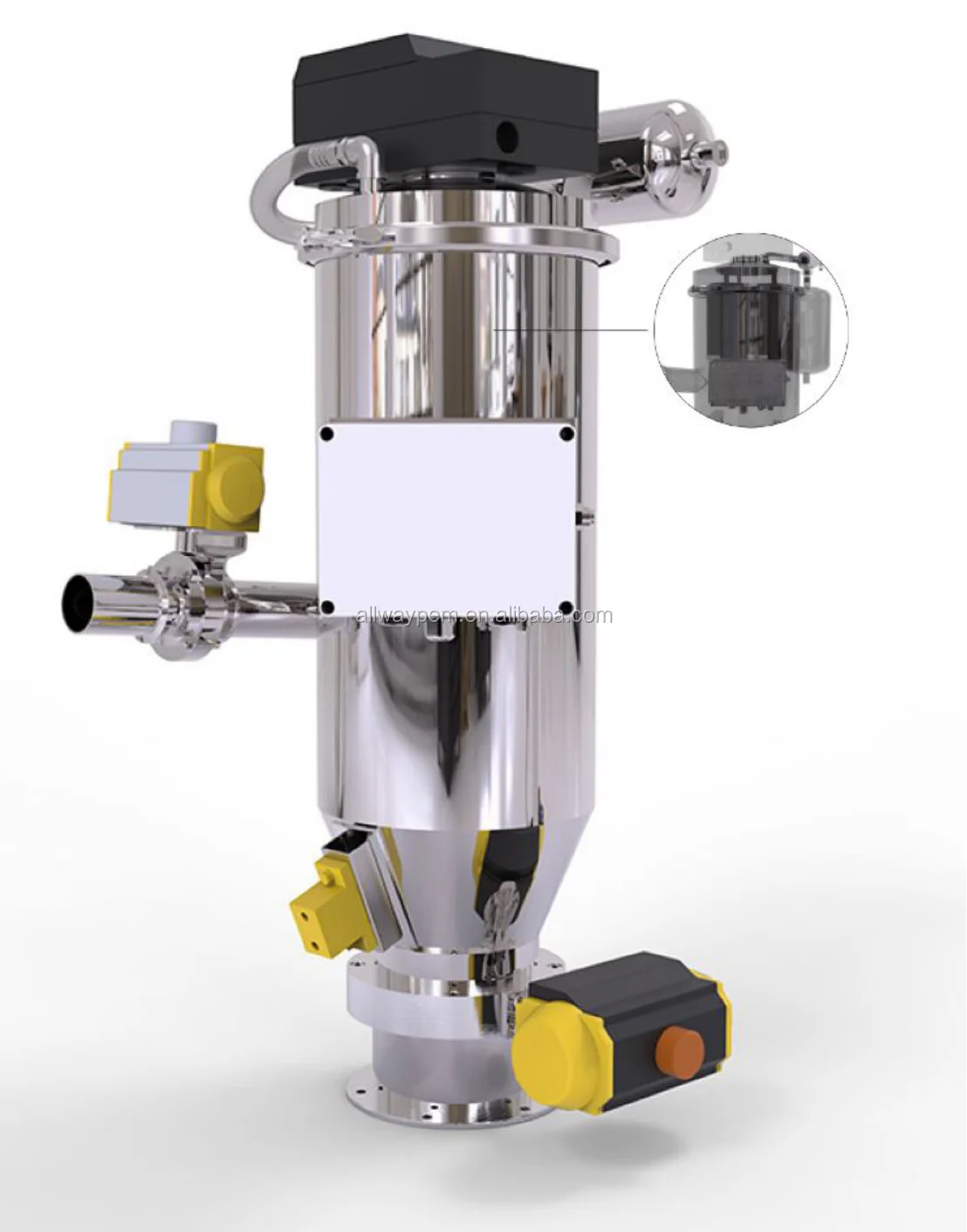

Allway Vacuum Conveyor
Basic Parameters | ||||
Model | AWZ180PC | AWZ250PC | AWZ320PC | AWZ430PC |
Equipment height | 850MM | 950MM | 1100MM | 1400MM |
Inner diameter | 180MM | 250MM | 320MM | 430MM |
Effective volume | 7L | 18L | 35L | 60L |
Equipment weight | 20KG | 35KG | 37KG | 55KG |
Blanking butterfly valve caliber | 150MM | 150MM | 320MM | 200MM |
Air consumption | (0L/min,0.6L/min) | (0L/min,0.6L/min) | (0L/min,0.6L/min) | (0L/min,0.6L/min) |
Vacuum flow | (0L/min,90L/min) | (0L/min,90L/min) | (0L/min,90L/min) | (0L/min,90L/min) |
Work pressure | (-92.5kpa,0kpa) | (-92.5kpa,0kpa) | (-92.5kpa,0kpa) | (-92.5kpa,0kpa) |
Throughput | (0.1t/h-0.5t/h) | (0.3t/h-0.8t/h) | (0.5t/h-2t/h) | (1.3t/h-5t/h) |
Applicable Item Properties | ||||
Applicable Material Type | Powder | Granule | ||
Applicable Material Temperature | (-10℃-70℃) | (-10℃-70℃) | ||
Applicable Material Humidity | (0%RH-20%RH) | (0%RH-20%RH) | ||
Applicable Material Particle Size | (0.2um-10mm) | (0.2um-10mm) | ||
Vertical Conveying Distance | (0m-20m) | (0m-20m) | ||
Horizontal Conveying Distance | (0m-80m) | (0m-80m) | ||
If larger capacity equipment is needed, please contact us for customization. | ||||
Application Scale
Vacuum conveyors can be widely used in magnetic materials industry, food processing industry, plastic processing industry, lithium power industry, coatings industry, chemical industry and pharmaceutical industry etc.
Company Information

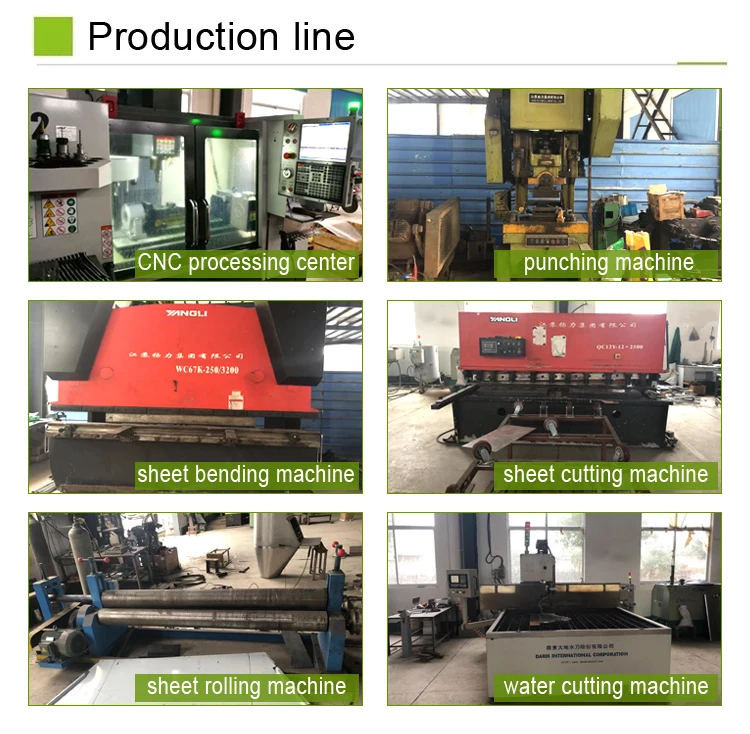

Production Line
