Long range tr20 in ear monitor wireless system with 9v phantom power

Share on (60841569857):


Price:$100.00 - $110.00

Quantity:


Product Overview

Description



Product Description










     Main Feature


   1.Using UHF 600-999 MHz band to avert frequency interference.

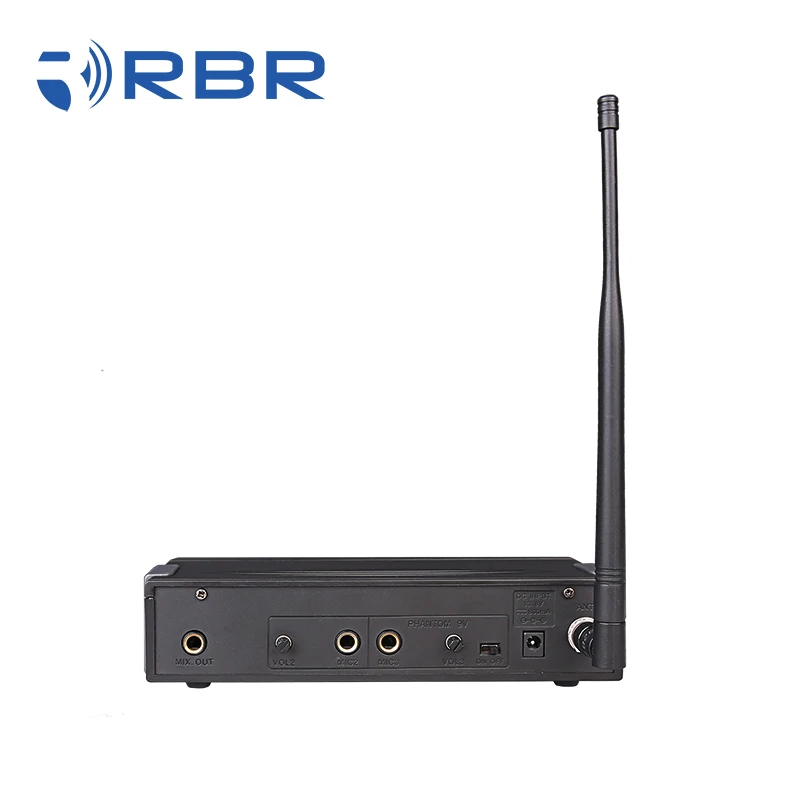

  2.Three audio source input jacket, support phantom power microphone input.

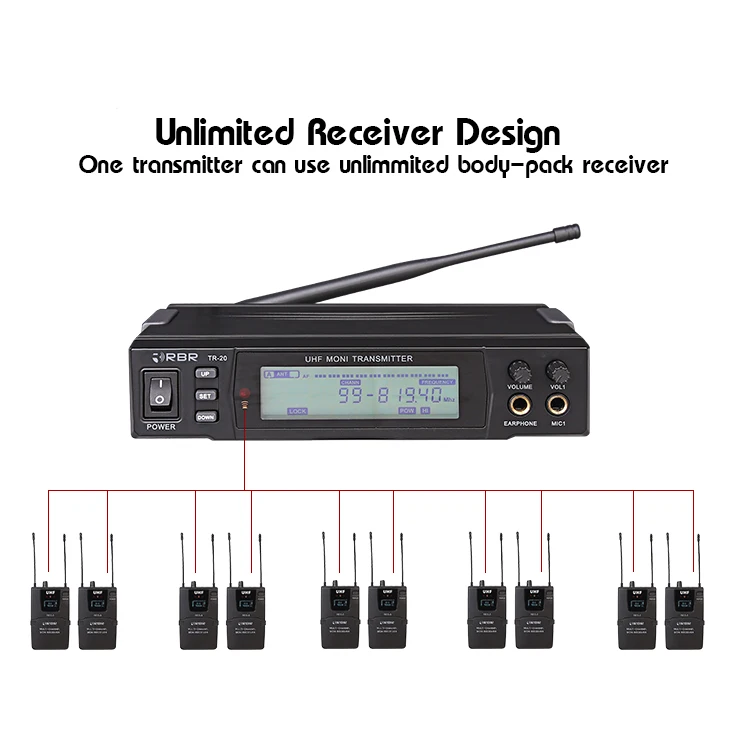

  3.One transmitter can use unlimited body-pack receivers.


  4. PLL circuit design, preset 99 non-interfered channels.


  5.Automatic frequency scan feature searches for available frequencies.


  6.Splendid LCD display, shows the RF level, AF level, channel and frequency.

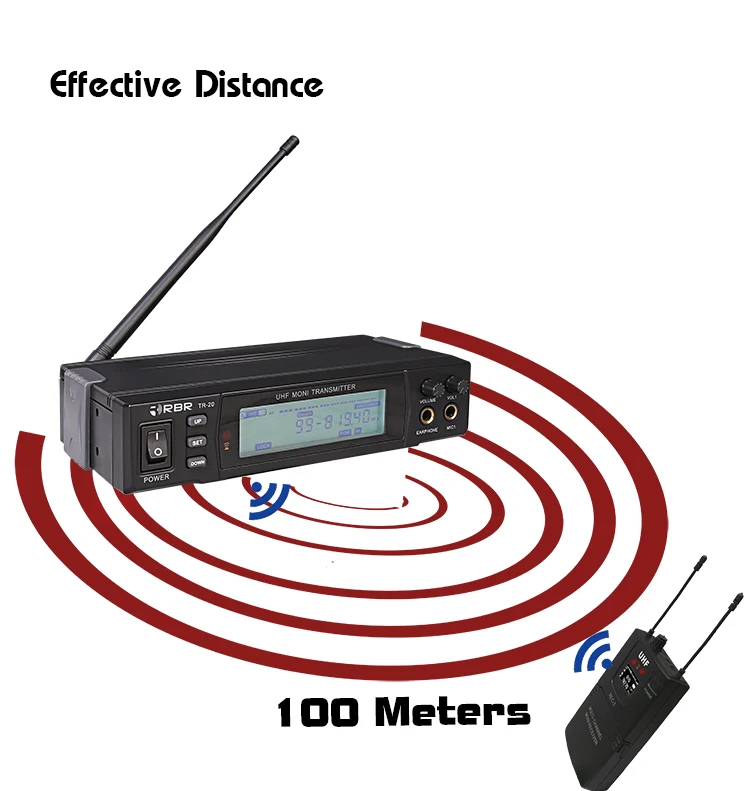

  7.Strong transmitter power, the distance can be reached 100 meters.


  8.Half of 19 inch rack design, two systems can be connected for 19" rack.


  9.Designed for professional stage use.

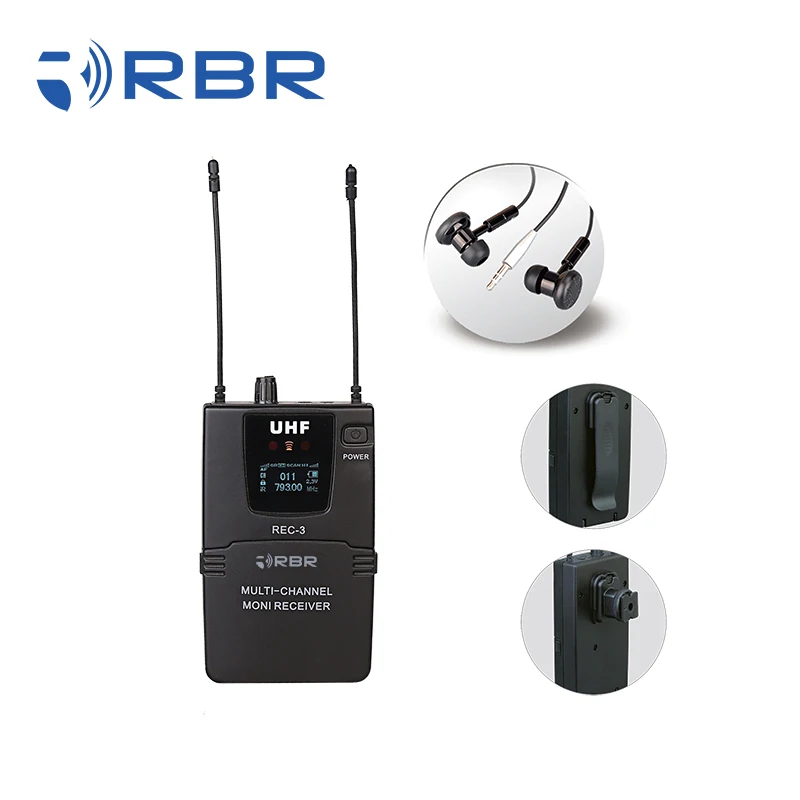

 RECEIVER
Power Supply3V (2x1.5V AA Battery)Receiving Sensitivity10dBuV (SINAD=30dB)
 Total Harmonic Distortion Total Harmonic DistortionDe-Emphasis50uS
Signal/Noise Ratio>90dBEarphone Impedance32 ohm
Image Rejection>80dB

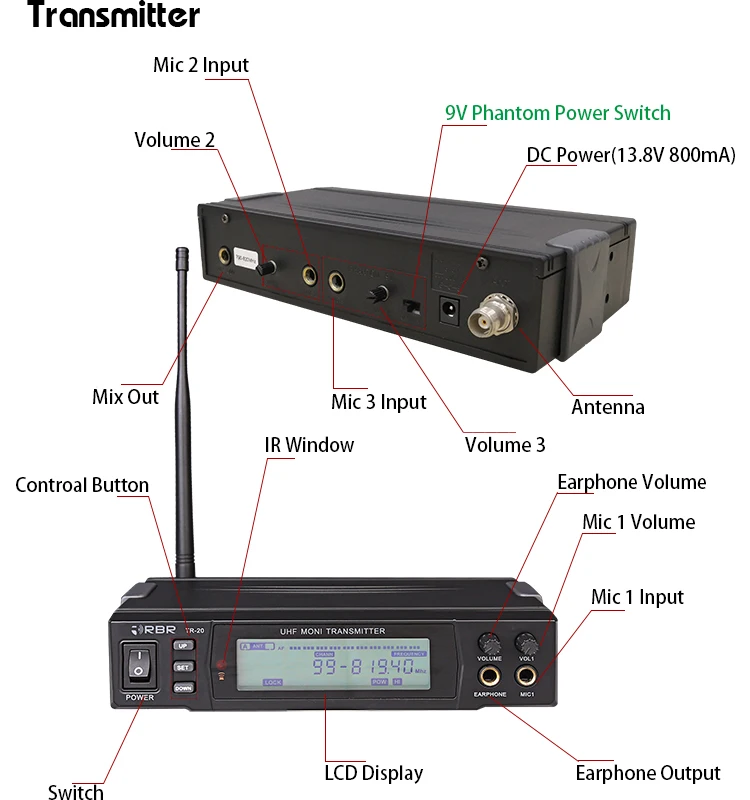

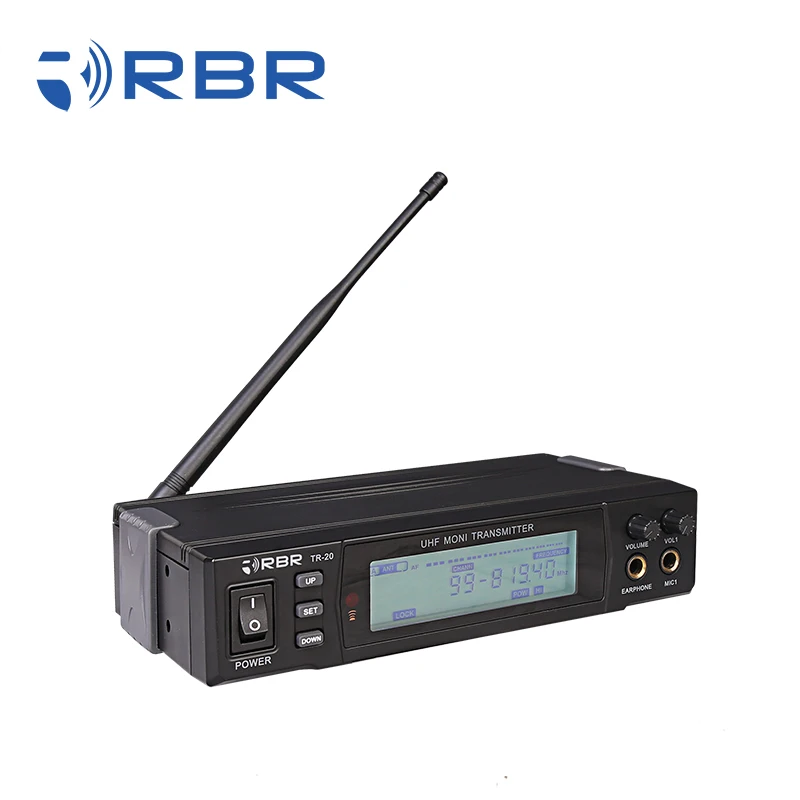

 TRANSMITTER
Power SupplyDC15-17VFrequency Stabilization ±0.005%
Transmitter PowerHI:100mW  Lo:30:mWDeviation40KHz
Modulation TypeFMTotal Harmonic Distortion< 0.5%
 Spurious Emission>60dB  Earphone Impedance 32 ohm
