Product Introduction

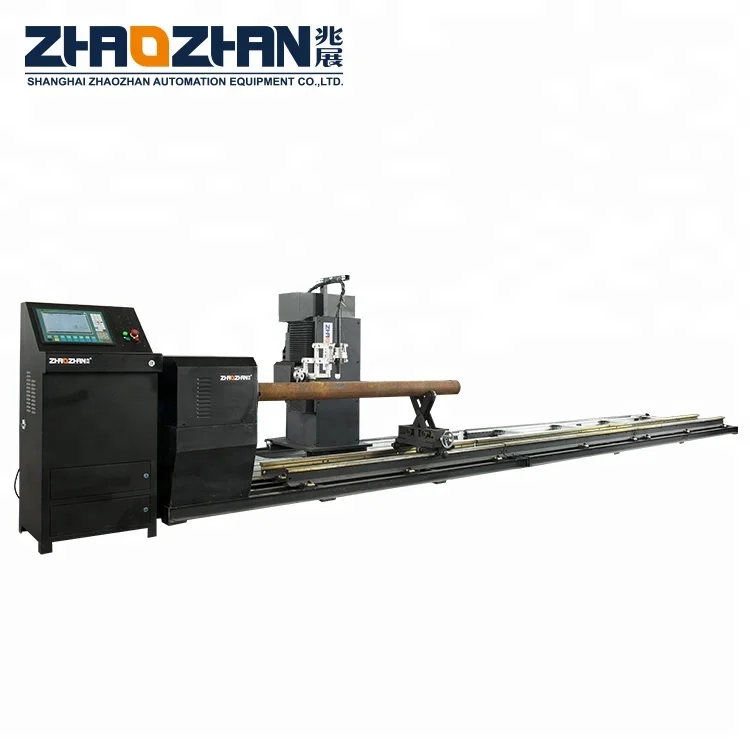

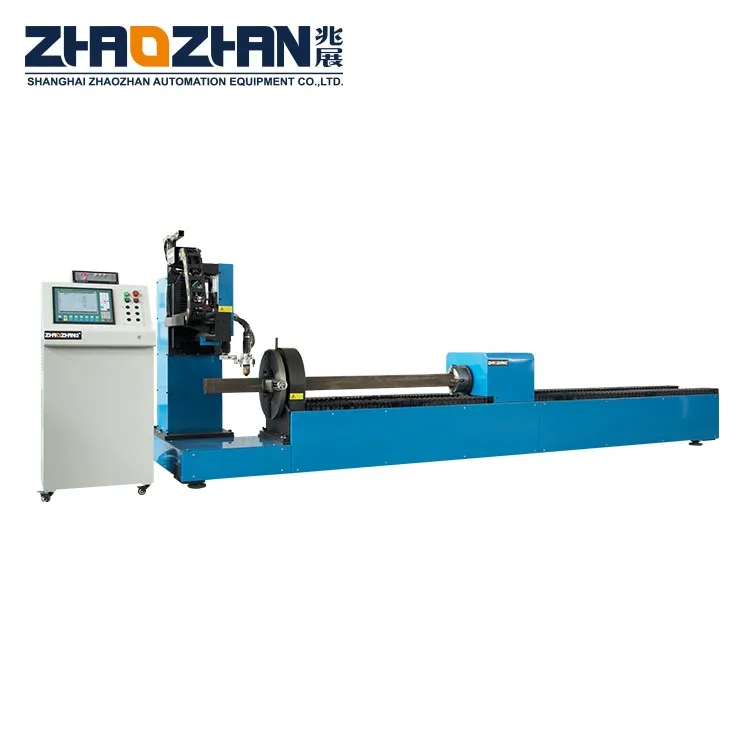

      CNC Cutter 2 Axis CNC Automatic Pipe Plasma Cutting Machine                                  Widely Used With Table China Design

Machine tool and beam are of good quality aluminum alloy which is anti-deformed, durable, economical and decent after the disposal of stress relieving and surface oxidation.



                                                                          Easy operation and high efficiency

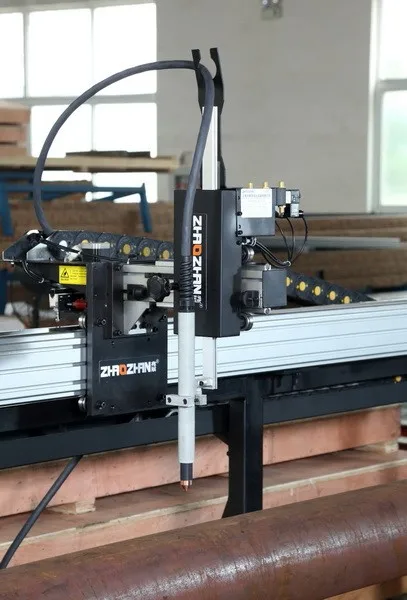

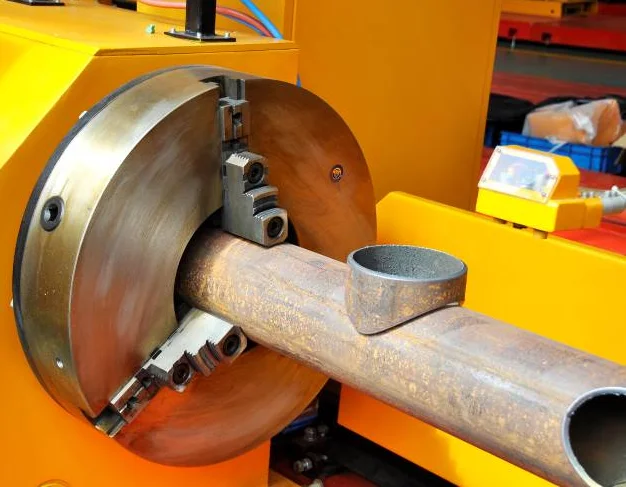

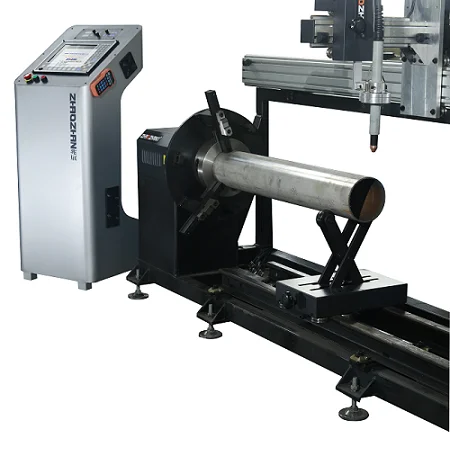

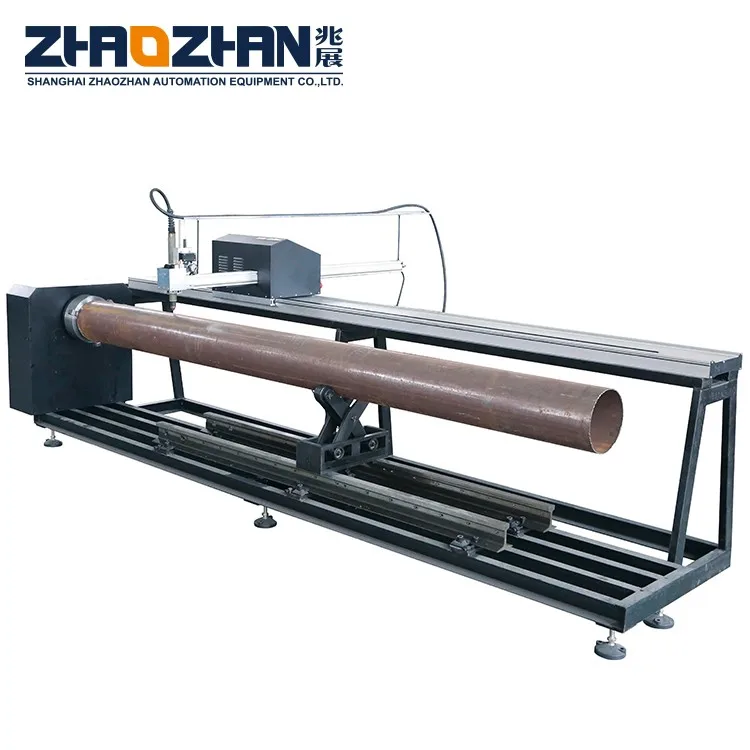

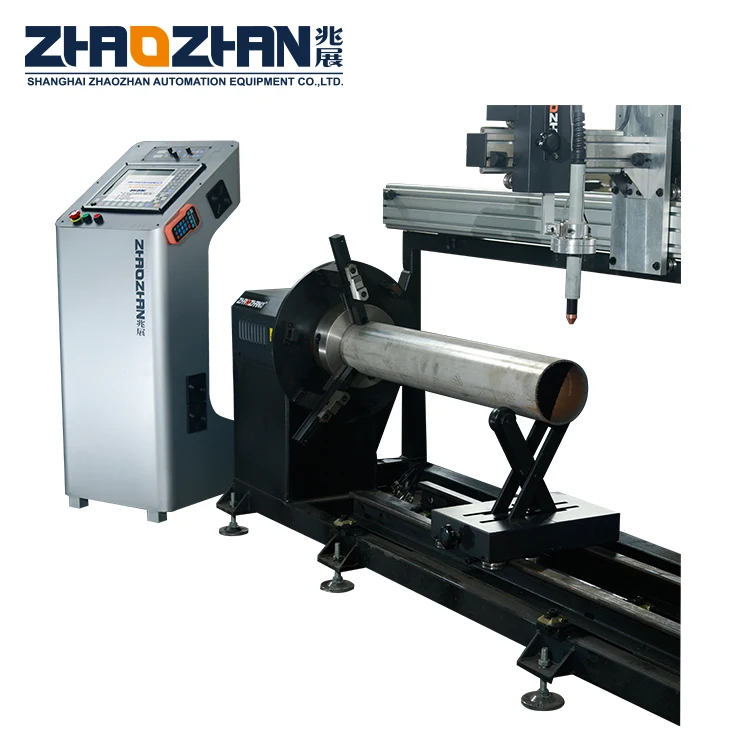

1.It is used gantry style design parallel to the pipe. The tractor with lifting tool installed on the gantry beam. The pipe fix by chuck jaw, and with movable and adjustable pipe supporters which on the rails and under the pipe.

2.When cutting, CNC control system will control the tractor move and pipe rotate to cut the pipe,its stability fitting for long term use.

3.Work fit for 50-500mm diameter without bevel cutting pipes.

Workable of stainless,steel,aluminum,copper etc with high accuracy and stability.

Easy for you to control,operate,and work

Of course operation chuck will be supplied.

Color or any  other requires can be met in your favor.

Product Description
\t
                 Name
\t
                                                    2 Axis CNC Pipe Cutting Machine
\t
                 Model
\t
  CNCUT-P250-ST
\t
   CNCUT-P500-ST
\t
  CNCUT-P250-SE
\t
  CNCUT-P500-SE
\t
          Chuck And
          Motor Style
\t
                   86 Series 120 Step Motors +                                       Worm Gear Box
\t
                750W Panasonic Servo Motor +                                      Reduce Gear Box
\t
         Input Power
\t
                      Single Phase AC 220V
\t
                        Single Phase AC 220V
\t
                       Approximately 800W
\t
                        Approximately 1000W
\t
          Pipe Length
\t
                                                        Produce according to clients' demand
\t
        Size Of Chuck
\t
           φ250mm
\t
       φ250mm +               Connected Jaw
\t
           φ250mm
\t
        φ250mm +                Connected Jaw
\t
       Pipe Diameter
\t
     φ50~φ260 mm
\t
      φ50~φ500 mm
\t
     φ50~φ260 mm
\t
    φ50~φ500 mm
\t
 Max. Weight Of Pipe
\t
                                      ≤250 kg
\t
                                    ≤600 kg
\t
        Customizing
\t
          Please contact ZHAOZHAN's salesman if you have any other pipe length, weight,                                      diameter demand. We will supply you Fully customized programs
\t
      Cutting Modes
\t
   Plasma Cutting (Working with plasma generator) and Flame Cutting replacement used
\t
     Reduction Ratio
\t
               1:21 (might be changed)
\t
                1:175 (might be changed)
\t
            Max Pipe
       Rotate Speed
\t
                                  0-10 rpm
     (can be adjusted as special demand)
\t
                                   0-15 rpm
        (can be adjusted as special demand)
\t
      Ovality Of Pipe
\t
                                                                                           ≤2%
\t
          Numbers Of
      Pipe Supporter
\t
                                                         Supply according to real pipe situation
\t
Auto Controlled Axis
\t
                                                                            Two-axis linkage
\t
       Torch Lifting                   Distance (Z)
\t
                                                                                    ≤210mm
\t
 Working Precision
\t
                                                                              ± 0.2 mm / meter
\t
       Flame (Gas)
  Cutting Thickness
\t
                                                                   Piercing Capacity: 5 - 60 mm
                                                                        Edge Start:5 - 120mm
\t
   Plasma Cutting                  Thickness
\t
                                    Depends on the cutting capacity of the Plasma Generator
\t
       Plasma THC
\t
                                                                                        Optional
\t
         Gas Pressure
\t
                                                    Acetylene Gas or Propane Gas Max 0.1Mpa
\t
     Oxygen Pressure
\t
                                                                       Oxygen Gas Max 0.7Mpa
\t
        Cutting Table
\t
                                                                    Separated with main machine.
                                   Cutting table and pipe supporters and chuck will be supplied.

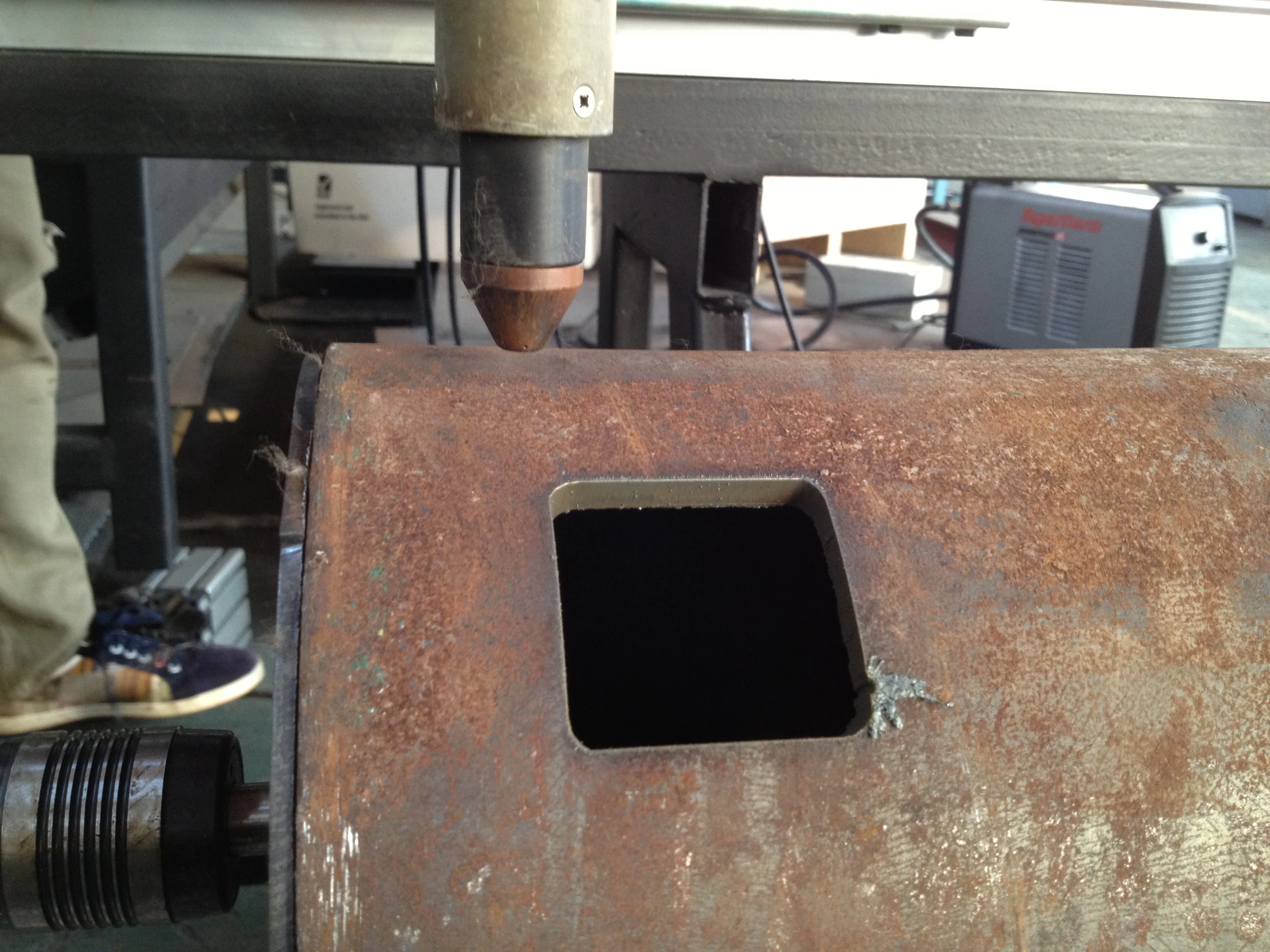

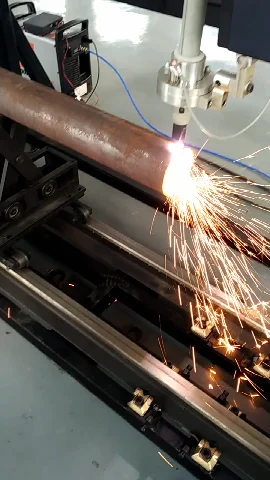

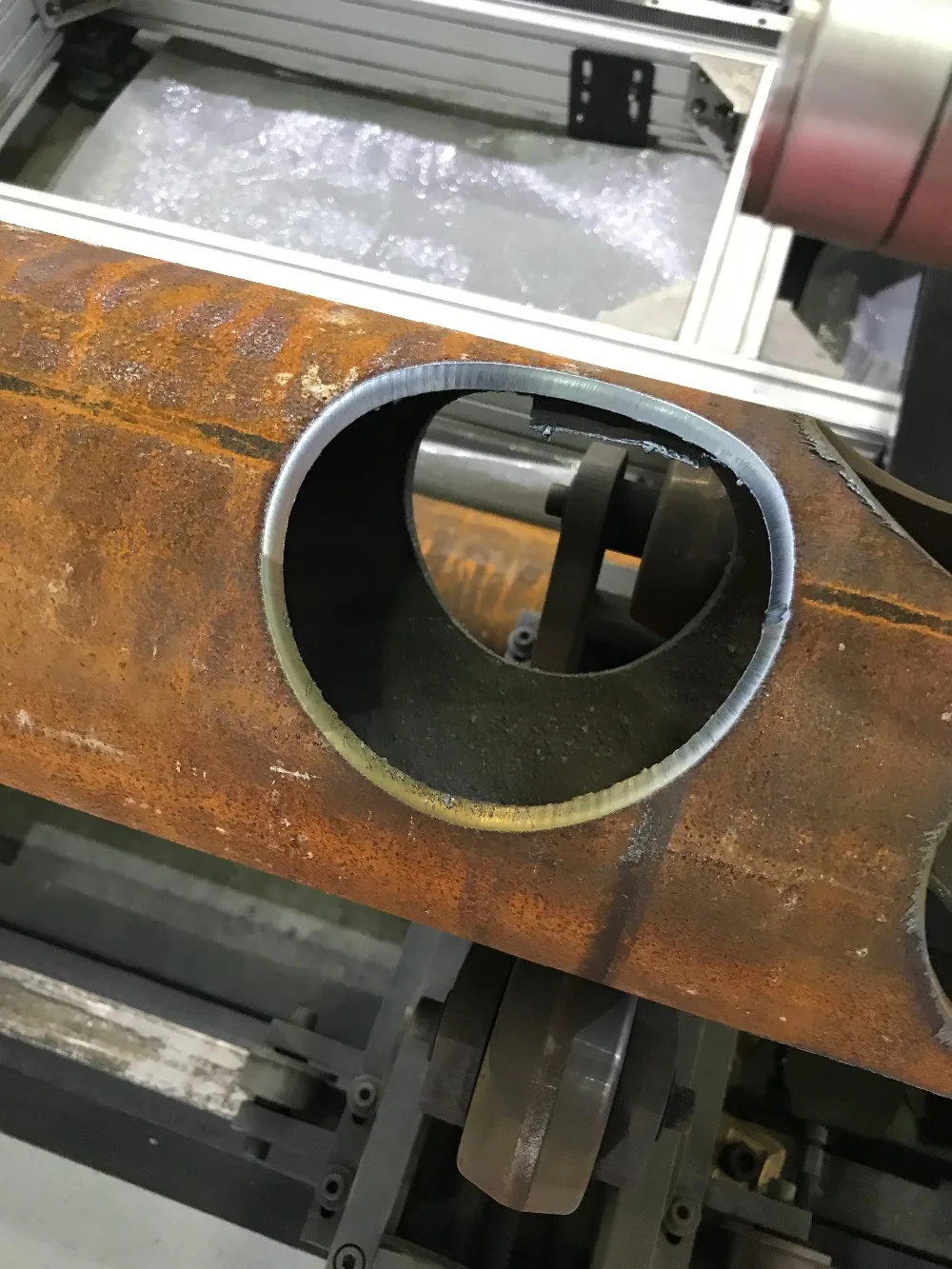

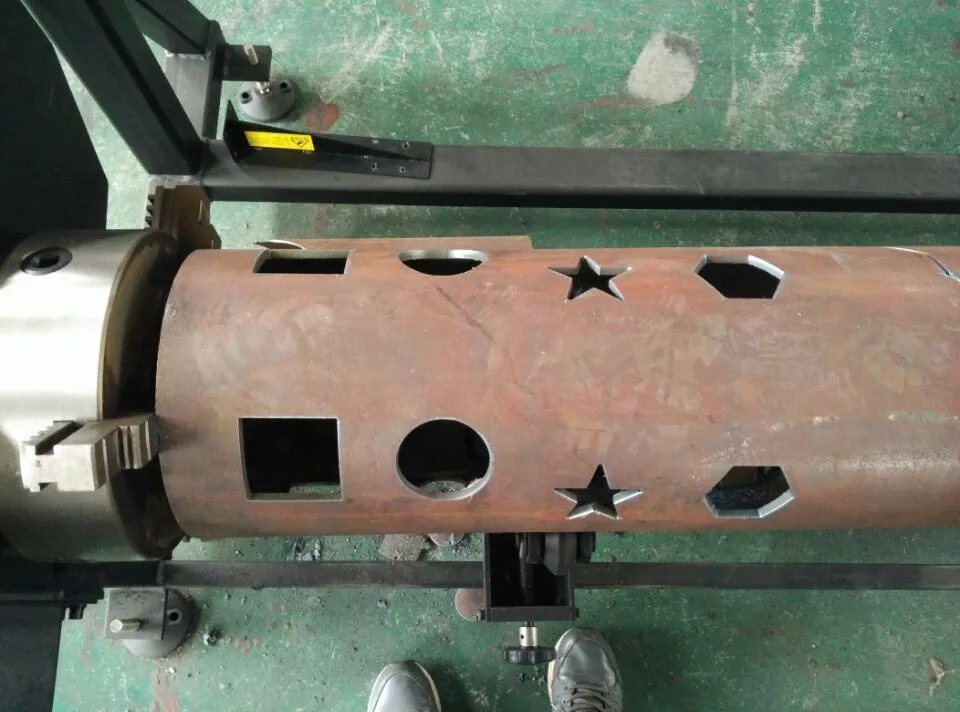

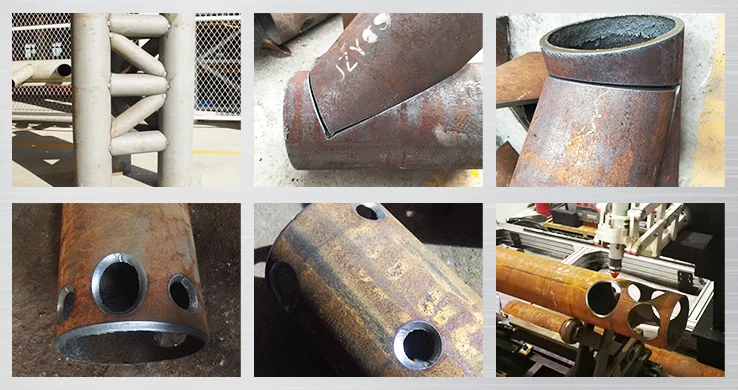

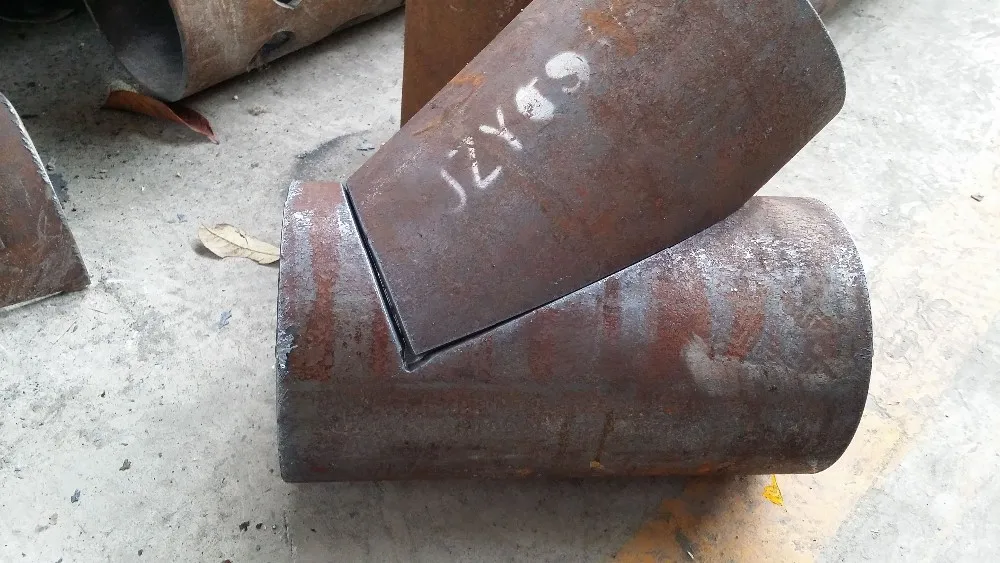

Cutting Samples
Our Company
Certifications
Our Service
Trust us!

Pre-sale service : Call us no matter cooperate or not. you may get unexpected surprise. We will devote ourselves into knowing clients specific needs and requirements to suggest them the most suitable machine with best price,

Selling service : Patiently and thoughtfully answer all of ur concers, and provide you most valuable suggestion to gurantee our clients to get the most benifit from our cooperation

After sale service 24 hours technician online for your questions . Latest software is always available.Traning videos and CD in english will help clients better use machines easily. 12 months warranty for free for all parts broken under non human factors. After warranty we can renewal our contract, so that u can enjoy our same warranty service for the whole life of machine.

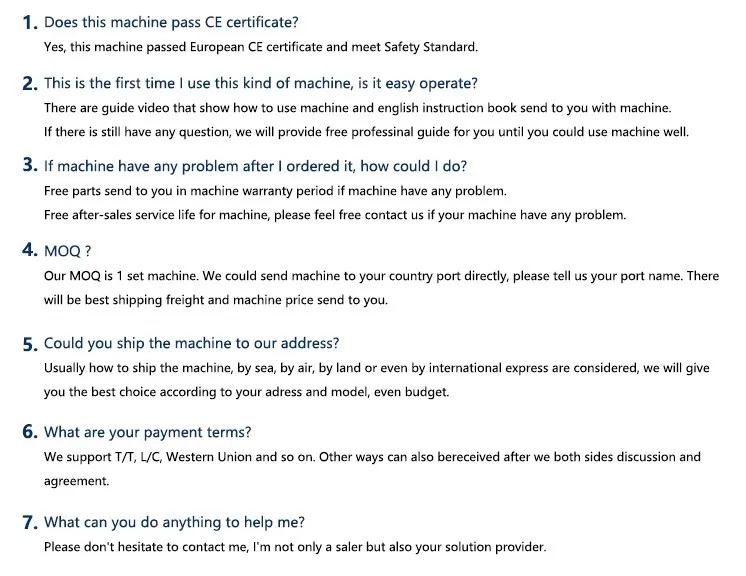

FAQ
