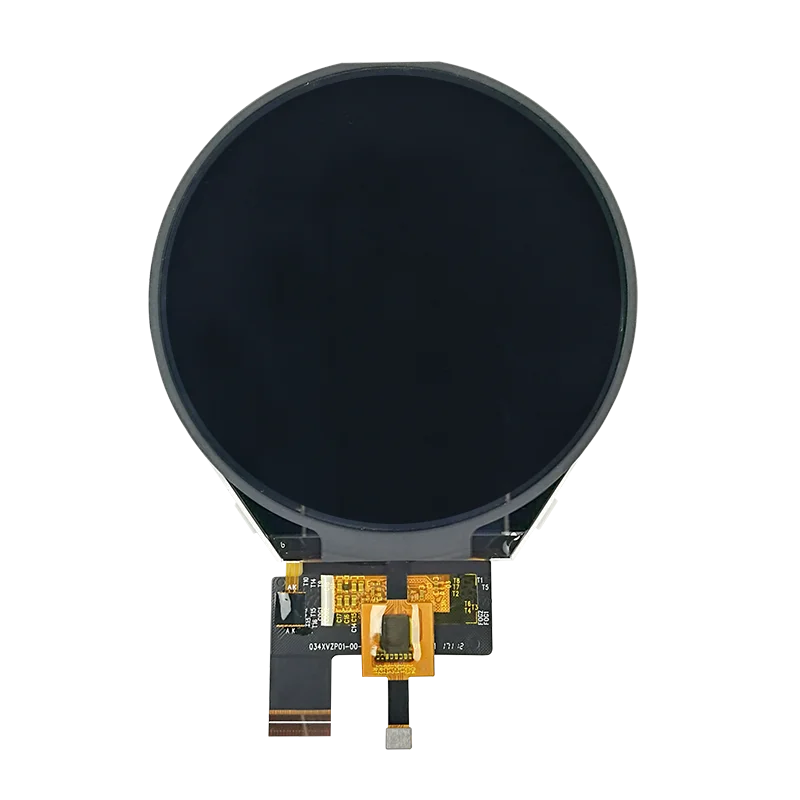

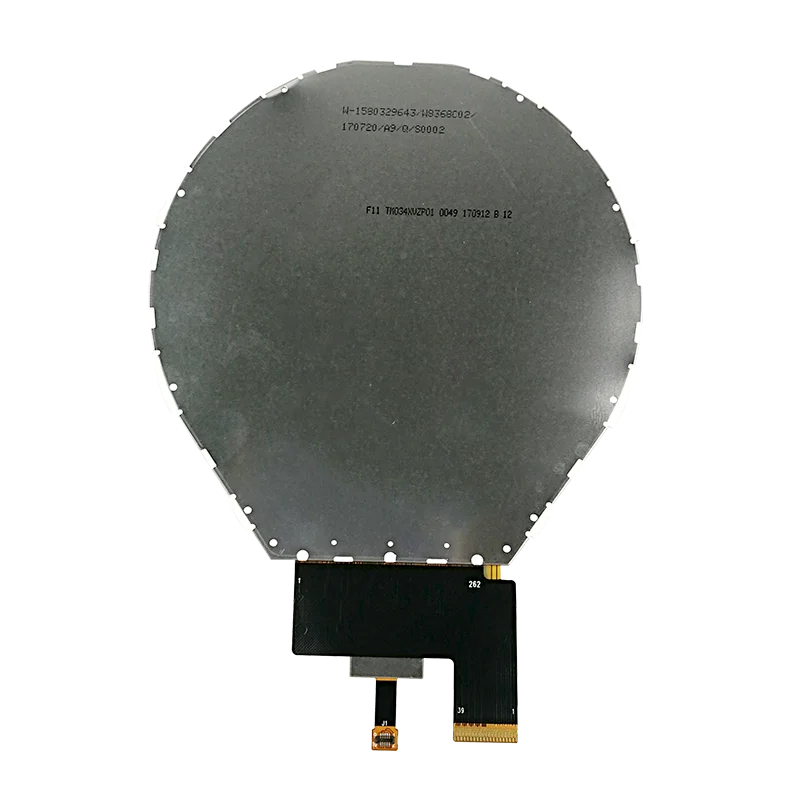

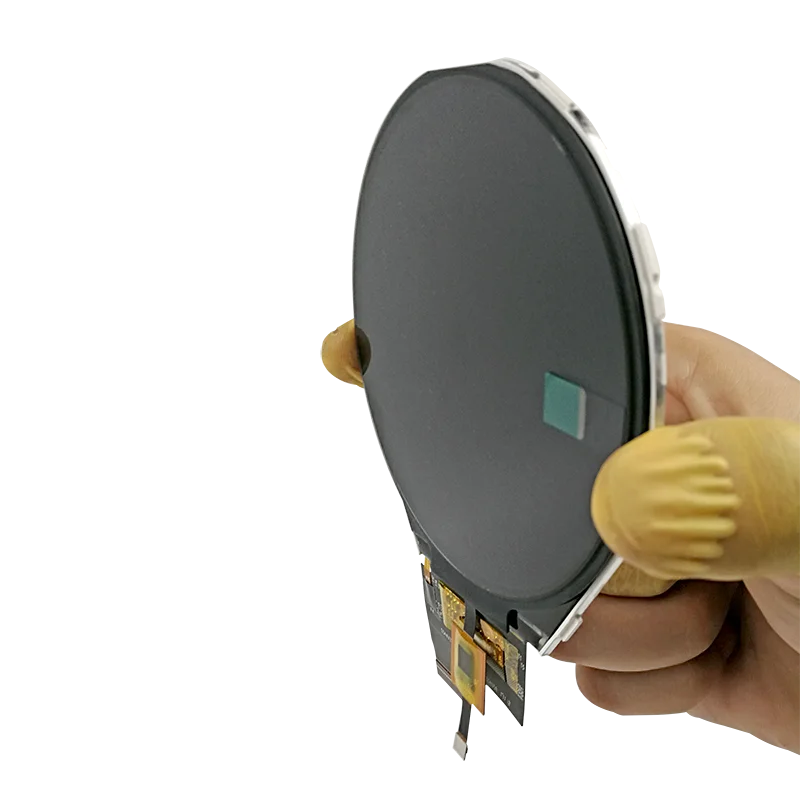

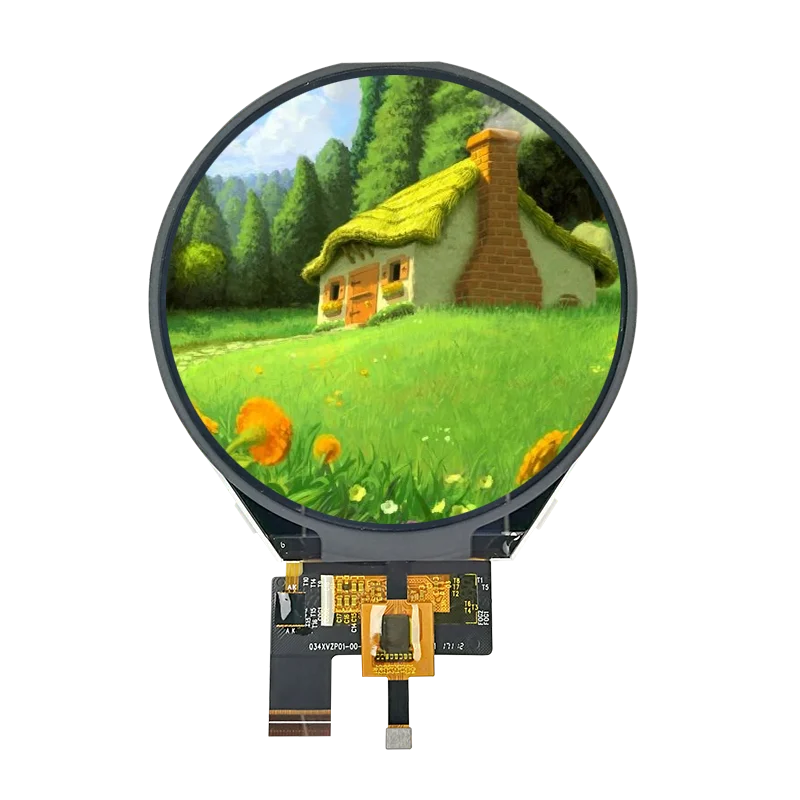

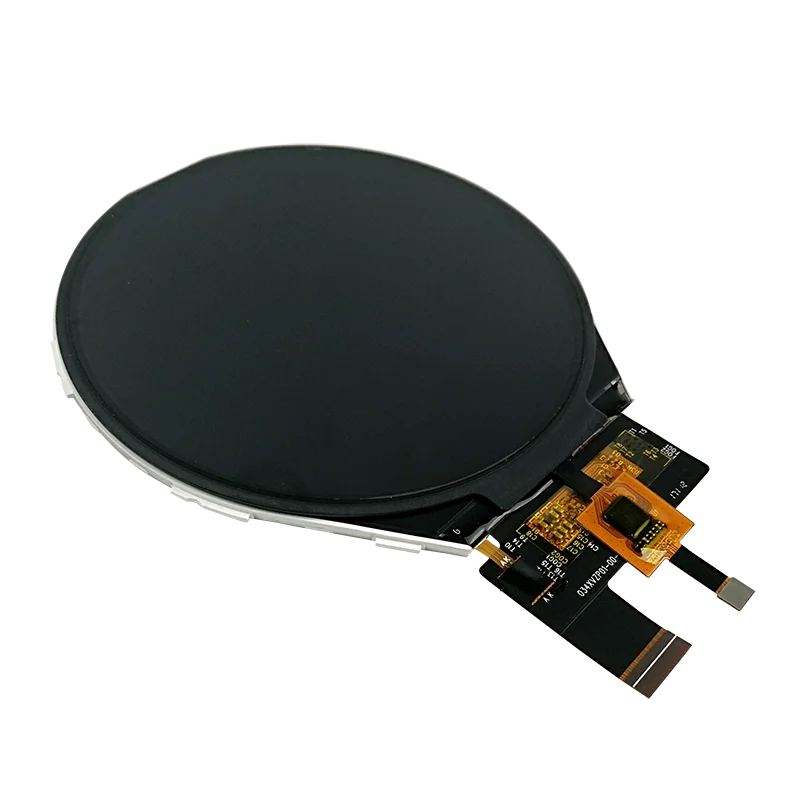

3.4 inch circle IPS 800*800 mipi interface capacitive touch screen panel round lcd display tft module
- Category: >>>
- Supplier: Shenzhen Saef Technology Ltd.
Share on (60841629623):
Product Overview
Description

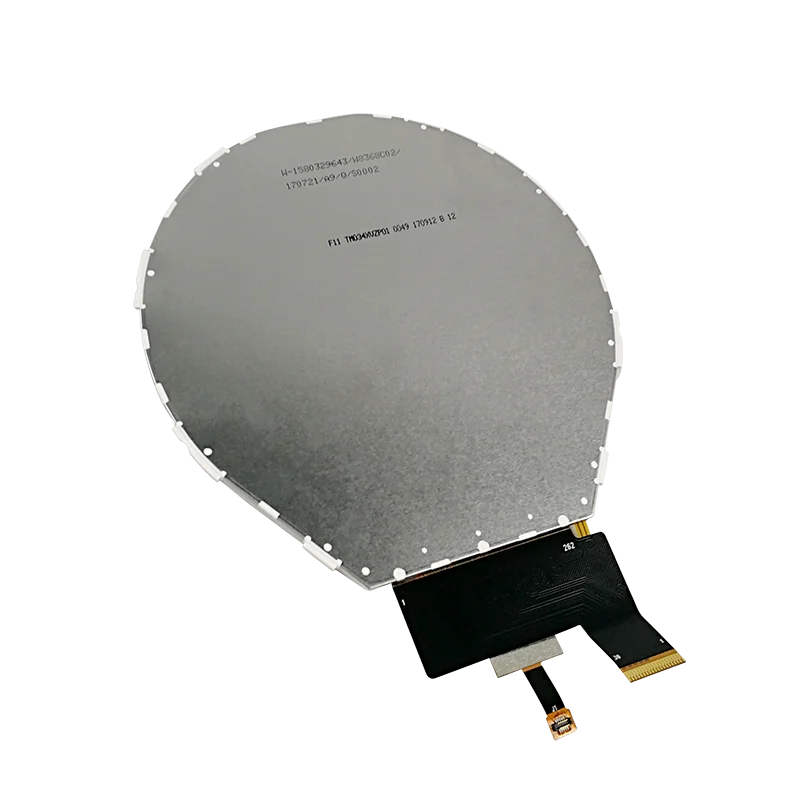

3.4 inch circle IPS 800*800 mipi interface capacitive touch screen panel round lcd display tft module
1. Display Type: | 3.4 inch round tft display |
2. Display mode: | Transmissive |
3. Resolution: | 800x800 dots |
4. LCD Driver IC&CTP Driver IC : | ILI9881C/HX8526-E30 |
5. Outline Dimensions: | 99.0 x 96.6 x 3.98mm |
6.Luminous Intensity for LCM | 350Cd/m2 |
7. LCD & CTP Interface Type: | MIPI 3 lane+IIC |
8. Backlight: | White 8 LEDs |
9. Operating voltage: | +1.75V~3.3V |
10. Viewing Angle: | Full Viewing angle |
11. Operating Temp: | -10°C~+70°C |
12. Storage Temp: | -20°C~+80°C |
1. ISO9001 certificated, Factory Direct Supplied
2.RoHS Compliant, Lead Free, Reach Compliant
3.Competitive Price and Short Lead-time
4.Professional Team with Rich Experiences in Design/Mfg/Quality Control
5.Small MOQ Support & Fast Response to Customers
6.Long Product Life Time

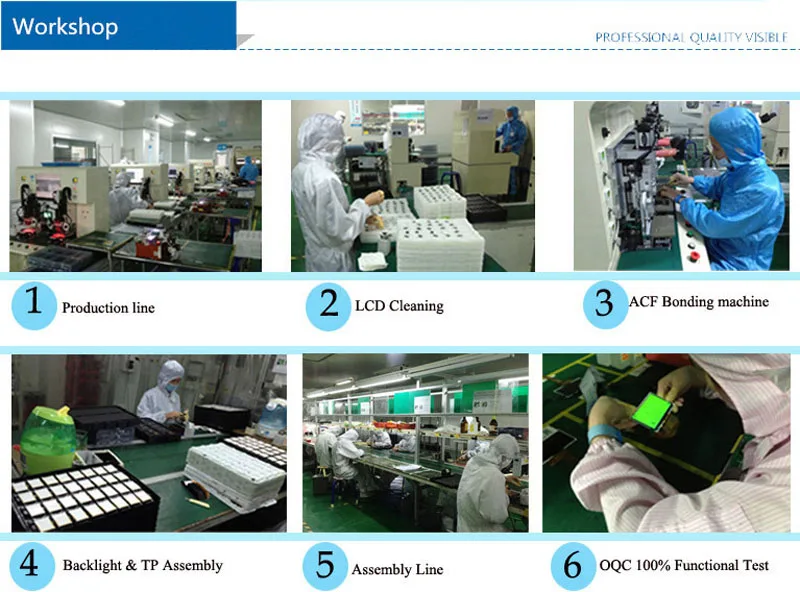

Shenzhen SAEF Technology Ltd. is a manufacturer of LCD display modules and touch panel devices with well-equipped testing facilities and strong technical force.
With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
