Desulphurization System Electric Slurry lime slurry delivery Pump
- Category: >>>
- Supplier: Shijiazhuang Xintuo Slurry Pump Co. Ltd.
Share on (60841644706):
Product Overview
Description

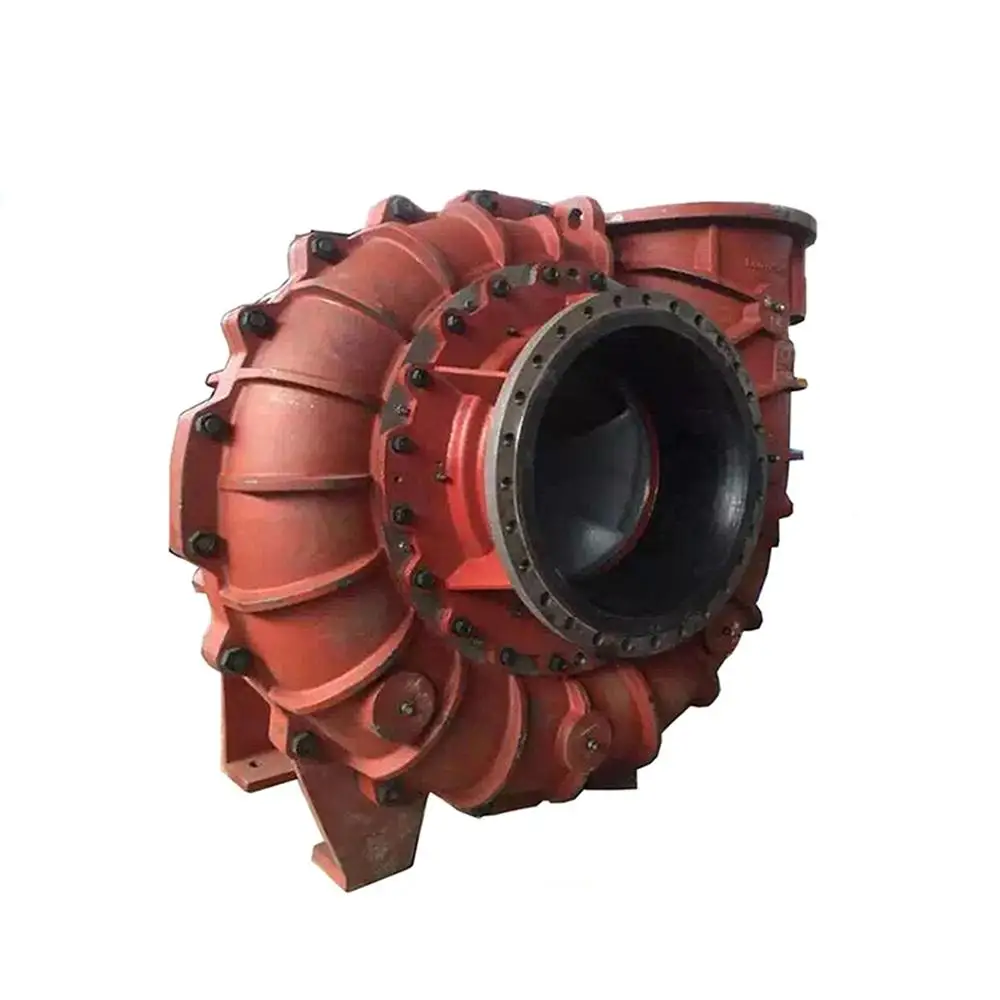

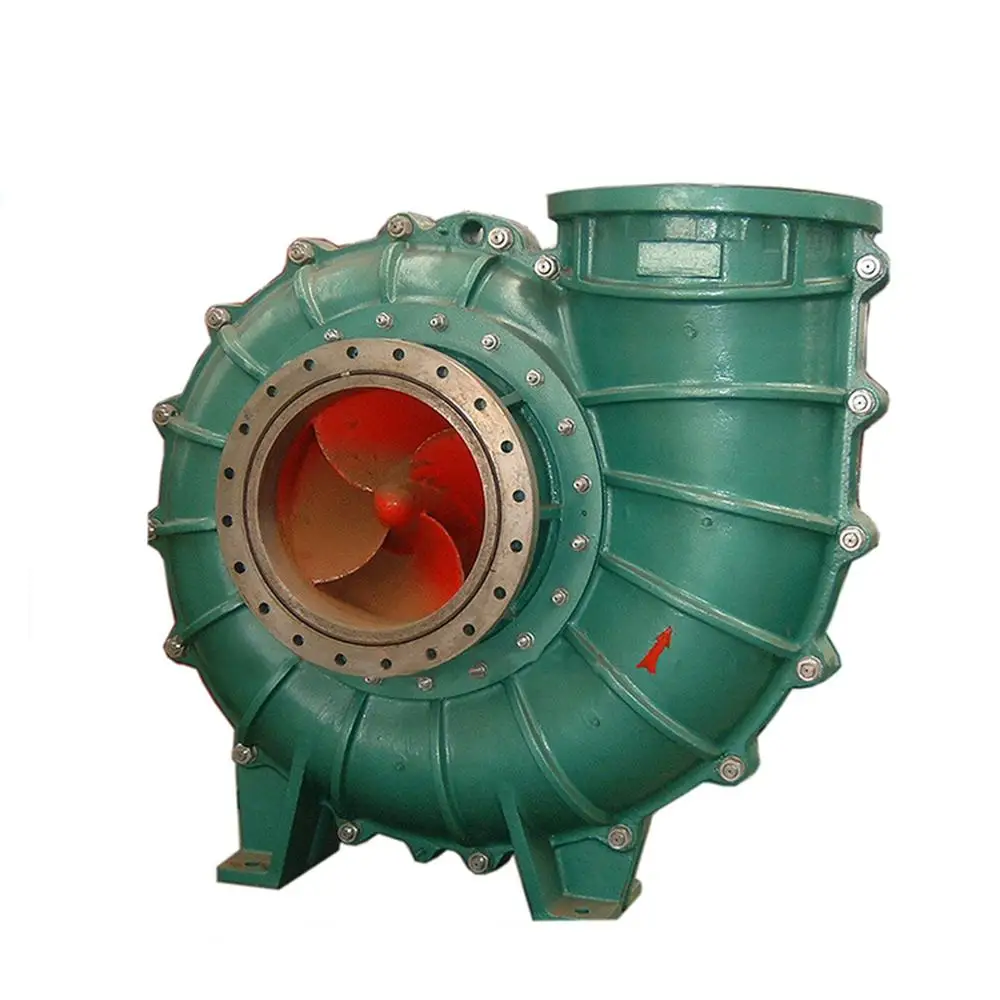

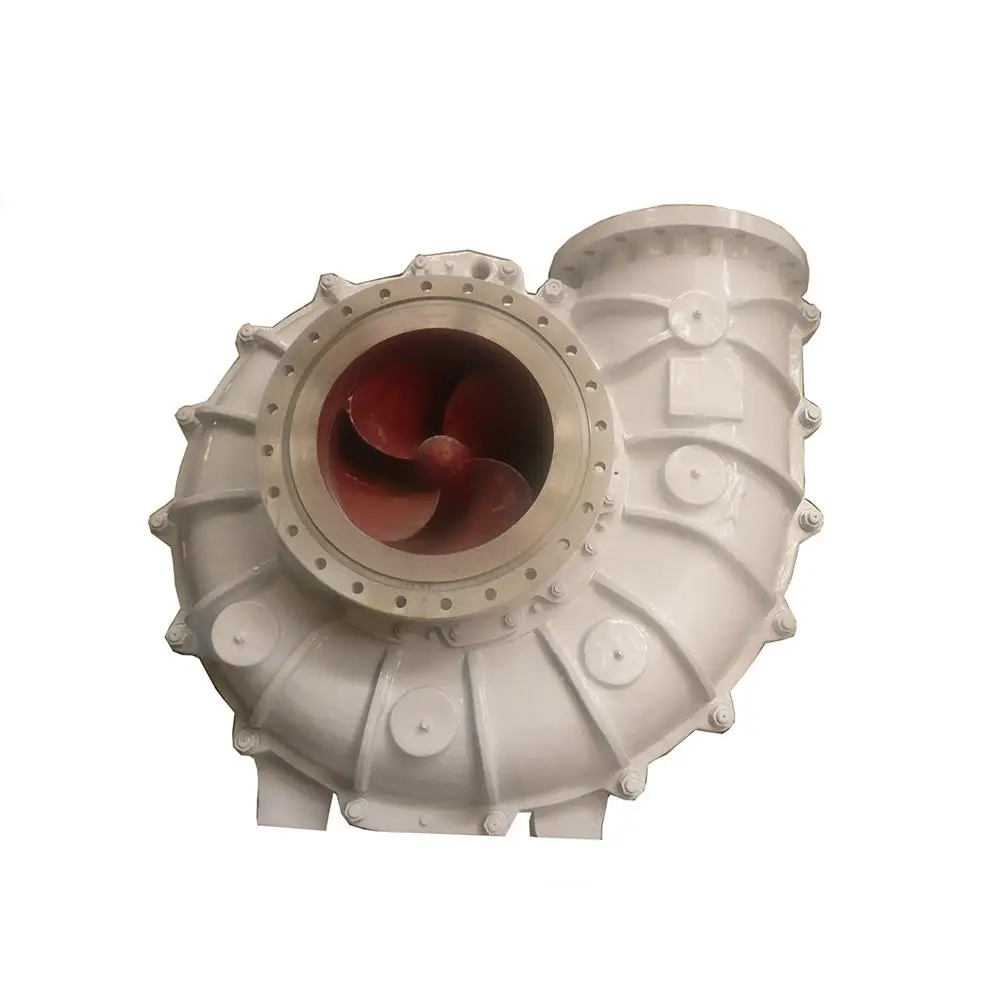

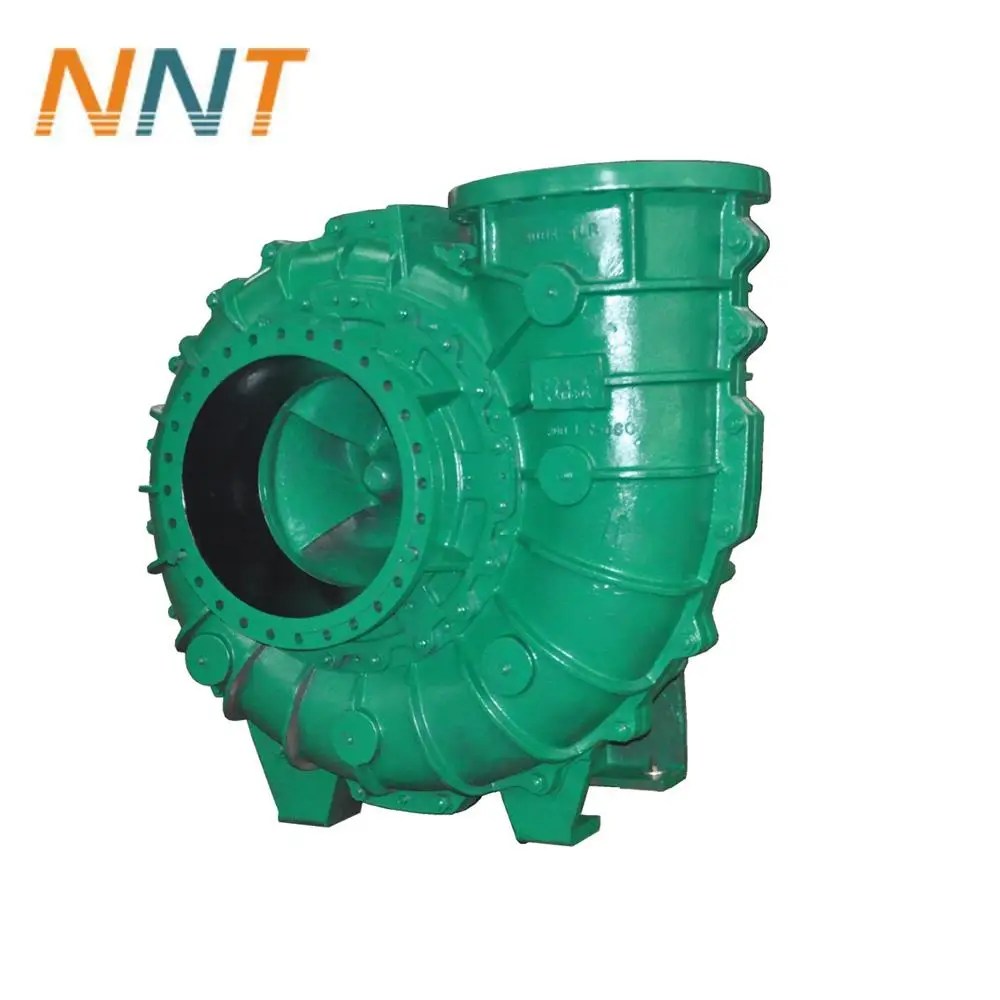

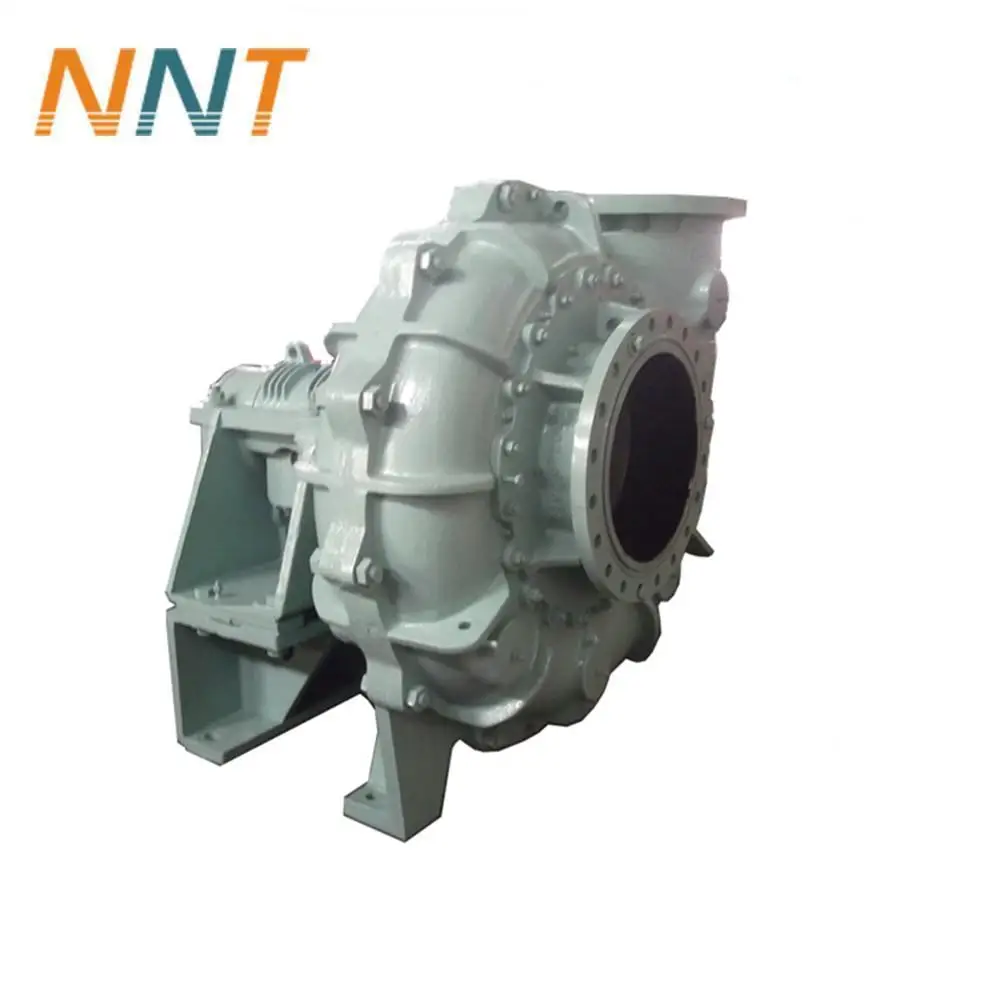

Desulphurization System Electric Slurry lime slurry delivery Pump
Pump Discription
1.1 Pump Overview
TL model Desulphurization Pump is the new generation high efficiency energy saving product elaborately
researched and developed by our company through absorbing the technical specifications of flue gas
desulphurization project,aiming at the characteristic of FGD system of transporting medium through pump
in thermal power plant.
Outlet Diameter:----- 350-1000mm
Capacity:-------------- 1600-15000 m3/h
Head:------------------ 15-31m
Rotation Speed:------ 485-960 r/min
Power:----------------- 1.1-1250kw
1.2 Pump Features
| PH Value of slurry: 2.5-13 | Slurry temperature ≤ 65ºC | X type frame,space saving |
| Large capacity | High head | High efficiency |
| Wear resistance | Corrosion resistance | Energy saving |
| Wide flow range | Stable performance | Heavy duty |
| Little noise | Low vibration | Long service life |
| Interchangeable parts | Reliable operation | High chrome alloy material |
| Oil lubrication | Clockwise from drive end | Intergrating mechanical seal |
Structure and Models
2.1 Pump Structure
2.2 Pump Models

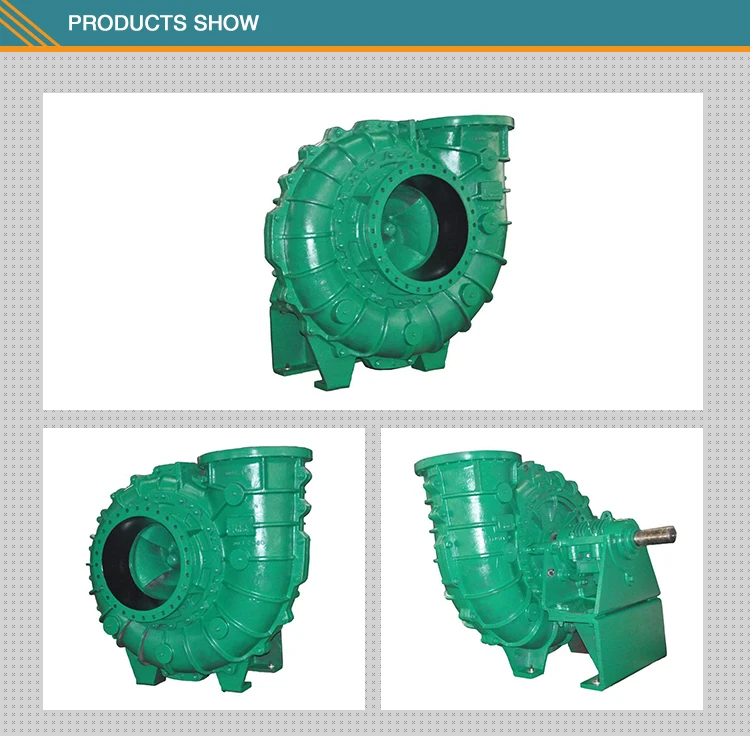

Pump Pictures

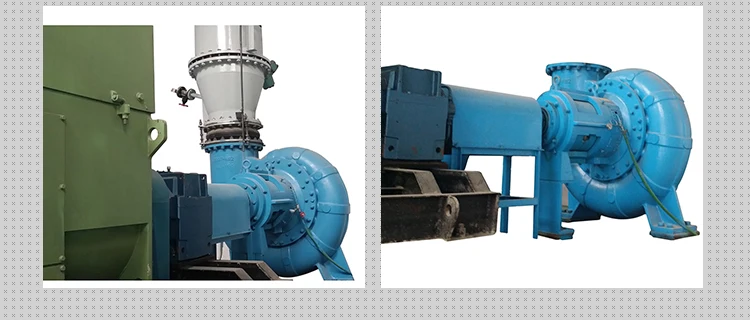

Pump Appliations
TL model Circulation slurry pump is mainly used for the circular transportation of limestone,lime and
gypsum slurry in thermal power plant.It can be also used for the transportation of slag slurry containing
corrosive solid particles in metallurgy,mine,coal,construction material and chemical industry etc.
industrial departments.
Delivery Details
MOQ: Available
Packing: Standard Export Plywood Box
Delivery lead time: 10-20 days after deposit received
Payment term: TT/Western Union/Money Gram
OEM service: Available
Loading port: Xingang Port ,Tianjin
Shipment modes: By sea/By air
Factory visit: Available
Contact us
Shijiazhuang Xintuo Slurry Pump Co., Ltd (NNT Pump)
Website: //www.nntpump.com
If you have any questions ,please feel free to contact with me via Trade Manager ,
Skype or Email . We will reply asap.
