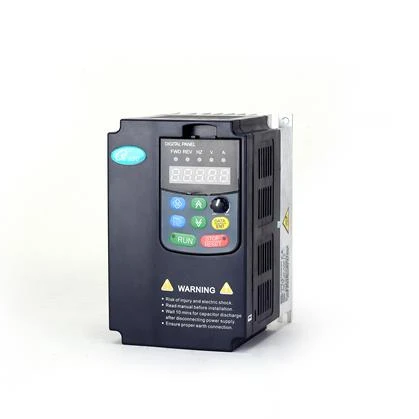

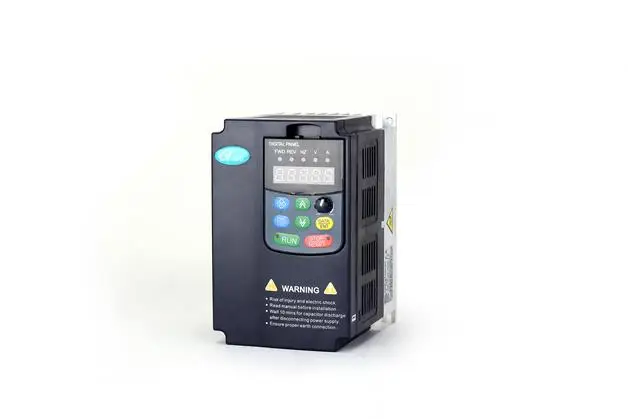

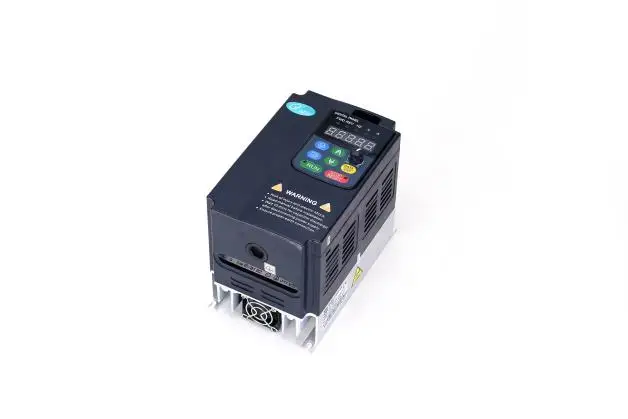

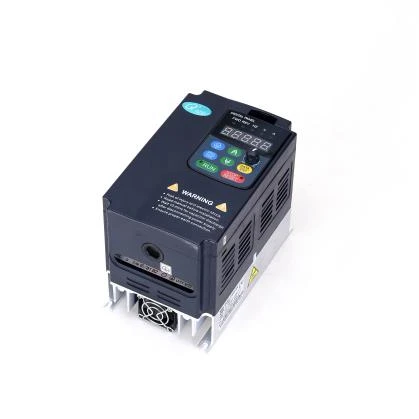

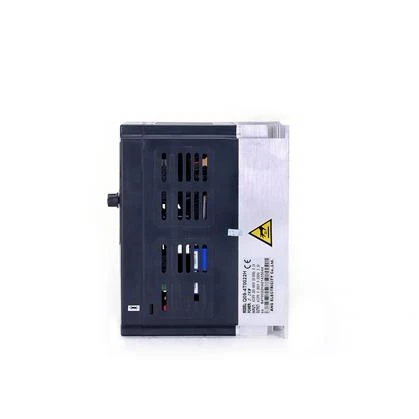

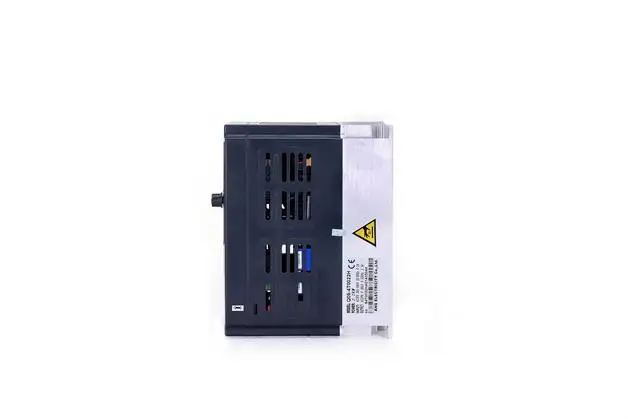

3 Phase AC Pump Inverter 22KW to 150KW Customized solar pump Inverter
- Category: Solar Pump Inverter >>>
- Supplier: Yiyen Electric Technology Co. Ltd.
Share on (60841664976):
Product Overview
Description

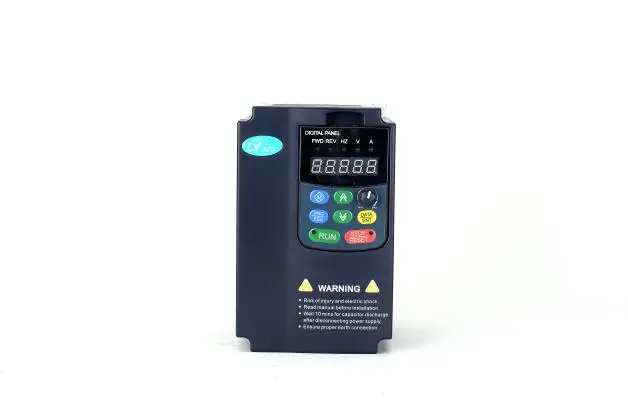

Q18S series solar water pump converter
Product Dominance
Q18S series solar water pump converter is a special frequency converter developed for solar water pump. According to the requirements of equipment occasions, special functions and special production processes are customized to make this product is more suitable for this occasion. The product is directly powered by solar panels, with built-in MPPT solar monitoring, water level monitoring, and automatic water shortage monitoring.
Functions:
In the case of low light, there are two ways to judge the lack of light intensity.
1,Program automatically detects 02_00=01: When the light intensity is low, the controller will start and stop frequently; the system will detect the output frequency. If the output frequency is always lower than the lower limit frequency (13-11) and the servo will stop output after 13-00 minutes. The controller reports A06 warning. After 13-01 minutes, the system will turn on again and the warning signal will disappear. So reciprocate, avoiding the pump repeatedly starting and stopping. After the startup is normal, the actual output frequency will be controlled according to the MPPT.
2,AI2 detection 02_00 = 02: An external solar panel (10V/20mA) is required between AI2 and GND. The controller detects the current intensity. If the input voltage is less than 13-08, the controller will pause after 10 seconds. If the input voltage is greater than 13-08, the controller will start after 10 seconds.
After the start is normal, the frequency of the actual output will be controlled according to the frequency corresponding to the linear value of AI2.
In the water well water shortage detection, in addition to using the external detection switch to detect the water level of the well, the controller can be set to detect the water level according to the current frequency.
1,When 13-04 is set to 0, the system uses the well water level detection function.
2.When the setting 13-04 is not 0, the startup system automatically detects the water shortage function. If the controller is running at the lowest water output frequency (13-11) and the output torque is less than the torque constant 13-05, after 13-04 seconds, the water shortage A05 warning is reported. If auto start 13-02 is turned on, after 13-6 points of this fault, the auto reset will resume and the warning signal will disappear.
Water tower and well signal
1,Water tower high water level, stop water injection, report A03 warning, low water level starts to fill water, warning signal will disappear; if there is no water tower signal control, please directly disconnect the water tower high water level signal, short water level signal, if the high water level signal has signal, No signal from the low water level signal will alarm the A01 water tower signal.
2,The water well has low water level, stop pumping, report A04 warning, the high water level starts pumping, the warning signal will disappear; if there is no well signal control, please directly disconnect the water well high water level signal and low water level signal. If the high water level signal has signal, No signal from the low water level signal will alarm the A02 well signal.
The maximum power point voltage 13-07 corresponds to the maximum frequency source, and its frequency is linear with the voltage of the DC bus. The Mppt low point operating voltage corresponds to the lowest operating frequency, and the Mppt high point working voltage corresponds to the highest operating frequency.
When 02-00:01, the relationship between bus voltage and frequency can be directly set by the 04-15/16/17/18 curve. When 02-00:02, the relationship between the AI2 input signal and the frequency can be directly set by the 04-19/20/21/22 curve.
If the fault is eliminated, any warning signal can be restored via the reset button.
Product Parameter
Control characteristics | Control method | Vector control 1 | Vector control 2 |
Starting torque | 1.00Hz 180% | 0.50Hz 180% | |
Speed range | 1:50 | 1:100 | |
Steady speed accuracy | ±0.5% | ±0.2% | |
Product Features | Key function | Undervoltage regulation, speed tracking, torque limit, multi-speed operation (up to 15 segments), auto-tuning, S-segment curve acceleration/deceleration, slip compensation, PID adjustment, current limit control, manual/automatic torque boost, current limit | |
Frequency setting | Operation panel setting, terminal Up/Dn setting, host computer communication setting, analog setting AI1/AI2/AI3, terminal pulse DI setting | ||
Frequency Range | 0.00~300.00Hz : V/F mode 0.0~3000.0Hz can be customized according to customer needs | ||
Starting frequency | 0.00~60.00Hz | ||
Acceleration time | 0.1~36000s | ||
Energy consumption braking capability | 380V voltage class inverter: braking unit operating voltage: 650~750V; 220V voltage class inverter: braking unit operating voltage: 325~375V; use time: 100.0s | ||
DC braking capability | DC braking start frequency: 0.00~60.00Hz; DC braking current: constant torque 0.0~120.0%; variable torque 0.0~90.0% DC braking time: 0.0~30.0s; no need for DC braking start waiting time for fast braking | ||
Flux braking function | It is optional when it is always moving or decelerating. It does not operate when the factory defaults to decelerate. | ||
Special function | Multi-function M key | The original multi-function button can be used to set frequently used operations: jog function button, emergency stop (free stop) function button, forward and reverse shortcut button, etc. | |
Parameter copy | The standard operation panel can realize parameter uploading and downloading, and has a copy progress indication; for the uploaded parameters, you can choose to prohibit uploading and overwriting. | ||
485 Communication | 485 communication interface supports Modbus protocol (RTU), standard operation panel can realize remote control box function, up to 500 meters | ||
Operation panel | Optional button or potentiometer type operation panel, protection class IP20, protection class IP54 optional | ||
Common DC bus | The whole series can realize the shared DC bus power supply of multiple inverters. | ||

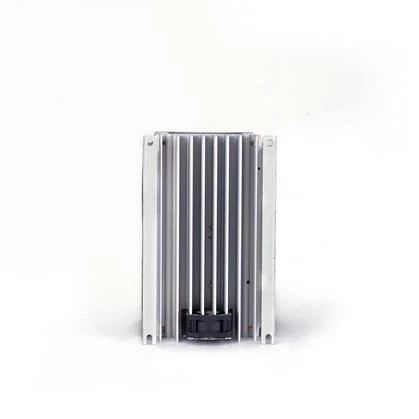

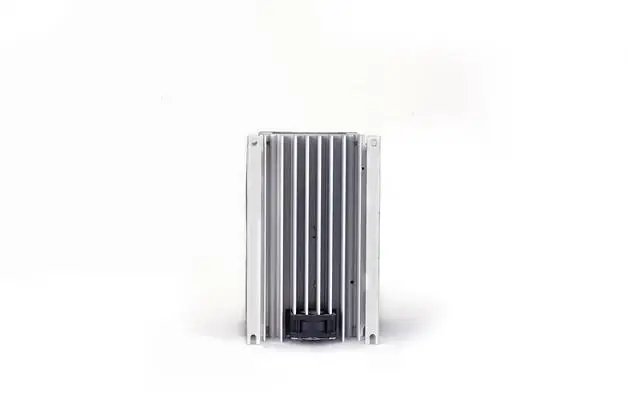

Independent air duct | The whole series adopts independent air duct design and supports the installation method outside the radiator cabinet. | ||
Universal expansion | Support customers to develop the universal expansion board with CPU: physical interface SPI bus, software protocol Modbus | ||
Expansion Card | User secondary development card, plastic machine interface card, PG feedback card, air compressor control card, communication adapter card, power monitoring card, phase sequence detection card, external power rectifier card, etc. | ||
Power-on self-test | Realize power-on self-test of internal and peripheral circuits, such as motor grounding, +10V power supply output abnormality, analog input abnormality, disconnection, etc. | ||
Protection | Power supply undervoltage, overcurrent protection, overvoltage protection, interference protection, comparison reference abnormality, self-tuning fault, module protection, radiator overheat protection, inverter overload protection, motor overload protection, current detection abnormality, output short circuit to ground abnormality, Abnormal power failure during operation, input power abnormal output, phase loss abnormality, EEPROM abnormality, relay pull-in abnormality, temperature sampling disconnection, encoder disconnection, +10V power supply output abnormality, analog input abnormality, motor overheating (PTC), communication Abnormal, copy exception, expansion card connection error, terminal mutual exclusion check failed, hardware overload protection | ||
Frequency | At rated power, 7.5kW and below power level ≥93%; 45kW and below power level ≥95%; 55kW and above power level ≥98% | ||
Environment | Place | Vertically installed in a well-ventilated electric control cabinet. Horizontal or other installation methods are not allowed. The cooling medium is air. It is installed in direct sunlight, no dust, no corrosive gas, no flammable gas, no oil mist, Steam-free, drip-free environment | |
Temperature | -10~+40°C, derating between 40~50°C, 1°C per generation, rated output current reduced by 1% | ||
Humidity | 5~95%,No condensation | ||
Altitude | 0~2000 meters, derating for use above 1000 meters, the rated output current is reduced by 1% for every 100 meters | ||
Vibration | 3.5mm,2~9Hz;10m/s ,9~200Hz;15m/s ,200~500Hz | ||
Storage Temperature | -40~+70℃ | ||
