Gdstime GDB4020 40x40x20 мм 4 см 40 мм DC 5 В втулка подшипник очиститель вентиляция турбина Бесщеточный вентилятор охлаждения вентилятор
- Category: Fans & Cooling >>>
- Supplier: Shenzhen Gdstime Technology Co. Ltd.
Share on (60841715501):
Product Overview
Description

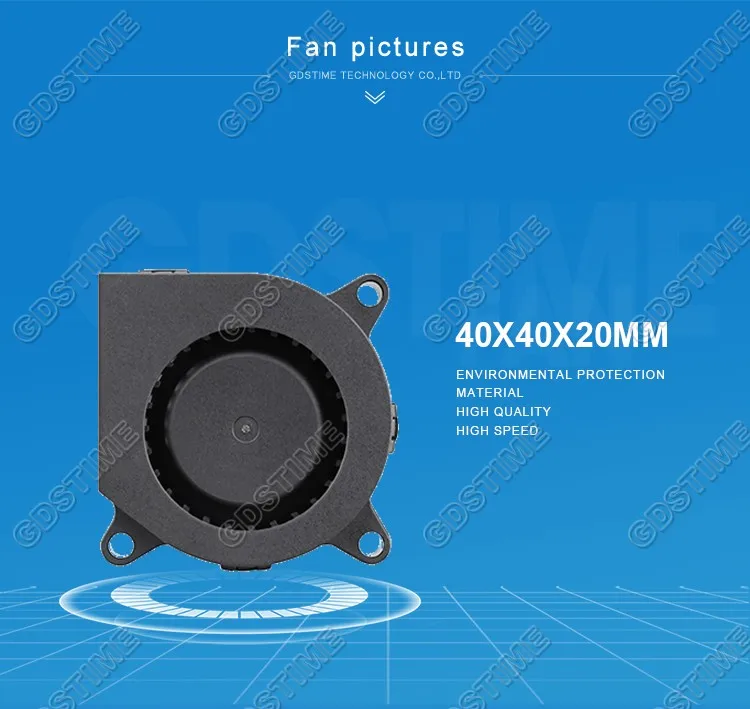

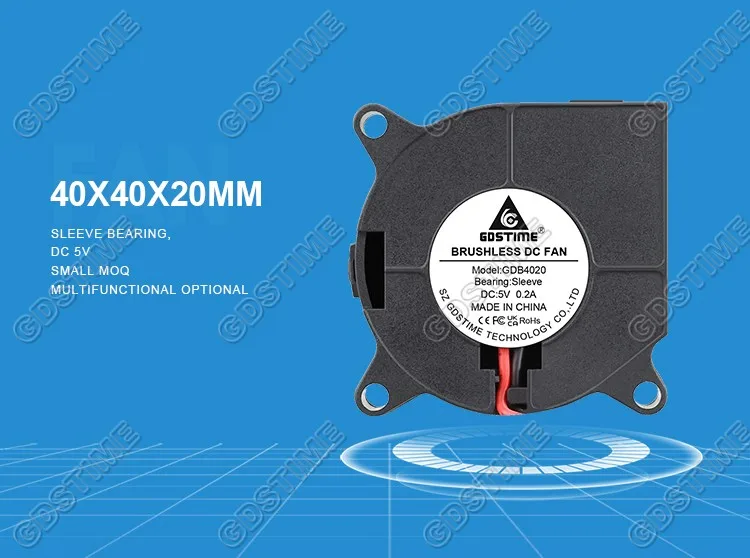

40x40x20mm 4cm DC 5v Sleeve Bearing Cooling Fan
Volt:DC 5V Netweight: 30g

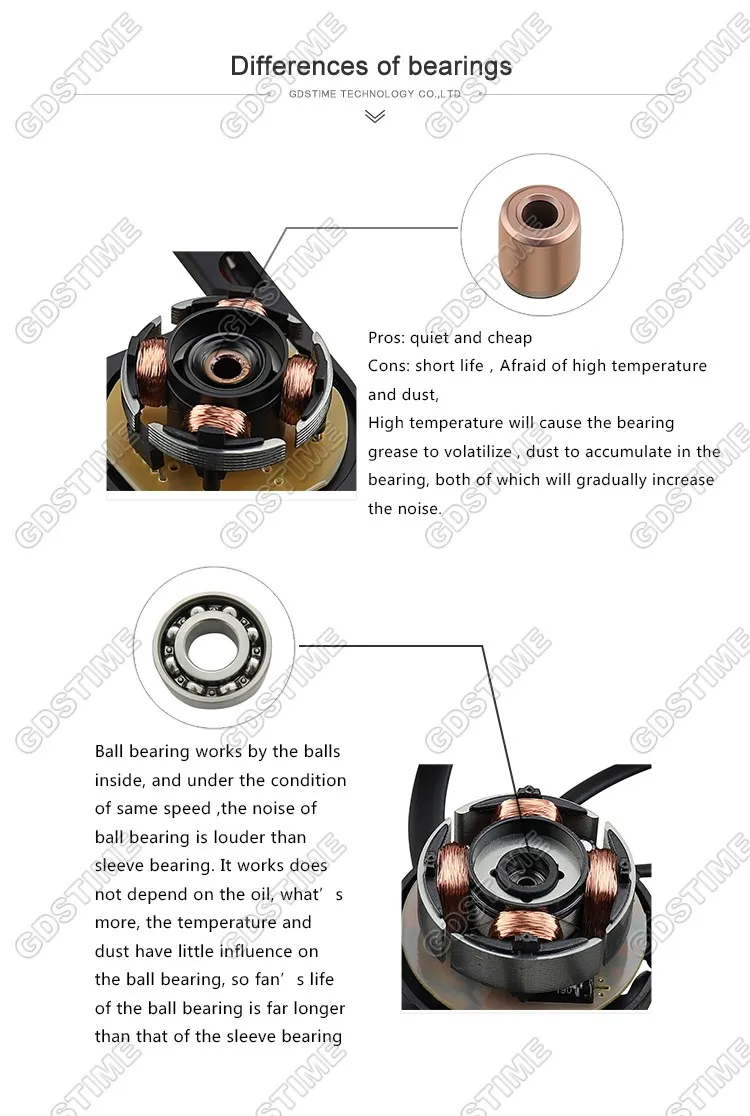

Bearing Type:Sleeve Fan Speed: 6000RPM
Frame: Plastic PBT UL94V-0 Airflow:3.2CFM
Blades: Plastic PBT UL94V-0 Noise: 29.6dBA
Operating temperature: -20-75℃ Function: /
| Model | Bearing | Rated Voltage | Operating Voltage Range | Rated Current | Speed RPM | Air Flow CFM | Air Pressure (In H2O) | Noise LeVel dBA |
| GDB4020 | Sleeve/Ball | 5V | 4-5.5V | 0.07 | 3500 | 1.92 | 0.17 | 20.7 |
| 0.12 | 4200 | 2.22 | 0.2 | 22.4 | ||||
| 0.15 | 5500 | 2.86 | 0.36 | 28.7 | ||||
| 0.18 | 6000 | 3.02 | 0.41 | 29.6 | ||||
| 0.25 | 6500 | 3.67 | 0.46 | 32.5 | ||||
| 0.28 | 7000 | 4.12 | 0.52 | 33.6 | ||||
| 12V | 7-13.5V | 0.04 | 3500 | 1.92 | 0.17 | 20.7 | ||
| 0.06 | 4500 | 2.32 | 0.22 | 23.5 | ||||
| 0.08 | 5500 | 2.86 | 0.36 | 28.7 | ||||
| 0.1 | 6500 | 3.67 | 0.46 | 32.5 | ||||
| 0.13 | 7000 | 4.12 | 0.52 | 33.6 | ||||
| 0.15 | 7500 | 4.49 | 0.57 | 34.8 | ||||
| 0.25 | 9000 | 5.6 | 0.6 | 35.3 | ||||
| 0.35 | 10000 | 6.35 | 0.62 | 36 | ||||
| 0.45 | 12000 | 7.74 | 0.66 | 37 | ||||
| 0.6 | 14000 | 9.16 | 0.72 | 37.9 | ||||
| 24V | 14-26V | 0.06 | 5200 | 2.59 | 0.3 | 27.6 | ||
| 0.08 | 6000 | 3.02 | 0.41 | 29.6 | ||||
| 0.09 | 6500 | 3.67 | 0.46 | 32.5 | ||||
| 0.1 | 7500 | 4.49 | 0.57 | 34.8 | ||||
| 0.12 | 9000 | 5.6 | 0.6 | 35.3 | ||||
| 0.14 | 11000 | 7 | 0.63 | 36.7 | ||||
| If you want other Airflow/Voltage/Functions fan which is not in the list ,please contact us , thanks. | ||||||||
