500L Cylinder Head &Block Pressure Tester ,cylinder leakage tester , TPT1600XL
- Category: Other Vehicle Equipment >>>
- Supplier: Shaanxi,APS,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

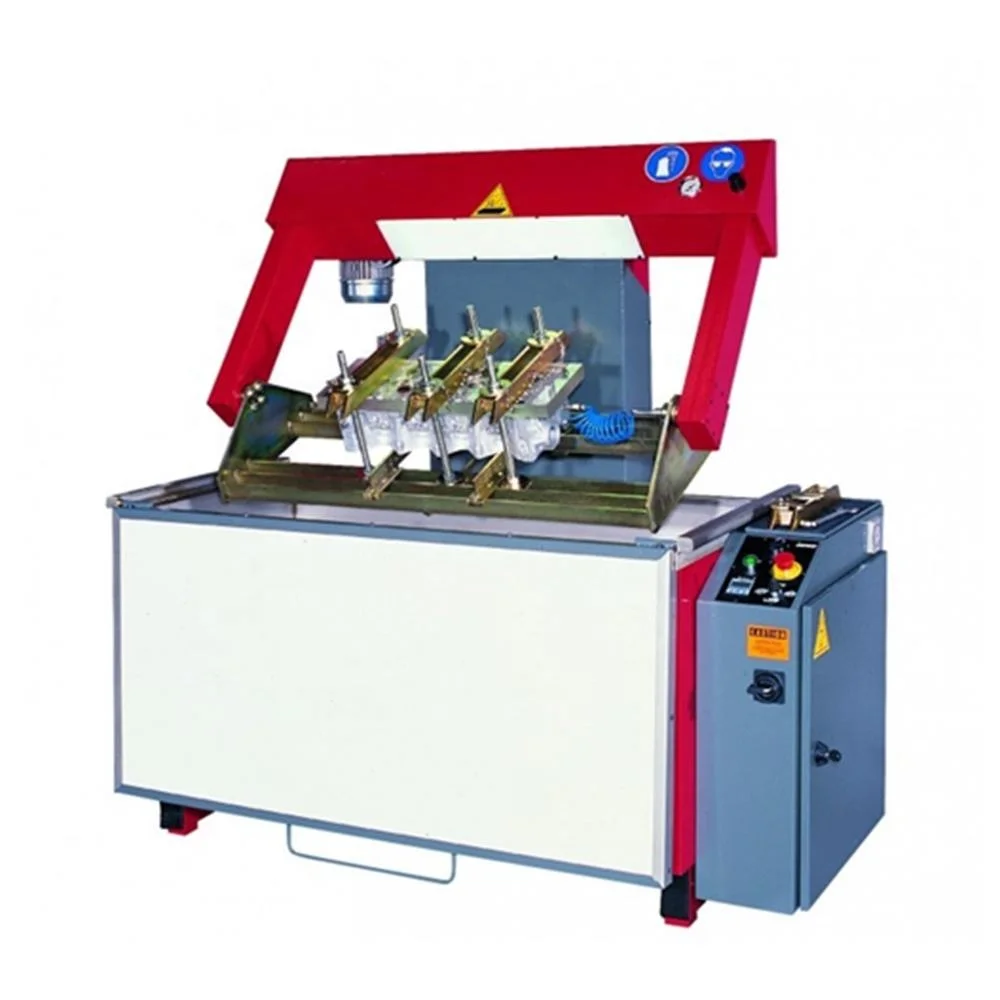

Cylinder Head Pressure Tester TPT1600/TPT1600L
Product Description
Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.
Quick and easy clamping system allowing tests at a pressure of 4 to 5bar.
* 360° Electric powered roll-over fixture.
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
*Adjustable air pressure while test at a pressure to 6bar
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control.
* Low voltage: 24V operating control.
* Electronic adjustable thermostat.
* Heating programmer: daily or weekly.
* Adjustable testing temperature max to 90C
Specification
|
Part Characteristics |
TPT1600 |
TPT1600L |
|
Maximum length (mm/inch) |
1250 mm / 49” |
1350 mm / 53.15” |
|
Maximum width (mm/inch) |
400 mm / 15.74” |
400 mm / 15.74” |
|
Maximum height (mm/inch) |
300 mm / 11.81’’ |
300 mm / 11.81’’ |
|
Capacity of stainless steel tank |
500liters / 132 USngal |
500liters / 132 USngal |
|
Heating elements (kw) |
2x4.5 |
2x4.5 |
|
Hydraulic hoist (kw) |
0.55 |
0.55 |
|
Gear-motor (kw) |
0.25 |
0.25 |
|
Rotational speed (tr/min) |
4RPM |
4RPM |
|
Up and down travel time (mm/inch in 10sec) |
500mm/19.69” |
500mm/19.69” |
|
Thermostat ( °C ) |
0-70 |
0-70 |
|
Power supply |
400 V 3 PH + Ground (no neutral) |
400 V 3 PH + Ground (no neutral) |
|
Net weight approx (kg/lbs) |
550/700 |
600/750 |
|
Length(mm/inch) |
2000 mm / 78.75” |
2000 mm / 78.75” |
|
Width (mm/inch) |
1050 mm / 41.34” |
1050 mm / 41.34” |
|
Height (mm/inch) |
1700 mm / 67” |
1700 mm / 67” |
Standard Accessories
|
NO |
Item |
Unit |
Qty |
Remark |
|
1 |
Round washer(φ60) |
PC |
16 |
|
|
2 |
Open Gasket(φ60) |
PC |
16 |
|
|
3 |
T nut(M16) |
PC |
16 |
|
|
4 |
Screw rod(M16) |
PC |
16 |
|
|
5 |
Pressing plate |
PC |
4 |
|
|
(Standard Acc’s) |
||||
|
6 |
Parallel supporting plate |
PC |
2 |
|
|
(Standard Acc’s) |
||||
|
7 |
Rubber seal ringφ30 δ=3 |
PC |
20 |
|
|
8 |
Rubber seal ringφ40 δ=3 |
PC |
15 |
|
|
9 |
Rubber seal ringφ60 δ=3 |
PC |
10 |
|
|
10 |
Rubber seal ring100×50 δ=3 |
PC |
10 |
|
|
11 |
Rubber seal ring80×40 δ=3 |
PC |
10 |
|
|
12 |
Rubber seal ring60×30 δ=3 |
PC |
20 |
|
|
13 |
Rubber plate 290×200 δ=3 |
PC |
1 |
|
|
14 |
Quick-change connector(M5) |
PC |
3 |
|
|
15 |
Manual HD1600 |
block |
1 |
|
