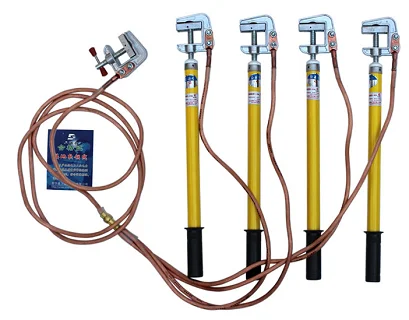

Portable earthing and short circuriting equipment

★ The FRP operating sticks : Made of hight qualtiy epoxy tube and   the aluminum operating head  with the smooth durable and efficient insulation.  For the high voltage overhead line Use the docking type to increase the length of the operating sticks .

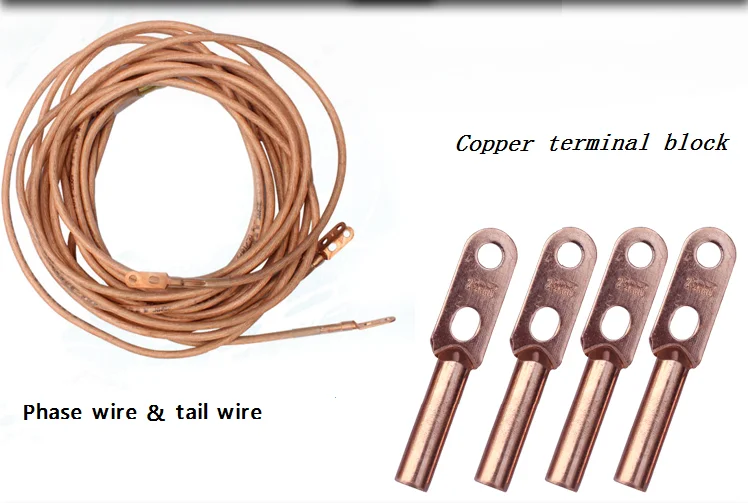

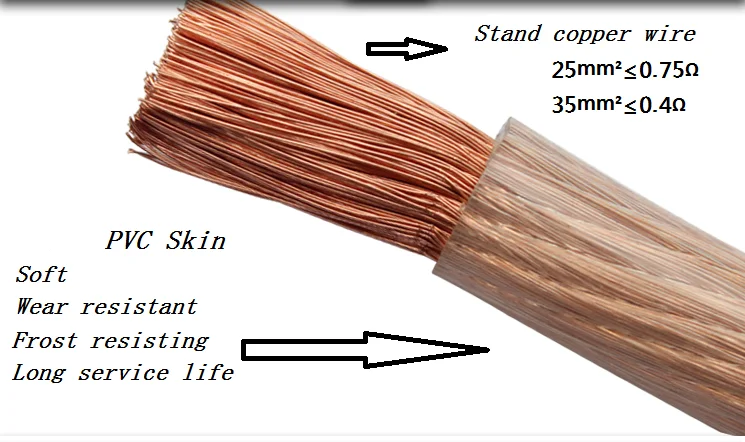

★  The copper wire : Using multi-strand copper wire without oxidation& PVC skin ---------25² copper wire≤ 0.79Ω

                                                                                                                                                           ---------35² copper wire ≤0.4Ω   meet international standards. (terminal also was made of purple cooper )

★ The earthing clamp : It was made of wrought aluminum .Having good conductivity and strength.

★  The grounding rod : Made of alloy steel, tinned on the surface to extend service life.

 ☞ Power distribution room earthing  equipment  configuration:

Packages	FRP Sticks / Length	vlotage level	The length of  phase line/25mm²	Tail line	Grounding clamp /  rod
1	4 sticks / 0.5m	0.4 KV	0.5 m  x 4	3m	clamp
2	3 sticks / 0.5m	10 KV	0.5 m  x 3	3m	clamp
3	3 sticks /  1 m	10 KV	1 m x 3	3m	clamp
4	3 sticks / 0.5 m	10  KV	0.5m x3	5m	clamp
5	3 sticks / 1 m	10 KV	1 m x 3	5m	clamp
6	3 sticks /0.5m	10 KV	0.5 mx3	7m	clamp
7	3 sticks /1m	10 KV	1m x3	7m	clamp

NOTE: The above is the usual configuration standard, customers can order adjustments according to the own local conditions. We provide costomized service to our customers.

☞ Overhead line earthing equipment confifuration:

Packages	FRP sticks / length /sections	Voltage level	The length of the phase line 25mm²	Tail line	Grounding clamp /rod
1	4 sticks /0.5m / 1 section	0.4KV	1m x4	10m	rod
2	3sticks / 1m / 1 section	6 KV	1m x3	12m	rod
3	3sticks /1 m / 1 section	13 KV	1mx3	15m	rod
4	3sticks /1.5m /  2sections	20 KV	1.5mx3	15m	rod
5	3 sticks /1.5m/ 2sections	35 KV	2m x3	18m	rod
6	3 sticks /1.5m/ 2sections	44 KV	2.5mx3	18m	rod
7	3 sticks /2 m /2 sections	63 KV	3mx3	20m	rod
8	3 sticks /2m /2 sections	66 KV	3mx3	20m	rod
9	3 sticks / 2m/ 2sections	110 KV	3.5mX3	22m	rod
10	3 sticks /3m / 3sections	220 KV	4m x3(35mm²)	25m	rod
11	3 sticks /6m /4 sections	500 KV	5m x3  (35mm²)	25m	rod
12	3sticks/8m / 4 sections	750 KV	6mX 3 (5Omm²)	40m	rod

NOTE: The above is the usual configuration standard, customers can order adjustments according to the own local conditions. We provide costomized service to our customers.

Detailed Images

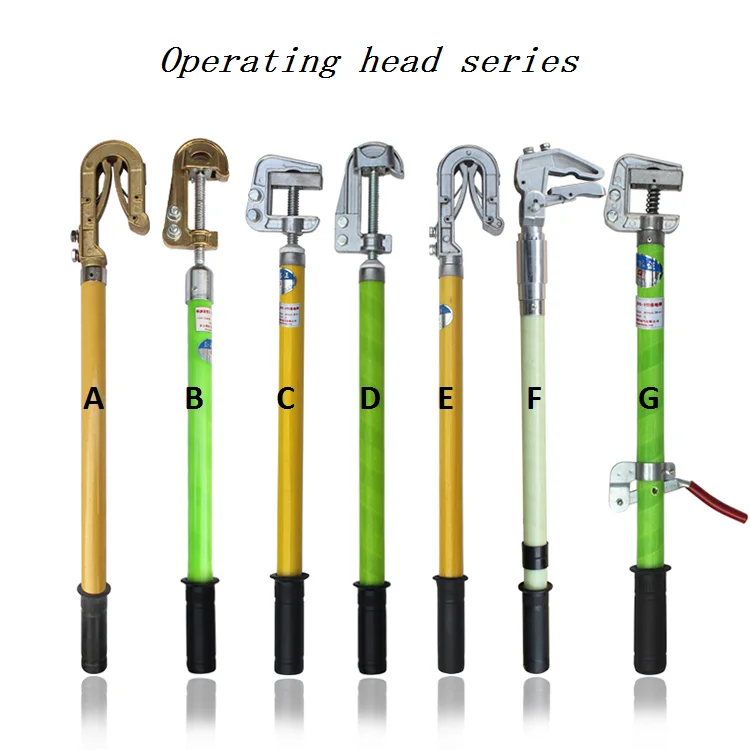

A / B   ----------------Copper operating head for overhead line.

C / G    ------------------------ Aliminum operating  head  for Distribution room .

D / E      -----------------------------Aliminum operating head for overhead line .

   F         ---------------------------------- Adjustable aluminum operating head for distribution room.

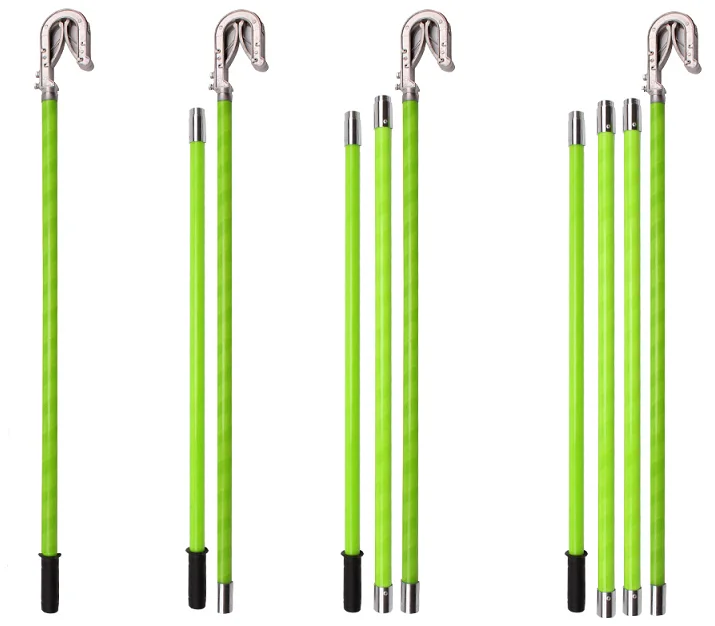

★Choose different operating bars for different applications

       1 section 0.5m/1m           2 sections 1.5m/2m               3 sections 3m /6m                                       4 sections 8m★ For the convenience and operation of the users , we make the operating  sticks into a section of 0.5 meters, one section, one meter, two sections, 1.5 meters, two sections, two meters, three sections, three meters, three sections, six meters, four sections and eight meters, etc., and can also be customized according to customer requirements

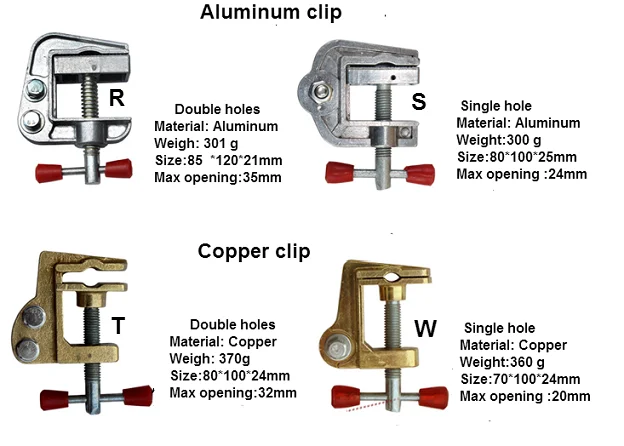

The grounding clamp for distribution room

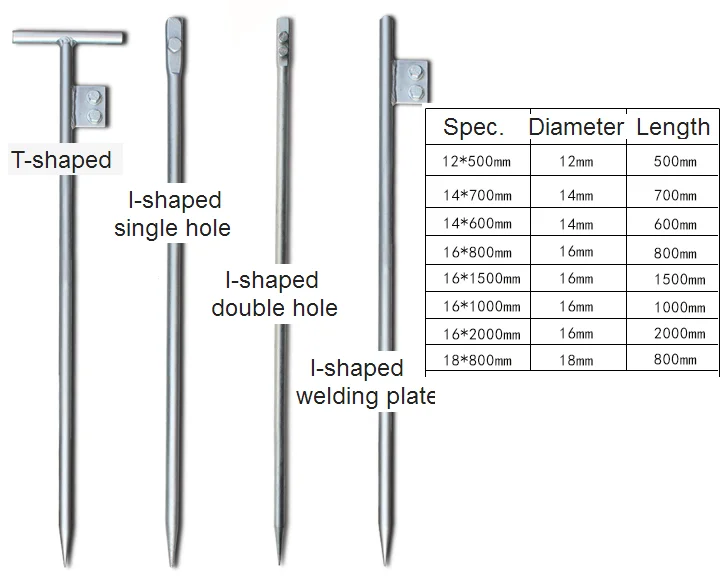

The grounding pin for overhead line

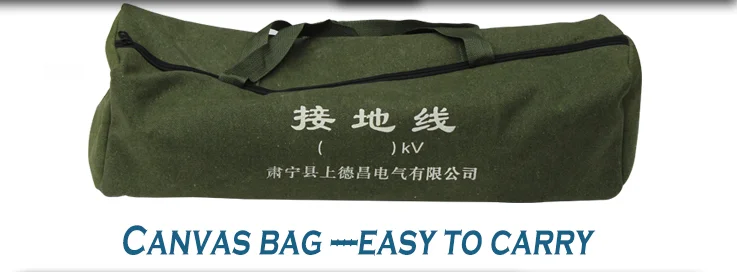

Packing & Delivery

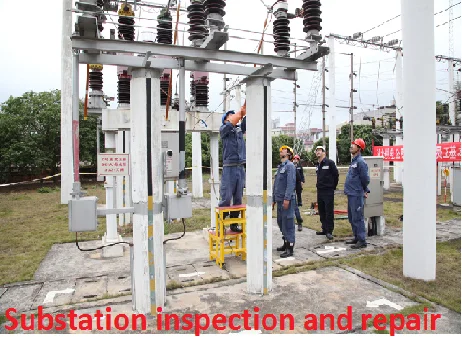

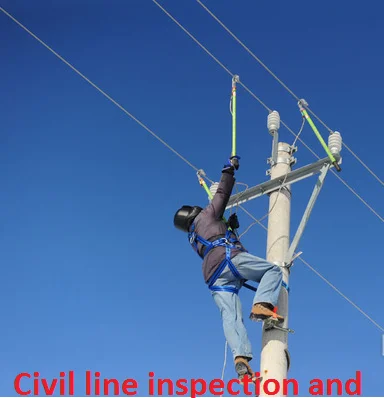

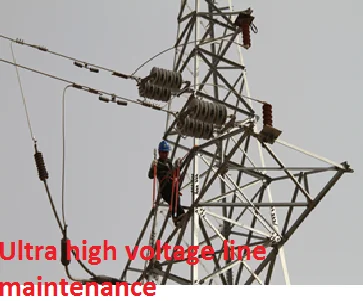

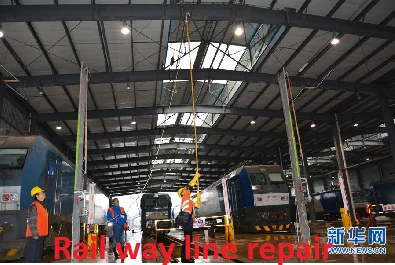

Application
