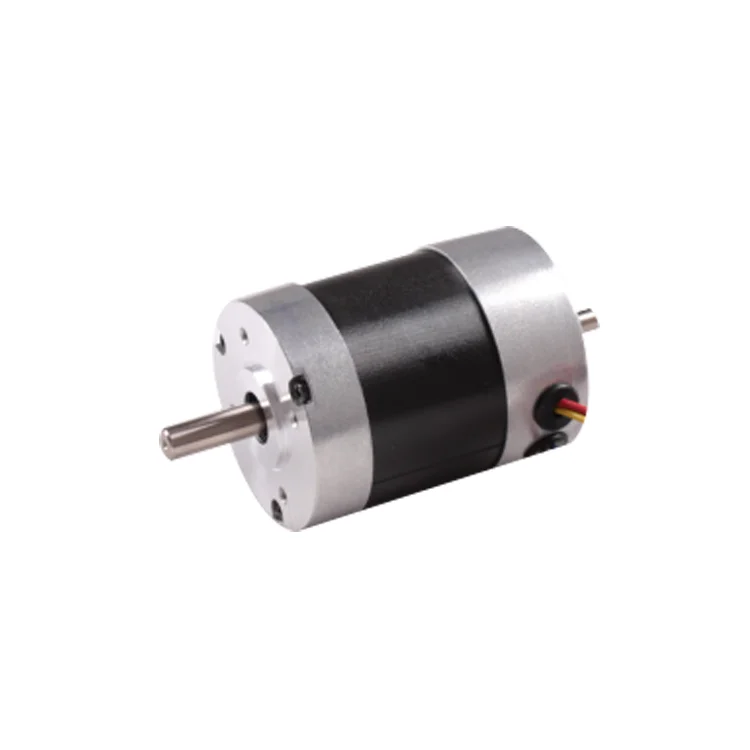

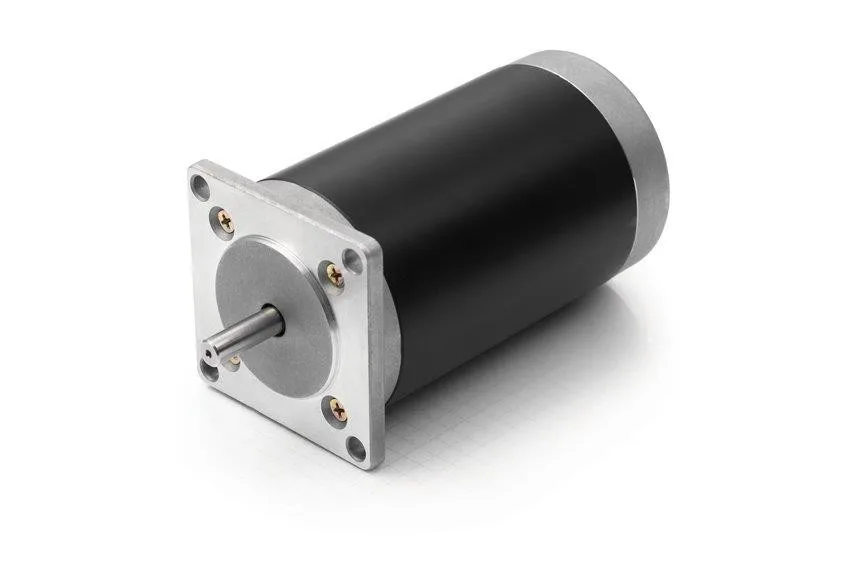

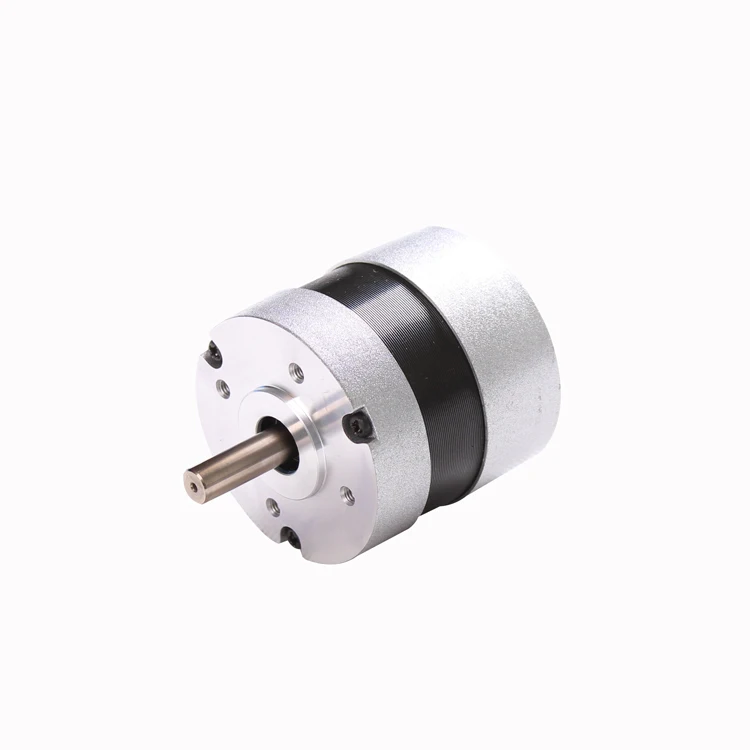

NEMA23 57mm high torque Brushless DC motor
- Category: >>>
- Supplier: Changzhou Fulling Motor Company Limited
Share on (60841804844):
Product Overview
Description
GENERAL SPECIFICATIONS
Winding type | Delta |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.025mm@460g |
End play | 0.025mm@4000g |
Max.radial force | 75N @ 20mm from the flange |
Max.axial force | 15N |
Insulation class | Class B |
Dielectric strength | 500VDC for one minute |
Insulation resistance | 100MΩ Min., 500VDC |
ELECTRIC CONNECTION
Lead No. | Lead Color | Lead Gauge | Function | Description |
1 | Red | UL1430 AWG26 | Vcc | Power supply positive of hall +5VDC--+24VDC |
2 | Blue |
| Hall U |
|
3 | Green |
| Hall V |
|
4 | White |
| Hall W |
|
5 | Black |
| GND | POWER SUPPLY NEGATIVE OF HALL |
6 | Yellow | UL1430 AWG20 | Phase U |
|
7 | Red |
| Phase V |
|
8 | Black |
| Phase W |
