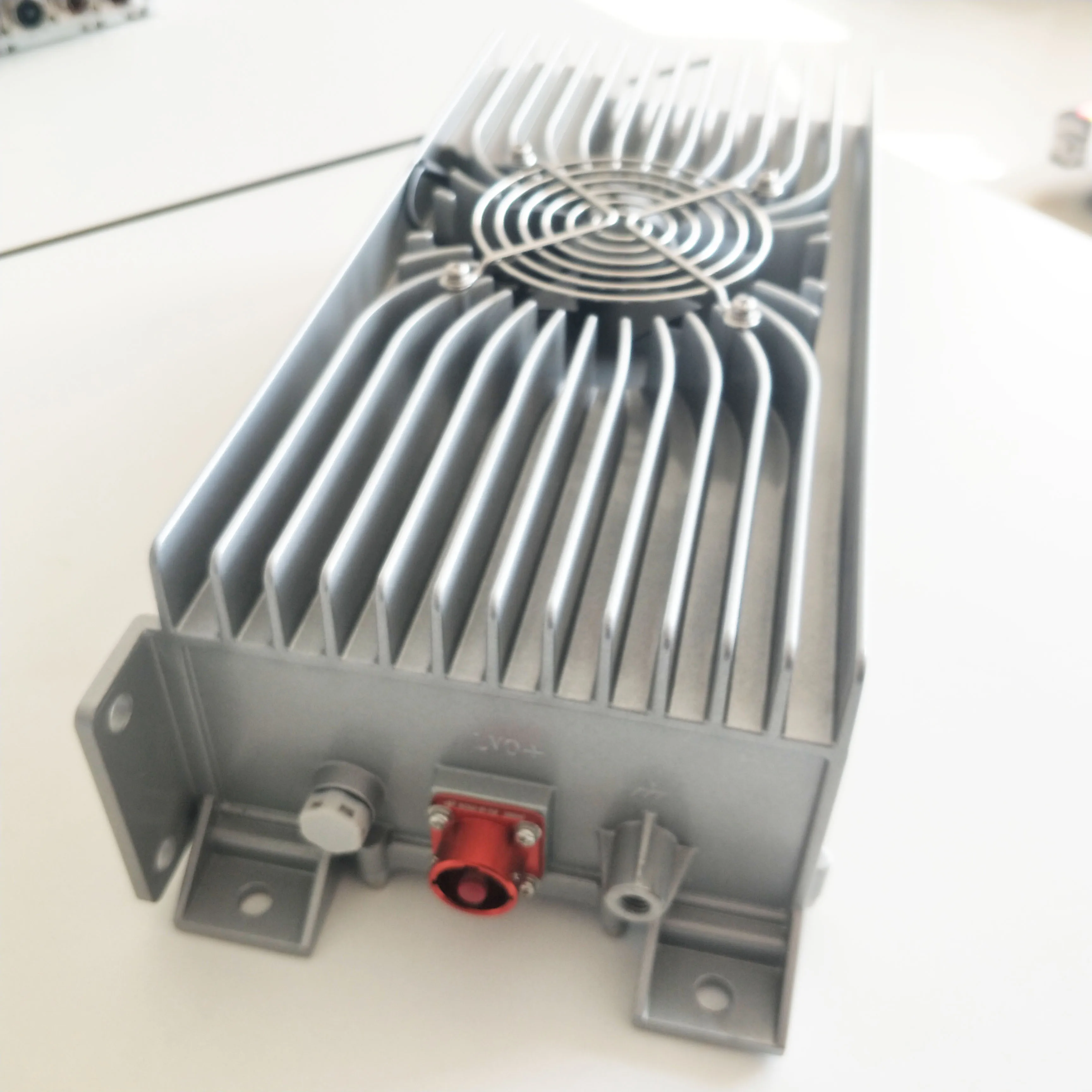

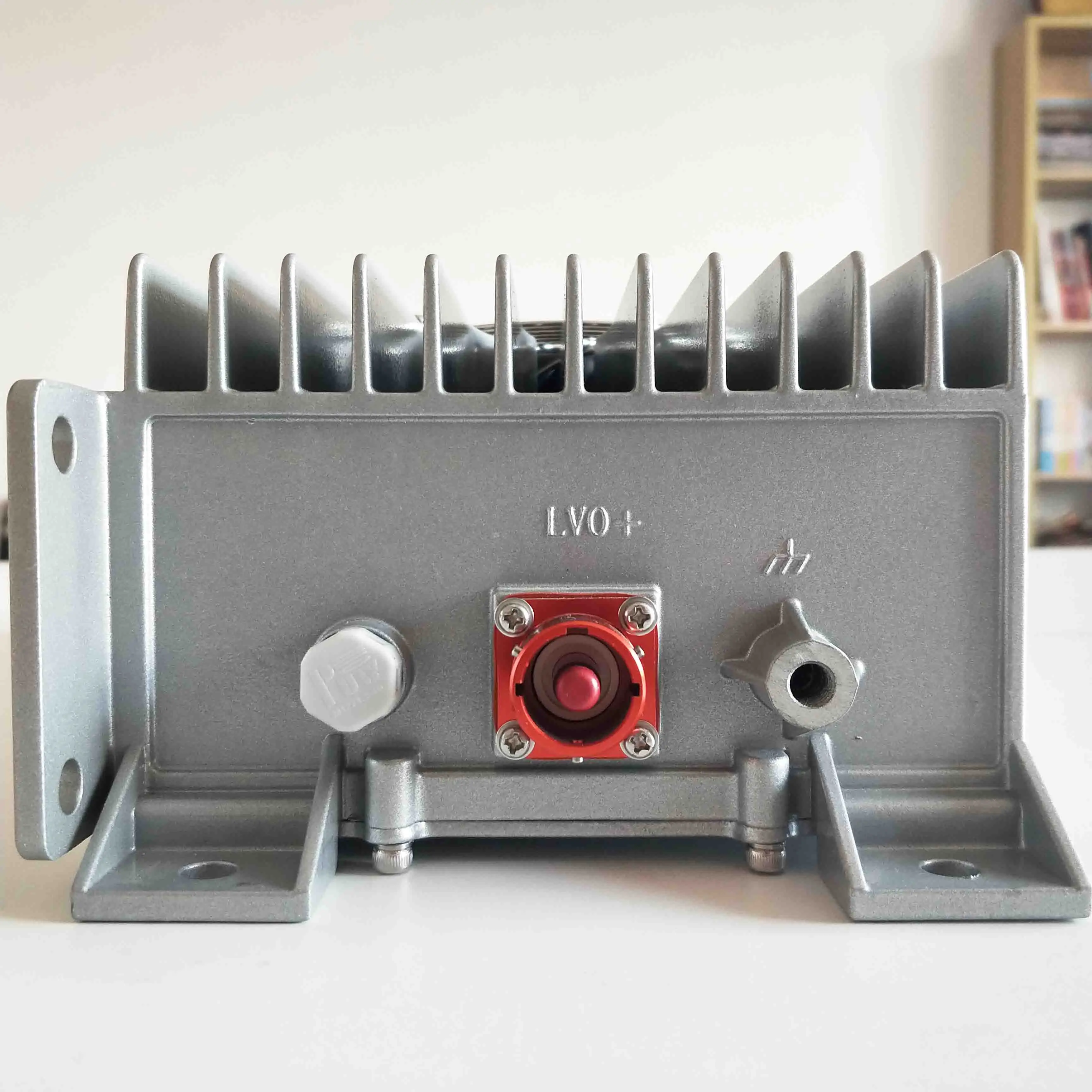

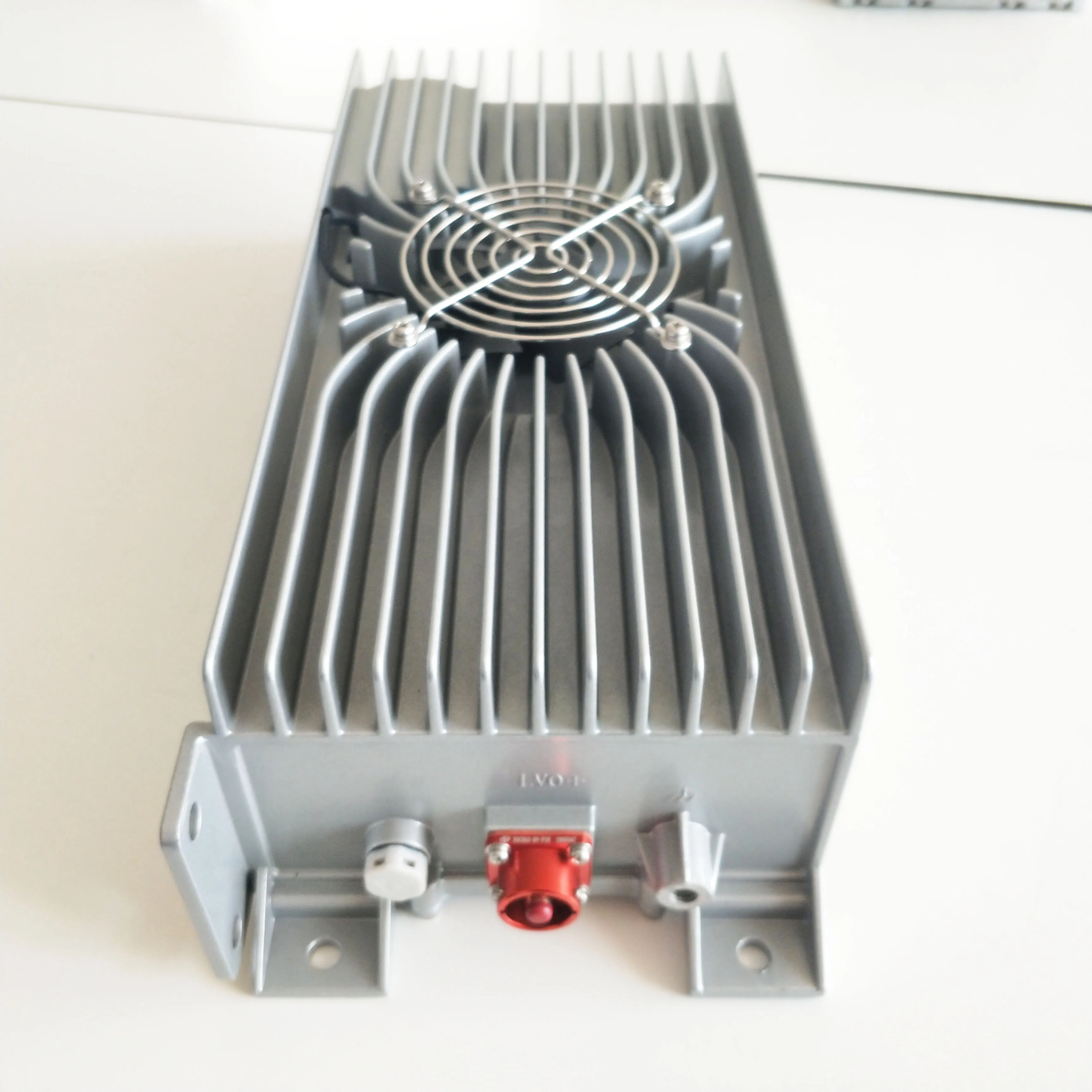

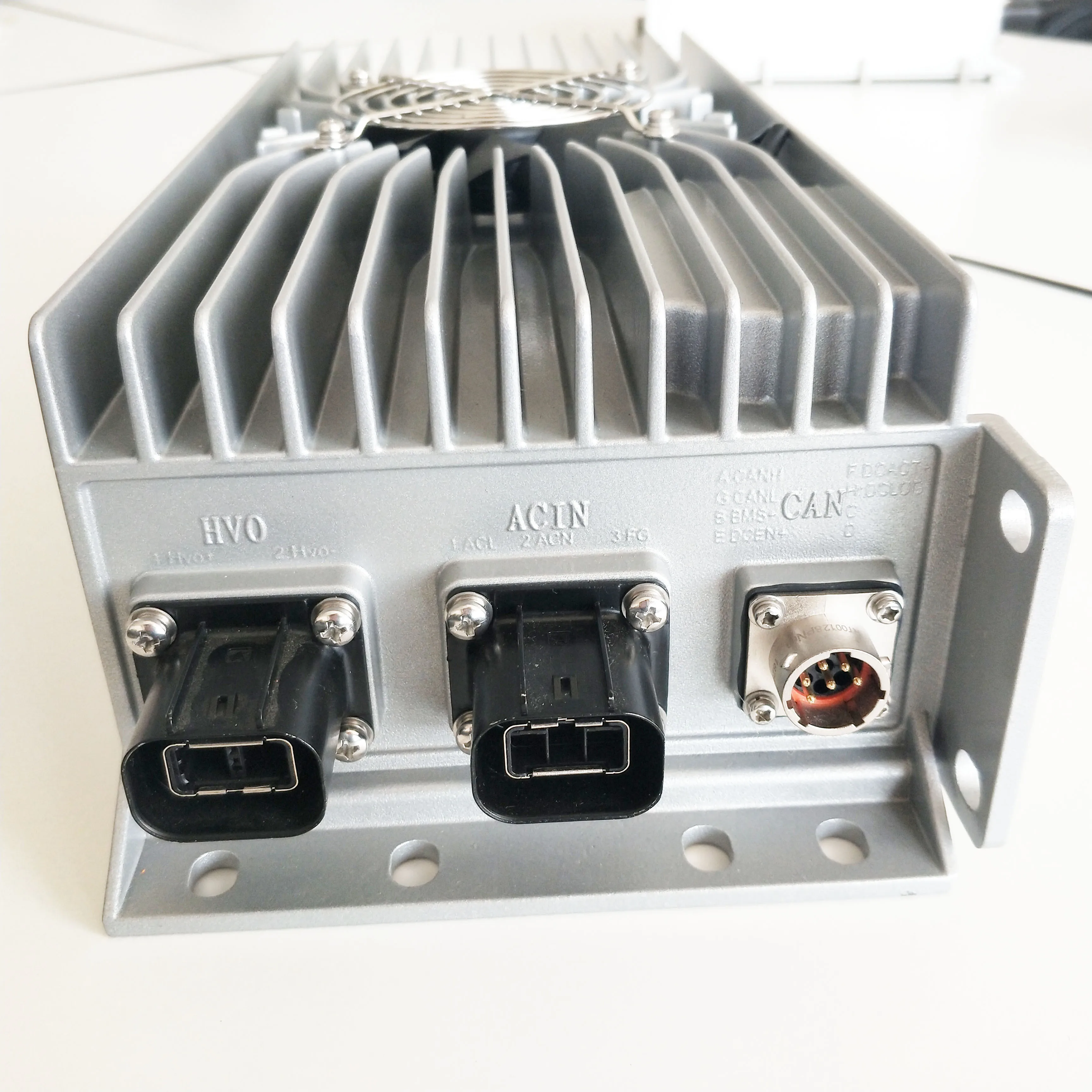

IP 67 96V battery integrated charger/DC DC converter
- Category: >>>
- Supplier: Shijiazhuang Dilong Technology Co. Ltd.
Share on (60841818341):
Product Overview
Description
Product Description

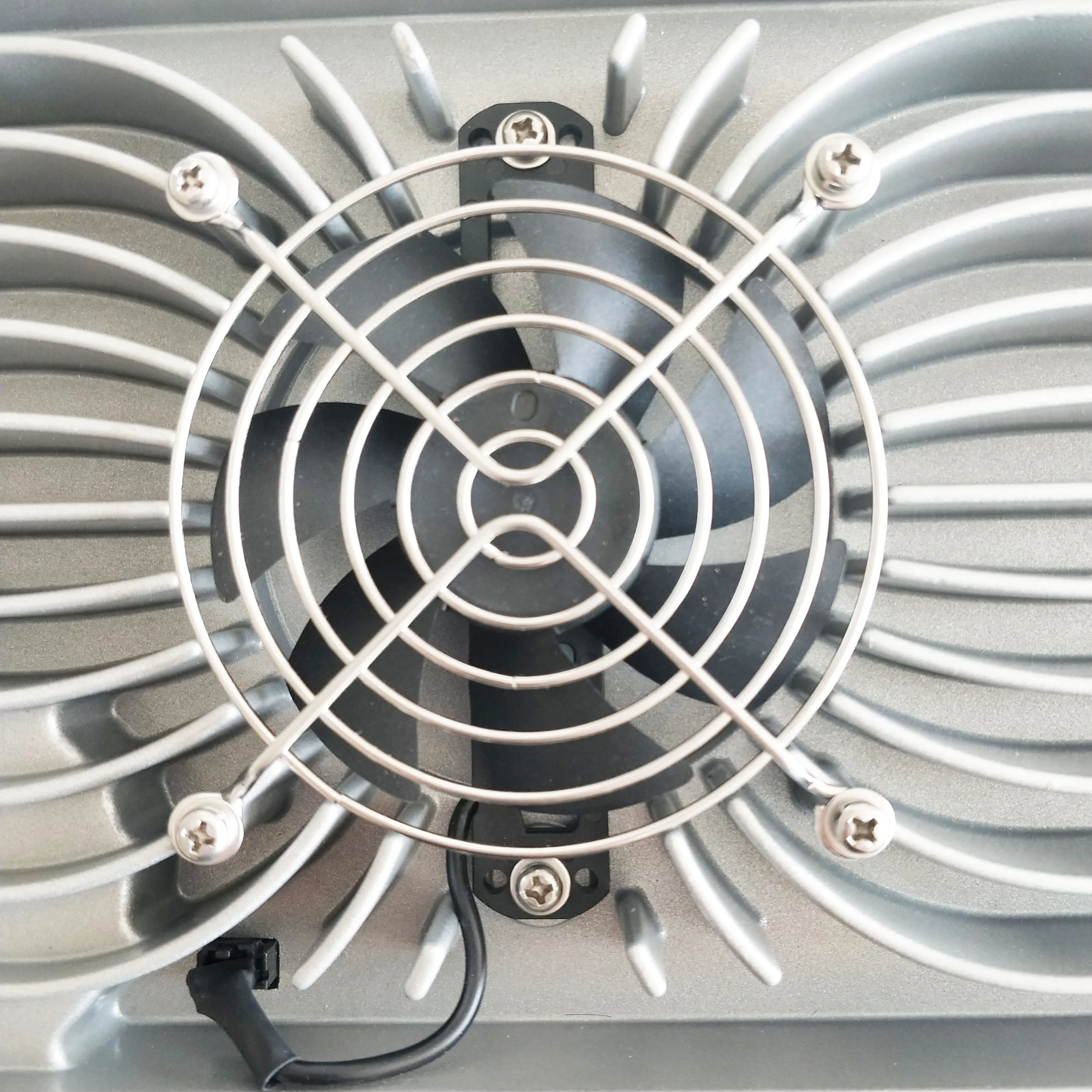

DA5KM37-96C-14RC is a forced air cooling, specially designed for pure electric vehicles, and a digital converter for the conversion and integration of OBC(On-board Charger) and DCDC(DC/DC Converter). Reduced the number of the vehicle wiring harness connector and the trouble fission power installation is one of the world's highest power density products, various performance indicators have reached or exceed the international peer level, trouble-free operation for longer.
Specification
M37(C+D) OBC(On-board charger) Specification DA5KM37-96C | ||||||
Mains Input | Rated Voltage | Vac | 220 | |||
Voltage Range | Vac | 85~264(85~175 the power dropped to 1200W) | ||||
FREQ RANGE | HZ | 47~63 | ||||
Efficiency(MAX) | % | ≥95 | ||||
Power Factor |
| ≥0.99@220Vac,rated power | ||||
Current | A | ≤16A@220Vac | ||||
Mains output | Rated output voltage | Vdc | 96 | |||
Constant voltage output range | Vdc | 70~132 (According to customer battery decision) | ||||
Maximum current | A | 25(Constant power output characteristics) | ||||
Maximum power | W | 3300 | ||||
Output voltage accuracy | V | ≤±1%Vo input 176Vac-264Vac,output 10%-100% load | ||||
Line regulation | % | ≤±0.2%Vo input 176Vac-264Vac,output 100% load | ||||
Load regulation | % | ≤±0.5%Vo input 220Vac,output 10%-100% load | ||||
Ripple and noise | mV | ≤±3%Vo 20M oscilloscope,Twisted-pair cable test. | ||||
Auxiliary supply | Rated output voltage | Vdc | 14(For BMS awakening signal) | |||
Rated output power | W | 50 | ||||
M37(C+D) DC/DC(DC/DC Converter) Specification DE800M37-96S14RC | ||||||
Project | Specifications | Note | ||||
Rated input voltage/current | DC:90V/9.2A |
| ||||
Input voltage range | DC:70V~132V | >75V, reduce to 30A | ||||
Output rating | DC:14V | (The shell is DC14V output negative) | ||||
Output current | 57A(rated), 68A(max/6mins) |
| ||||
Output power | 800W(rated), 960W(max/6mins) |
| ||||
Output voltage accuracy | ≤±1% |
| ||||
Line regulation | <±0.2% | Input, output full range | ||||
Load regulation | <±0.5% | Input, output full range | ||||
Output Over-current protection | 68-70A |
| ||||
Input over-voltage protection | Normal | Hardware limits≥145V shutdown | ||||
Input under-voltage protection | Normal | Hardware limits≤60V shutdown | ||||
Output Over-voltage protection | yes | Hardware 15V-18V | ||||
Package

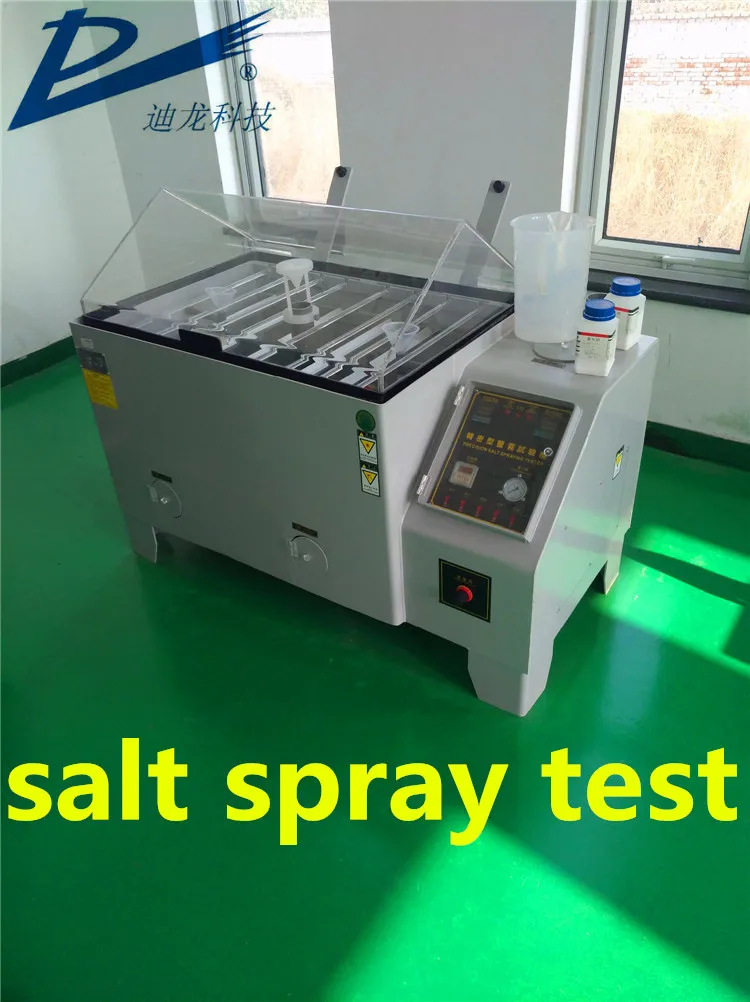

Advanced testing
Our customer

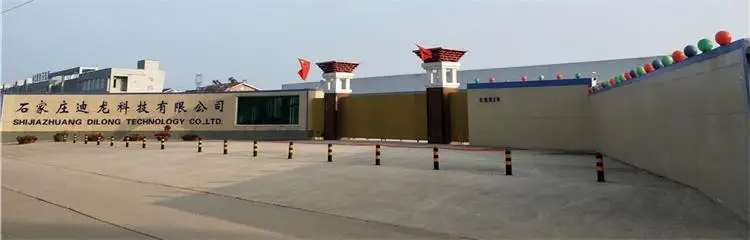

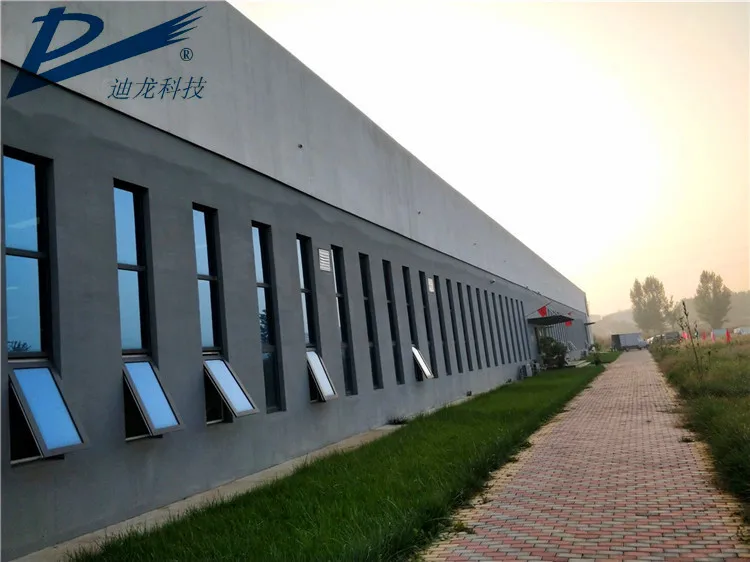

Company Information
We are a professional military power supply and industrial power production enterprise which integrates development, production and sales. The company was set up in 1990. Nowadays, we have established branch company, more than 280 employees in beijing and shenzhen city. The factory has developed a series of power supply, such as 1/16brick 50W, 1/8brick 100w, 1/4brick 100w, half brick 200w, brick 700w, and DLSP module power supply. Technology is already ahead of domestic and international peers.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.
Q4: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.
Q5: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you have another question, pls feel free to contact us as below:
