PT90IR10 platinum iridium ultra fine capillary platinum iridium alloy tube
- Category: >>>
- Supplier: Shanghai Jie Yu Electronic Technology Co. Ltd.
Share on (60841839100):
Product Overview
Description
Material Overview

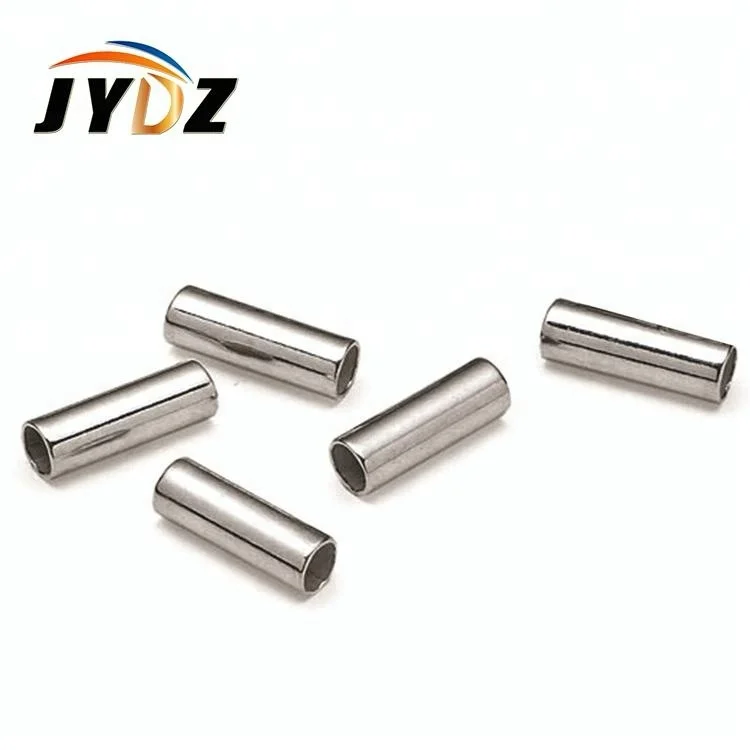

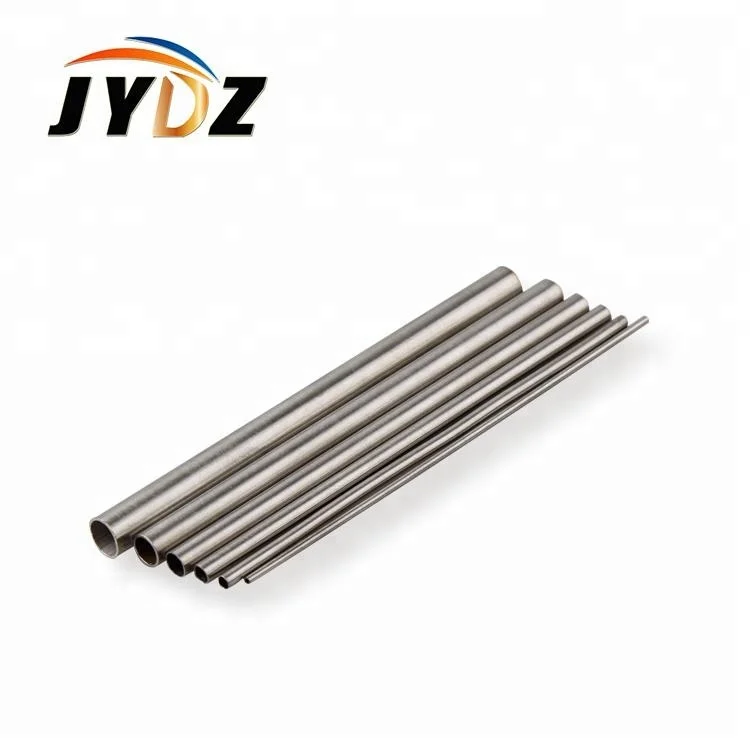

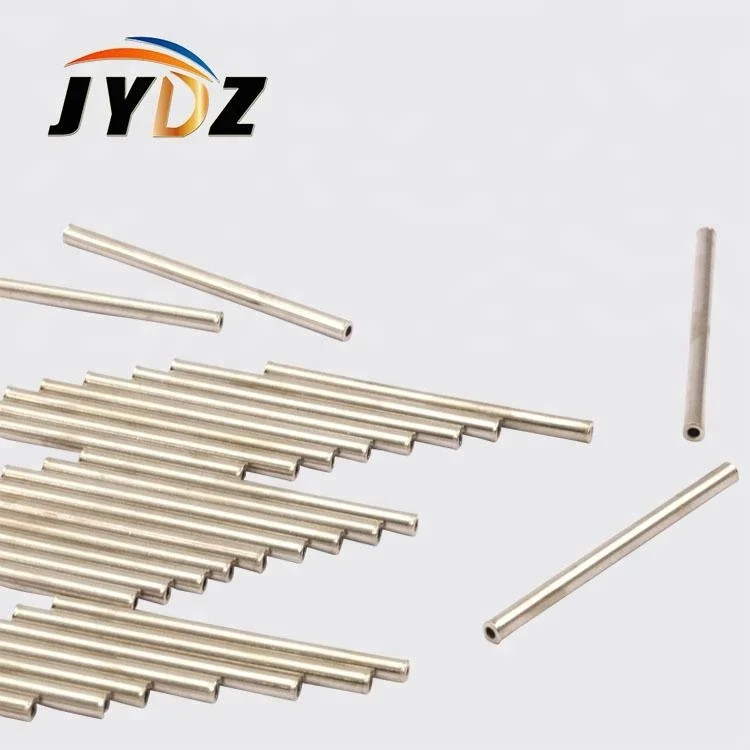

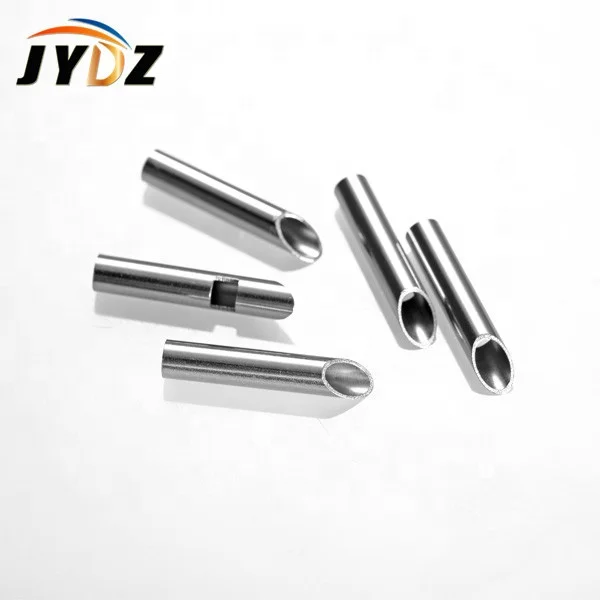

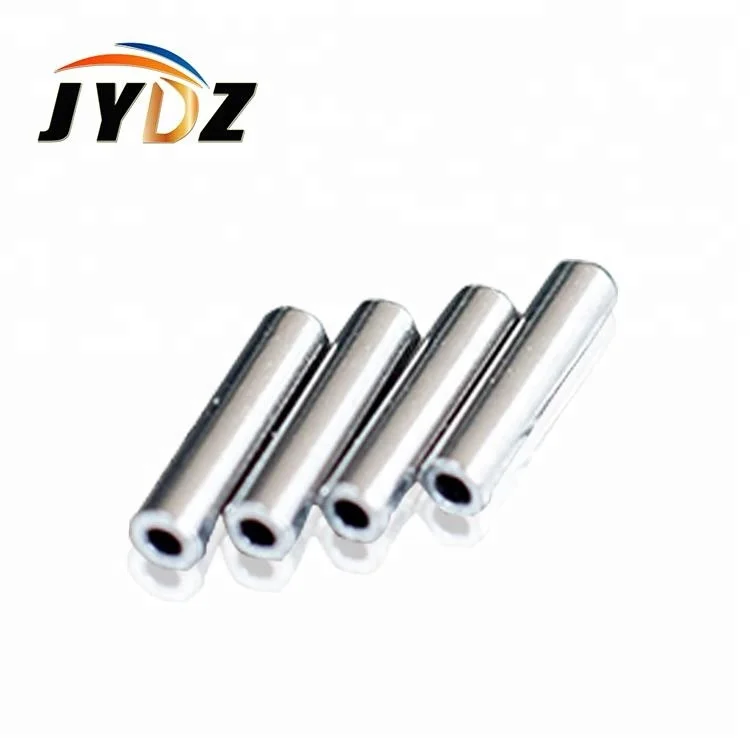

PT90IR10 platinum iridium ultra fine capillary platinum iridium alloy tube
An almost endless variety of platinum alloys can be produced based upon individual customer needs. Alloys are generally produced by vacuum arc melting or induction melting. While common alloys used in the jewelry industry are malleable, less common alloys can be very brittle and unworkable.
Platinum-iridium
Material Percentages
Pt-Ir wire(0.2-3mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Rod(3-10mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Foil(0.1-0.2mm) 90/10, 85/15, 80/20,75/25
Pt-Ir sheet(0.25-2mm) 90/10, 85/15, 80/20,75/25
Other alloy percentages are available on request. Wire is spooled and sold by the foot or meter; rod is sold by the inch or foot; foil and sheet are sold by square inch or foot. Call or email for additional diameters, forms or custom sizes.
Platinum-Palladium
Material Percentages
Pt-Pd wire(0.2-3mm) 90/10, 85/15, 80/20, 75/25
Pt-Pd Rod(3-10mm) 90/10, 85/15, 80/20, 75/25
Pt-Pd Foil(0.1-0.2mm) 90/10, 85/15, 80/20, 75/25
Pt-Pd Sheet(0.25-2mm) 90/10, 85/15, 80/20, 75/25
Other alloy percentages are available on request. Wire is spooled and sold by the foot or meter; rod is sold by the inch or foot; foil and sheet are sold by square inch or foot. Call or email Me for additional diameters, forms or custom sizes.
Platinum-Rhodium
Material Percentages
Pt-Ir wire(0.2-3mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Rod(3-10mm) 90/10, 85/15, 80/20,75/25
Pt-Ir Foil(0.1-0.2mm) 90/10, 85/15, 80/20,75/25
Pt-Ir sheet(0.25-2mm) 90/10, 85/15, 80/20,75/25
Other alloy percentages are available on request. Wire is spooled and sold by the foot or meter; rod is sold by the inch or foot; foil and sheet are sold by square inch or foot. Call or email for additional diameters, forms or custom sizes.
Pt-Ir Foil(0.1-0.2mm) 90/10, 85/15, 80/20,75/25
Pt-Ir sheet(0.25-2mm) 90/10, 85/15, 80/20,75/25
Other alloy percentages are available on request. Wire is spooled and sold by the foot or meter; rod is sold by the inch or foot; foil and sheet are sold by square inch or foot. Call or email for additional diameters, forms or custom sizes.
Product Parameter
Outter diameter | Inner diameter | Thickness | Length | |||
5mm | 3.8mm | 0.6mm | 300mm | |||
3mm | 2mm | 0.5mm | 500mm | |||
Comparison Property
Material | Melting point °C | Density g/cm |
Pure Pt --- Pt(99.99%) | 1772 | 21.45 |
Pure Rh--- Rh(99.99%) | 1963 | 12.44 |
Pt-Rh5% | 1830 | 20.70 |
Pt-Rh10% | 1860 | 19.80 |
Pt-Rh20% | 1905 | 18.80 |
Pure Ir --- Ir(99.99%) | 2410 | 22.42 |
Pt-Ir5% | 1790 | 21.49 |
Pt-Ir10% | 1800 | 21.53 |
Pt-Ir20% | 1840 | 21.81 |
Pt-Ir25% | 1840 | 21.70 |
Pt-Ir30% | 1850 | 22.15 |
