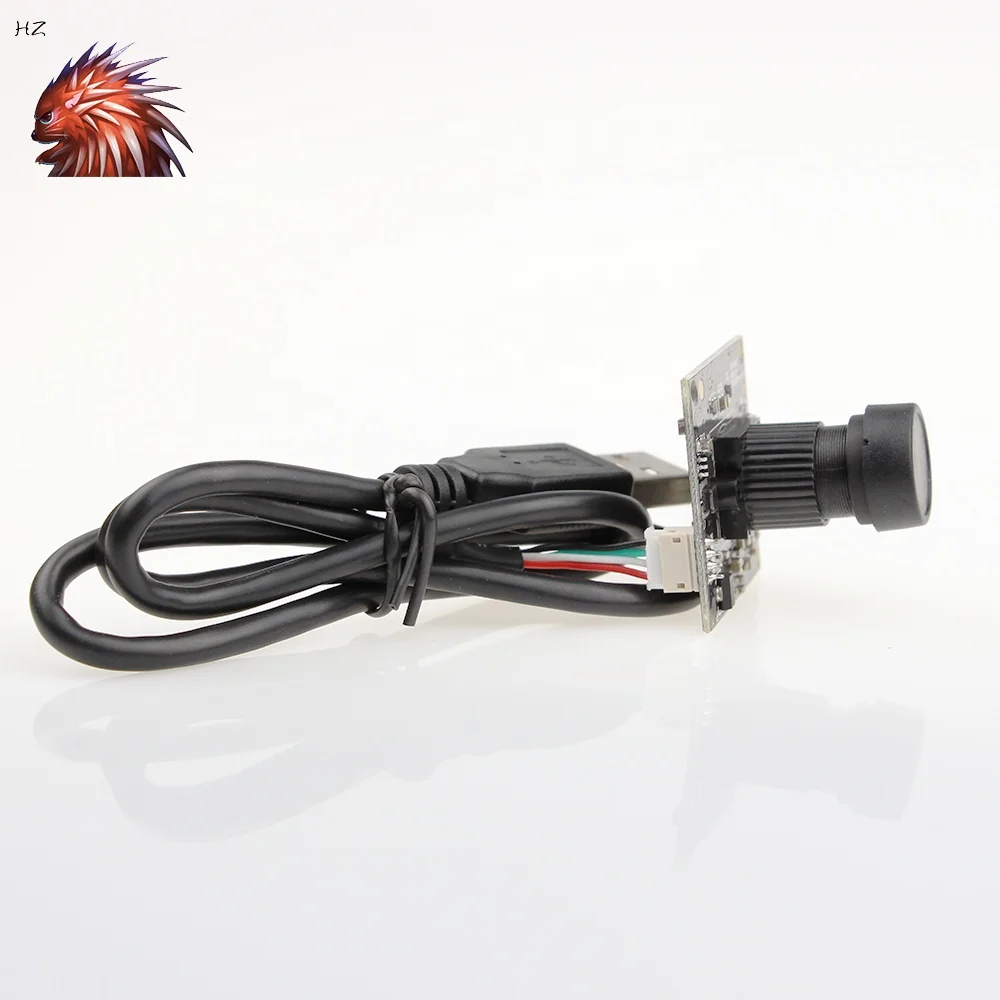

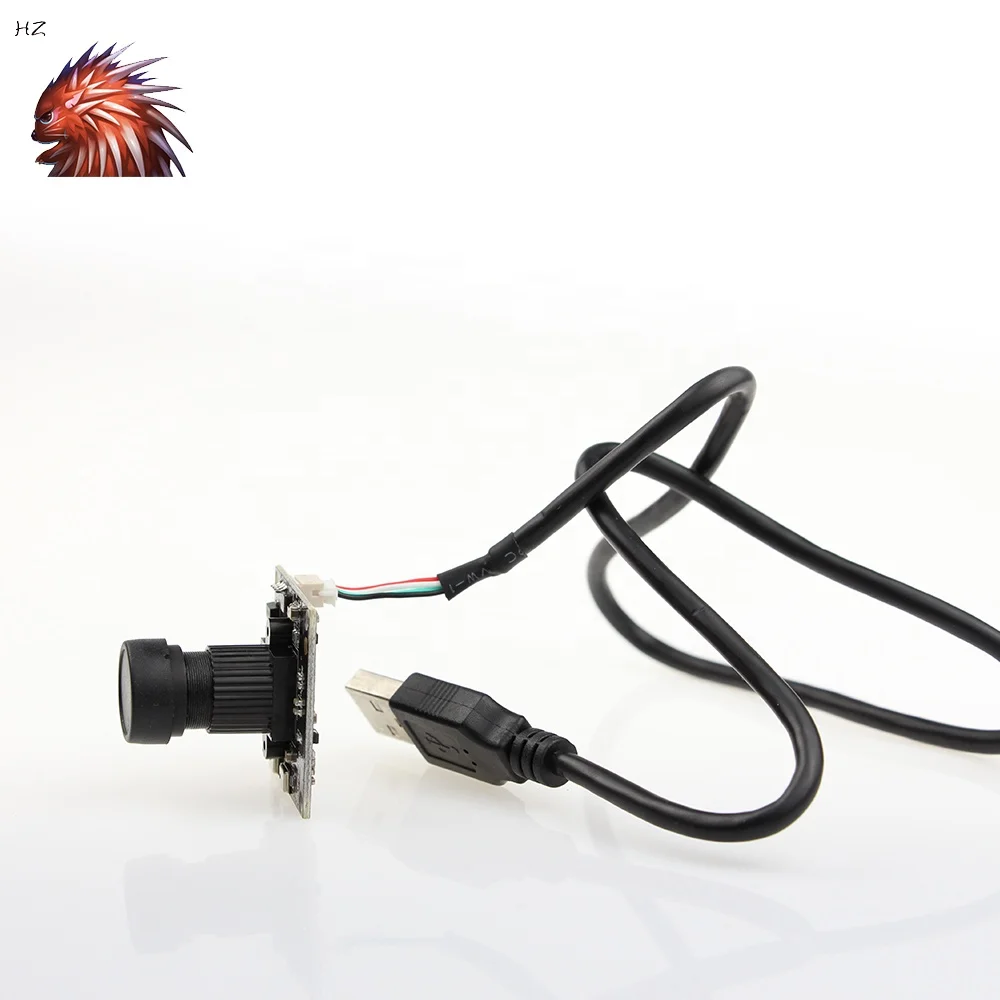

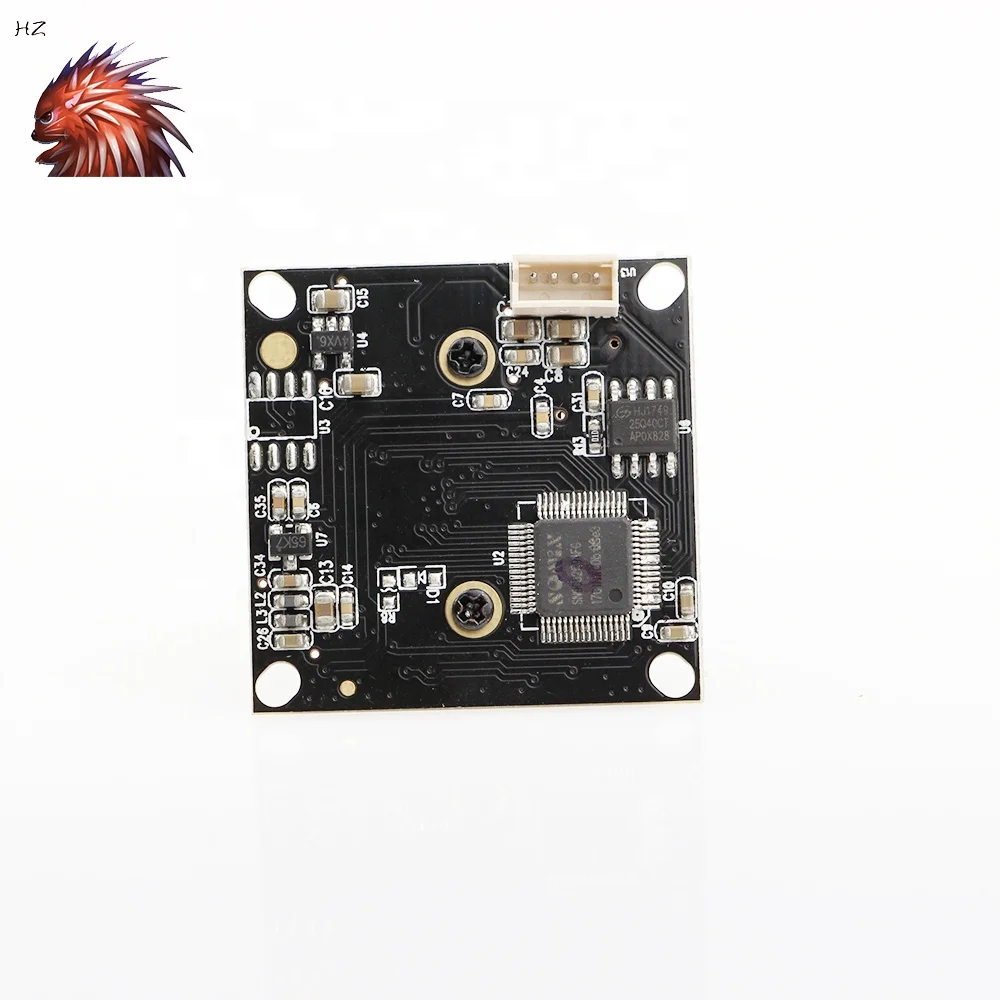

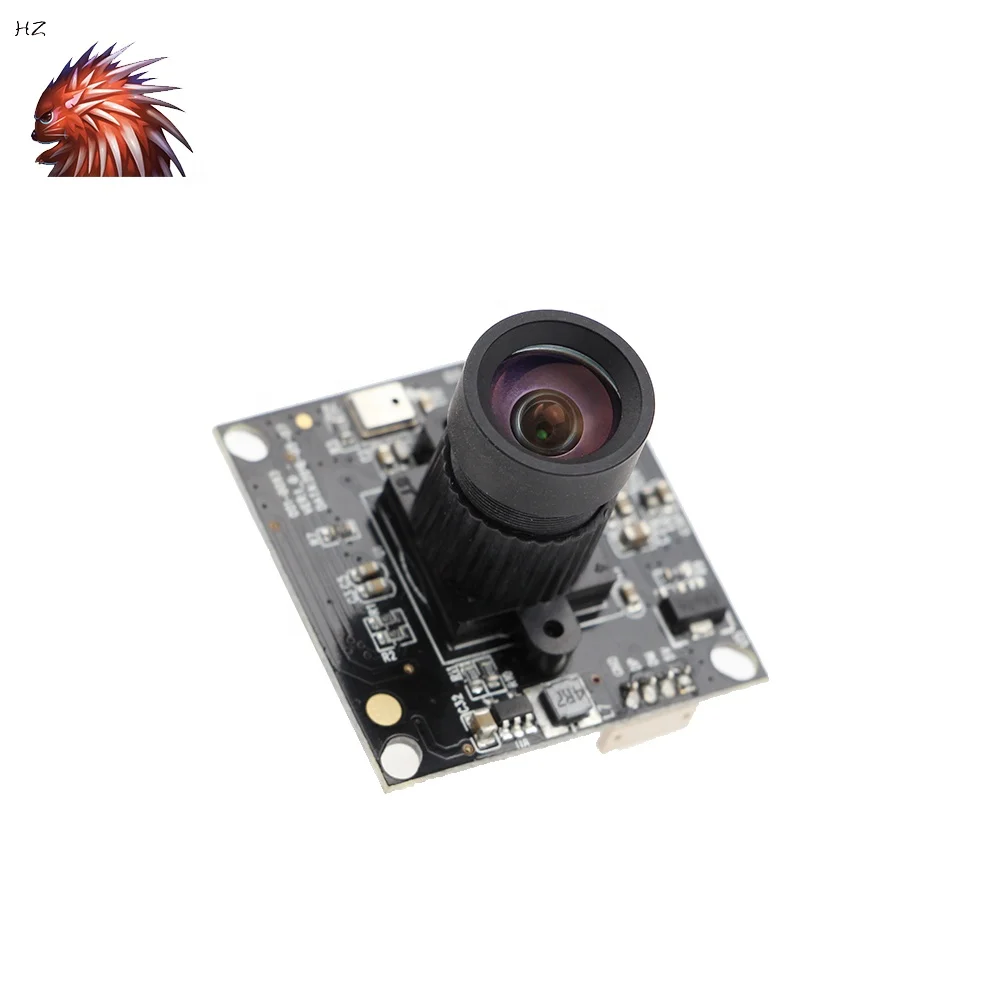

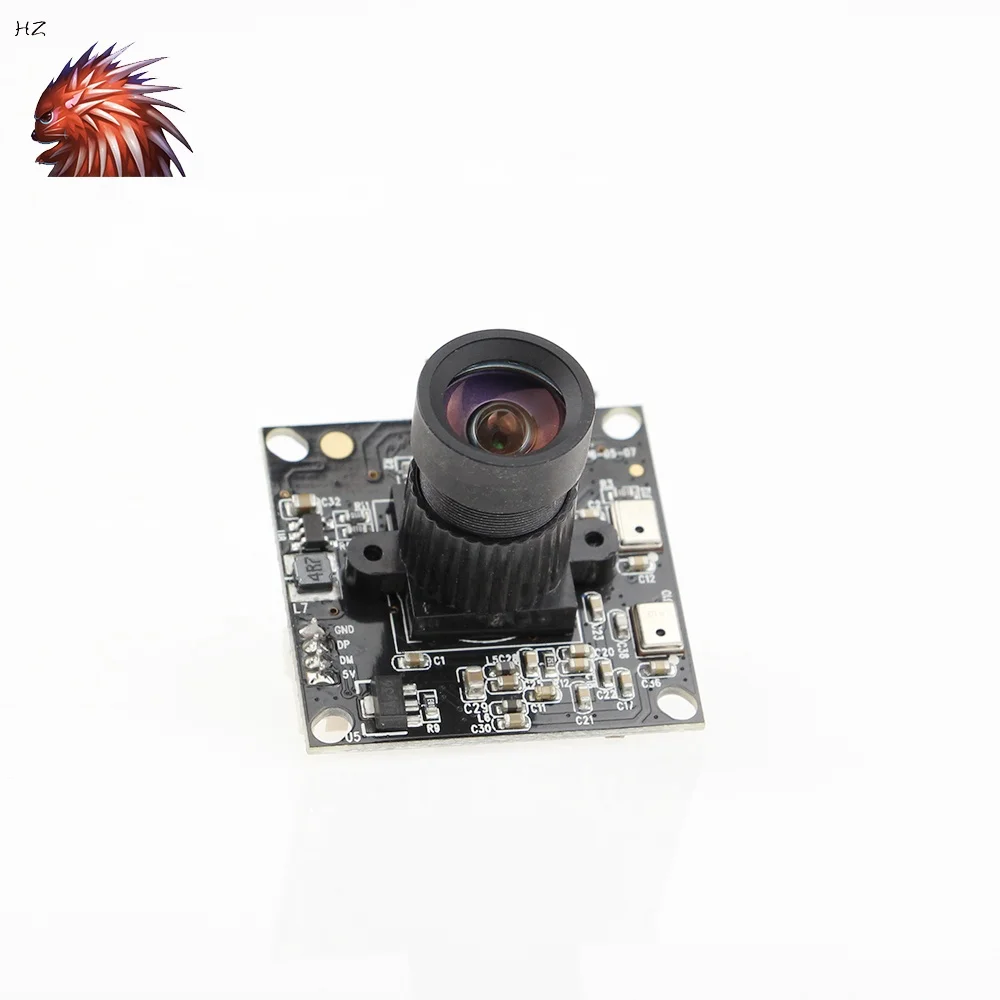

HD 5MP OV5640 OV5648 YUY MJPG uvc linux android cmos micro mini usb 2.0 monochrome industrial camera
- Category: >>>
- Supplier: Shenzhen City Haozhou Technology Co. Ltd
Share on (60841859801):
Product Overview
Description
HD 5MP OV5640 OV5648 YUY MJPG uvc linux android cmos micro mini usb 2.0 monochrome industrial camera
Module No. | 003-0093 | |
Module Size | 32*32mm | |
Object distance | 15CM-100CM | |
Focus | Fixed Focus | |
Audio | Yes | |
Interface | USB2.0 | |
Voltage | DC5V | |
Temperature (Operation) | -30°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
Assembly technique | SMT (ROSH) | |
PCB printing ink | Black | |
Operating system request | WinXP, VISTA, Win7, Win8, Win10, Linux or OS with UVC driver | |
Package | Anti-electrostatic tray | |
Sensor Type | ||
Sensor No. | OV5640 | |
Sercor Type | 1/2.5” | |
Active Array Size | 2592*1944 | |
Pixel Size | 2.2*2.2μm | |
Maximum Image Transfer Rate | 2592*1944@30fps 2592*1944@15fps | |
Dynamic Range | 70DB | |
LENS | ||
Lens Type | 2G2P | |
Data Format | YUY/MJPG | |
Image Circle | CSP | |
FOV | D=80° | |
Mount | M12*P0.5mm | |
IR Filter | / | |
DSP Type | ||
AGC/AEC/Whiter balance | <1.0% | |
Output Formats | >48% | |
Fixed Pattern Noise | 650±10nm | |
