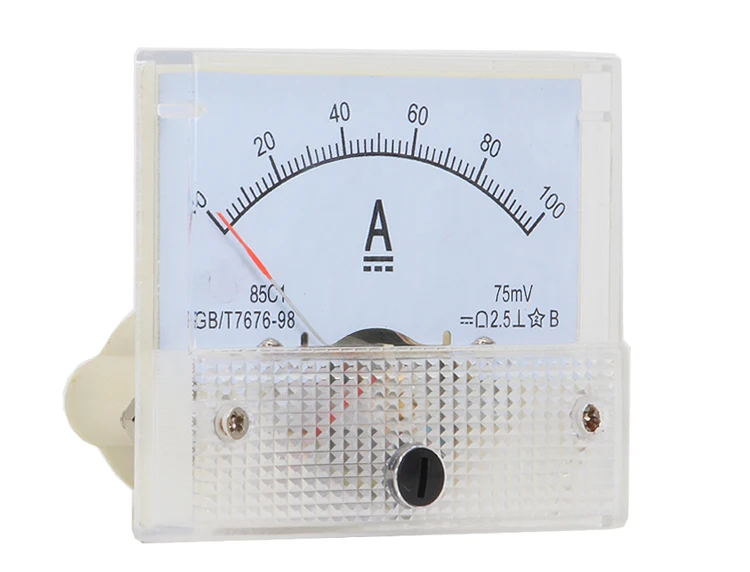

Аналоговая Панель измерителя постоянного тока 10A 15A 20A 30A 50A 75A 100A 150A 200A 300A 500A 600A амперметр тока 85C1

Product Detail

1.Model:85C1-A
2.Measuring Range: DC 1.Model:85C1-A
2.Measuring Range: DC 0-10A/15A/20A/30A/50A/75A/100A/150A/200A/300A/500A/600A
3.Accuracy: Class 2.5

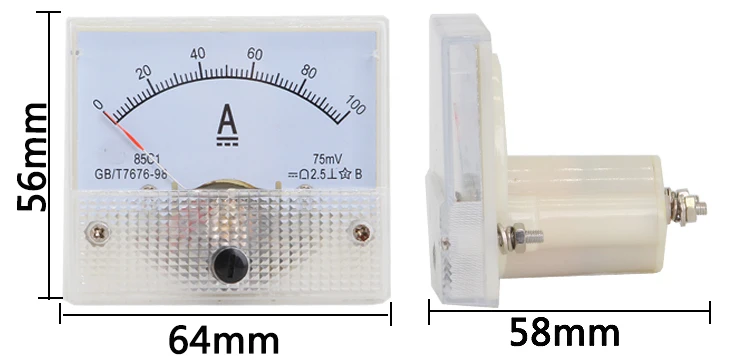

4.Size : 64 mm x 56 mm x 60 mm
5.Color : White
One. Use
This instrument is a switched magnetoelectric instrument, which is used for measurement of AC / DC current or voltage. The ambient temperature is -20~40 C, and the relative humidity is not more than 96% (25).

Two, specifications
AC ammeter 0.5~30A (direct access)
5A~15KA (connected by current transformer, secondary current 5A)
AC voltmeter 5V~600V (direct access)
DC ammeter (direct access) (direct access) (direct access) (direct access) (1A~10A)
15A~15KA (using external partition constant value shunt)
Direct current voltmeter (direct access) (direct access) (direct access) (direct access) (5V~600V)

Three. The main technical characteristics
1. Degree of accuracy: level 1.5 and 2.5.
2, the damping time is less than 4S.
3. Insulation strength: AC2000V (50HZ), 1 minutes

Four. Use of rules
1, work position: vertical.
2, instrument installation should be fastened, not loose or inclined.
3, the current ratio of the external current transformer must be in line with the calibration ratio of the instrument, and the accuracy grade is matched.

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
