leeb paint gauge thickness car paint meter zinc coating gauge thickness

Product Overview

Description

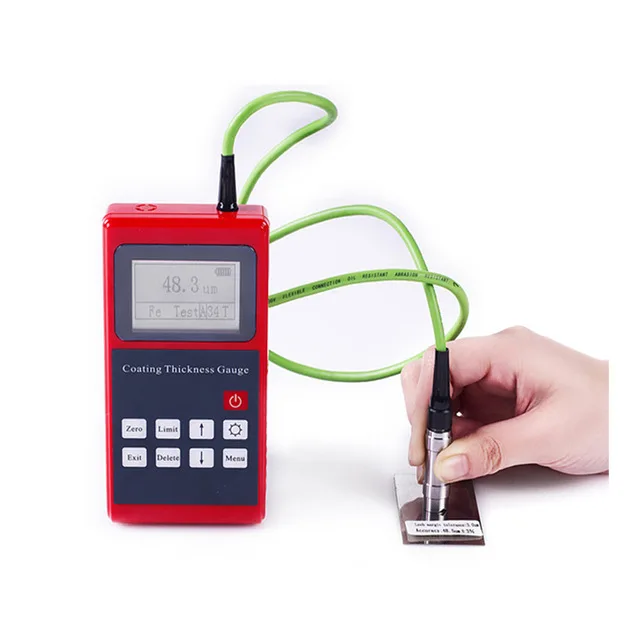

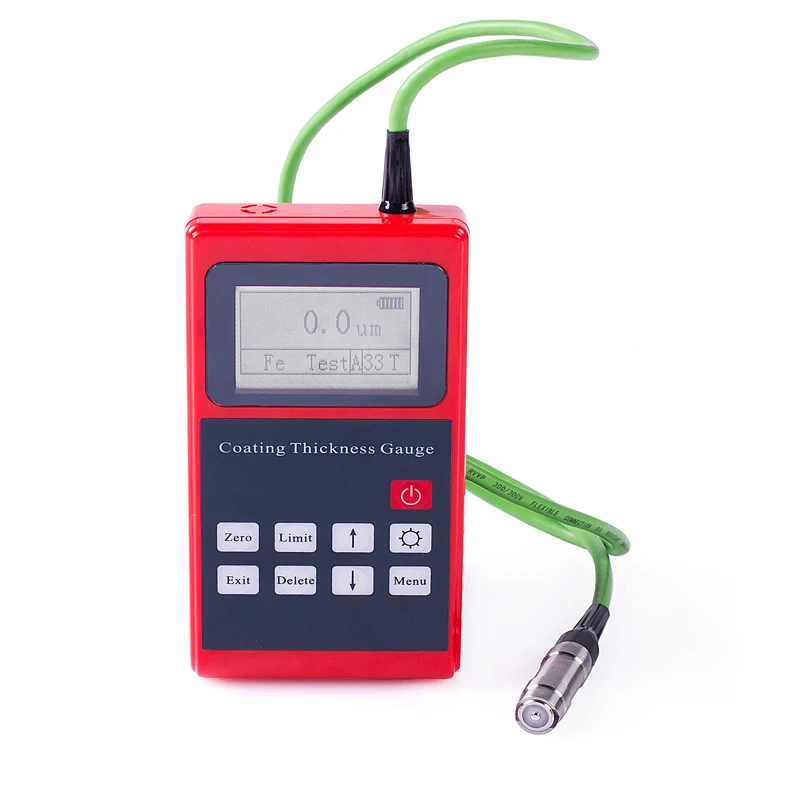

Coating Thickness Gauge Leeb210

Function & Feature:

l  Two methods of power off: Manual & Automatically.

l  Limit settings: alarm if one of the measurement data is beyond of the limits.

l  Deleting function: You can delete one of the doubtful data and you can also delete all of data in the memory to prepare for new measurement.

l  Saving function: capable of 500 sets of measurement value.

l  Five statistical data: Mean Value, Maximum Value, Minimum Value, Measurement, Standard Deviation.

Measuring Material:

l  Non magnetic coatings on magnetic substrates (such as aluminum, chromium, copper, zinc, tin, rubber, paint on the steel, iron, alloy and magnetic steel) . (Fe)

l  Non conductive coating on non magnetic metal (such as rubber, plastic, paint, oxide on aluminum, copper, zinc, tin) . (NFe)

Technical Specification

Model	Leeb210
Operating principle	Magnetic induction   (Fe)
Measuring range (µm)	0~1250μm
Probe	Settled
Shell	Plastic
Accuracy	±[(1~3%)H+1]
Low range resolution (µm)	0.1μm
Min curvature of the min area (mm)	Convex1.5   Concave9
Diameter of the min area (mm)	Φ7
Critical thickness of substrate (mm)	0.5
Memory	500 Groups measured data
Dimensions	115×70×30mm
Power supply	AAA  Alkaline battery

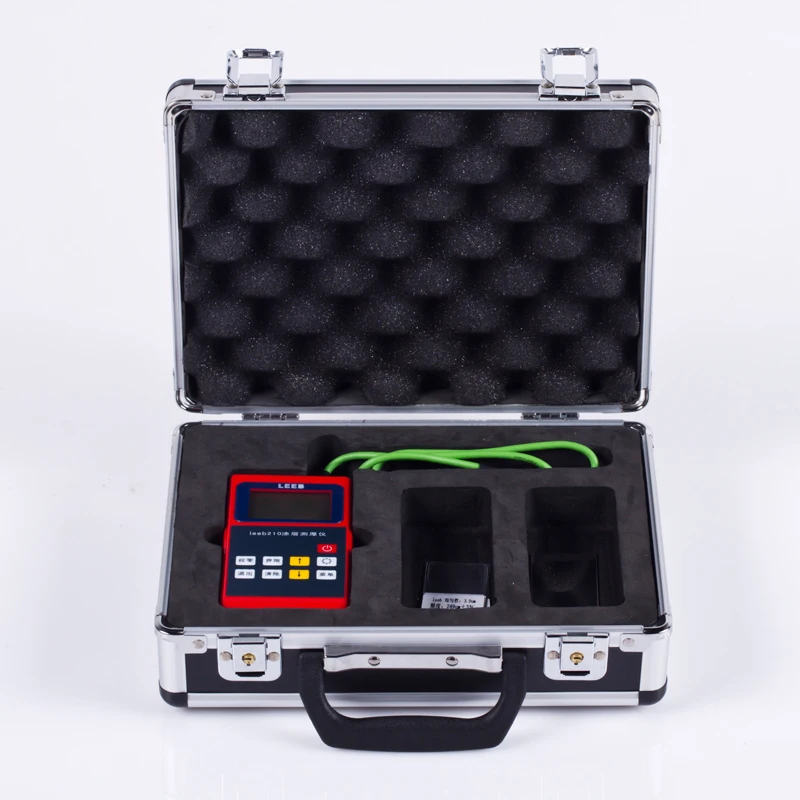

Standard  configuration	Main Machine,5 calibration specimens (50mm,100mm,200mm,500mm,1000mm),Fe or NFe probe, Fe or NFe substrate.
Optional Accessories	Probes,Specimens
