Product Overview

Description

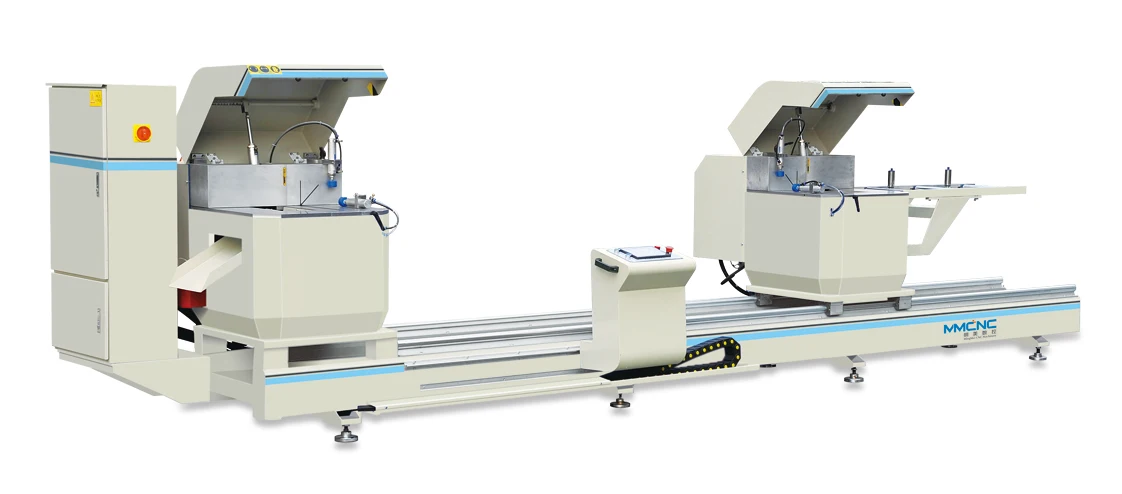

LJZ2S-500x4200 Aluminium Window

Double-head Precision Cutting Saw CNC





This machine is designed for cutting any of aluminum curtain wall and window and door profile. The cutting angle is auto adjustable through the imported servo motor between 45.,67.5°,90.



1.Equipment Features

 1.1  Imported carbides blade is of accurate processing and high endurance.

 1.2  Saw blade rotates smoothly due to high accurate main spindle.

 1.3  Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.

1.4  The feeding system adopts the imported linear guide pair,with high accuracy and stability.

 1.5  Two saw heads are adjustable and cut the profiles in 67.5°,45°,90°freely.

 1.6  Auto-opening shield make the operation safety.

 1.7  Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving locating and smooth working.

 1.8  This machine uses the numerical control technology, profiles of different specificationscan be completed automatically under the expected size.



2. Parameter

2.1  Input power 5.9 Kw

2.2  Power supply 380V/50Hz

2.3  Air pressure 0.5~0.8MPa

2.4  Motor rotary speed 2800r/min

2.5  Saw Blade specification Φ500?Φ30

2.6  Cutting angle 90 degree,67.5degree and 45 degree

2.7  Cutting length 400~4200mm

2.8  Cutting widthxheight: 135x200mm

2.9  Overall dimension 5700x1650x1520mm

2.10  Weight about 1613kg

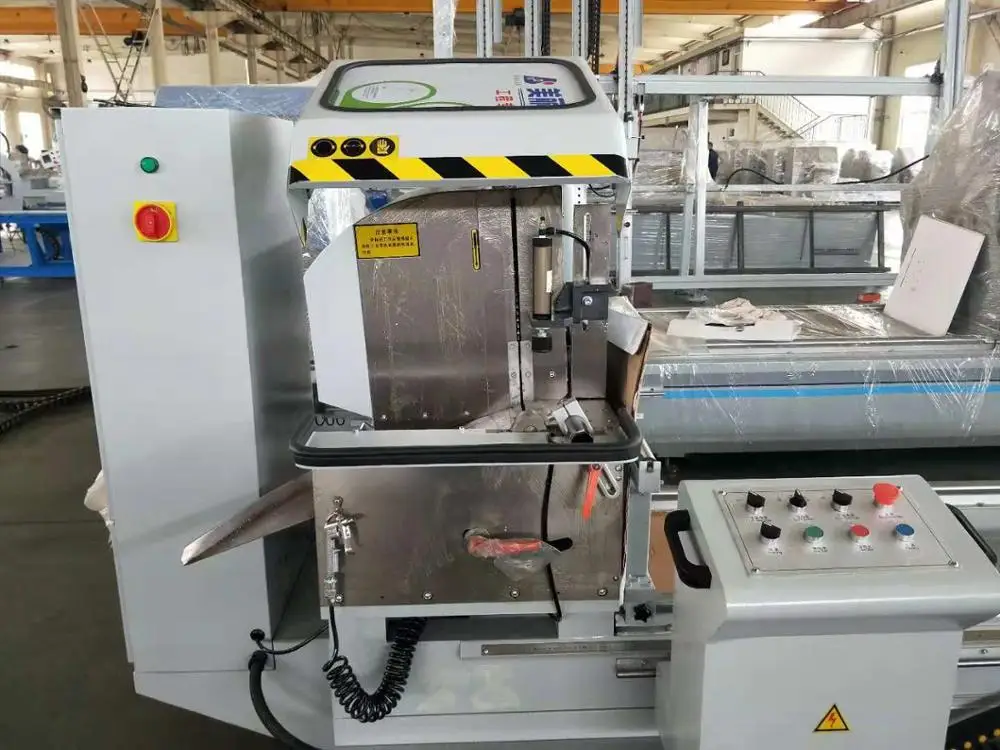

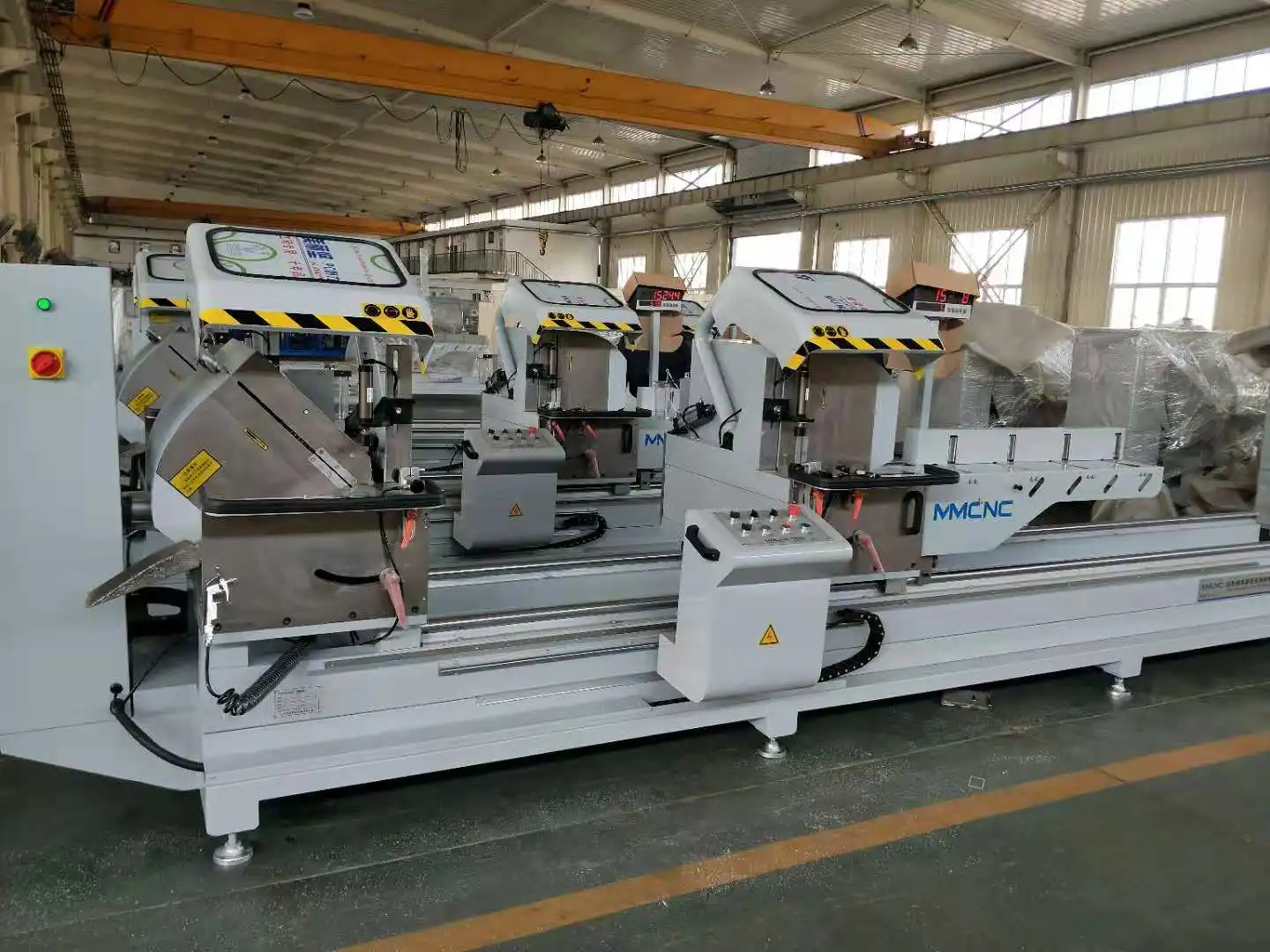

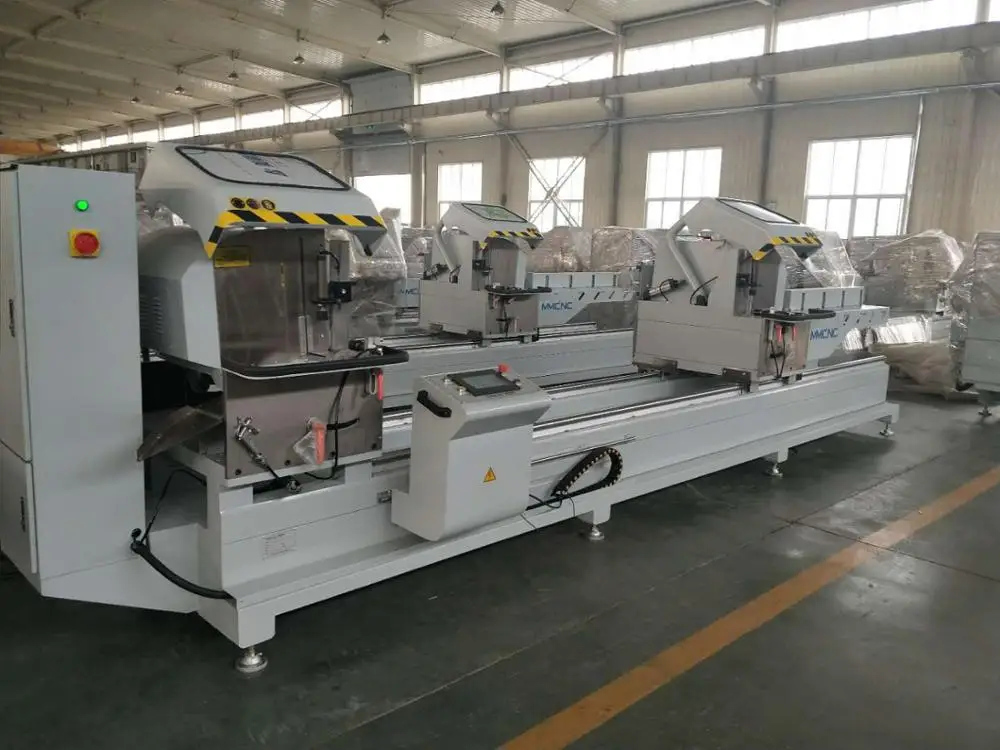

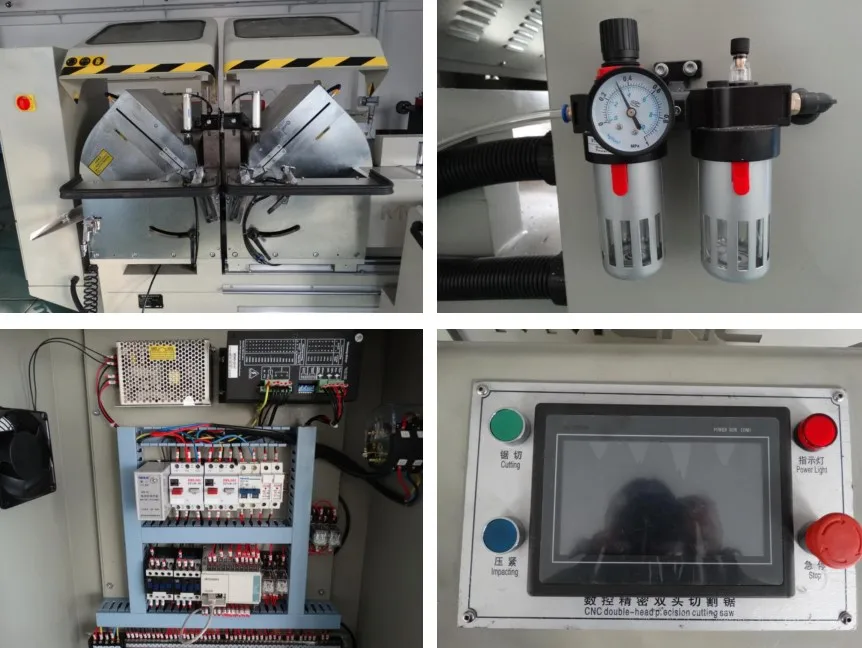

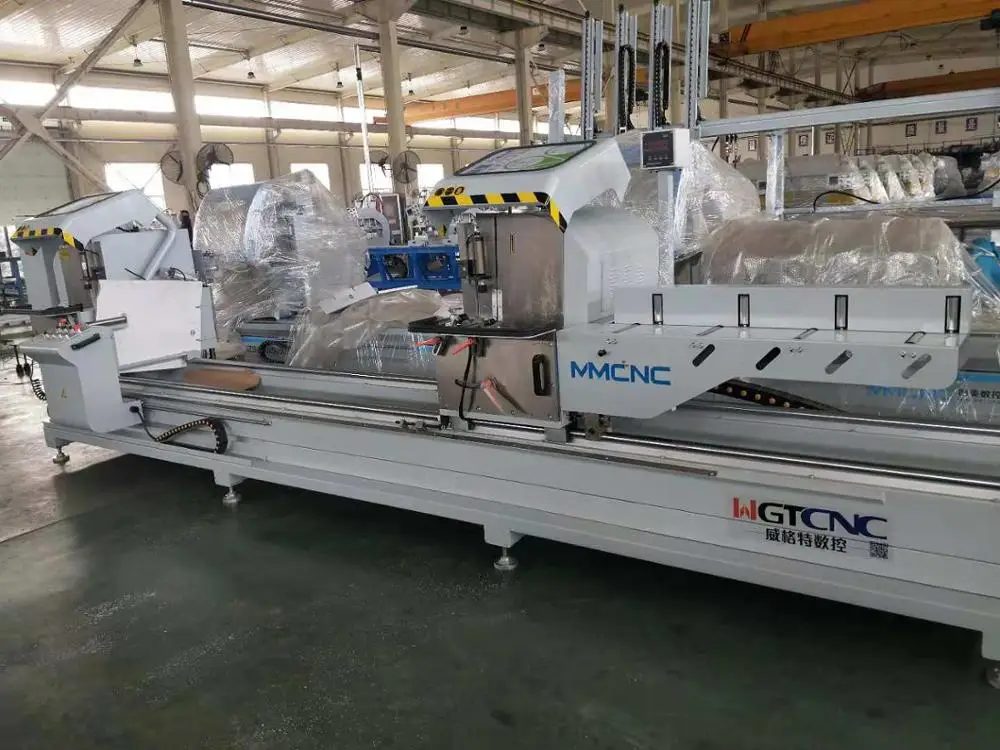

3.Detail Photos

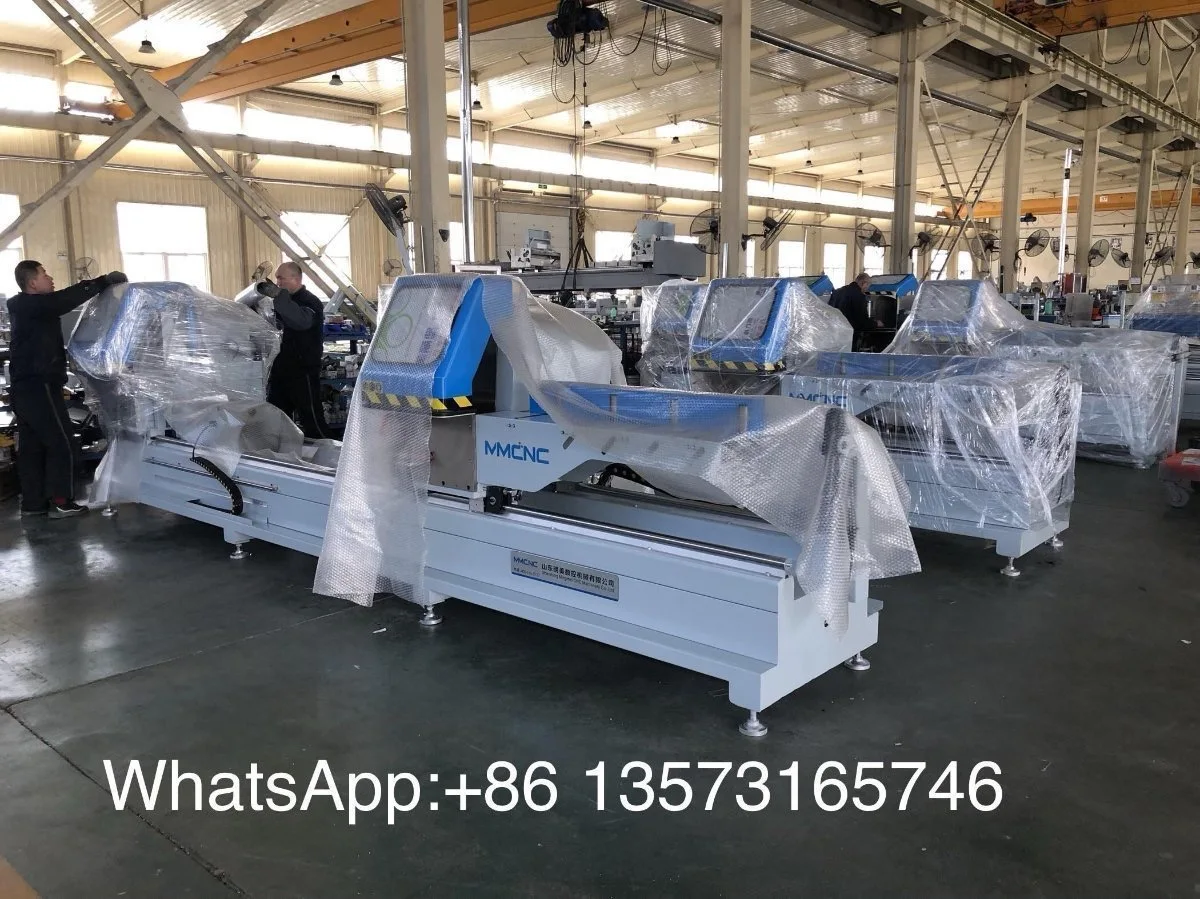

4.MMCNC factory SINCE 1995



5.Contact Demi freely for more info
