IP55 outdoor telecommunication cabinet with cooling system

Product Overview

Description

The basic configuration for IP55 outdoor telecommunication cabinet with cooling system



1.internal size:H*W*D 800*600*600MM           internal capacity 18U 19" rack

2.external size:H*W*D 1050*650*6500MM

3.structure:one unit one cabin,front door,assembled structure,double sheet

4.material:double Galvanized steel,1.5mm thick outer plate,0.8mm inner plate insulation thickness 45mm,insulation cotton  material is PEF      color:RAL7035



5.Thermal insulation performance:Thermal Conductivity<0.472W/(m2.k)

6.equipment rack:standard 19"rack ,

7.cabinet base:150mm H,thickness 2.0mm

8.cable entry:under bottom in and out Φ50*5

9.security design: Embedded door, embedded hinges, 3-point security lock

10.protection level:IP55

11.19"rack included

12.Auxiliary direct ventilation fans included   DC48V 12038

13.LED light included

14.Grounding bus bar included.

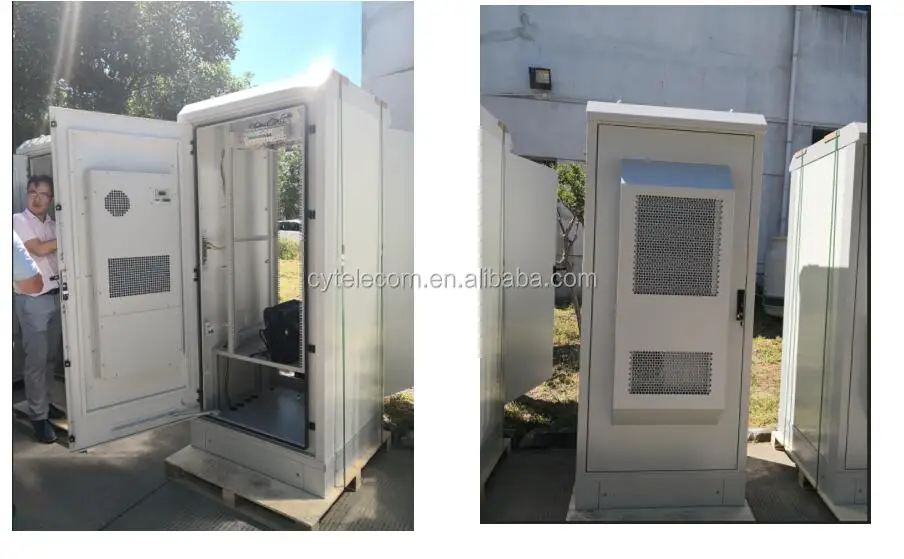

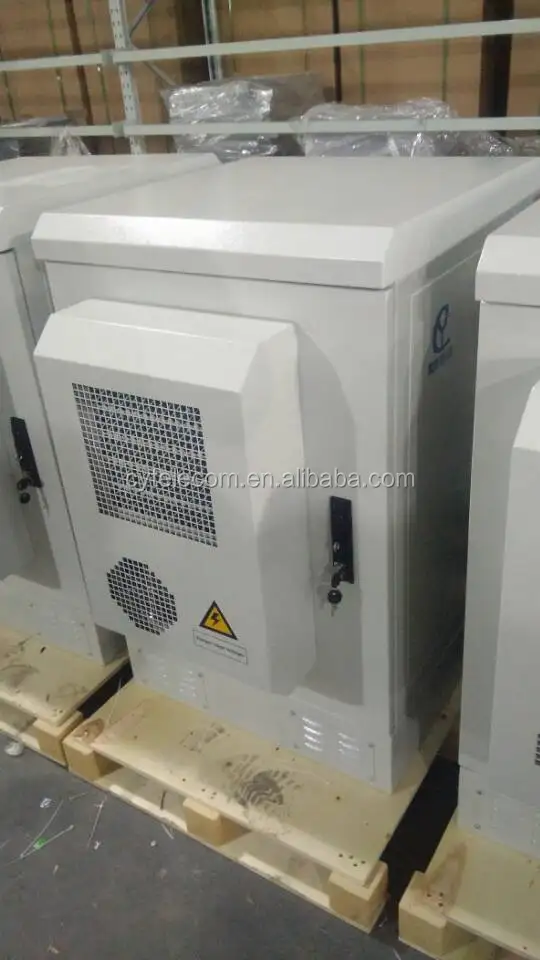

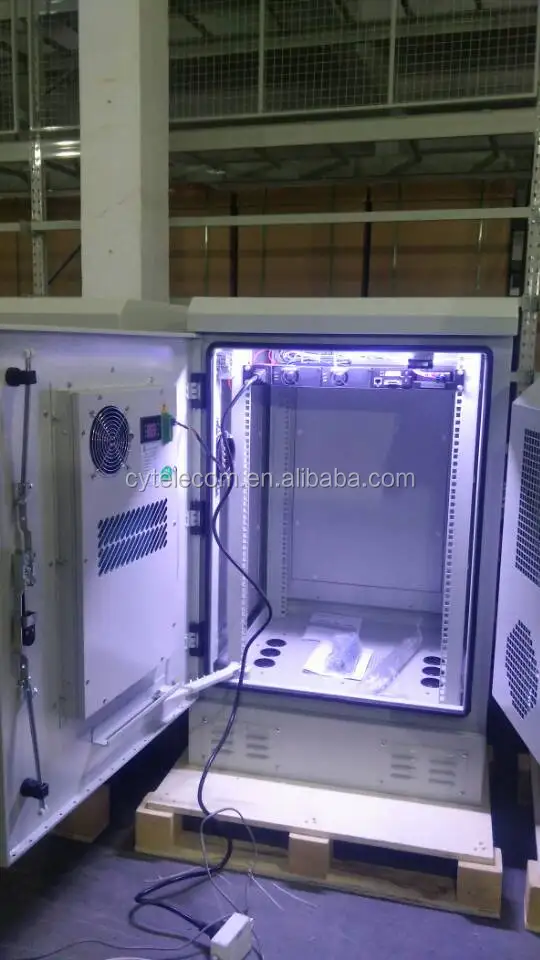

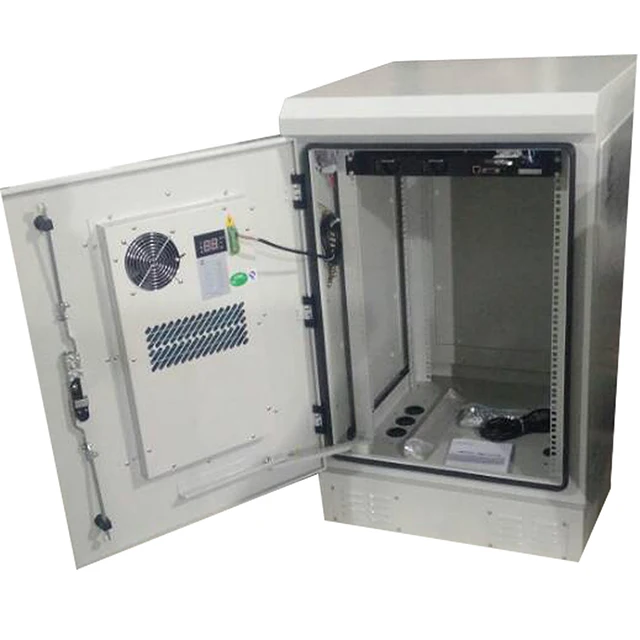

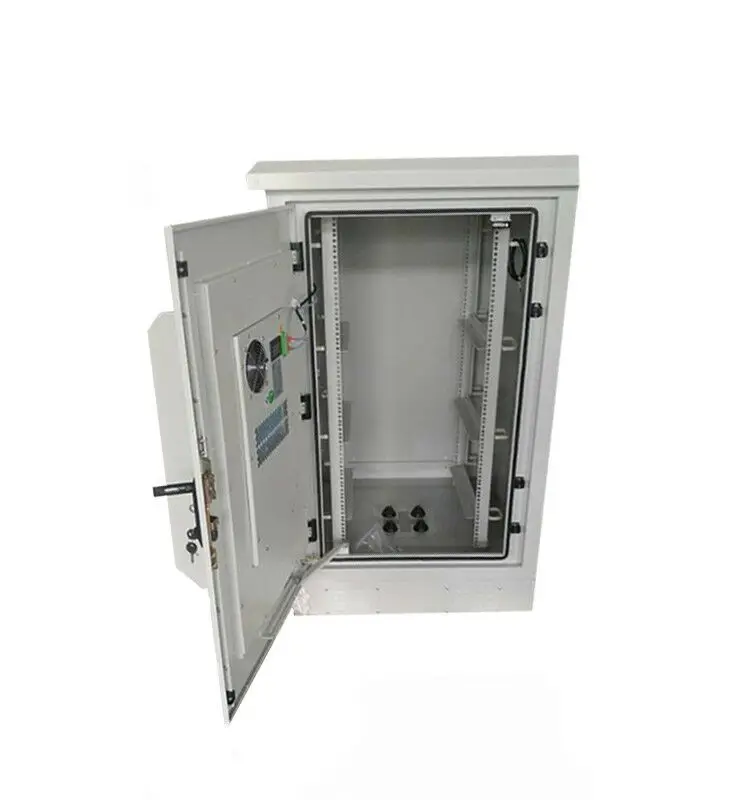

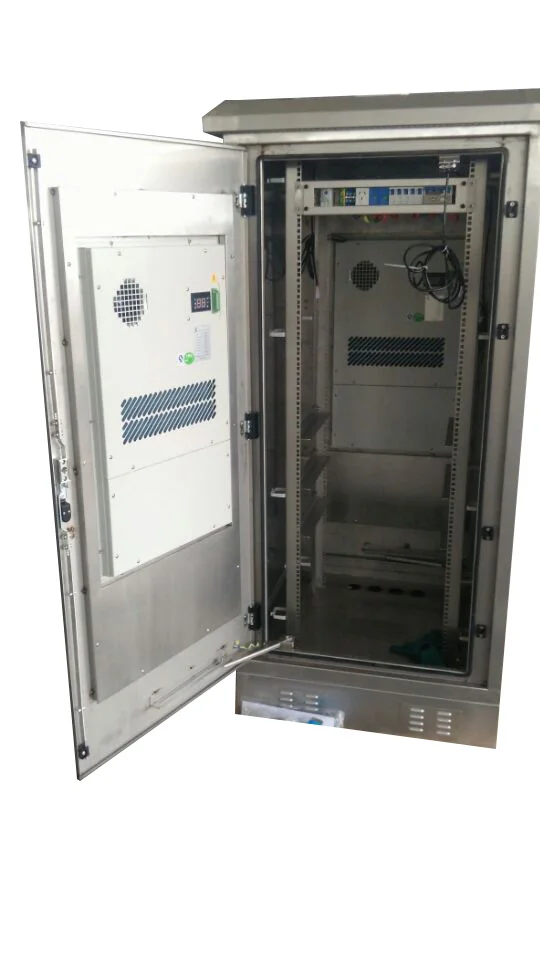

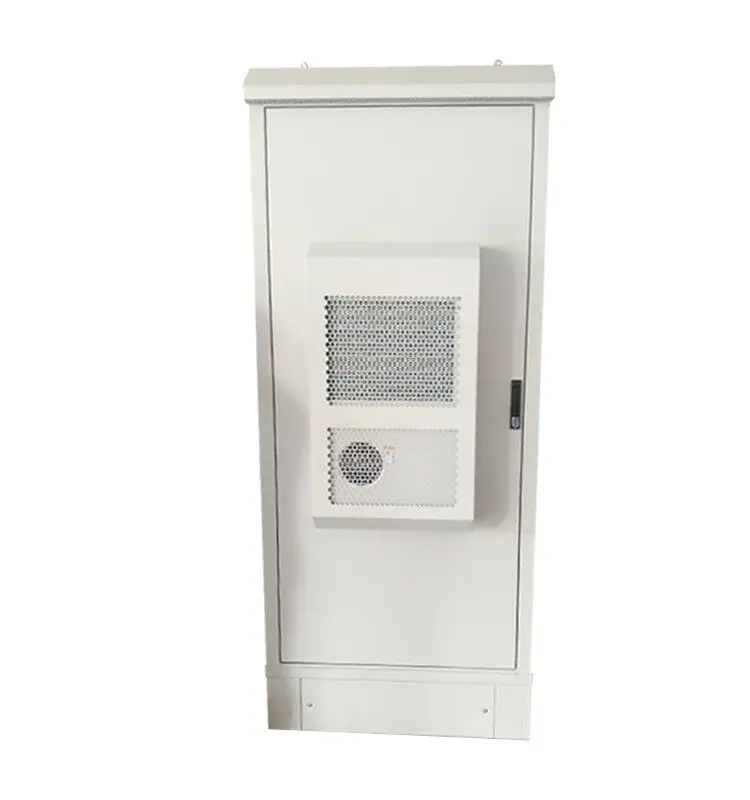

Some pictures for IP55 outdoor telecommunication cabinet with cooling system









Please send me email if you have any request on IP55 outdoor telecommunication cabinet with cooling system ,i will reply you in 24hrs.
