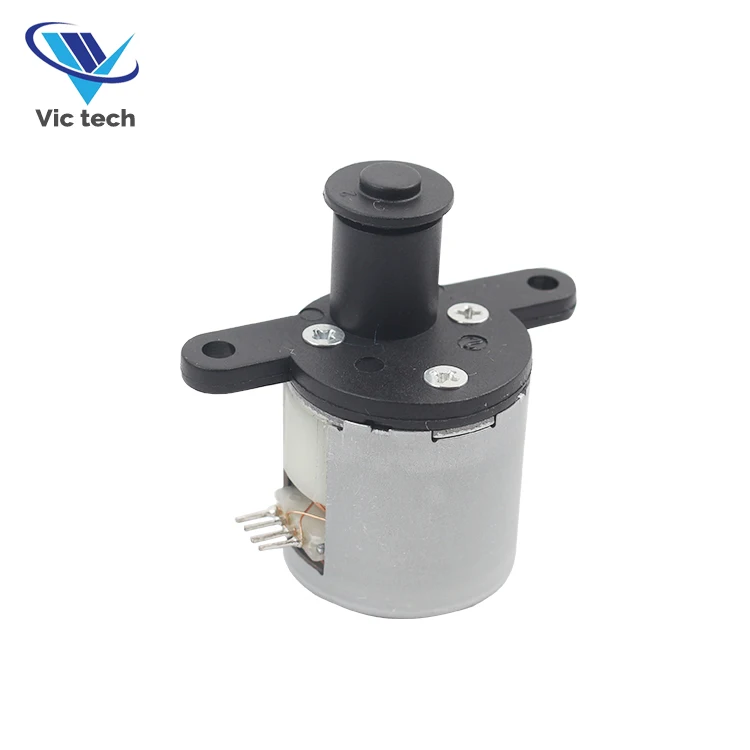

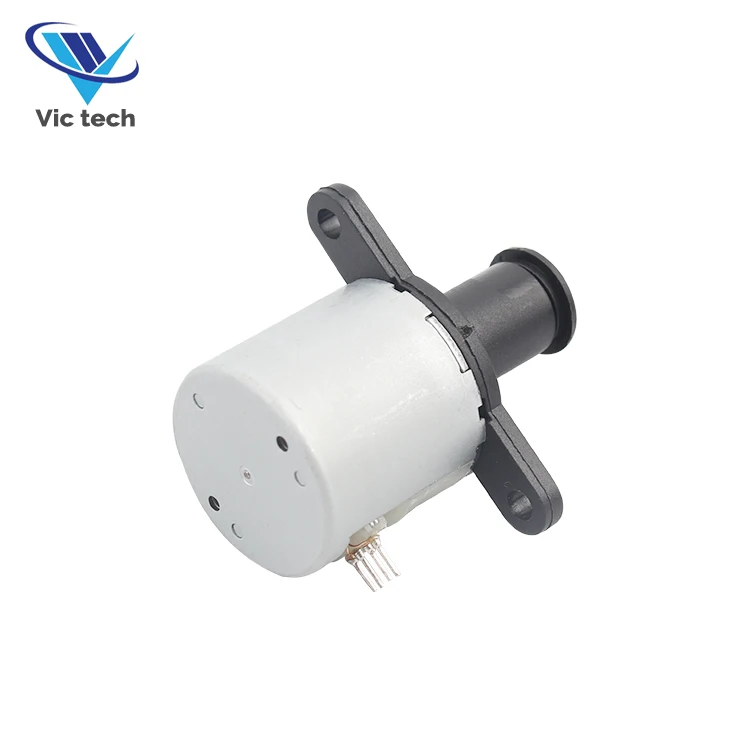

25BYJ412 mini gear box stepper motor 25PM linear motor valve for precise position control such as valves

Product Overview

Description

 25BYJ412 mini gear box stepper motor 25PM linear motor valve for precise position control such as valves



MOTOR PARAMETER
PRODUCT NAME	25mm mini gear box stepper motor
MODEL	25BYJ412L-1L
Coil Type	BIPOLAR
STARTING FREQUENCY	750 PPS min. (AT 2.6V DC) 800 PPS min. (AT 3. 0 V DC)
RUNNING FREQUENCY	800 PPS min. (AT 2.6V DC) 850 PPS min. (AT 3.0 V DC)
DETENT TORQUE	60g.cm
RESISTENCE	5MΩ±7%/phase
ACTUATOR
STROKE	5MM
SPINDLE	3.5MM
DIAMETER PITH	1.0
PUSH FORCE	MIN 70N (2.6VDC 300Hz) MIN 70N(3.2VDC 700Hz)
BACKLASH	MAX0.01664M(8 STEP)
OEM & ODM SERVICE	AVAILABLE



Application :                                                   Highlights :

Refrigeration Industry Air Conditioner, Fan      Winding possibilities - Bipolar
Electric Generator Valve Control                      Maintenance free - motor is brush
Other Industries & Applications Robotics         Cost effective - compact design, lower integration cost
Monitoring Industry(CCTV) Camera                 Excellent open loop control - No encoders necessary
Sanitary Ware Automatic Toilet Bowl                Digitally controlled - Easy to use with a micro processor





SHAFT TYPES:

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm


• D-cut   Type: DIA3-D2.5  DIA4-D3 etc


• Screw Type:  M3 M4 M5 Serial


• Trape  Type


• I-cut    Type:  DIA3-I2 DIA4-I3


• Other  Type:  Shaft with a hole etc

TYPE of FIXTURE COVER:

The regular models are shown in the figure, and the special sizes can be customized.



TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
