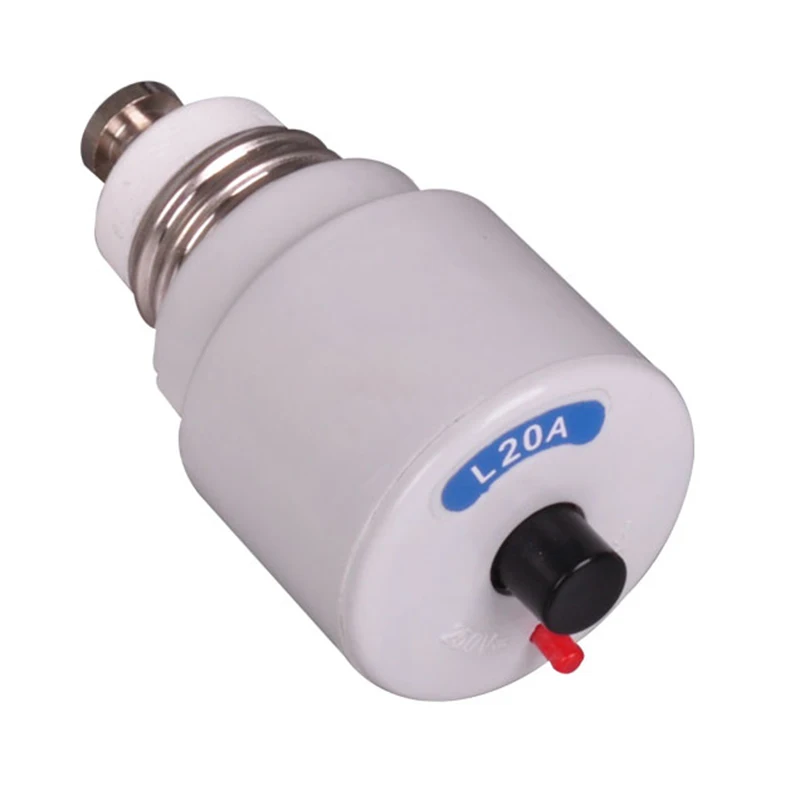

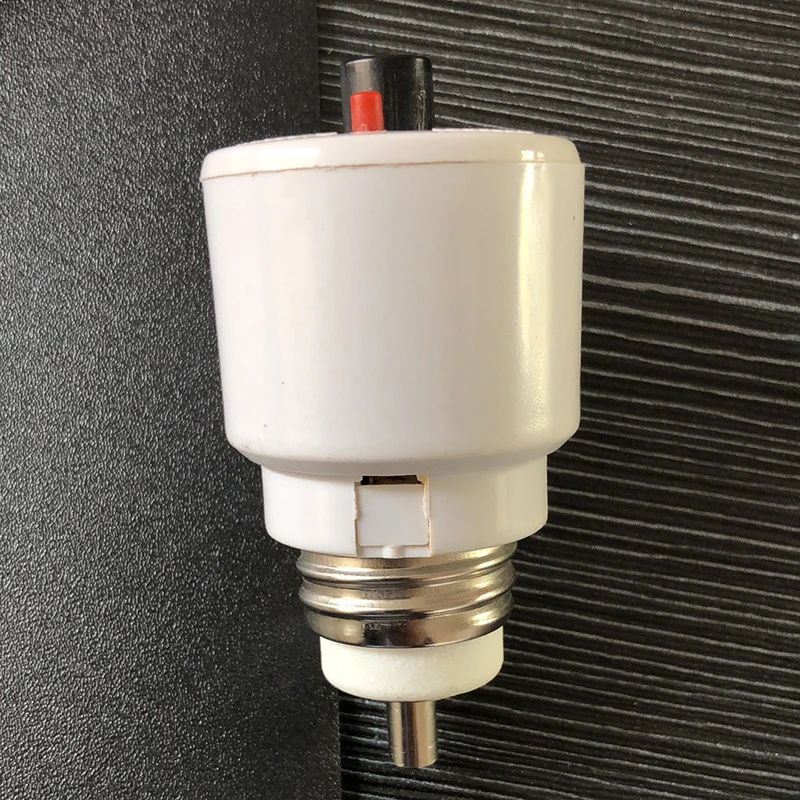

Высококачественный автоматический предохранитель S101 винтового типа, мини автоматический выключатель MCB 6 32A 240 В/415 В, миниатюрный изолированный переключатель с головкой E27

Product Overview

Description

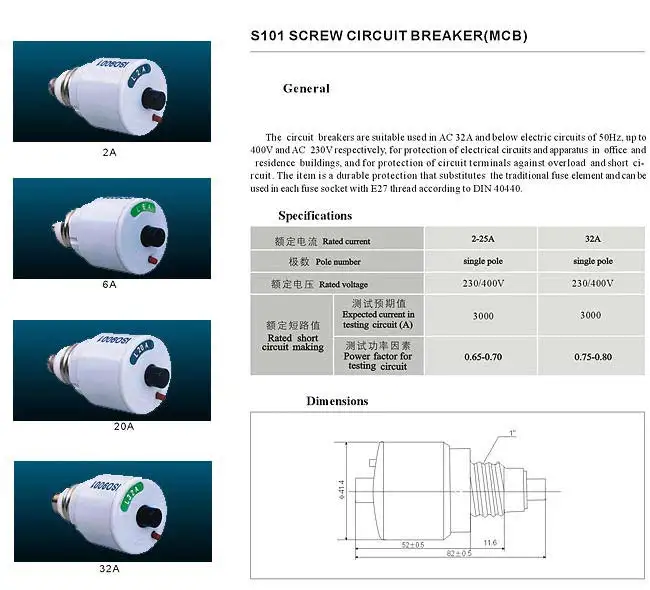

S101 series circuit breaker are suitable used in  AC and DC 32A and below electric circuits of 50/60Hz, up to 380V and up to DC 250V respectively, for protection of electrical circuits and apparatus in office and residence buildings, and for protection of circuit terminals against overload and short circuit.

1) Can be used in each fuse socket with E27 thread according to DIN 40440
2) A durable protection that substitutes the traditional fuse element

3) Installing: screwed into the fuse socket instead of fuse bed and cartridge fuse

4) Instruction:

a) Switched on after the black push-button has been pressed and is switched off when the red push-button is pressed

b) In case of emergency, the failure should be found and eliminated, before the black push-button is pressed again

c) Then ready for operation





Rated voltage	240V/415V
Rated frequency	50/60Hz
Rated current	2A, 4A, 6A, 10A, 20A, 25A, 32A
Rated breaking capacity	3000A
Pole No.	1P
Power Factor for Testing Circuit (A)	0.65-0.70      0.75-0.80
