Product Overview

Description

 DLT10S Low Intensity TYPE A LED Based Solar Aviation Obstruction Light,Solar Aircraft Warning Light





Description

  DLT10S Series is solar powered obstruction light. Solar function makes it a self-contained and almost care-free light unit.

The fixture is equipped with a 12V12Ah VRLA (valve regulated lead acid) rechargeable battery which could power the light up to 16 days when the weather is in cloudy&rainy days. The 12Ah VRLA battery is also easy to find almost anywhere.

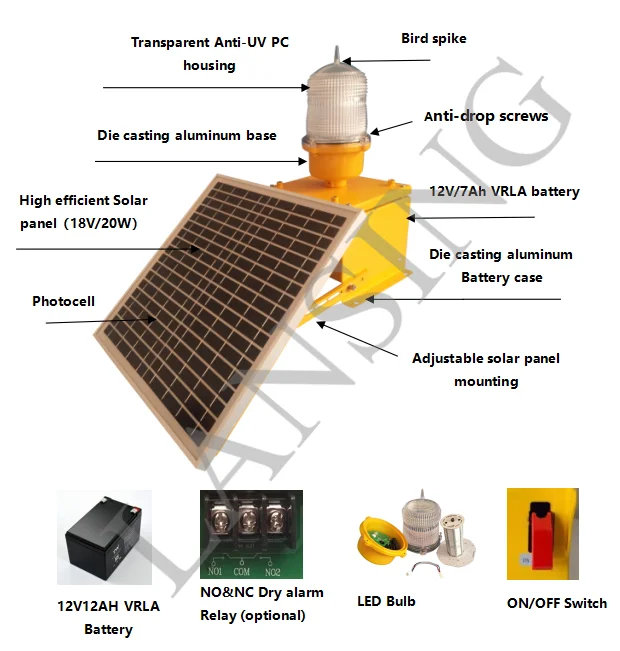

  The light system is composed of 3 parts: light, battery box and solar panel. When the light and solar panel connected to the battery box, the whole system can be mounted on a tower. Both vertical mounting and horizontal mounting are available. And the solar panel is angle-adjustable from 15 to 60 degrees. It enables DLT10S to adapt to different latitudes and collect as much solar energy as possible. Embedded MPPT (Maximized Power Point Tracking) microcontroller maximizes solar power output.

  Incorporated SBM (Smart Battery Management) program reduces energy consumption. By detecting ambient solar irradiance, DLT10S can self-adjust LED outputs for extending autonomy. It also protects the VRLA battery pack from over-charging and over-discharging.

  An optional GPS function allows DLT10S units with GPS module to flash synchronously.



Features& Benefits:

• High quality optics for excellent light distribution

• Solar panel inclination angle adjustable, range: 9-60 degree

• Integrated MPPT (Maximized Power Point Tracking) for maximizing sunlight collection

• Integrated SBM (Smart Battery Management) for saving energy to extend

autonomy

• High-grade VRLA battery provides long lifetime

• Autonomy at least 7 days once fully charged during insufficient sunlight days

• Protective vent for expelling battery gas and reducing condensation

• Automatically off if continue working 18 hours

• IP67 ON-OFF switch for protecting the battery from overdischarging

• Lens made from durable, UV-stabilized LEXAN polycarbonate

• Aluminum base with powder painted, corrosion-resistant

• IP65 waterproof protection, silicon gasket enhanced

• Excellent shock and vibration resistant

• A handle on the light shoulder makes carrying and lifting easier for deployment

• Flash rate adjustable, 20-60FPM

• NVG compatible with IR LEDs or Red/IR dual LEDs available

• GPS available for synchronizing flash

• Both NO and NC dry alarm contacts are available, and it will give an alarm in case of power and light failure(optional).





 Advantage:

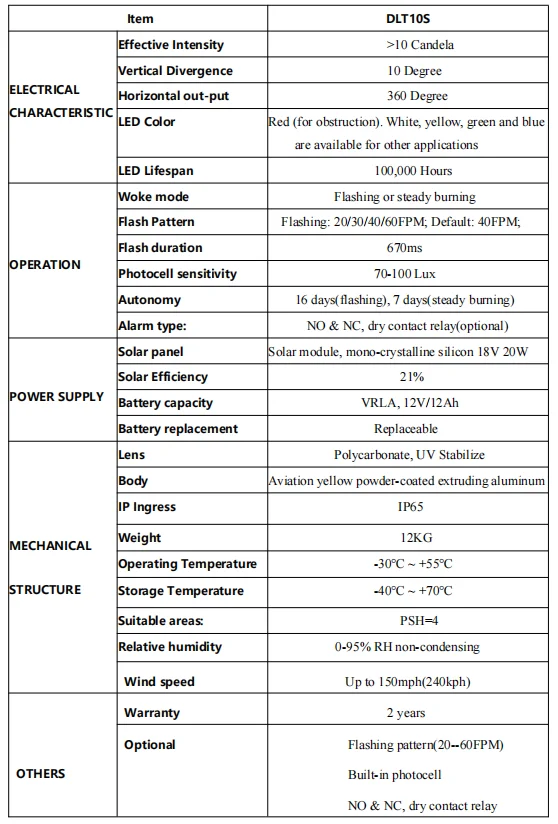

Specifications:











Applications:

• High rise building marking

• Telecom tower marking

• Road obstruction marking

• Wind turbine

• Port, dock entrance&walkway

• Bridge cranes

• Offshore gas&oil platform
