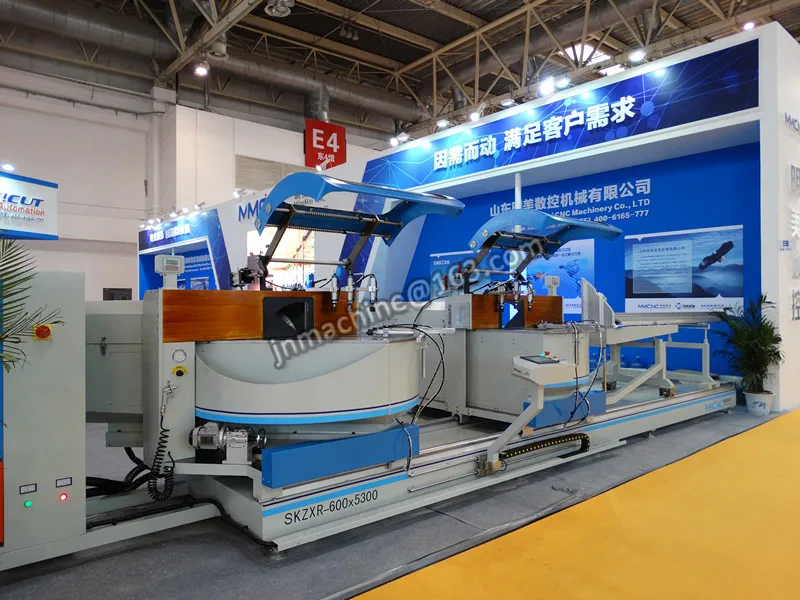

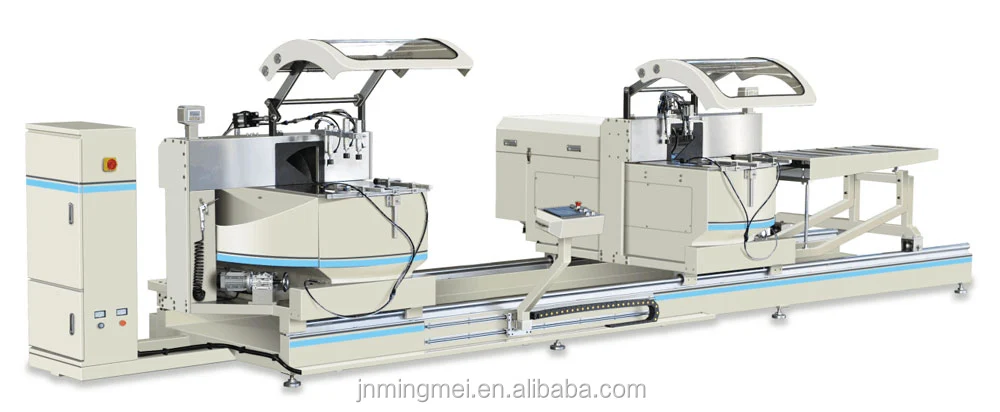

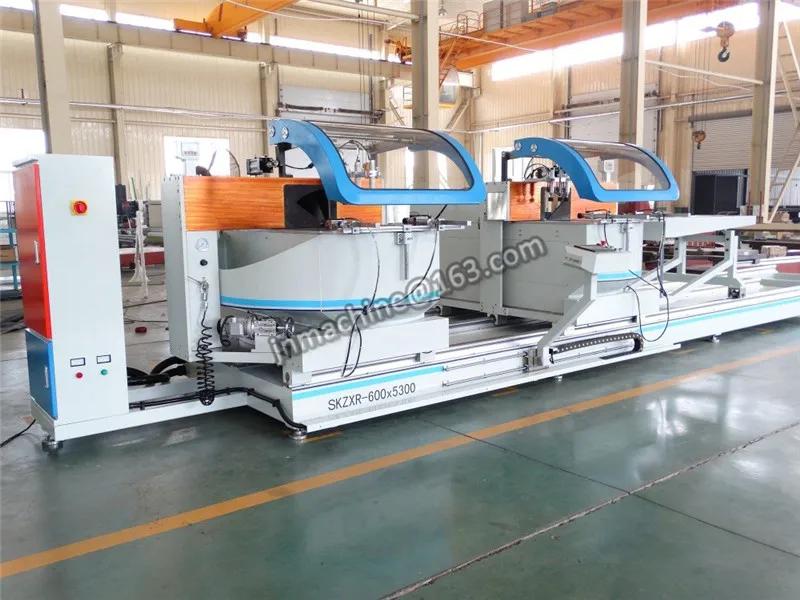

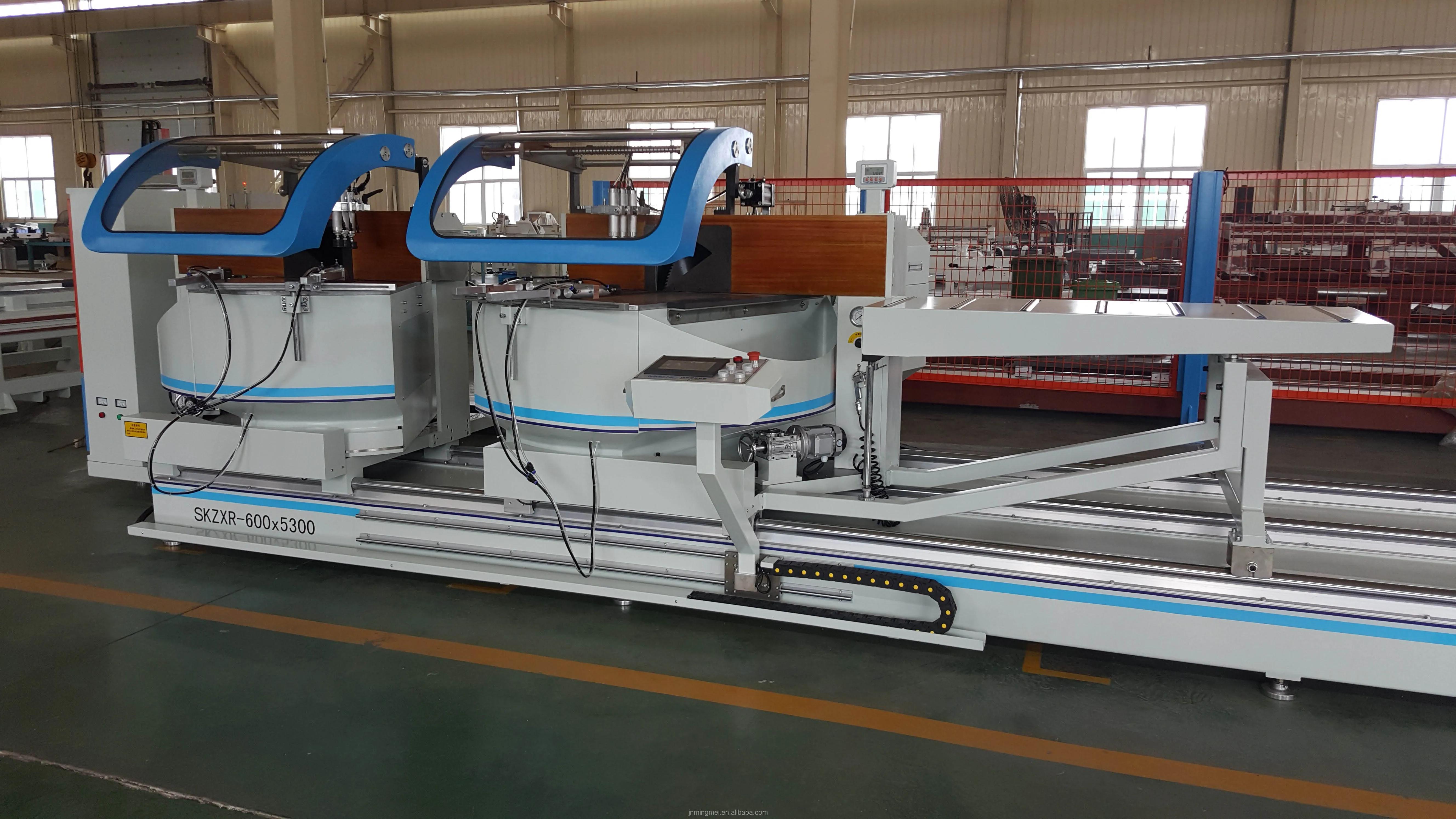

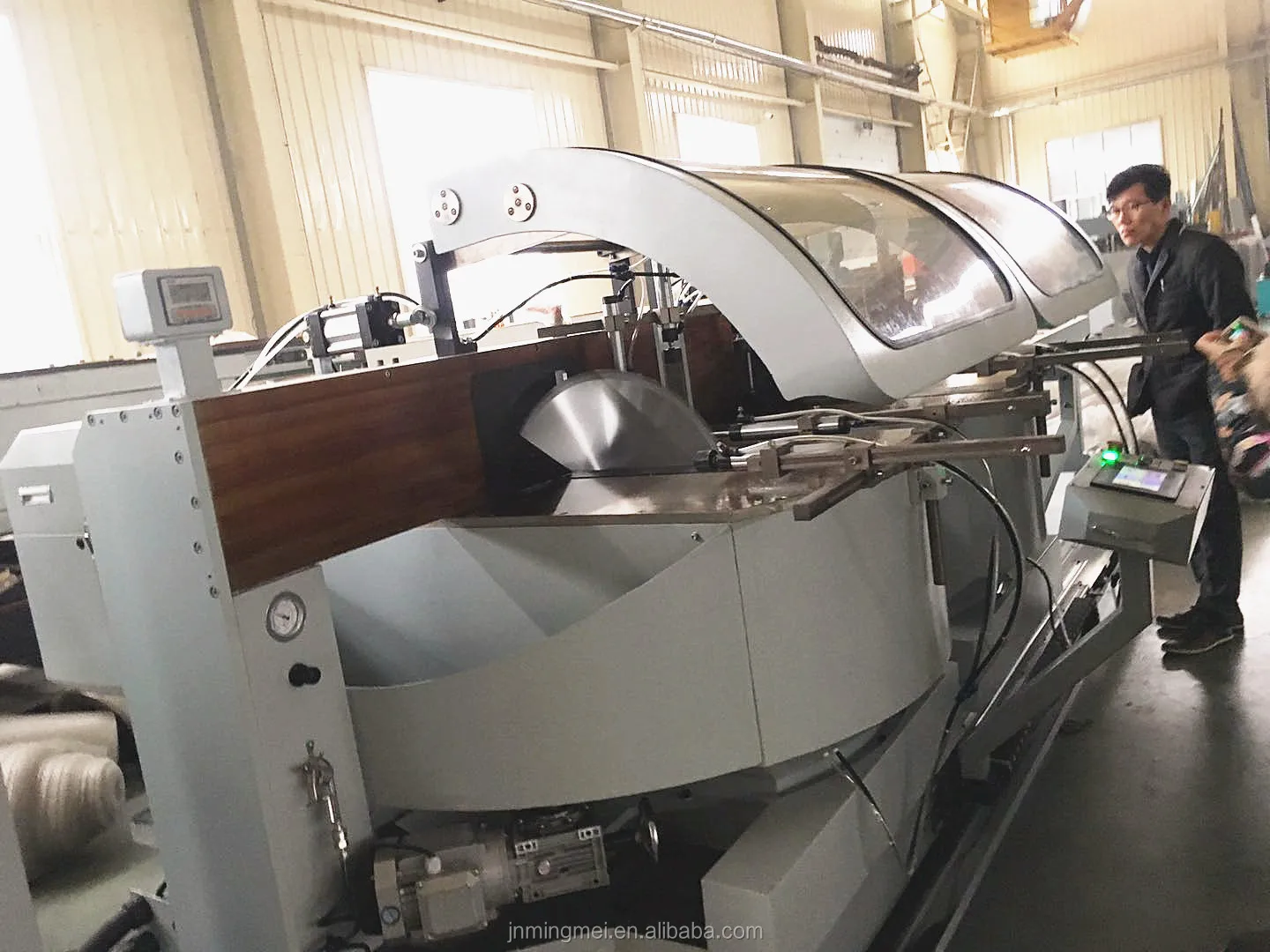

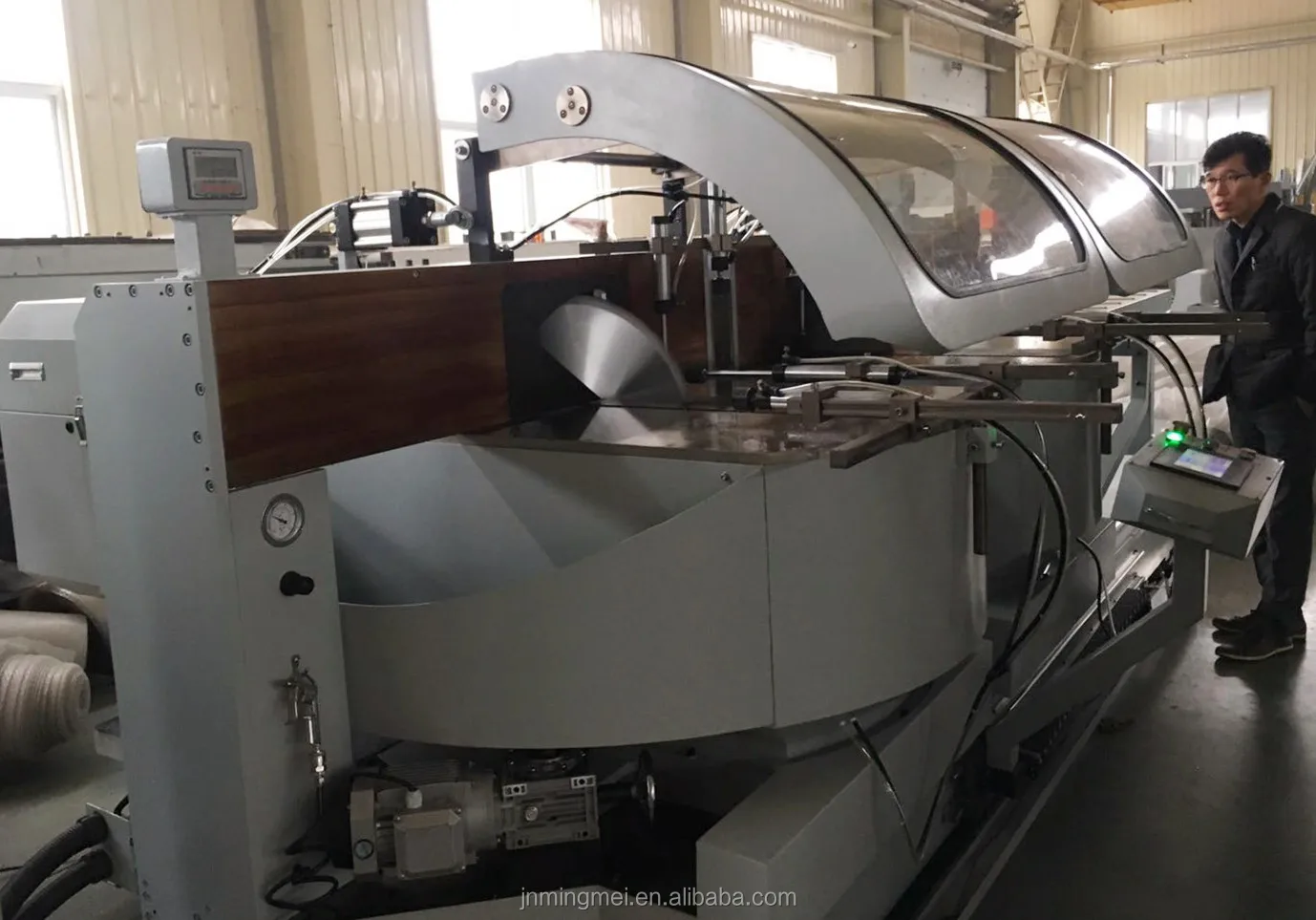

1. It is mainly used for processing of extra-wide aluminum profile, also can be used to process aluminum profile vertical end-face material-discharging. Adopt servo motor to drive reducer,implement saw blade rotating positioning at any angle between 45°and 90°.
2. It is new designed to meet the development of modern aluminum curtain wall,aluminum template processing industry and radiator industry.
3. It is mainly used for processing ofextra-wide aluminum profile, also can be used to process aluminum profile vertical end-face material -discharging.
4. Adoptservo motorto drive reducer, implement saw blade rotating positioning at any anglebetween 45°and 90°.
5. Two cutting heads can swing positioning at any angle between 45°and 90°.
6. Two cutting heads not only can work separately, moveable head feeding material continuously,fixed cutting head cuttingcircularly; but also can work simultaneously, can cut needed length and profile two ends angle at one time.
7. Hard alloy teeth cutting blade, high cutting speed,high produce efficiency,high process accuracy.
Parameter
Brand Name
Mingmei

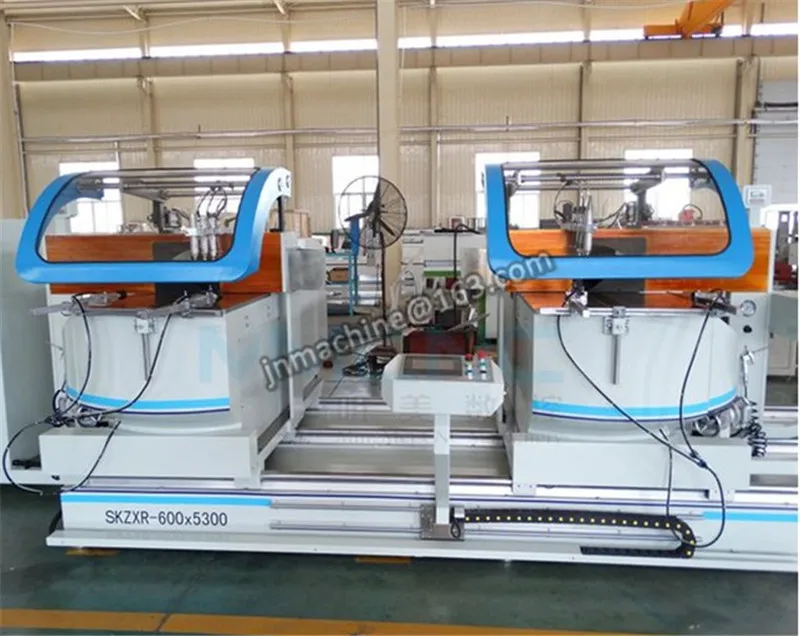

Model
SKZXR-600x5300
Power Supply
3Phase four wire 380V 50Hz (220V/60Hz)
Cutting head motor
Power 2X3 KW
Rotate speed
2800r/min
Saw blade swing angle servo motor power
2X0.9KW
Cutting head horizontal move servo motor power
1.5kW
Cutting head turn angle motor power
0.18x2kW
Working air pressure
0.5-0.8MPa
Saw cutting length
max 5300mm
Saw cutting width x height
max 500x180mm 90°
Saw cutting height
Max210mm 90°
Saw cutting angle blade
45° ~ 90°arbitrary angle
Cutting head
45° ~ 90°arbitrary angle
Cutting feed speed stepless speed regulation
stepless speed regulation 0~3m/min
Saw Blade Specification
φ600mm×4.4mm×φ30mm Z=120
Overall Dimension
7500mm×2450mm×1700mm
Weight about
5100kg
Main accessory
Control system
Taiwan Delta
Solenoid valve
Airtec/STNC
Cylinder
HT
Motor
YYY (Best Chinese Motor Brand)
Air Filter Device
Airtec
Electrical Button and Switcher
Schneider
AC Contactor and Circuit Breaker
Schneider
Approach Switch
Autonics (Korean)
Guide rail
Taiwan Hiwin
Saw blade
JF (Japan)
DRO
Taiwan Delta
Standard accessory
Saw Blade
2pcs
Air Gun
1pc
Complete tooling
1set
Certificate
1pc
Operation Manual
1pc
1). 7*24 online free technical support;
2). Design drawing of the factory workshop;
3). English manual and video tutorial
4). Skilled engineer install the machine;
5). Training workers for you;
6). Local technical support or Spare parts support,We will provide the consumable parts at an agency price.
1.Are your company a trading one or a factory? Factory + trade (integration), 23 years' focusing on Window and Doors Equipment field.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days. Please be aware that our production lead times depend on specific items and item quantities. 3.What about the warranty with after - sales services? 12-24 months warranty. Besides,we can help you to solve your problem freely;
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problemencountered while using our product, handles guest problems and complaints in a professional and timely. 4.What about the services and product' quality? Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification. 5. We don’t know the machine operation, what should we do?
We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
