FOV 96 degrees dual len camera module 2MP AR0230 ir mini Camera Module
- Category: >>>
- Supplier: Shenzhen City Haozhou Technology Co. Ltd
Share on (60842162898):
Product Overview
Description

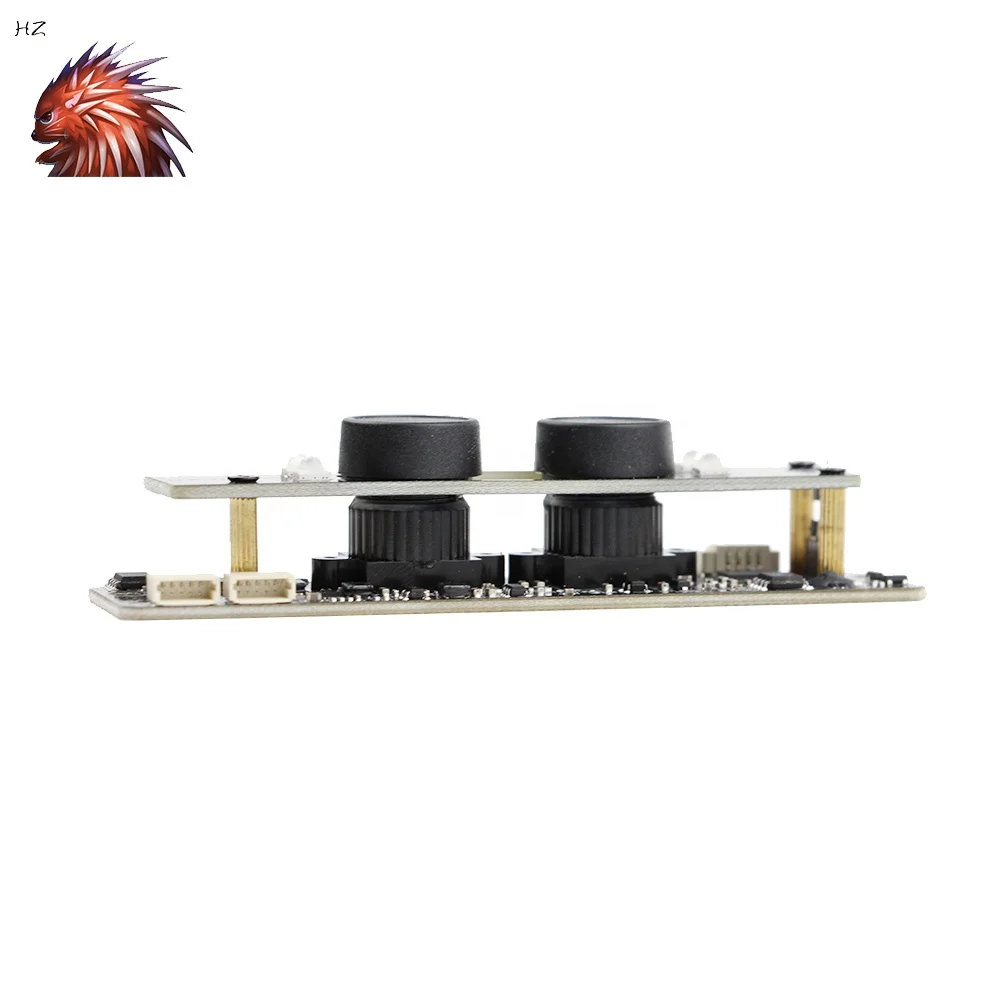

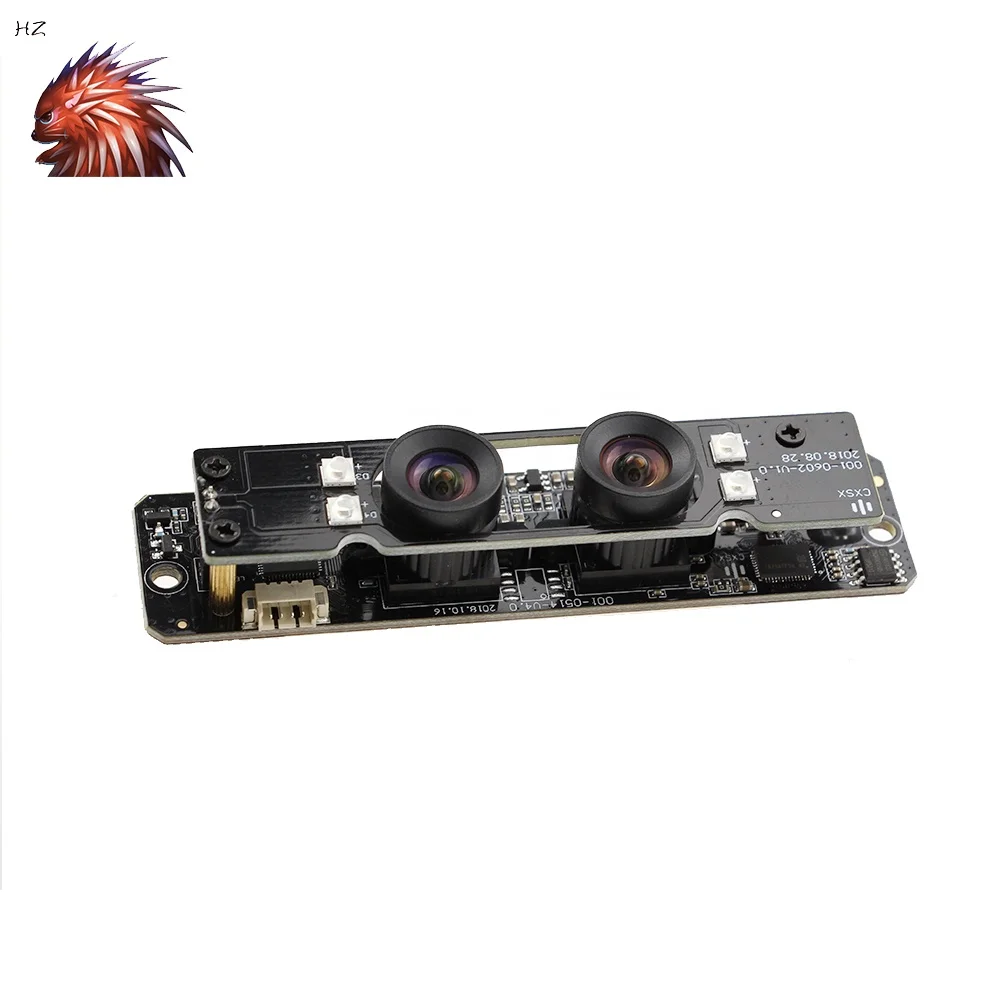

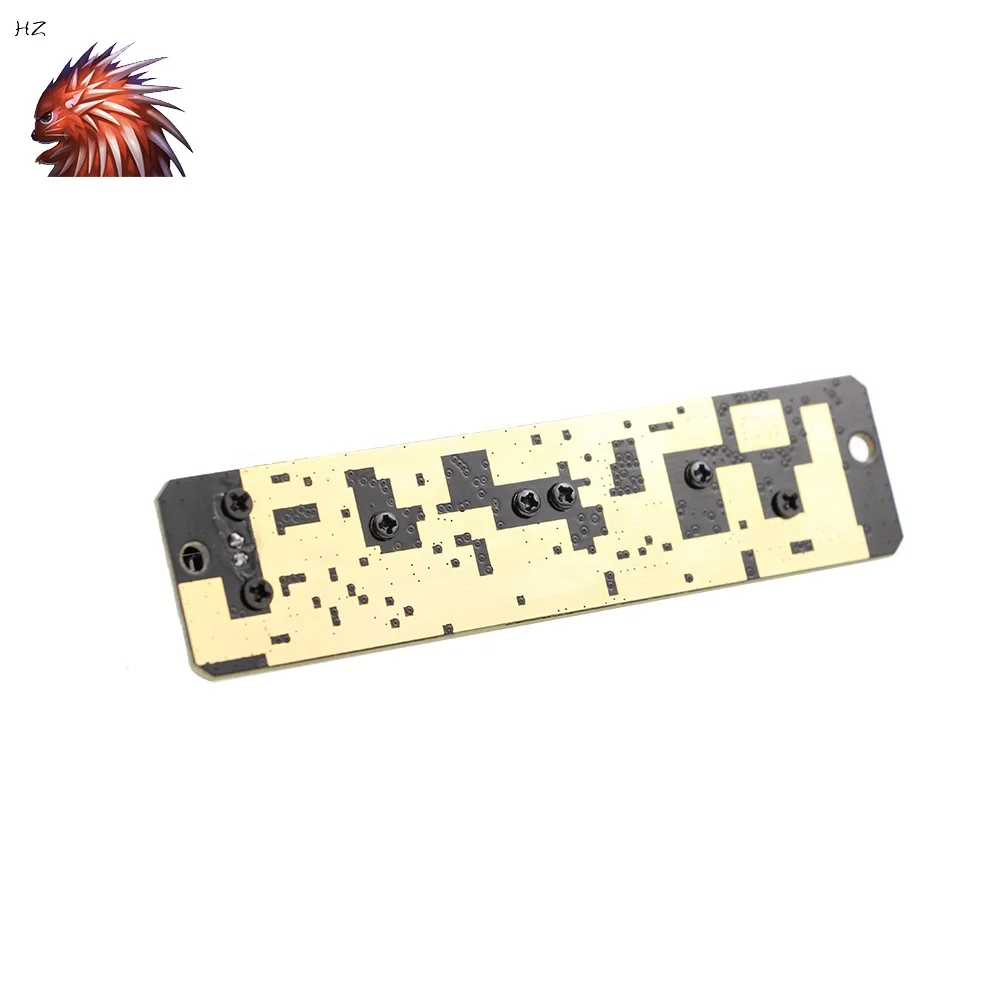

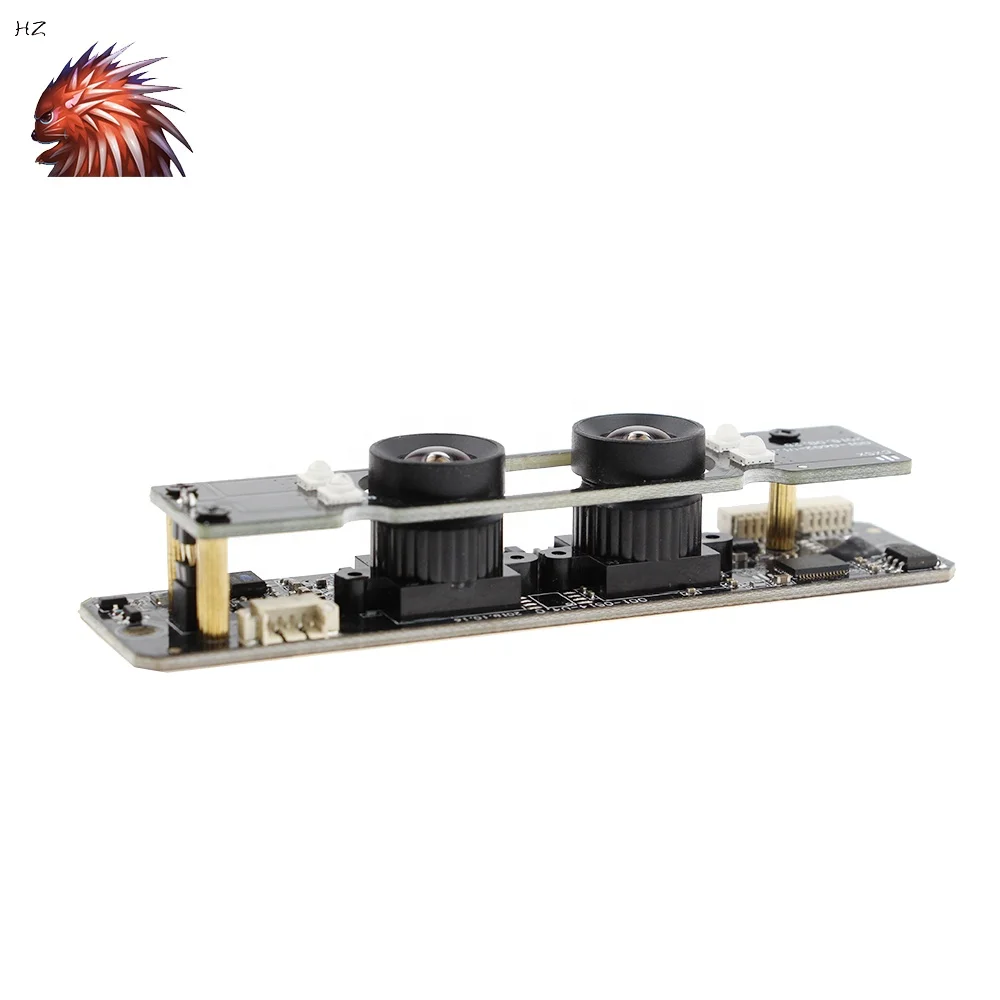

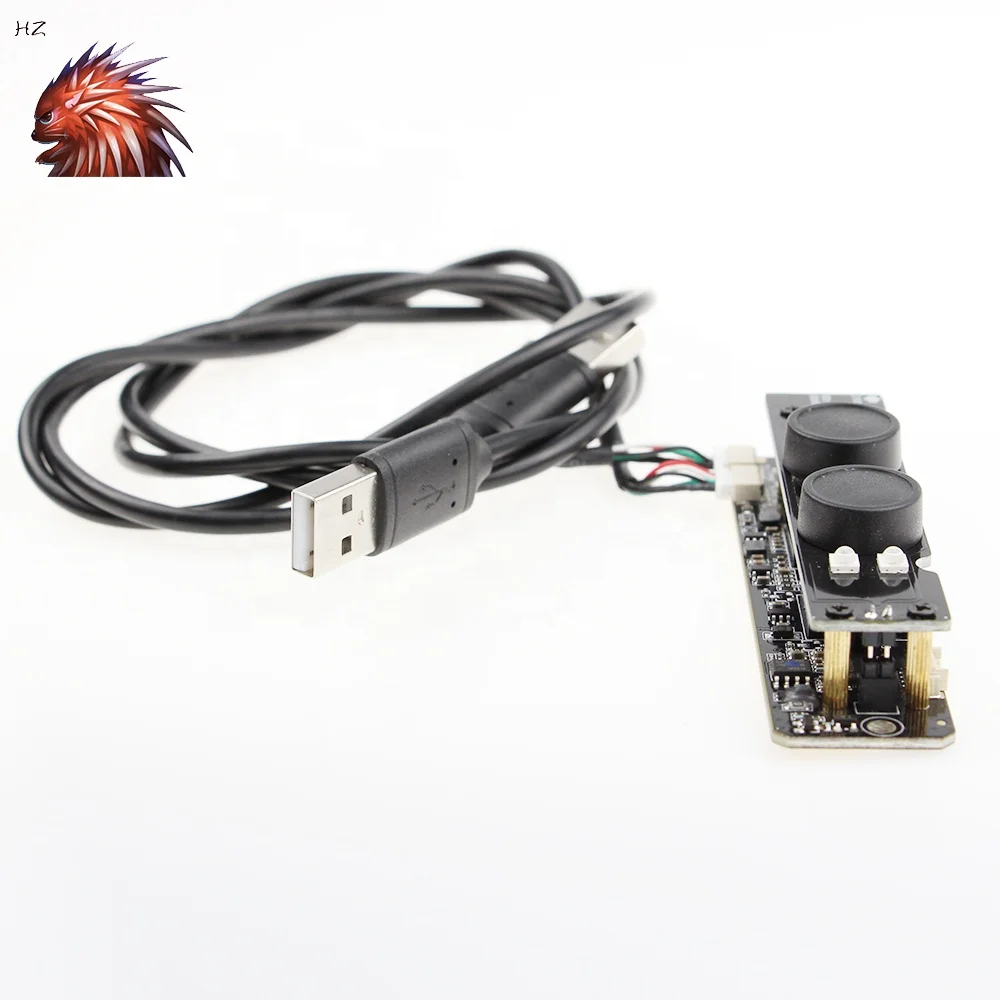

FOV 96 degrees dual len camera module 2MP AR0230 ir mini Camera Module
Module No. | 003-0514/002-0516 | |
Module Size | 80*18*10mm | |
Object distance | 15CM-100CM | |
Focus | Fixed Focus | |
Audio | NO | |
Interface | USB2.0 | |
Voltage | DC5V | |
Temperature (Operation) | -30°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
Assembly technique | SMT (ROSH) | |
PCB printing ink | Black | |
Operating system request | WinXP, VISTA, Win7, Win8, Win10, Linux or OS with UVC driver | |
Package | Anti-electrostatic tray | |
Sensor Type | ||
Sensor No. | AR0230 | |
Sercor Type | 1/2.7” | |
Active Array Size | 1920*1080 | |
Sensitivity | 600mV/(Lux·sec) | |
Pixel Size | 3*3μm | |
Maximum Image Transfer Rate | 1920*1080@30fps | |
Dynamic Range | 96DB | 69DB | |
LENS | ||
Lens Type | 2G3P | |
Data Format | YUY/MJPG | |
Image Circle | CSP | |
FOV | D=96° | |
Mount | M12*P0.5mm | |
IR Filter | / | |
DSP Type | ||
AGC/AEC/Whiter balance | <1.0% | |
Output Formats | >48% | |
Fixed Pattern Noise | 650±10nm | |
Certifications | ||
Certifications | FCC and CE | |
Application | ||
Application | Entrance Guard, Medical, Face recognition | |
