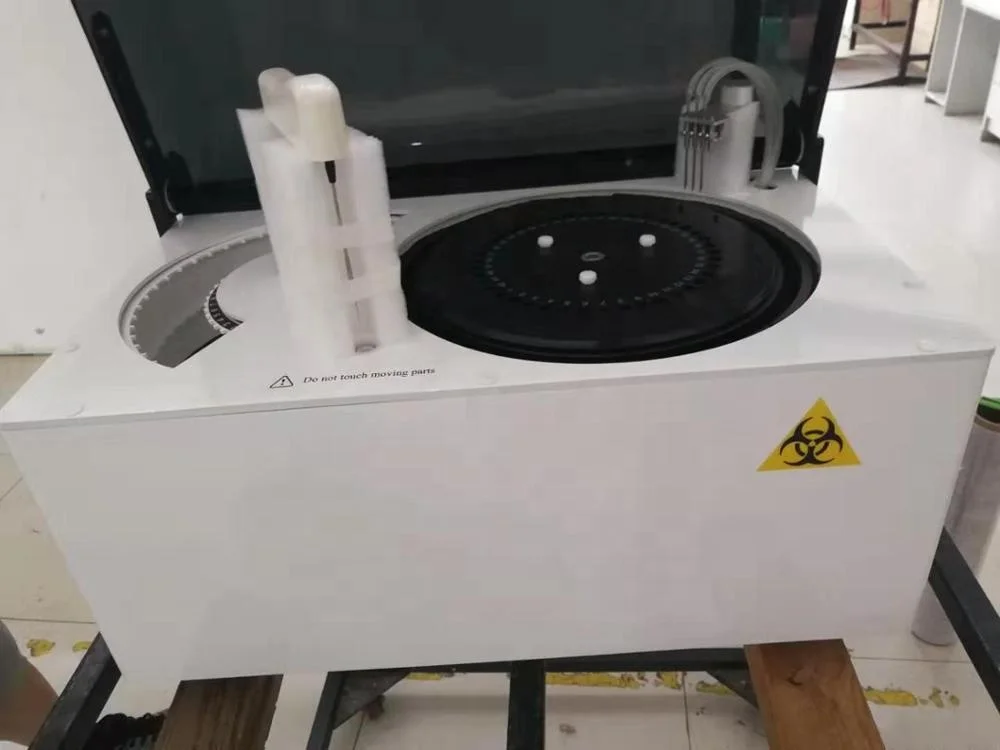

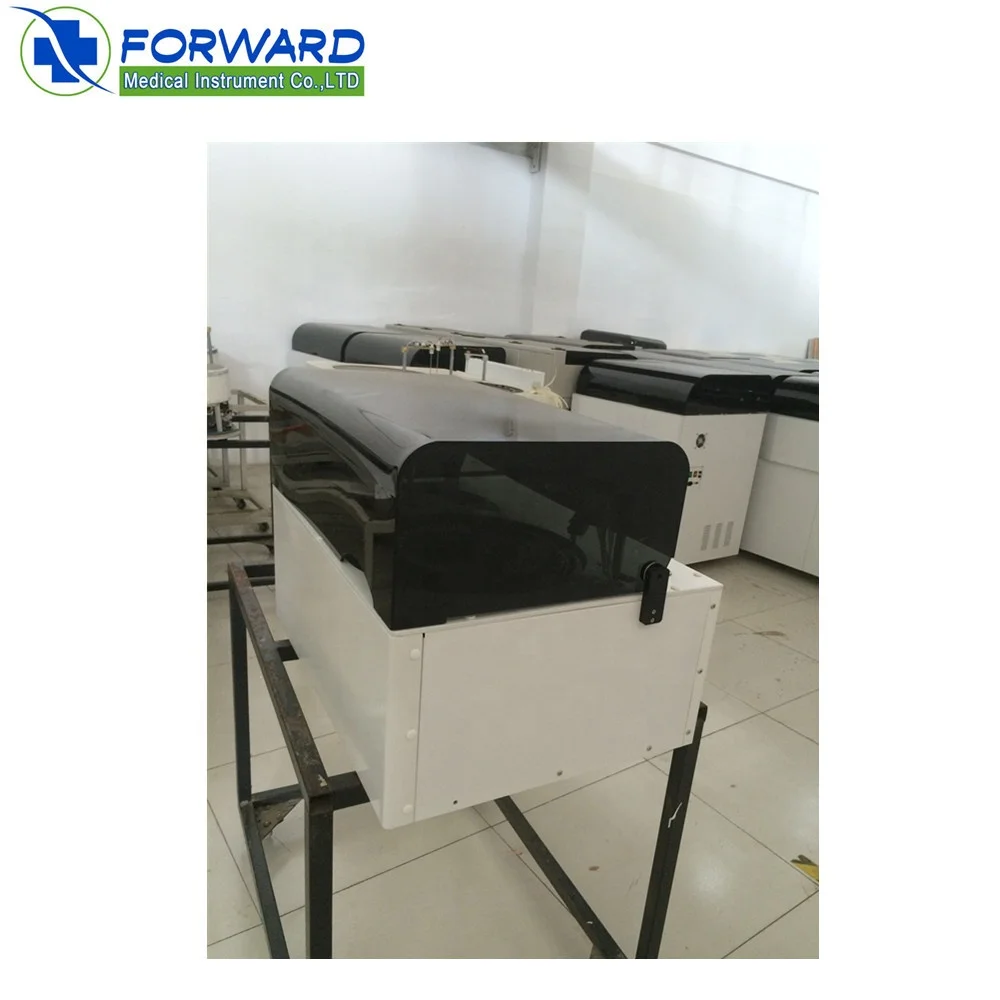

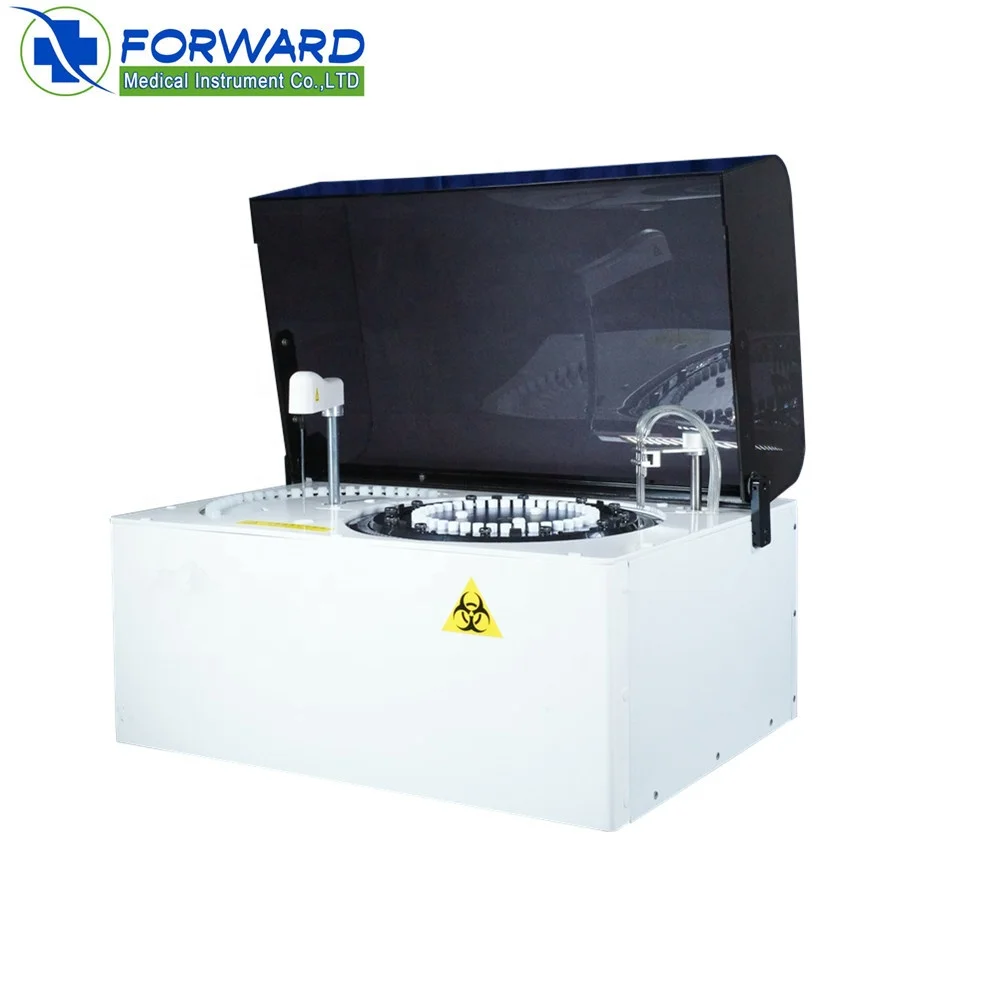

Clinical analytical instruments fully automatic discrete biochemistry analyzer

Overall Performance

Sample System

Sample Tray          42 sample positions, random access of all samples

Sample Volume       2-50ul, 0.1ul increment

Sample probe         Liquid level detection, the remaining detection, collision protection etc.

Sample Containers    Sample cups

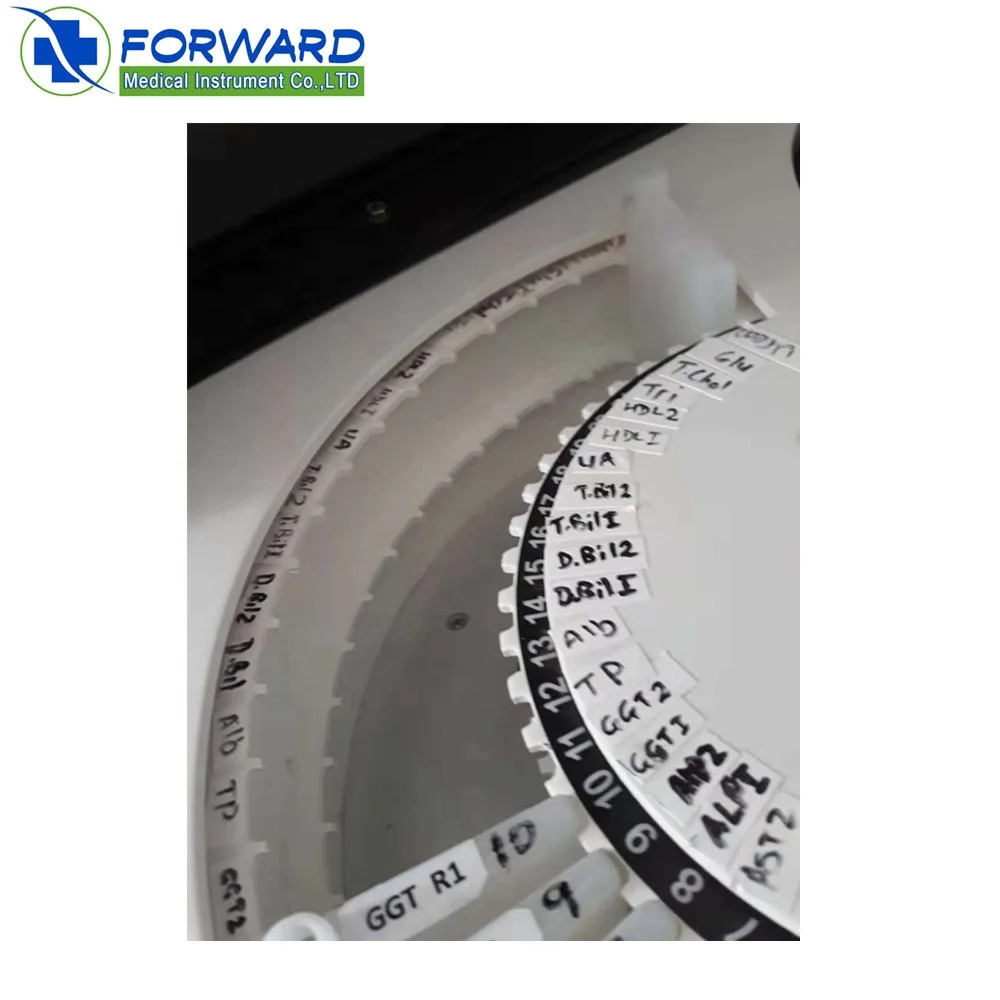

Reagent System

Reagent Tray         25 reagent positions

Reagent Volume      R1:25-300ul, R2:10-150ul, 0.1ul increment

Reagent Probe        Liquid level detection, the remaining detection, collision protection etc.

Reagent Refrigeration    4-15℃, independent power supply, 24-hour non-stop refrigeration

Reaction System

Reaction Tray        Rotating tray, 120 cuvettes

Cuvette             Reusable high quality cuvette, Optical diameter 6mm

Reaction Volume     180-500ul

Incubation system    Bi-directional liquid-air device

Temperature         37℃±0.1℃ with real-time display

Optical System

Light source           12V35W halogen lamps, over 2000 hours

Photoelectron road     after spectrophotometry

Wavelength           340,405,450,510,546,578,630,700nm

Absorbance range     0-3.500Abs

Resolution            0.0001Abs

Operating System

PC operating system       Windows XP or above

Analysis control software      English version graphical operating software

Report printing            Report formats support the user-defined mode, QC and state information etc.

System connection        RS-232

Working Conditions

Power supply             AC 220V±22V, 50Hz±1Hz, power 1.5KVA

Ambient Temperature     15-30 ℃

Humidity                 35-80%

Water consumption        5L/Hour

Dimension                Bench top: 600mm*450mm*500mm

Weight                   45KG
