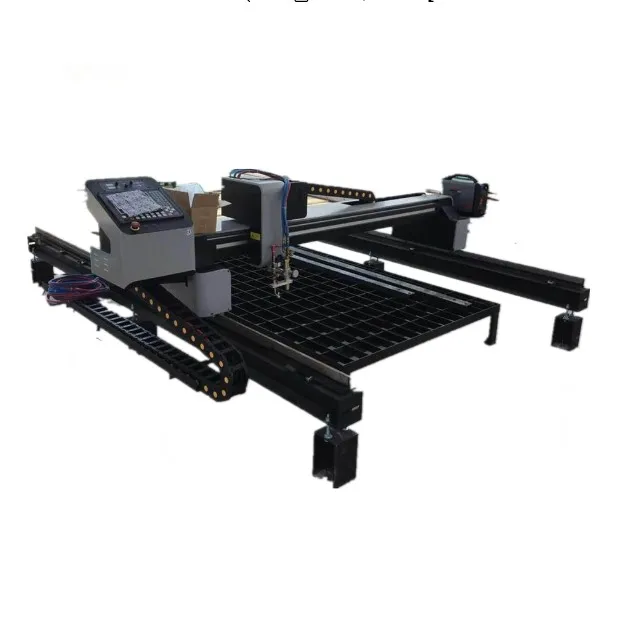

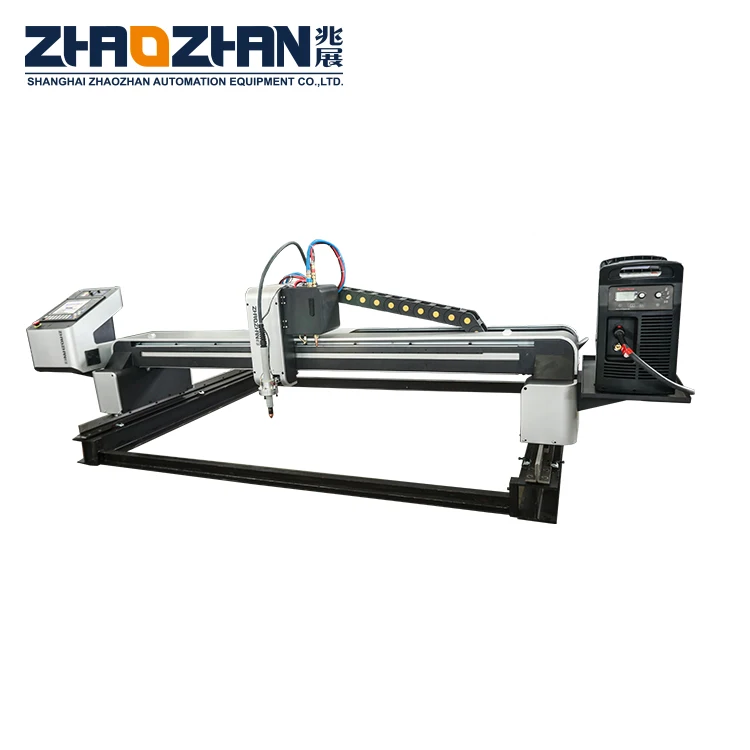

Mini Gantry style Cnc plasma cutting machine optional working table
Product Description
1. Each leg of machine using two pieces of 14mm Q345B steel processed. That keep the machine good supporting and stability when machine fast move forward and backward in high precision.
2. The beam made by aluminum alloy structure, that for keeping high precision (That is much better precision than some other supplier’s beam, which is installed the rack and rail way on square pipe only). And it is easy for machine function update or modification in the future.
3. Rear part of the beam is used 45# steel folded to strengthen the machine’s structure. That make machine with two beam structure, and reasonable used both aluminum alloy and steel’s each advantage to provide machine extreme stability, and flexibility performance.
4. Machine standard withCNCUT-10A 10 inch color controller, and ZZ-PTHC new plasma THC. With 15kg/m fine grinding guide, and dual used plasma and flame function. There are several sizes of this machine can be choose.
GANTRY STYLE MINI KING CNC FLAME PLASMA CUTTING MACHINE | |||
Model No. | KING-2040G-ST/SE | KING-2540G-ST/SE | KING-3040G-ST/SE |
Effective Cutting Rangge X*Y | 1500*3000mm | 2000*3000mm | 2500*3000mm |
Customized Information | Length of Y axis rails can be customized extending | ||
Driving Configuration | ST:Dual drive 86 series step motors with dual planetary reducers | ||

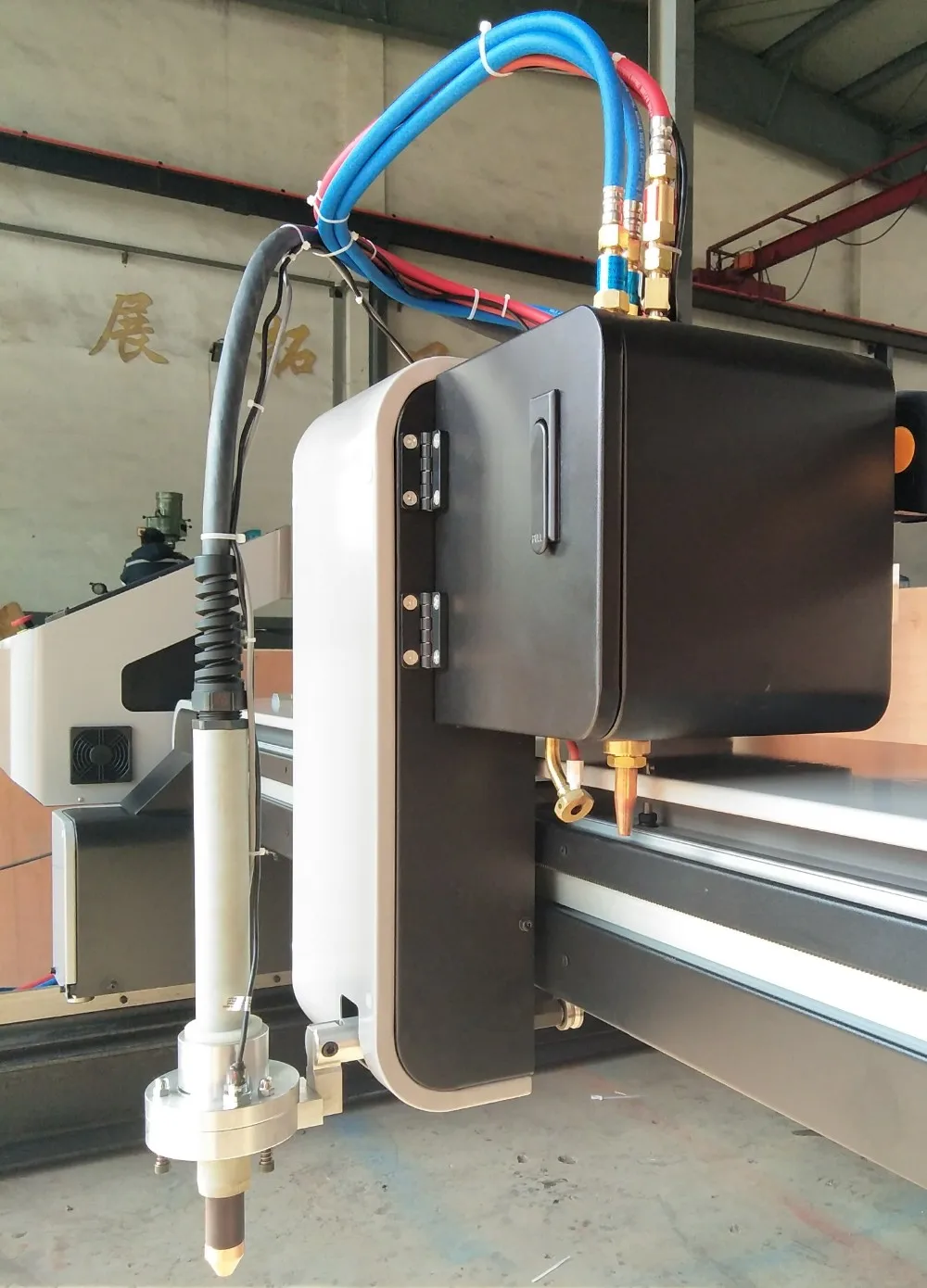

Tool And Torch Quantity | Single tool,and can be both with plasma and flame torch | ||
Torch Height Control | Plasma arc voltage auto torch height or flame capacitive auto torch height control | ||
Max. Working Speed | ST:6000mm/min SE: 12000mm/min | ||
Input Power | Single phase AC 220V 1200W | ||
Torch Lifting Distance(Z) | ≤100mm | ||
Working precision | ± 0.2 mm / m | ||
Flame (Gas) Cutting Capacity | Piercing capacity: 5-60 mm Edge start cutting: 5-120mm | ||
Plasma Cutting Capacity | Depends on the plasma source's cutting capacity | ||

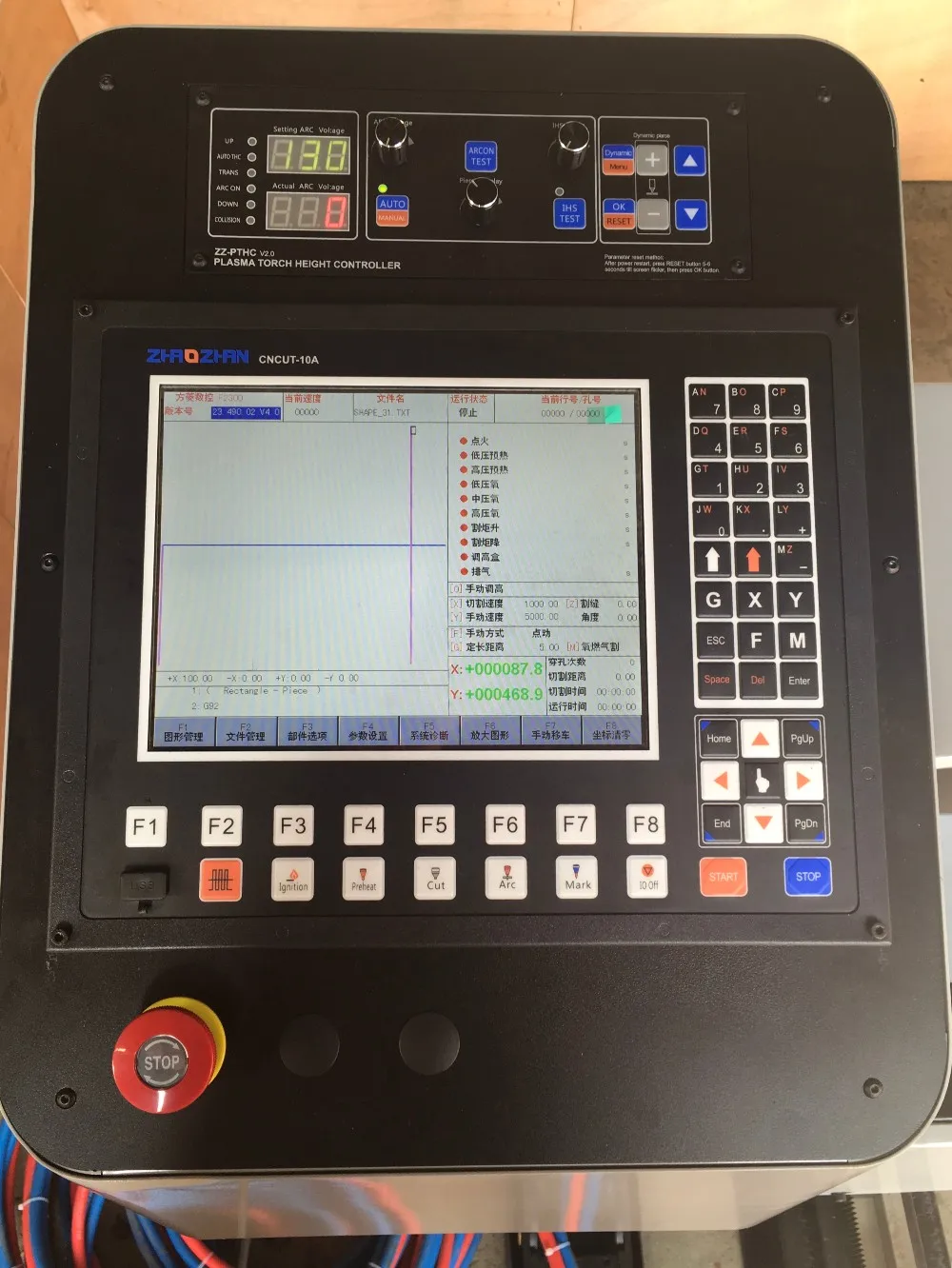

Controller, Software And Torch Height Control | CNCUT-10A 10.4 inch controller,FASTCAM standard software, ZZ-PTHC 2.0V plasma THC | ||
Cutting Table and Base | H beam or other base construction and cutting table need supplied by user, and we can supply drawing for reference | ||

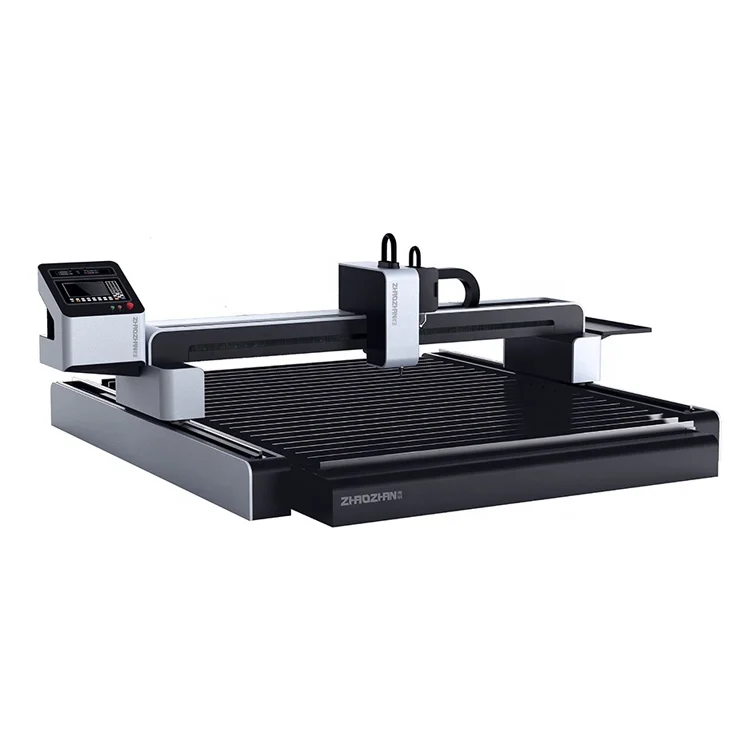

PLUS | If order MINI KING PLUS we will supply KING TABLE's control cabinet and collection drawers cutting table, and f need water table or ventilation table is available | ||
Needed Installation Area(With Plasma Supporter) | W 3.2m * L 4m * H 1.1m | W 3.7m * L 4m * H 1.1m | W 4.2m * L 4m * H 1.1m |
Packing Size | CNC:2870*840*1040mm Rails:3200*330*190mm | CNC:3360*840*1040mm Rails:3200*330*190mm | CNC:3870*840*1040mm Rails:3200*330*190mm |
This product has been patented, and copying is not permitted | |||
