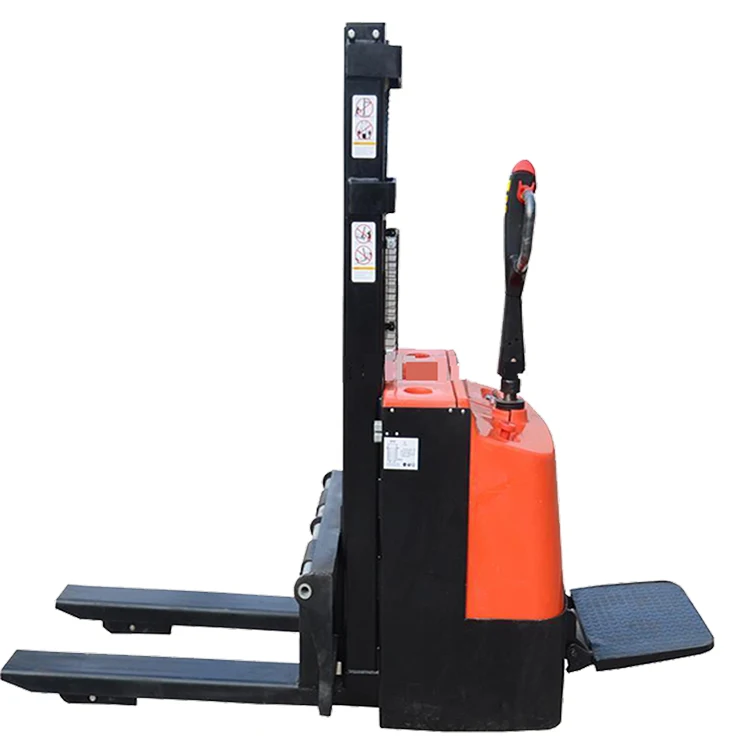

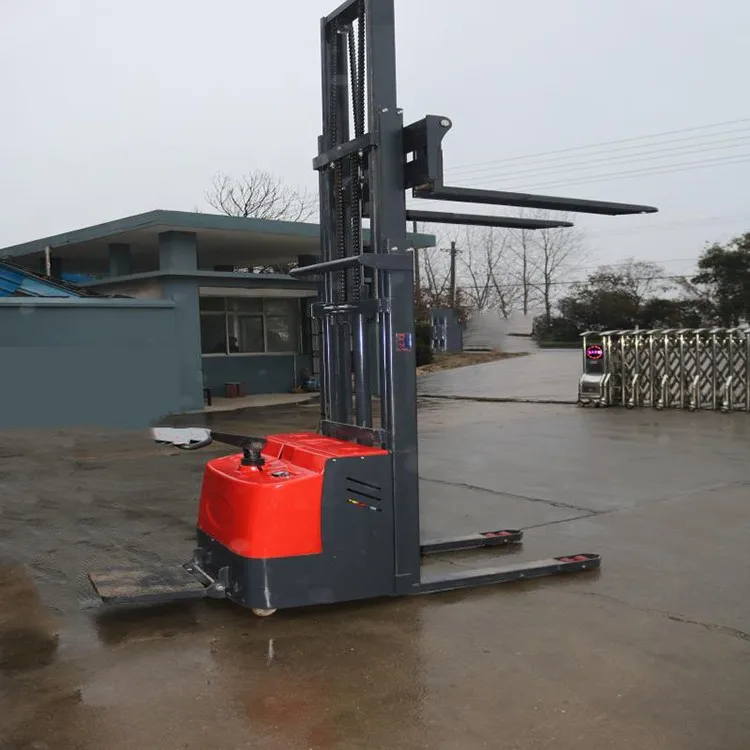

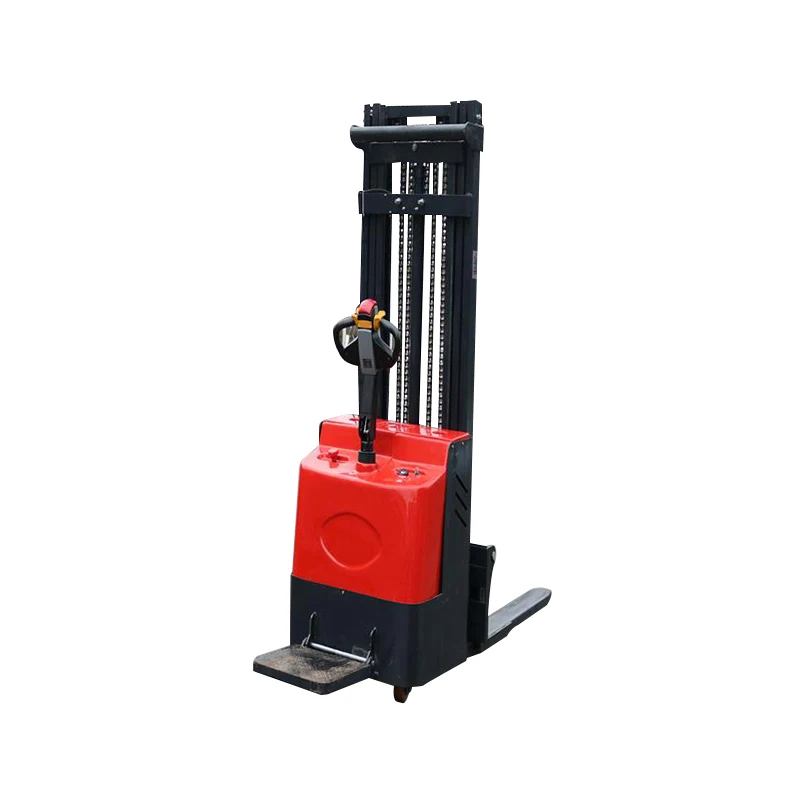

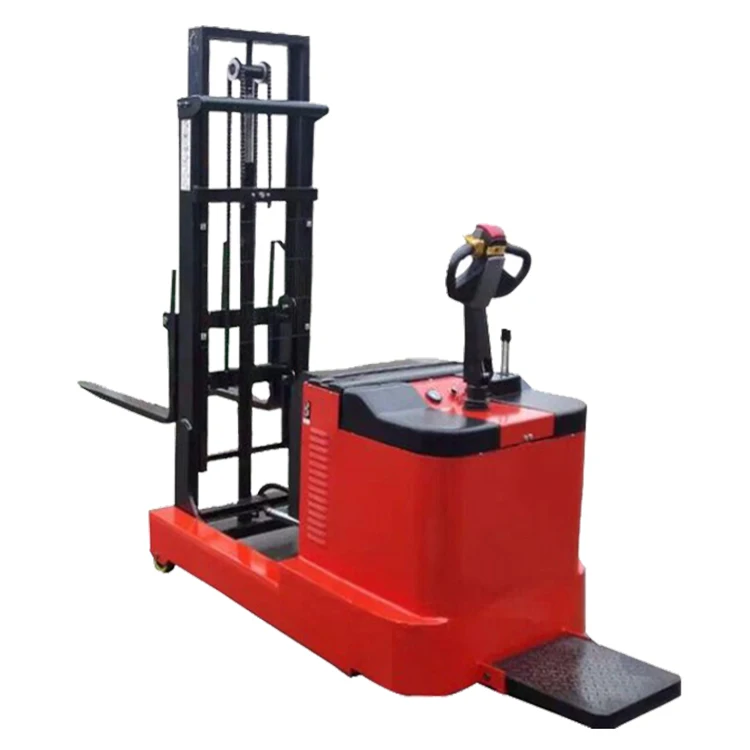

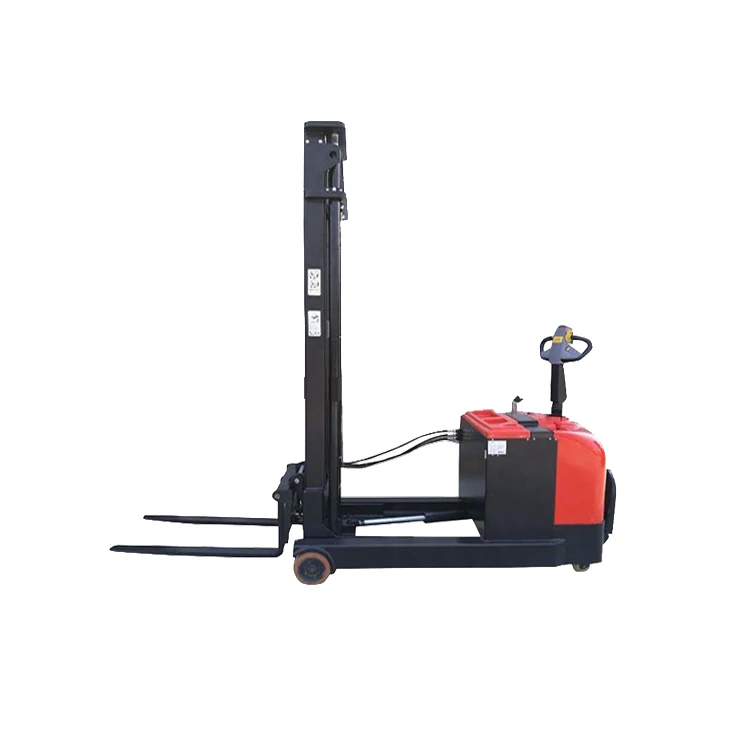

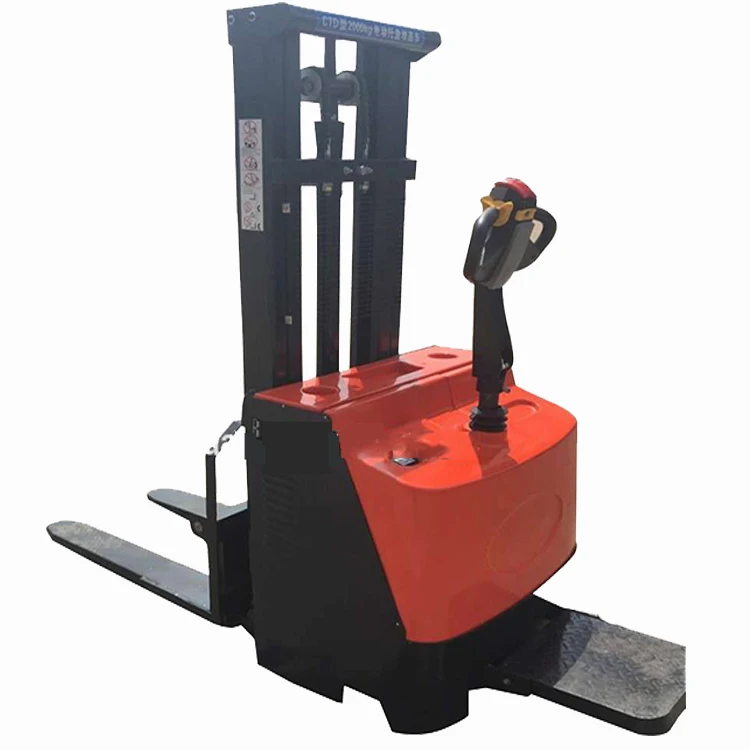

Small pallet stacker truck fully automatic walkie electric pallet truck stacker
- Category: >>>
- Supplier: Taixing Jichuan Hydraulic Machinery Manufacturing Co. Ltd.
Share on (60842210072):
Product Overview
Description
Product Description
Type | CTD10 | CTD15 | CTD20 | |||
Load Capacity | kg | 1000 | 1500 | 2000 | ||
Standard door frame lifting height | mm | 1600/2500/3150 | 1600/2500/3150 | 1600/2500/3150 | ||
Load centre distance | mm | 500 | 500 | 500 | ||
Min. fork height | mm | 85 | 85 | 85 | ||
Overall length pedal fold up/put down | mm | 2000/2400 | 2000/2400 | 2000/2400 | ||
Overall width | mm | 850 | 850 | 850 | ||
Max.door frame height when operation | mm | 2180/3100/3420 | 2180/3100/3420 | 2180/3100/3420 | ||
Min.door frame height | mm | 2180/1860/2180 | 2180/1860/2180 | 2180/1860/2180 | ||
Min.turning radius | mm | 1500 | 1500 | 1500 | ||
Max.driving speed full load/empty load | km/h | 4/6 | 4/6 | 4/6 | ||
Max.lifting speed full load/empty load | mm/s | 80/130 | 80/130 | 80/130 | ||
Max.descent speed full load/empty load | mm/s | 100/90 | 100/90 | 100/90 | ||
Driving motor/Hoisting motor | KW | 1.2/2.2 | 1.2/2.2 | 1.2/2.2 | ||
Storage battery voltage/capacity | v/Ah | 24/190 | 24/210 | 24/240 | ||
Net weight | kg | 710-960 | ||||
Related Products
Full electric pallet truck
Full electric stacker
Large forklift with four tyres
Hand pallet truck
Manual forklift
Semi-electric lift table

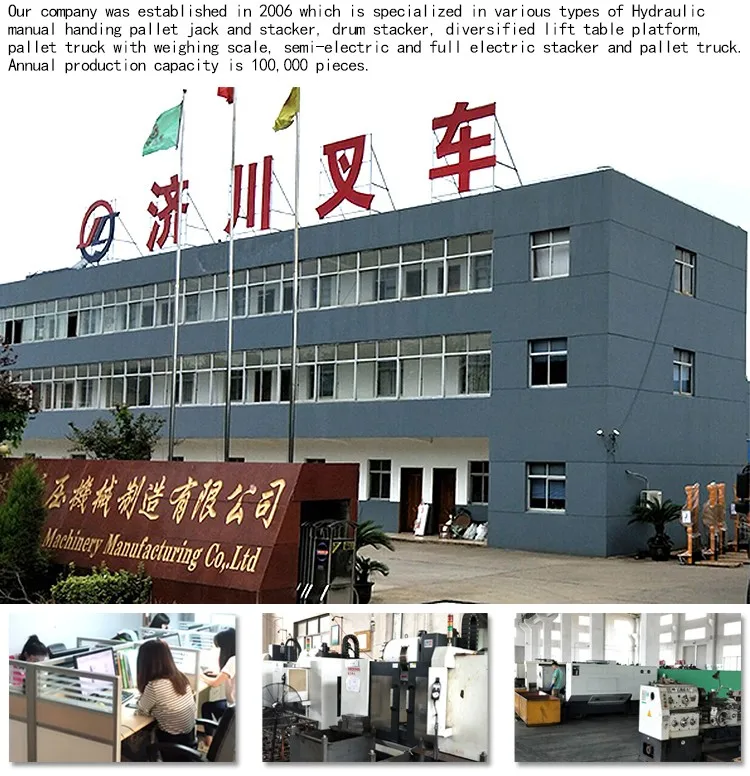

Our Company
Certifications
Packing & Delivery
Our Service
1. Reply in 24 hours.
2. Customized cylinder color, cap type, valve model no. And stamping is accepted.
3. Every cylinder will be tested before the delivery.
4. Delivery on time and excellent after-sales service.
5. High quality, reliable price.
FAQ
Q1: What is your product name?
A: Hydraulic power hand jack pallet truck price used In Warehouse for sale
Q2:Where is your factory located?
A:NO.1 JIAOTONG ROAD TAIXING CITY JIANGSU CHINA
Q3:How many hydraulic machinery products can you produce every day?
A:We can produce 300 pieces everyday.
Q4: Can you provide sample?
A:Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q5: Can you use our brand?
A:Yes, OEM is available.
