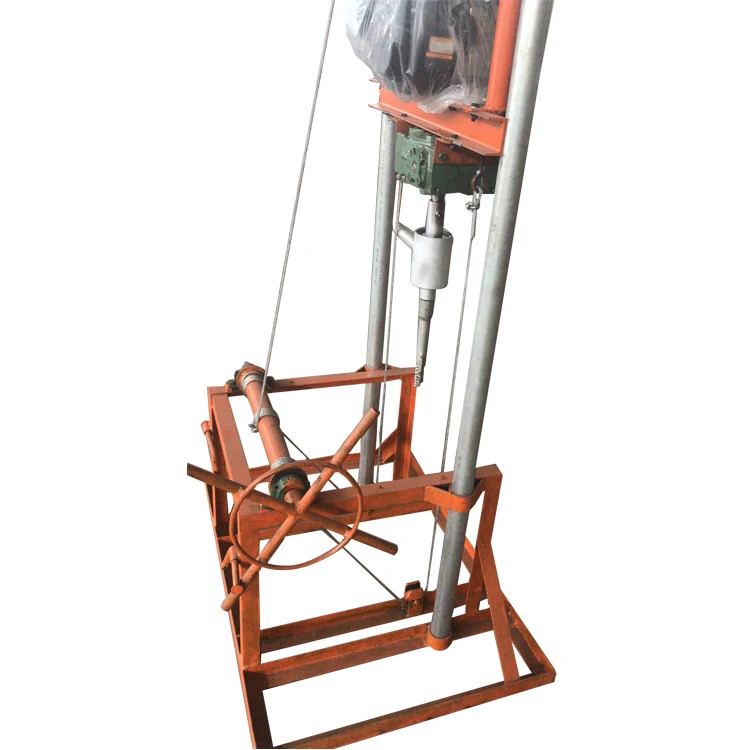

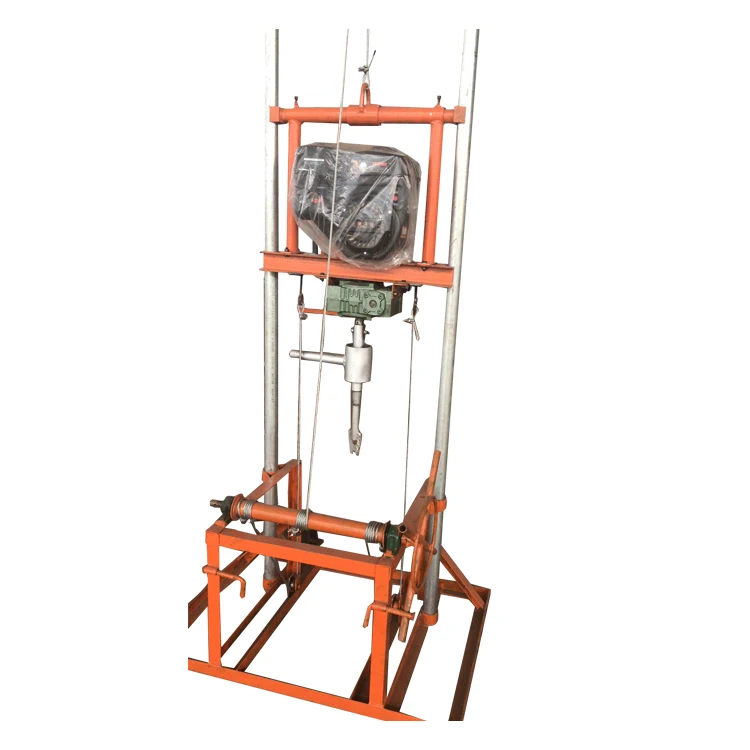

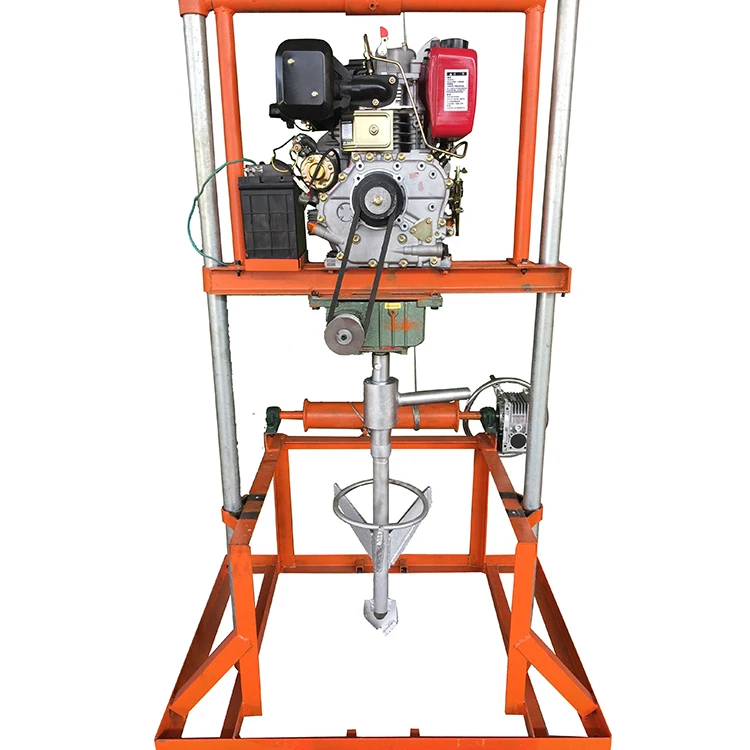

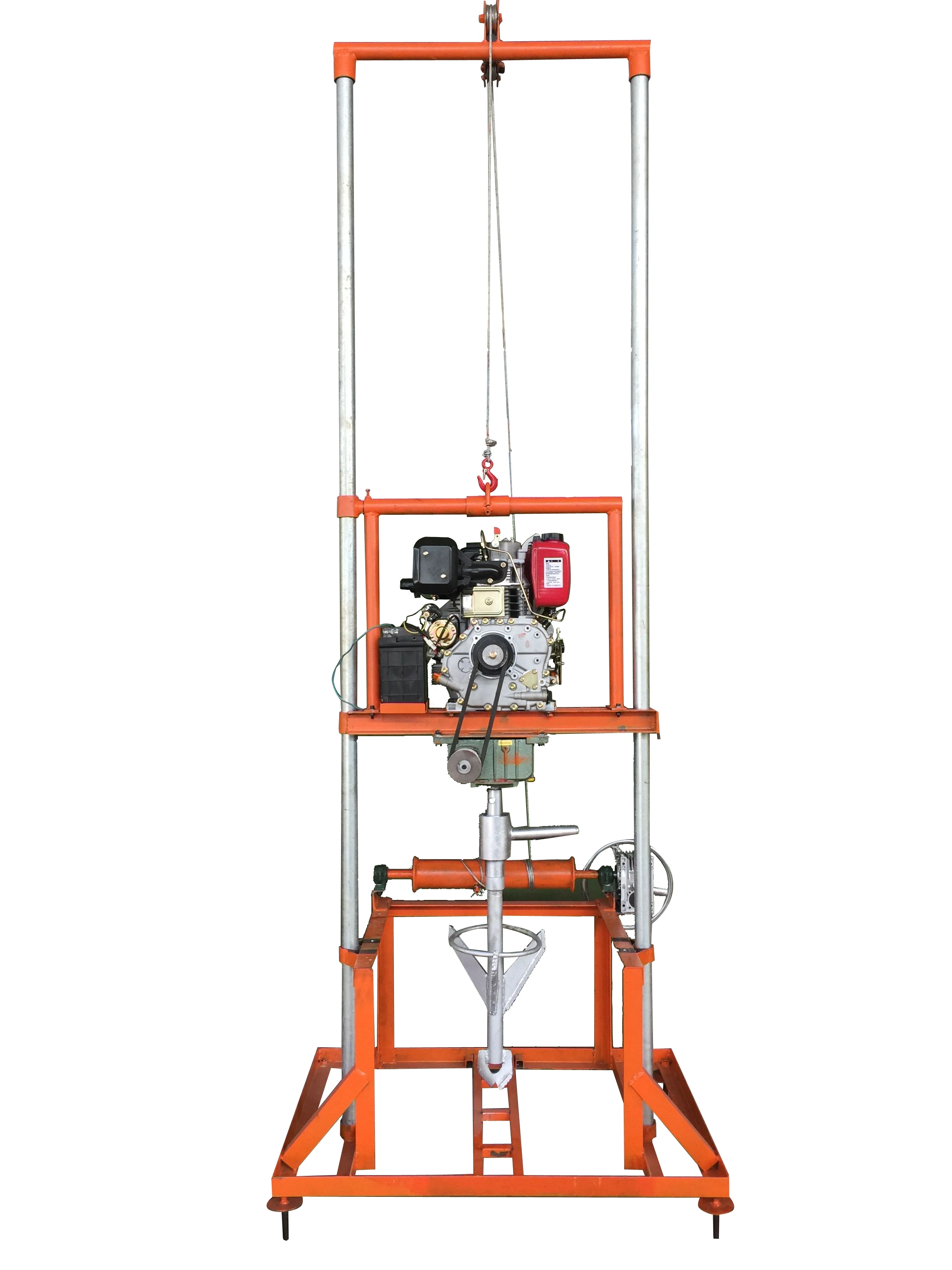

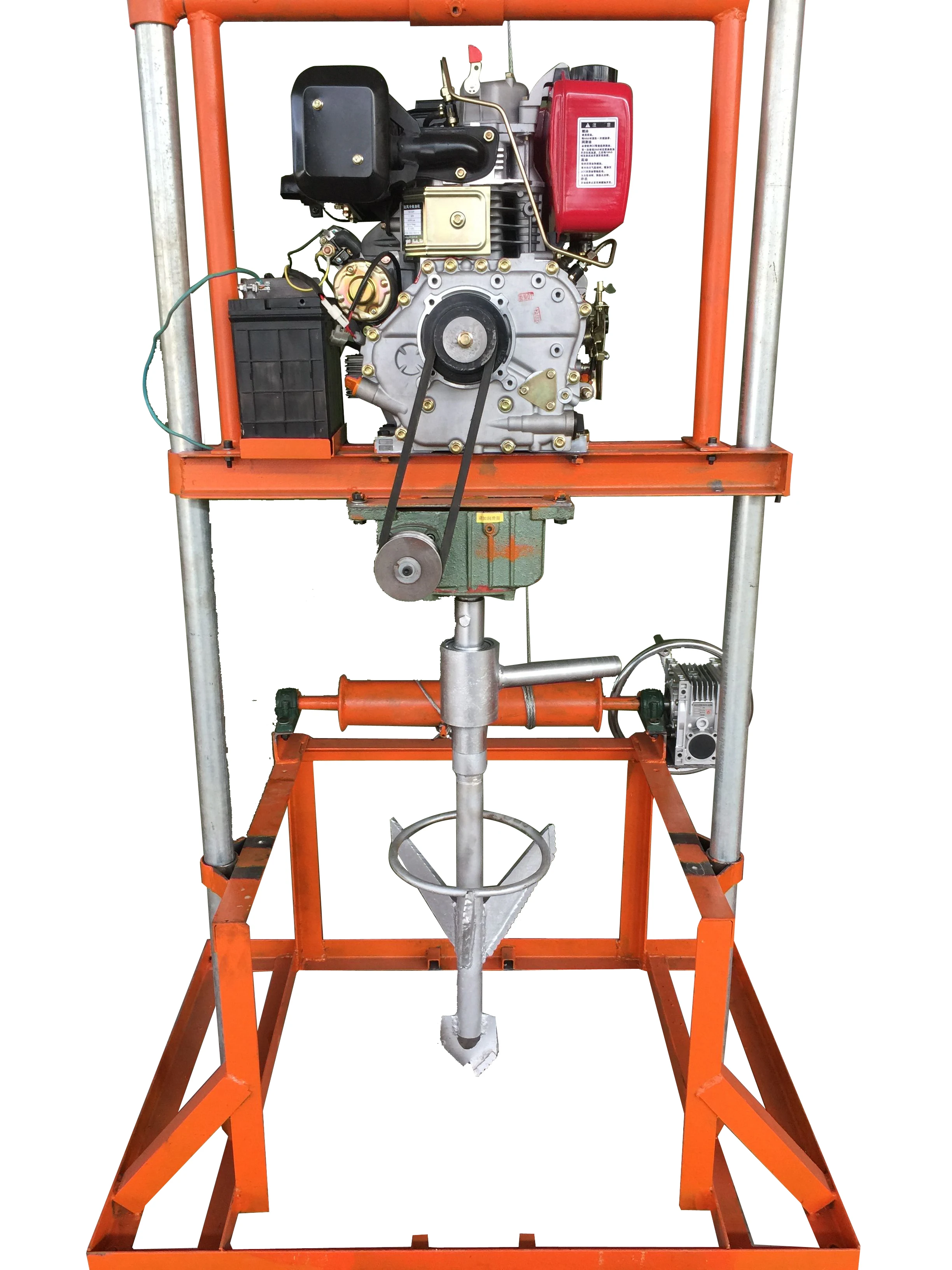

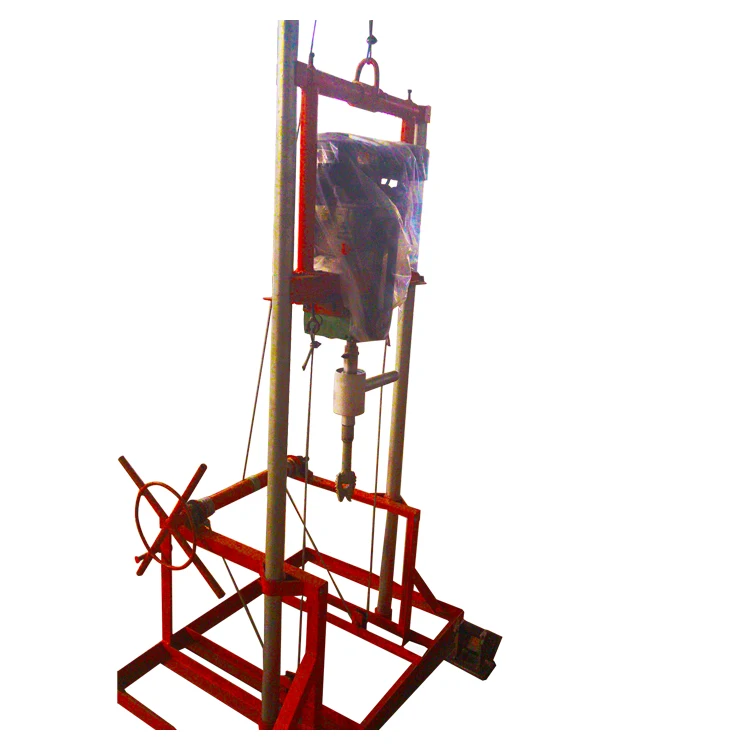

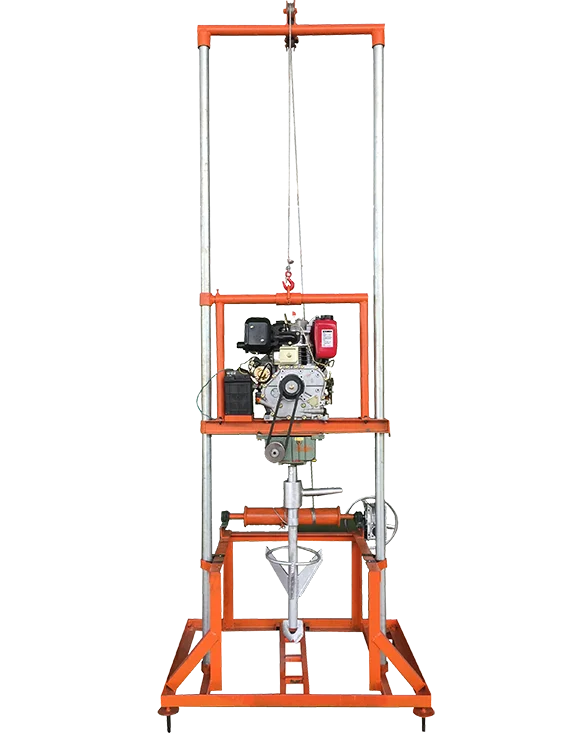

QYJ 100 Gasoline drilling machine Water well drilling rig

QYJ-100 portable borehole water well drilling machine is mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m. It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.

Features:

1.  Light weight. The main engine is only weighted 0.135tons ;

2. Unique design and simple drilling structure;

3. Easy to transport and can learn how to handle the machine in short time;

4. Can drill through hard stratum, unless thick rock layer ;

5. Can drill deep. Equipped with raser, reduce the labor intensity ;

6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;

7. Assure easily operation and long life span to save more labors and money for you;

8. The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 850KG .
