28 years history 300T aluminum injection molding machine
- Category: >>>
- Supplier: Guangzhou Zhen Gao Die-Casting Machine Co. Ltd.
Share on (60842310228):
Product Overview
Description
Detailed Images

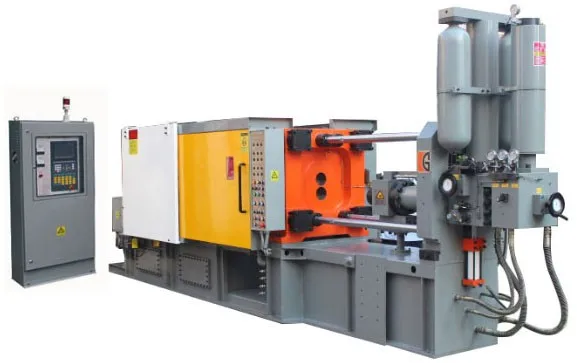

300T aluminum injection molding machine :
Auto Siemens PLC controller
Adopt Siemens PLC and electrical control sensor to make sure die locking, die adjusting, pressure of ejector and speed are all can be processed by numerical control. Dynamically display die opening, locking and injection, and operate at ease and convenience.

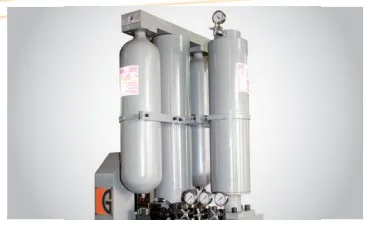

Strong injection design
Strong injection /ejection force, high die casting force design , can make sure to produce high quality die castings for customer .
Make sure products have very good die casts solidification.

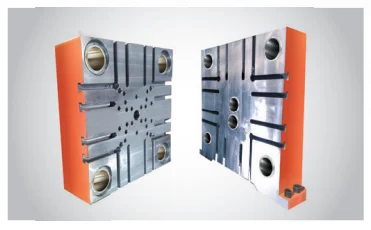

Reliable mold platen
mold platen toggle : QT500-7
tie-bar :38CrMoLu
copper brush: Bronze

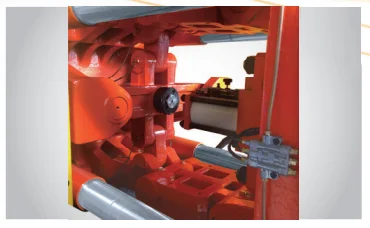

Strong hinge
Strong hinge , can make sure high quality and more longer life time of machine .

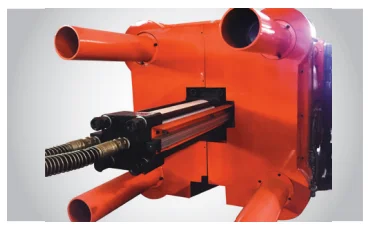

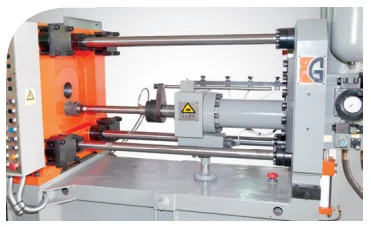

Rod type structure
three stage injection adjustment
Adopt rod type structure ,more easy for maintenance. Multi injection position can be chosed for different molds
Auto lubrication
Adopt auto lubrication , so can make sure hydraulic spare parts more longer life time,also can make sure machine stable working .
Auto gear mold adjustment
precise electrical sensor
Mold adjustment gear wheel with hydraulic type has stable transmission, convenient operation and precisely durable.
Reliable European and Japanese hydraulic valve
Adopt European and Japanese famous brand hydraulic valve ,more reliable , to make sure high quality .
Special oil temperature sensor
Special oil temperature sensor ,stale and low temperature control ,make sure spare parts longer times.
imported high quality dual-pump
Double pump and double proportional pressure & flow rate control are adopted for hydraulic system, and according to needs, high and low pressure work action can be proceed in one step by one step following a program sequence. It can not only reduce oil temperature lift up speed, but also save energy effectively.
Product Description
300T aluminum injection molding machine advantages :
*Adopt Siemens PLC and electrical control sensor to make sure die locking, die adjusting, pressure of ejector and speed are all can be processed by numerical control. Dynamically display die opening, locking and injection, and operate at ease and convenience.
*Double pump and double proportional pressure & flow rate control are adopted for hydraulic system, and according to needs, high and low pressure work action can be proceed in one step by one step following a program sequence. It can not only reduce oil temperature lift up speed, but also save energy effectively.
*Special oil temperature sensor ,easy to monitor oil temperature tobe stable and low , make sure spare parts longer time.
*Slow speed injection, fast speed injection classified into two steps and pressure increasing can all be adjusted independently, with stable pressure, fast injection pressure and no interference to each other! Especially at speedy injection, the injection fast with strength and excellent in performance.
*First platen and second platen adopt cabin type structure , more reliable and more light .
*Adopt rod type structure ,more easy for maintenance. Multi injection position can be chosed for different molds.
*Reliable and durable hydraulic components of European and Japanese famous brand .
*Mold adjustment gear wheel with hydraulic type has stable transmission, convenient operation and precisely durable.
*The automatic lubrication system with type of integrated capacity has made every rotating pairs of machine hinge obtained good lubrication.
* The machine is even symmetric and beautiful in configuration, firm and strong. The safety door structure with unique design is adopted for door rail. The connections are tightly neat and firm, and hinging up type of installation is adopted for locking door hinge of machine, and it can be easily dismounted at cleaning and maintenance of machine.
*Double pump and double proportional pressure & flow rate control are adopted for hydraulic system, and according to needs, high and low pressure work action can be proceed in one step by one step following a program sequence. It can not only reduce oil temperature lift up speed, but also save energy effectively.
*Special oil temperature sensor ,easy to monitor oil temperature tobe stable and low , make sure spare parts longer time.
*Slow speed injection, fast speed injection classified into two steps and pressure increasing can all be adjusted independently, with stable pressure, fast injection pressure and no interference to each other! Especially at speedy injection, the injection fast with strength and excellent in performance.
*First platen and second platen adopt cabin type structure , more reliable and more light .
*Adopt rod type structure ,more easy for maintenance. Multi injection position can be chosed for different molds.
*Reliable and durable hydraulic components of European and Japanese famous brand .
*Mold adjustment gear wheel with hydraulic type has stable transmission, convenient operation and precisely durable.
*The automatic lubrication system with type of integrated capacity has made every rotating pairs of machine hinge obtained good lubrication.
* The machine is even symmetric and beautiful in configuration, firm and strong. The safety door structure with unique design is adopted for door rail. The connections are tightly neat and firm, and hinging up type of installation is adopted for locking door hinge of machine, and it can be easily dismounted at cleaning and maintenance of machine.
*Water-cooling and plunger lubrication system ate equipped along with the machine, and to assist the whole machine to achieve reliable and safety production.
300T aluminum injection molding machine specification: | ||||||
Item | Unit | ZG-180 | ||||
locking system | locking force | ton | 180 | |||
tie-bar diameter | mm | 85 | ||||
space between tie-bar | mm | 480*480 | ||||
mold thickness | mm | 200/600 | ||||
die stroke | mm | 380 | ||||
shot position | mm | 0/-100 | ||||
injection system | plunger diameter | mm | 50/60 | |||
injection stroke | mm | 350 | ||||
injection force | KN | 105-250 | ||||
casting weight | kg | 1.2/1.8 | ||||
casting area | cm2 | 121-666 | ||||
casting flange diameter | mm | 110 | ||||
over height of flange | mm | 10 | ||||
ejection system | ejection force | KN | 110 | |||
ejection stroke | mm | 100 | ||||
hydraulic system | motor power | kw | 15 | |||
electrical furnace power | kw | 60 | ||||
operation pressure | kg/cm2 | 140 | ||||
oil tank capacity | L | 460 | ||||
oil / gas furnace capacity | kg | 300 | ||||
Other | machine size | mm | 5500*1350*2500 | |||
machine weight | ton | 6.5 | ||||
