Product Overview

Description







Product Overview

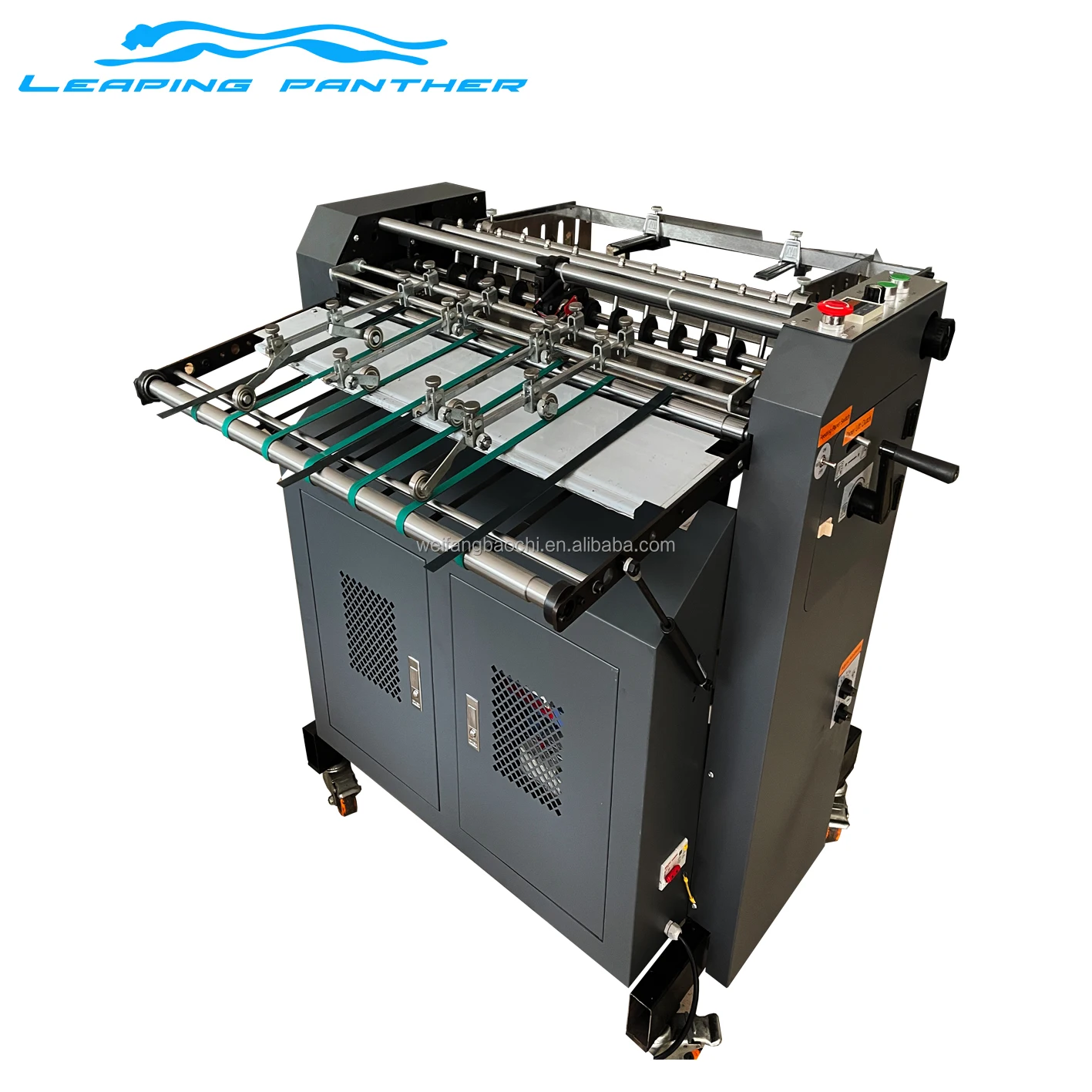

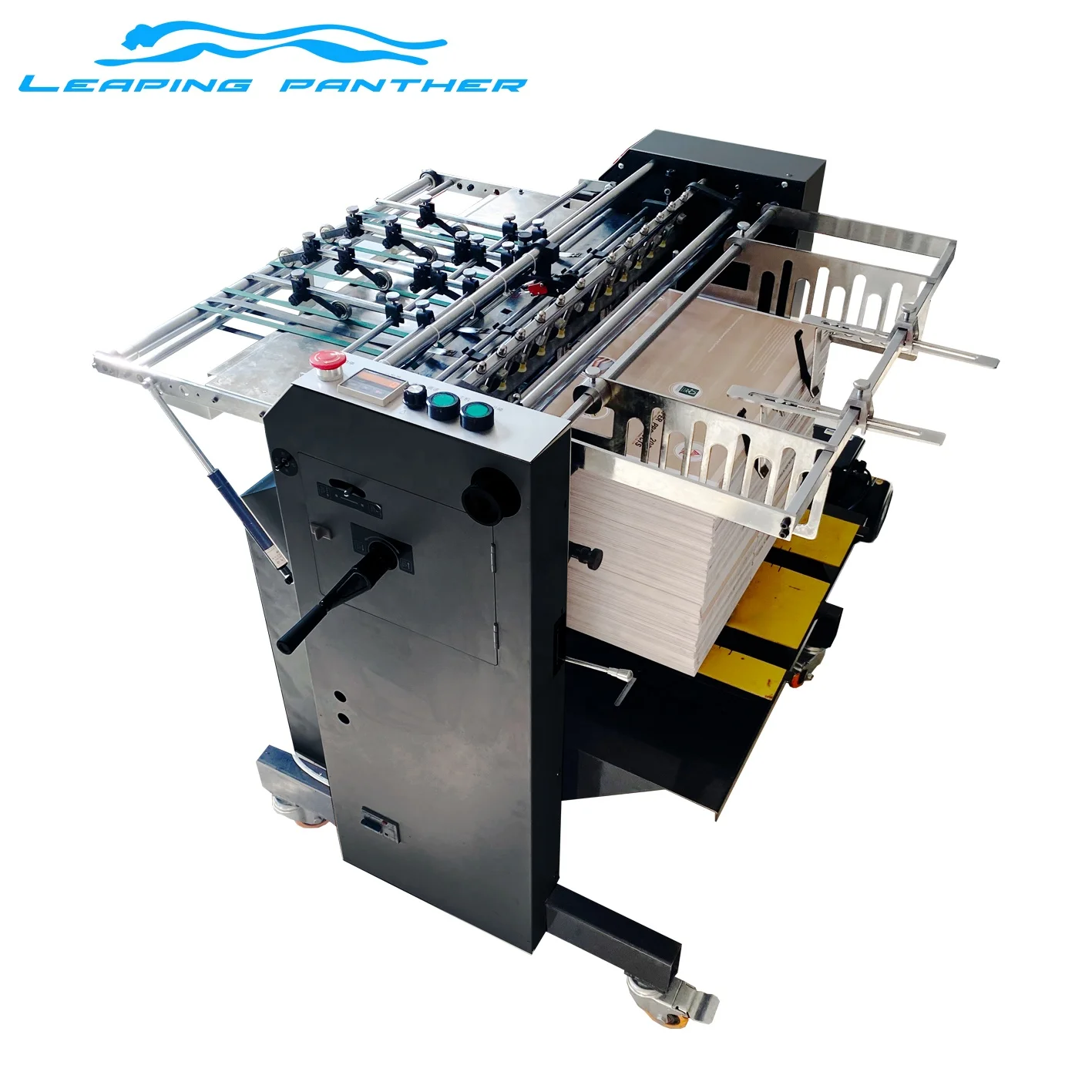

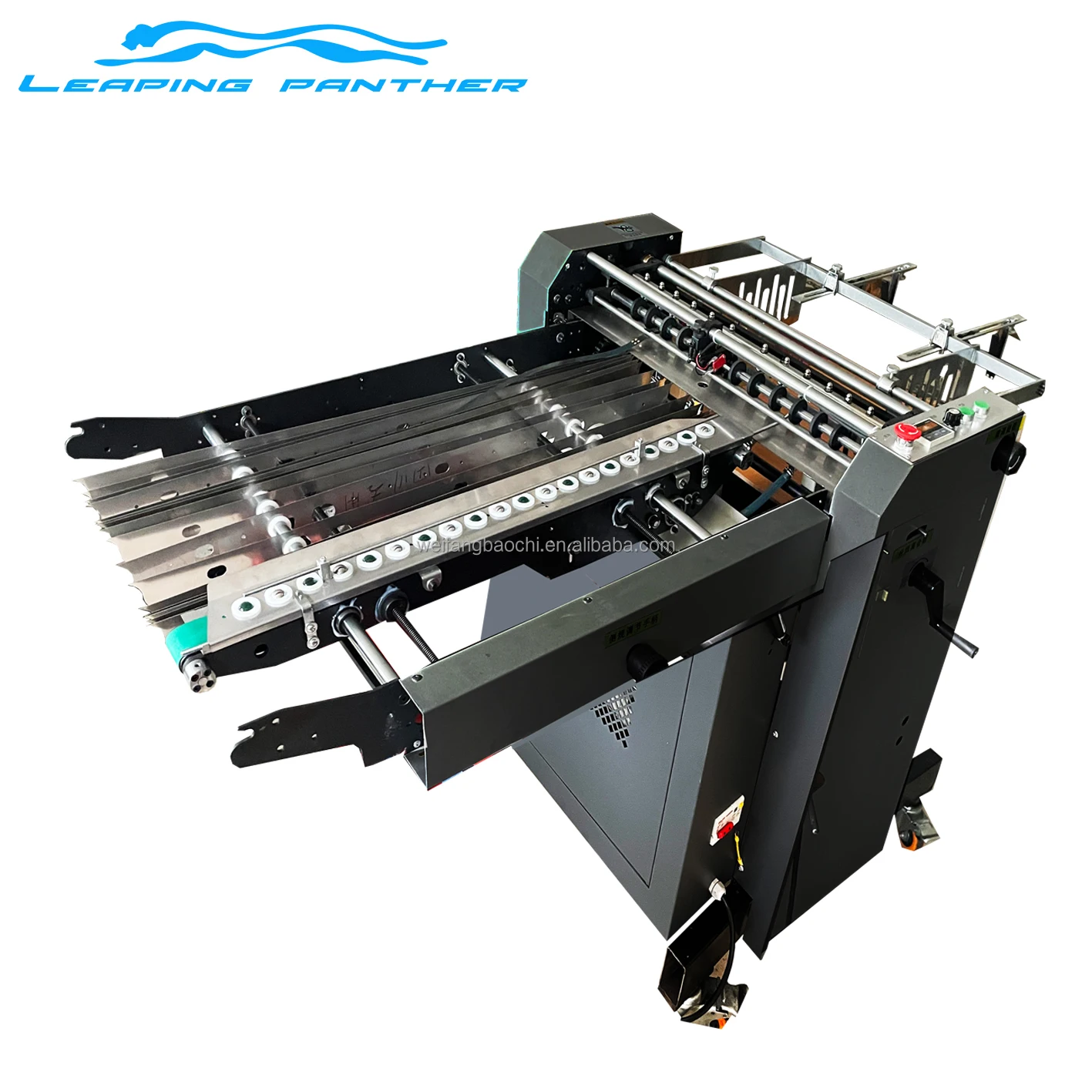

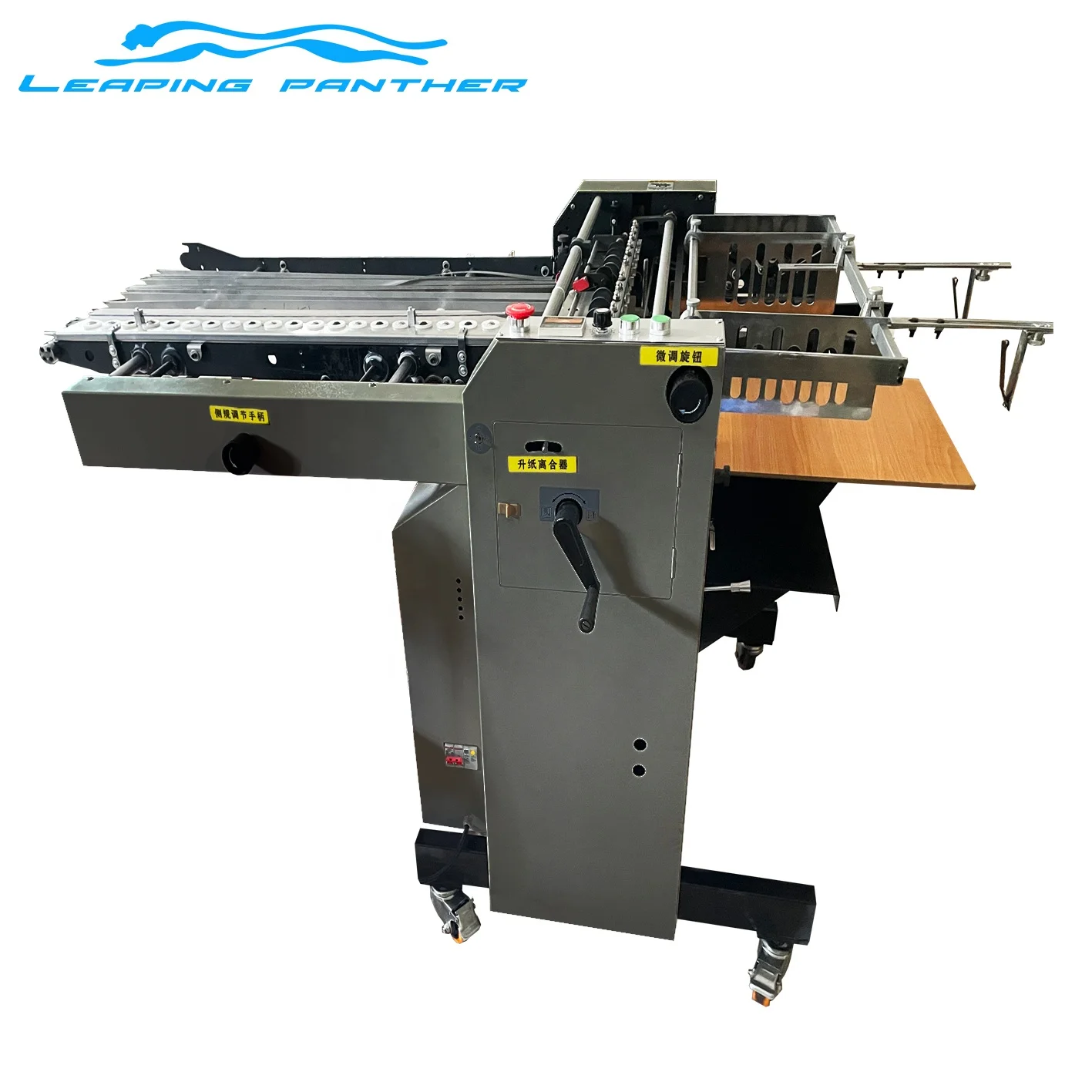

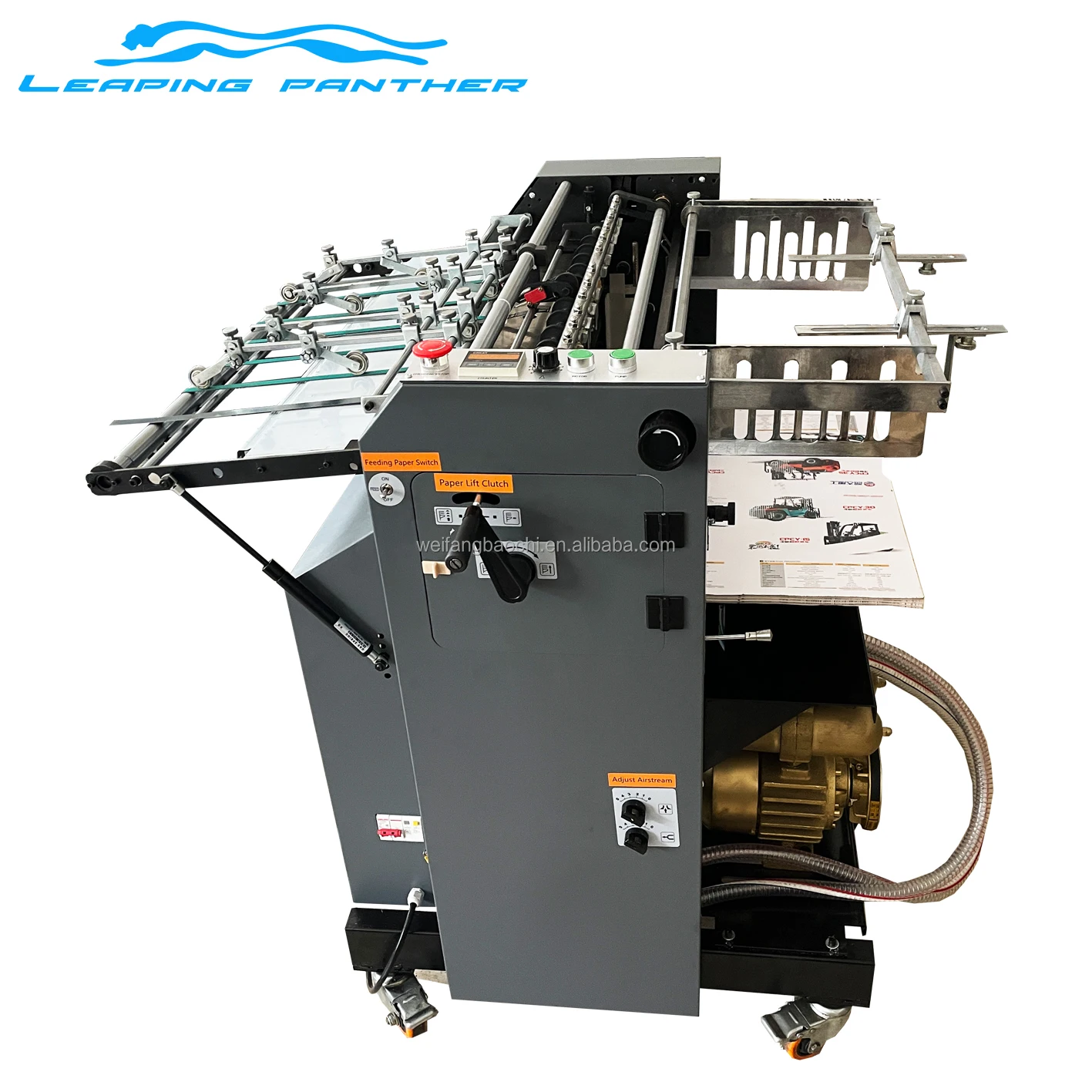

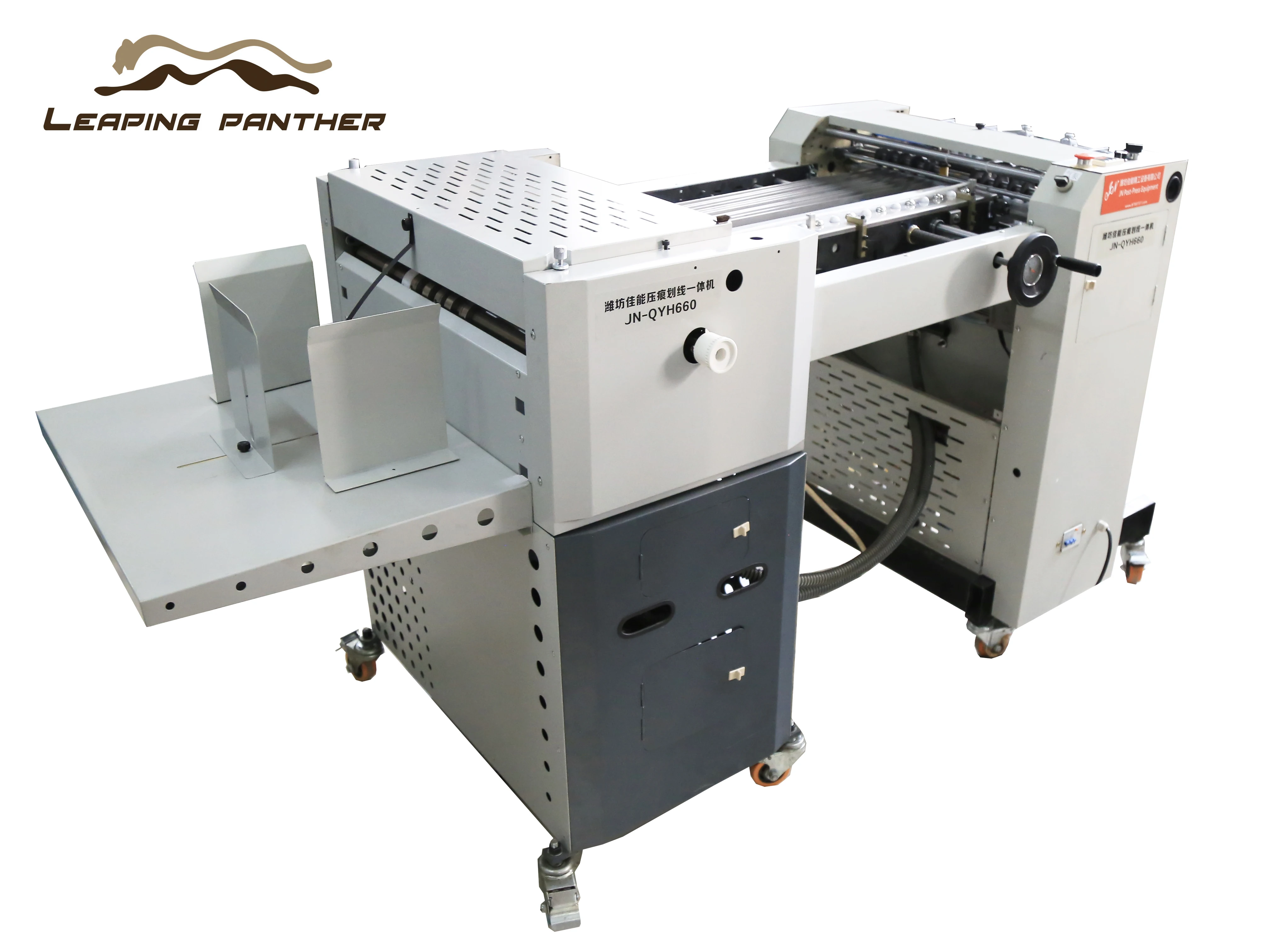

Multifunction Material feeder
Paper pile feeding machinery/
Stack paper feeding equipment/

Automatic for small format single paper sheet feeding
1.Vacuum suction feed mode ,save labor and improve
efficiency.
3.Paper automatically rise, the maximum Pile of material is 50cm.
4.Paper platen lift safety limit function
5.Adjustable position, to solve the gap between the equipment.



FEATURES AT A GLANCE




Features

1. Adjustable DC motor conveying speed control.
2. Vacuum suction feeder with electromagnetic valve control.

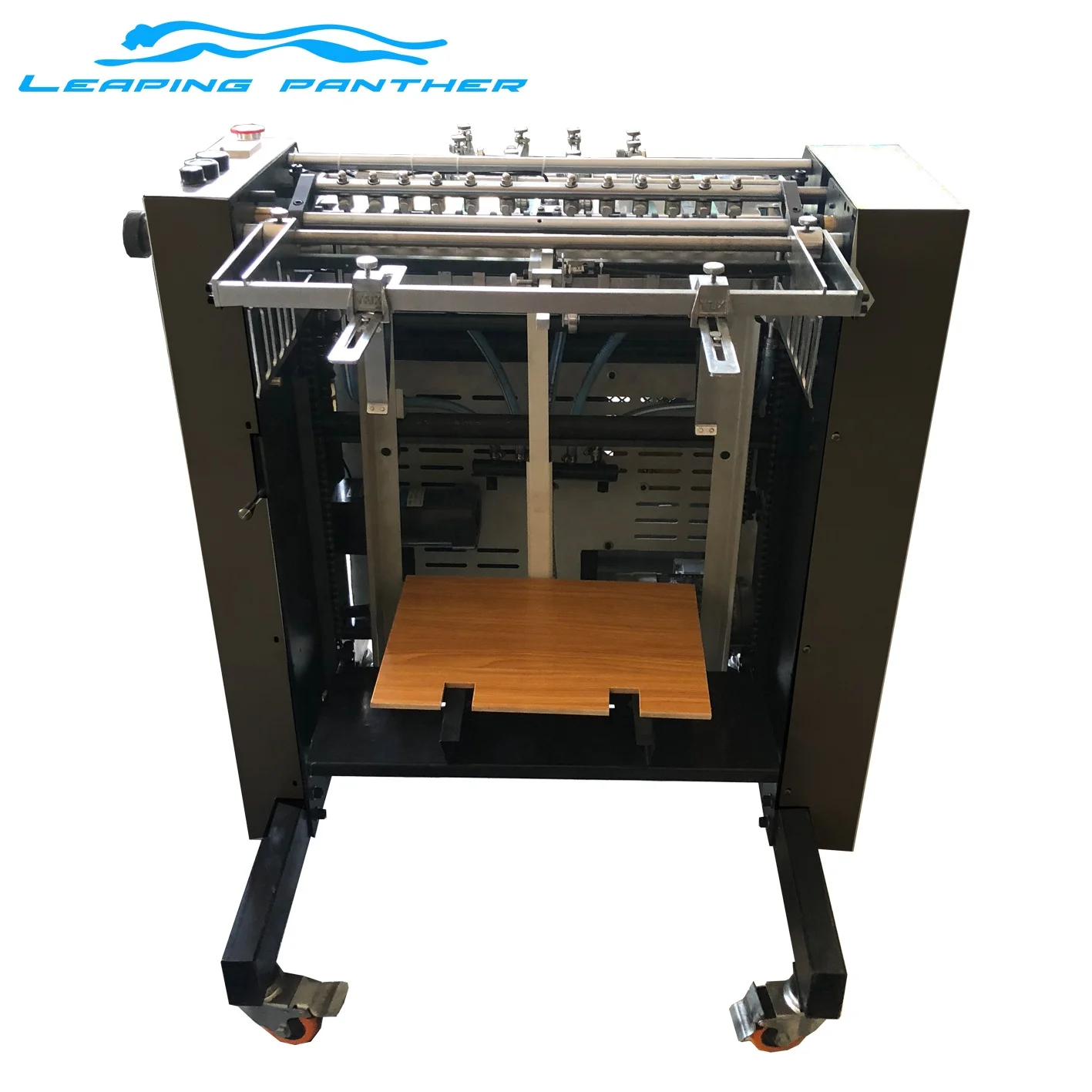

3. Automatic sheets pallet loader up and down control.
4. Pallet loader up and down with safety limits switch design.
5. With double sheets control function.
6. Conveyor belt with tensile device and side lays guide register(Optional)






We have two model :FD460& FD660 for your chose




PRODUCT SPECIFICATIONS

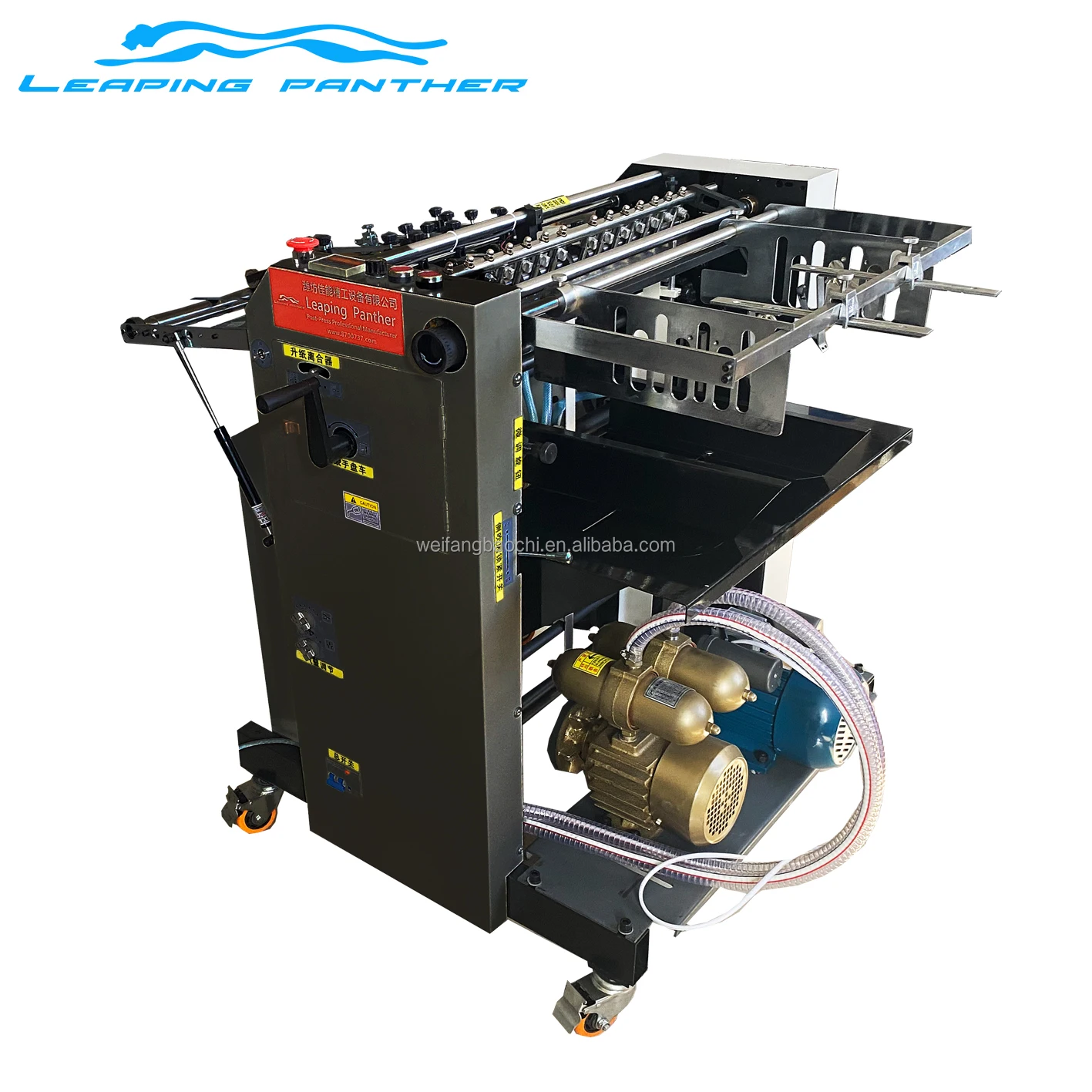

Independent air pump
Pile in 50cm material


With double sheets control function.
Can feed Thin Paper or Ground paper


Conveyor belt with tensile device and side lays guide register(Optional)
Easy to operate


Model
FD460
FD660
Max. Paper size
460(W)*500(L)mm
18(W)*19(L) Inch
660(W)*500(L)mm
25(W)*19(L) Inch
Min.Paper size
150(W)*150(L) mm
6*6 Incn
150(W)*150(L) mm
6*6 Incn
Feed paper weight
40-450 gsm
40-450 gsm
Paper feeding way
Air suction type
Air suction type
Max. paper feeder stack
500mm
19 Inch
500mm
19Incn
Speed
40--80 pcs/min
Power
220V/50Hz 1.5Kw
Dimension
1000*950*1070
1000*990*1070
Weight
260Kg
300Kg

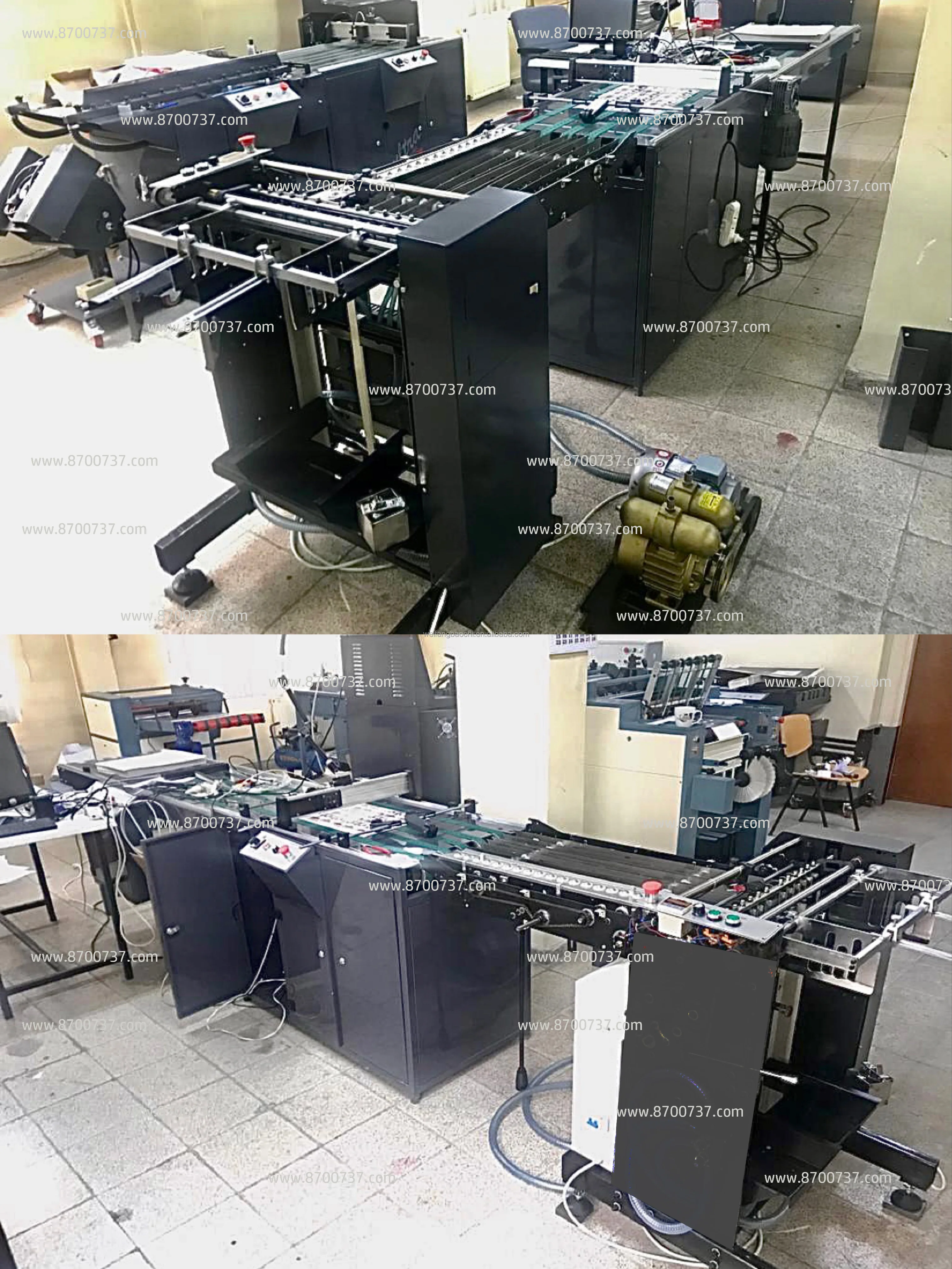

Customer CASE






Weifang Leaping Panther Robotization Technology Co.,Ltd. was founded in 2005,
located in Weifang City, Shandong Province, China.
We specialize in the manufacture of post-press machines, such as: Automatic / Manual Creasing /Perforating machine, Automatic folding machine, Automatic embossing machine, Die cutting machine, Perfect glue binding machine,Paper feeder and so on.
Our foreign markets involve: US, Latin America, Middle-east, South-east Asia, and Africa countries; OEM orders acceptable.
We have the experience and expertise to serve all our customers.
We welcome foreign dealers/wholesalers to come to visit us and talk about the exclusive agents business.
Wechat&WhatsApp:+86 18605367585
Contact me: Julian


FAQ


1. Q: Are you a factory or trading company ?
A: We are factory at Weifang, Shandong. Welcome to visit us.

2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Weifang City, Shandong Province, China, around 1 hour train from Qingdao. Around 1 hour from
"Qingdao Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: How can i get some samples ?
A: We are honored to offer you sample to test it, around 4-5days arrived your hand after receive payment.

4. Q: What's the terms of payment ?
A: We can do T/T Paypal before shipping.

5. Q: How does your factory do regarding quality control?
A: Quality is priority. Our factory always attaches great importance to quality controlling from the beginning to the end. Our
factory has gotten CE certificate.
