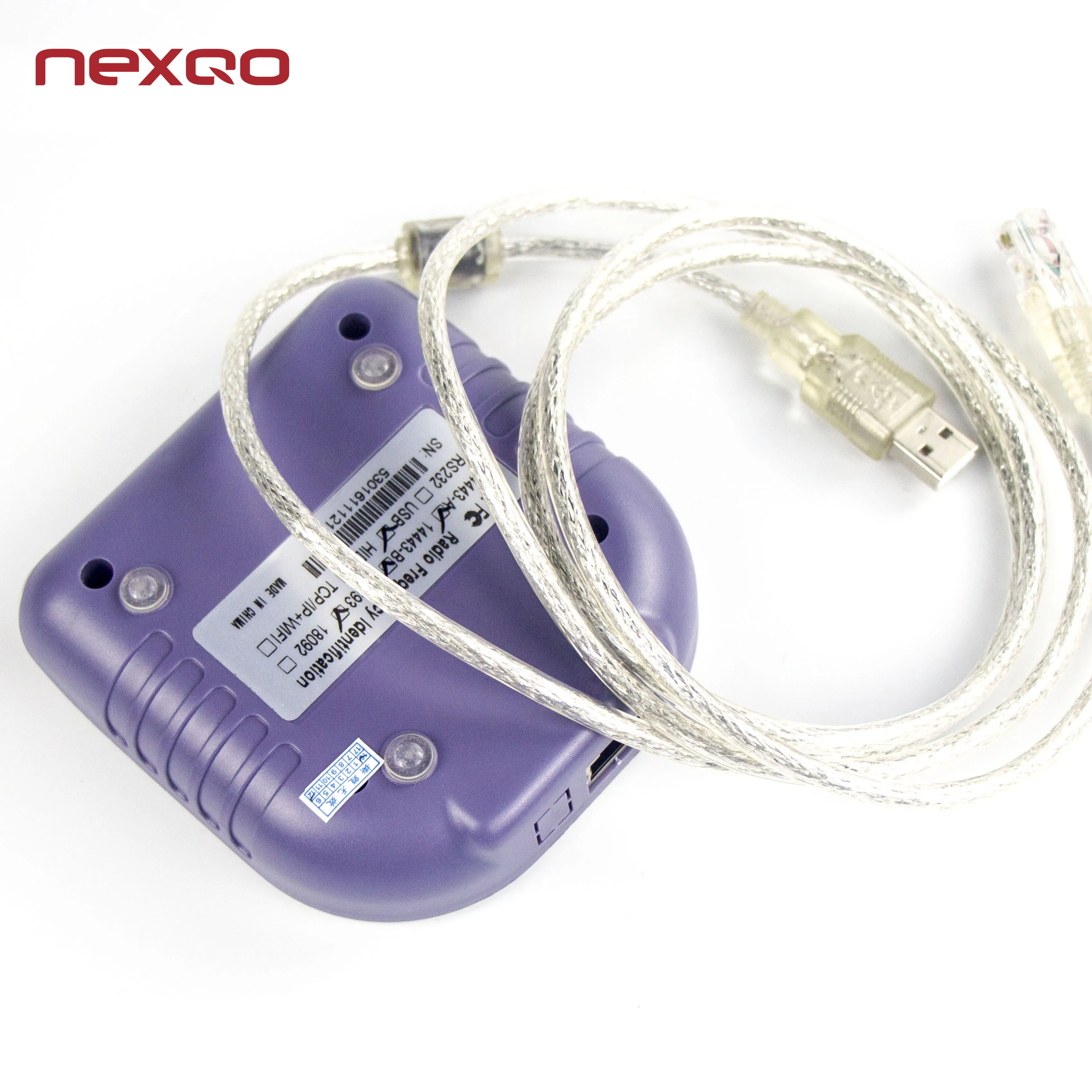

Nexqo 13.56Mhz usb RFID reader

Product Overview

Description

RFID NFC 13.56Mhz usb micro chip card reader



Applications:
 ---Identification
---Access control
---Off line ticketing

---Customizing card
---payment

---Productive lines management: production process fixed identify.

---Product counterfeit-proof inspection: using memory’s write-protect functions inside tags and identifying with true-false of products.

---Other fields: used widely in club management, libraries, students schools, consumption management, time management, dinner management and pool management.

 reader characteristic

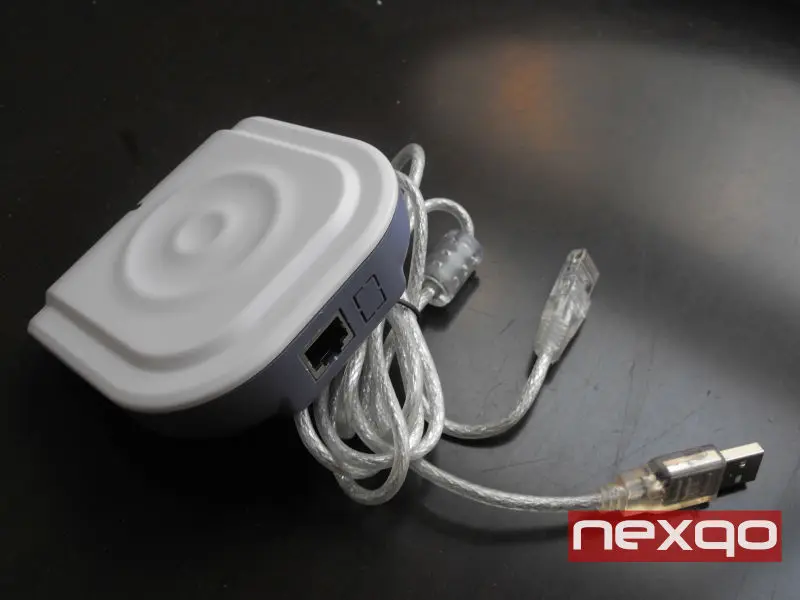

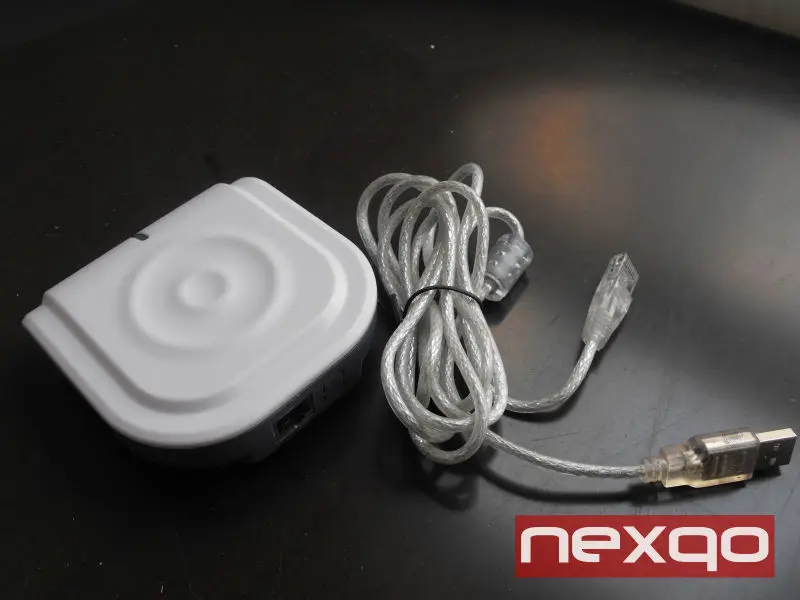

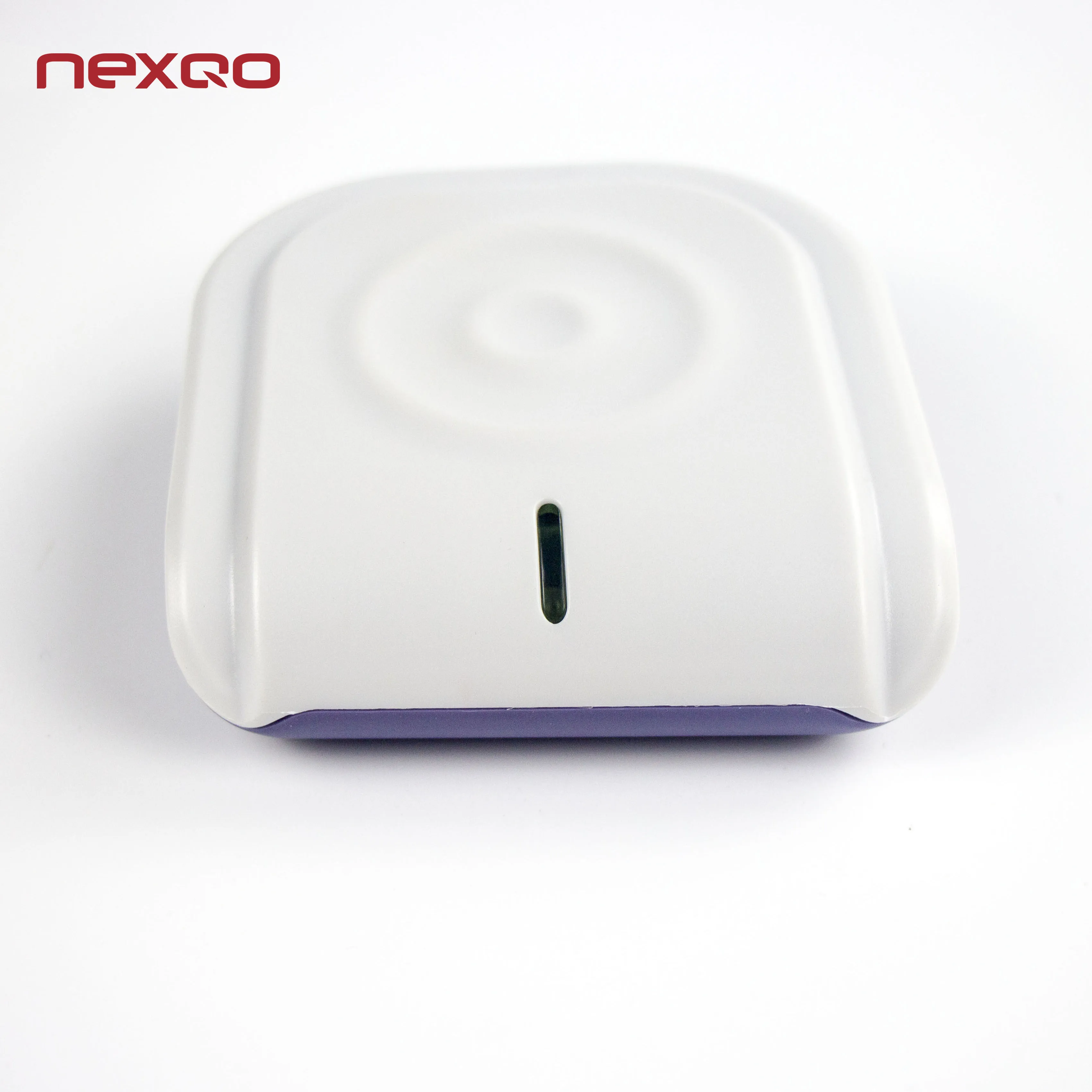

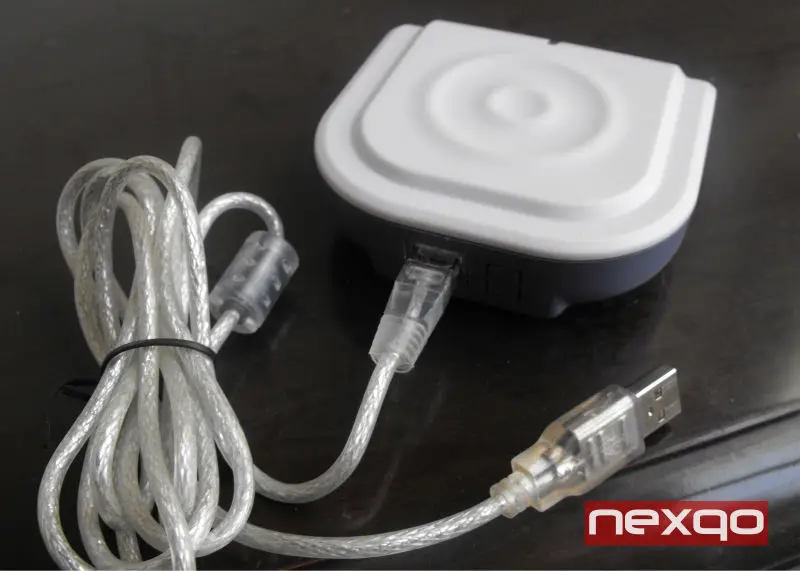

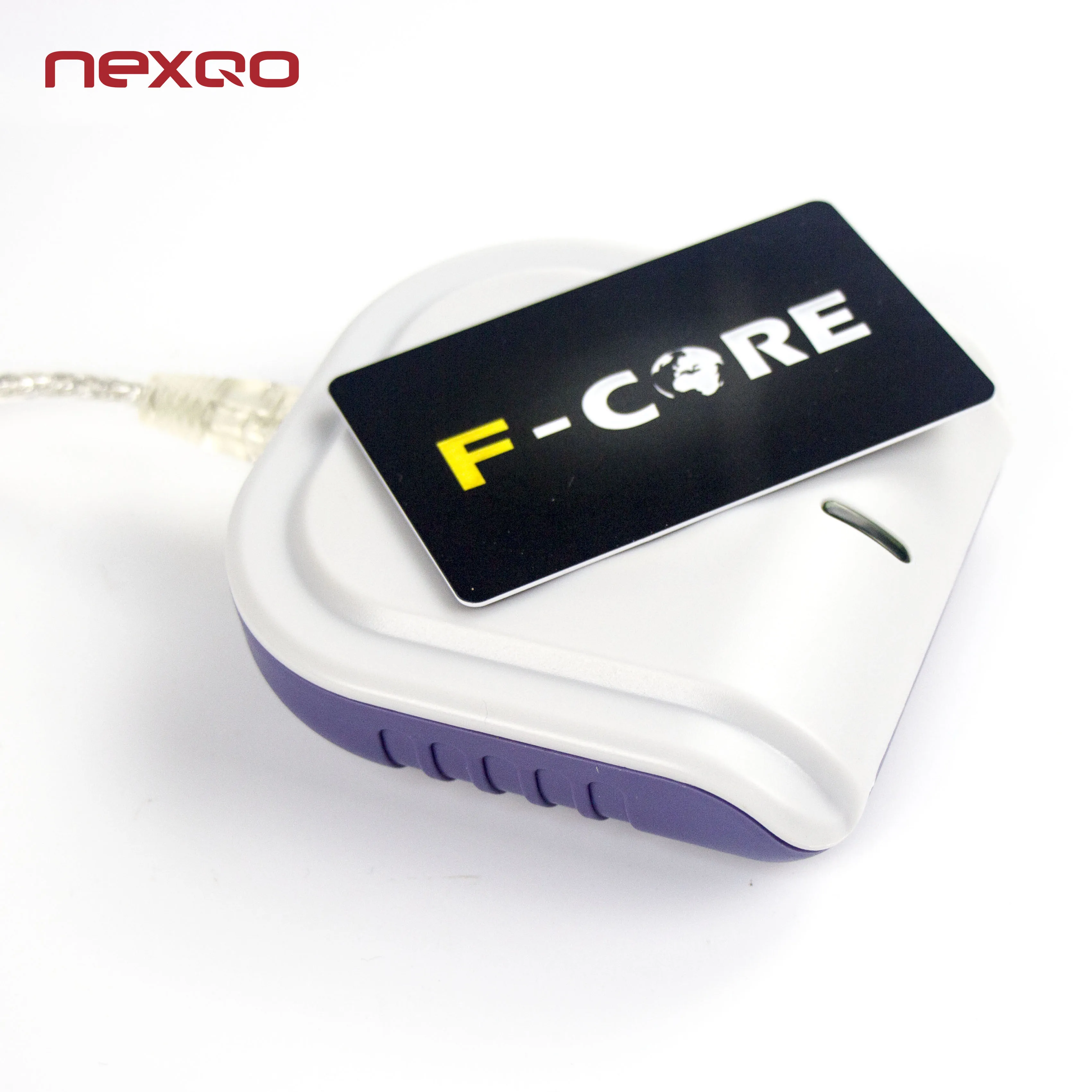

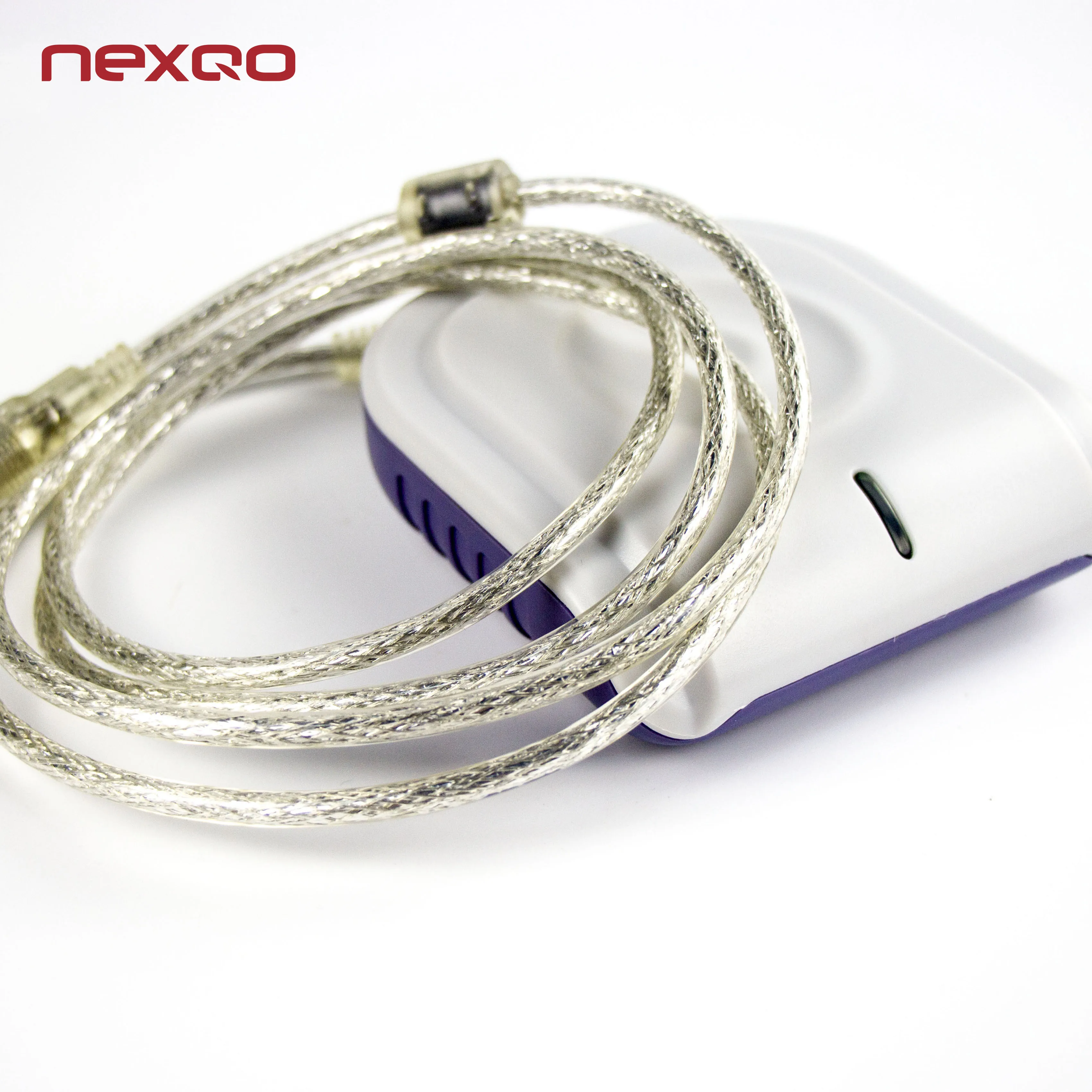

 The Nex-530 desktop reader is an ISO14443A, B or ISO15693 read/ write device with a typical operating distance of 50-100mm. The desktop reader combines all basic functions to access the ISO14443A, Bor ISO15693 card. Including Smart Card. Its versatility allows a flexible and efficient application in different configurations and system devices. Using a serial interface the device can be easily connected to a PC or other controller.



Specifications

Protocol	ISO/IEC14443A,ISO/IEC14443B,ISO/IEC15693
Frequency range	13.56MHZ
Baud Rate	9600-115200bit/s
Communication interface	RS232,USB,PS2
Reading range	50~100MM
Material	ABS
Support Card	FM11RF08, SRI 512, I CODE SLI, Tag-it Ti 2048, and another chips available on request
Reading clue buzzer	Yes
Working temperature	-30~+80°C
Humidity	20% ~ 95%
Size	100mm*100mm*30mm

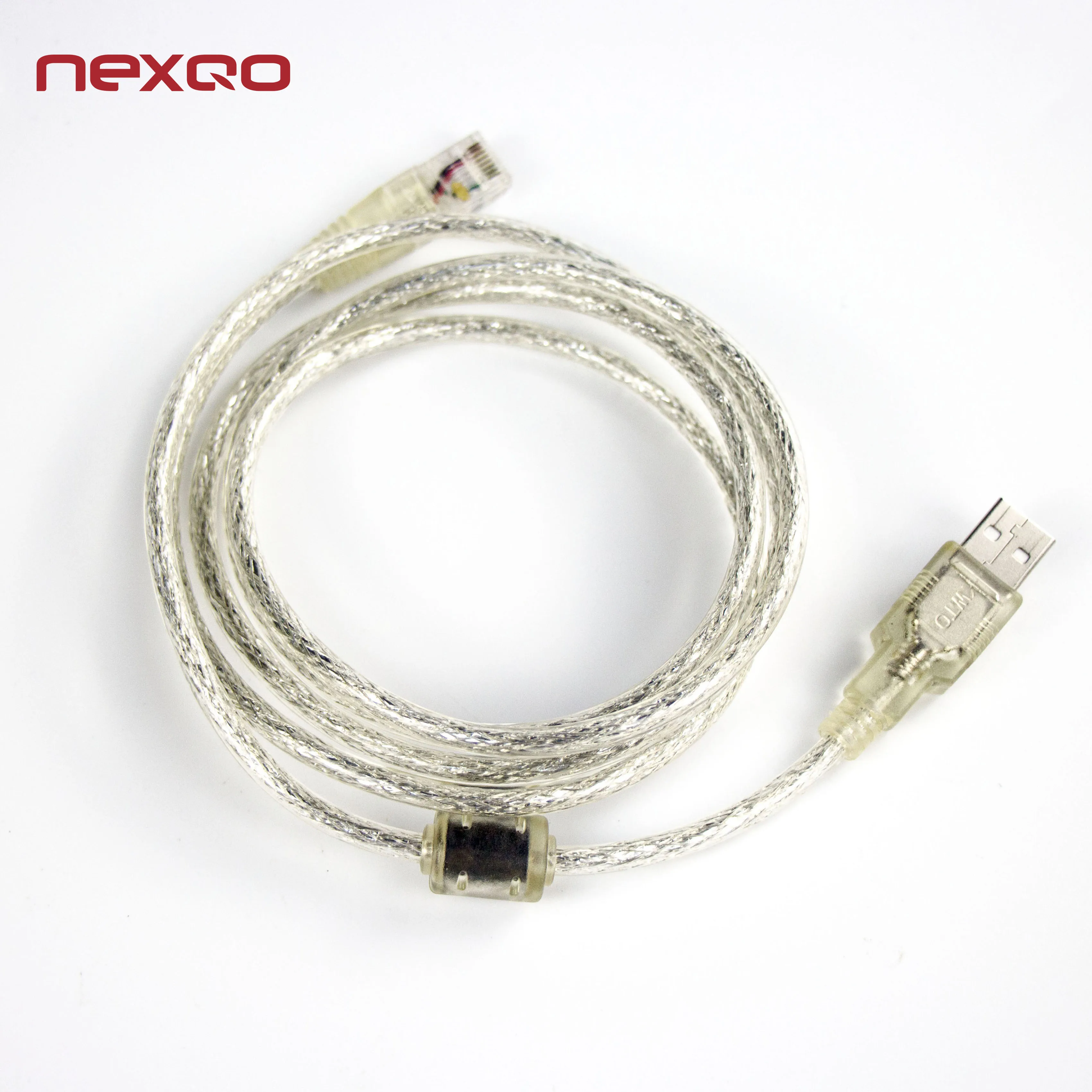

Accessories	USB(RS232)Cable,disk(SDK, Demo,User’s manual)
Weight	0.5Kg
