Best Selling Mobile Waste Lubricant Oil Purification Plant

Product Overview

Description

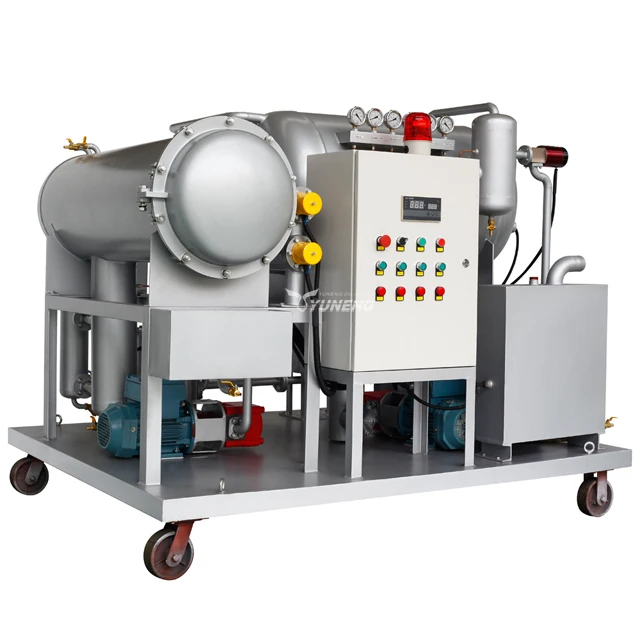

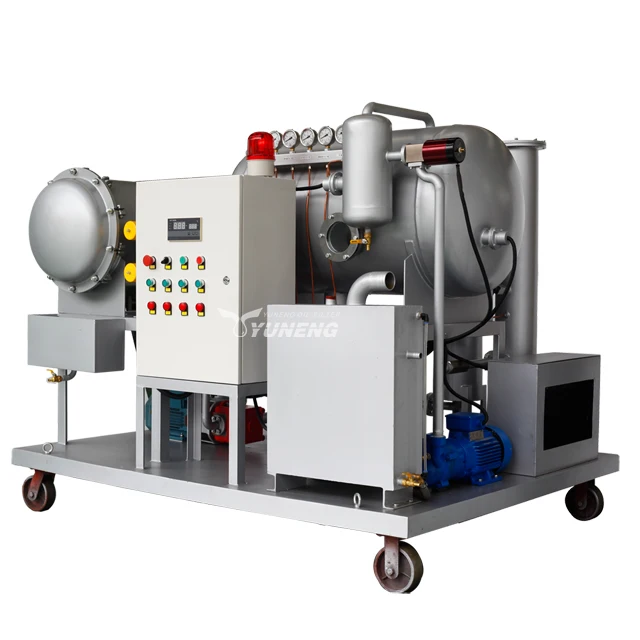

                             Best Selling Mobile Waste Lubricant Oil Purification Plant

Lubricant oil purification plant is designed for deep dehydration of oil which contains much water (≥2%) and seriously emulsified. Dehydrate by 2 systems:coalescing and vacuum.

Coalescing remove free water by 2 kinds of special filters, vacuum remove dissolved water and emulsified

water. After dehydration, there are filters to remove particles.



To remove free water: 2 kinds of special filters. One called coalescing filter, which gather small water molecule into big water drop. Another called separation filter, which let oil flow while water drop can not flow. Water drop will fall into a tank by gravity.



To remove dissolved water and emulsified water: vacuum distillation, water will be vapor at 40-60℃ under vacuum degree and pumped out, vapor will be water again in cooling system and discharged.

To remove particles: we use 3 stage of filters to get cleanness up to NAS grade 6.



Lubricant oil purification plant Features:

1. Perfect design, you can run the coalescing system or the vacuum system only. Surely to run both of the systems is the best solution.

2. Work on line, prolong turbine oil life and maintain your turbine/ lubricating system timely.

3. There is DCS distance control connection.

4. The separated water can be discharged manually or automatically.

5. There are pressure protection for the coalescing tank and filtering tanks.

6. Explosion-proof type and trailer type are available.



Lubricant oil purification plant (test at oil-outlet of the purifier) :

water content ≤ 50ppm

gas content <0.2%

kinematic viscosity (40℃):28.8-35.2 mm²/s

flash point ( open cup) > 190℃

acid value ≤ 0.2 mgKOH/g ( without antirust in your oil)

                 ≤ 0.3 mgKOH/g ( with antirust in your oil)

demulsibility ≤60 min

filtration accuracy ≤ 5 micron

oil appearance: transparent

cleanness: ≤NAS grade 6



Lubricant oil purification plant Parameters:











Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd. is a new and high-tech joint-stock enterprise established on the basis of the former Chongqing Yuneng Oil-Purifier Factory. Our company, covering an area of about 14,500 square meters, specializes in the R&D, manufacturing, and marketing of turn-key projects in oil purification, water and gas filtration, and other reclamation products. We gather a group of specialized talents with years of working experience and technological development. Now we have 168 employees, and 60% of them have received an educational background at or above the junior college level. We can produce 1,000 sets of oil-filtering equipment and purification equipment for other fluids every year. We are one of the world competitive companies specializing in high-tech oil purifier research and manufacture. We attach great importance to product quality, specialization, dedication and constant improvement......
