Portable Industrial Inspection Videoscope With Joystick Control 1.5M Camera Lens 4.0mm Working Cable 5' Display

Product Overview

Description

Portable industrial Inspection Videoscope With Joystick Control 1.5M Camera Lens 4.0mm Working Cable



Specifications :





Specifications:

I. Application:

   Industrial video endoscopes (aka: Sight scopes) are a branch of non-destructive testing and a dedicated detection technology. Suitable for inspection and observation of high temperature, toxic, nuclear radiation and places that are invisible to the human eye (eg automotive assembly, automotive casting, engines, pipes, mechanical parts, pressure vessels, power systems, wind power, chemical, mechanical equipment) , railway locomotives, etc., can achieve non-destructive testing without disassembly or destruction of assembly and equipment stop operation, can greatly improve the detection efficiency and equipment safety performance.

II. Main features:

1. Portable 3.5 inch, 1 million pixels, the whole machine weighs less than 500g

2. High brightness Rear LED illumination, can adapt to different detection needs

3. Large depth of field 5-120mm large depth of field

4. High precision Mechanical guidance, 360 degree arbitrarily rotating, precise control 0 delay

5. Super wear-resistant four-layer tungsten braided tube, waterproof, wear-resistant, anti-corrosion

6. Super battery life Replaceable battery, continuous operation more than 4 hours

7. High-brightness display Wide-angle high-brightness LCD

8. Steering flexibility After two turns, it can also rotate 120 degrees

III. Technical specifications:

Bending angle	less than 180°
System / Software
Pictures/video format	JPG/MP4
Pictures control	Taking photos,recording,Zoom, freeze, flip, replay, simulate ruler, etc.
System language	Chinese, English, etc 7 languages

Operation environment:
Body temperature	-10℃~50℃
Probe lens camera	-20℃~70℃
Storage temperature	-20℃~60℃
Relative humidity	Max 90%
Waterproof standard	IP67
Body specifications:
Size	251*100*75mm
Battery	more than 4 hours
Monitor	3.5 inches IPS LCD
SD card	8G
Video output	HDMI
Forward
Pixels	1000000
Camera lens diameter	6mm / 3.9mm 3.9mm 2.8mm 6mm
Cable length	1.5M -- 4.0M 2m 1m 5m
FOV	90,120degrees optional
Forward illumination	less than 50000lux
DOF	5-120,3-20,50-infinity
Direction	360degrees rotation

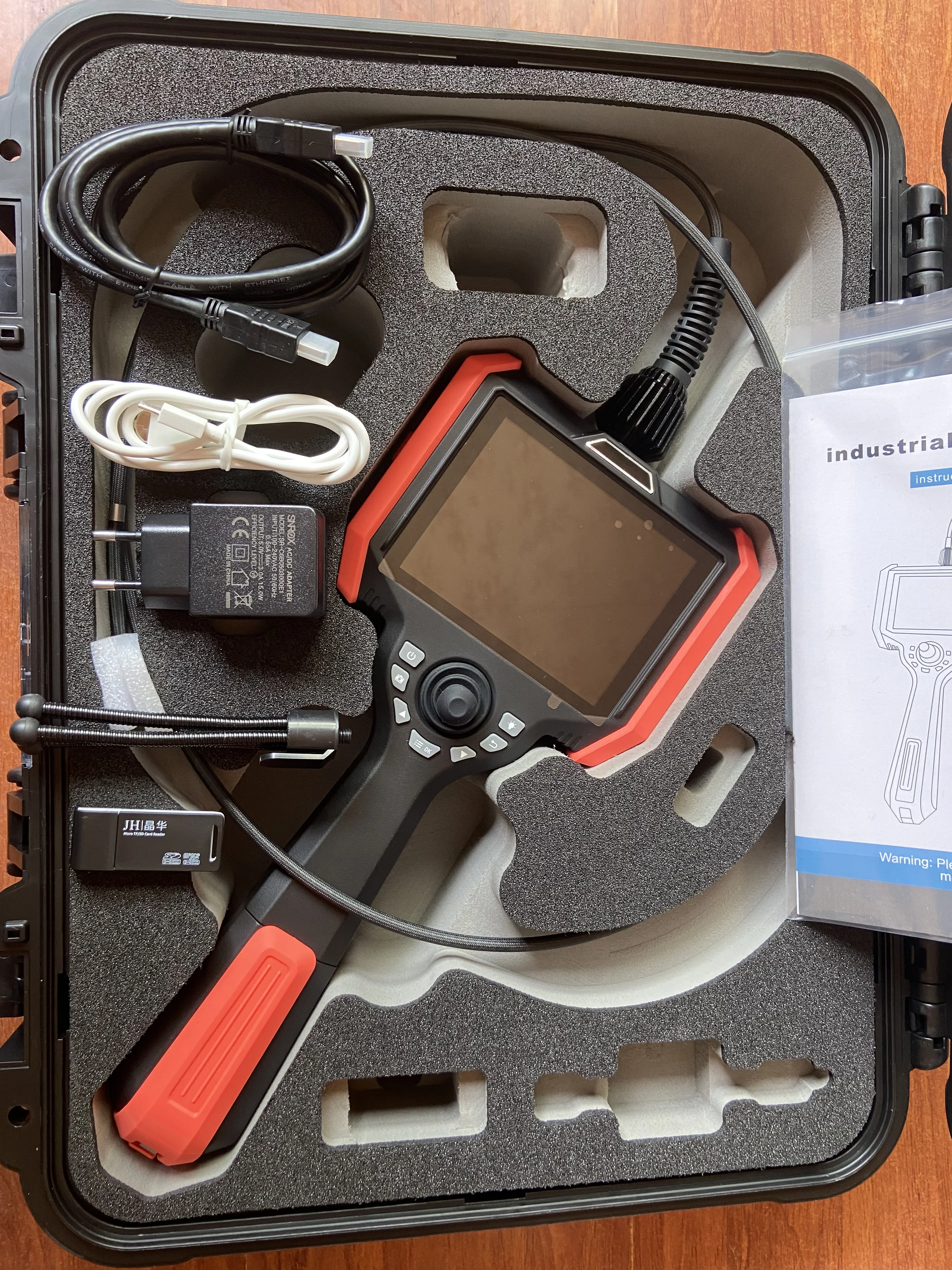

IV, Packing list:

Items	Specifications	Qty	Unit
1	Endoscope	1	set
2	Card reader	1	pcs
3	TF card(8GB)	1	pcs
4	Battery (18650)	2	pcs
5	Instrument box	1	pcs
6	Charging adaptor	1	set
7	Manual	1	pcs
8	Warranty	1	pcs
9	Repairing card	1	pcs
