Product Description

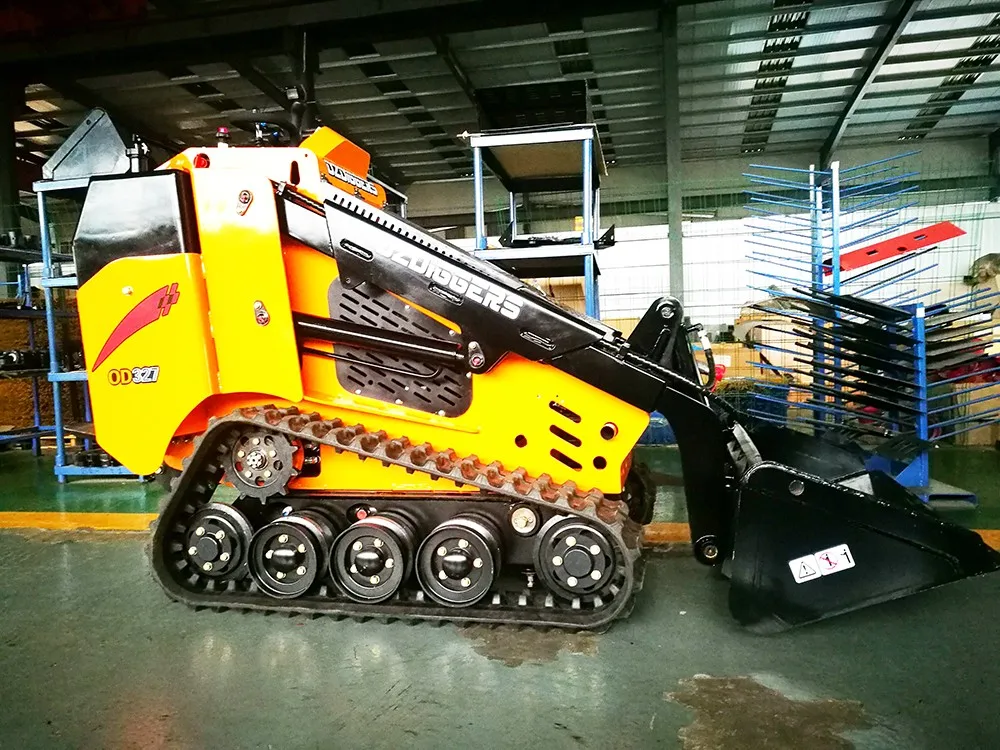

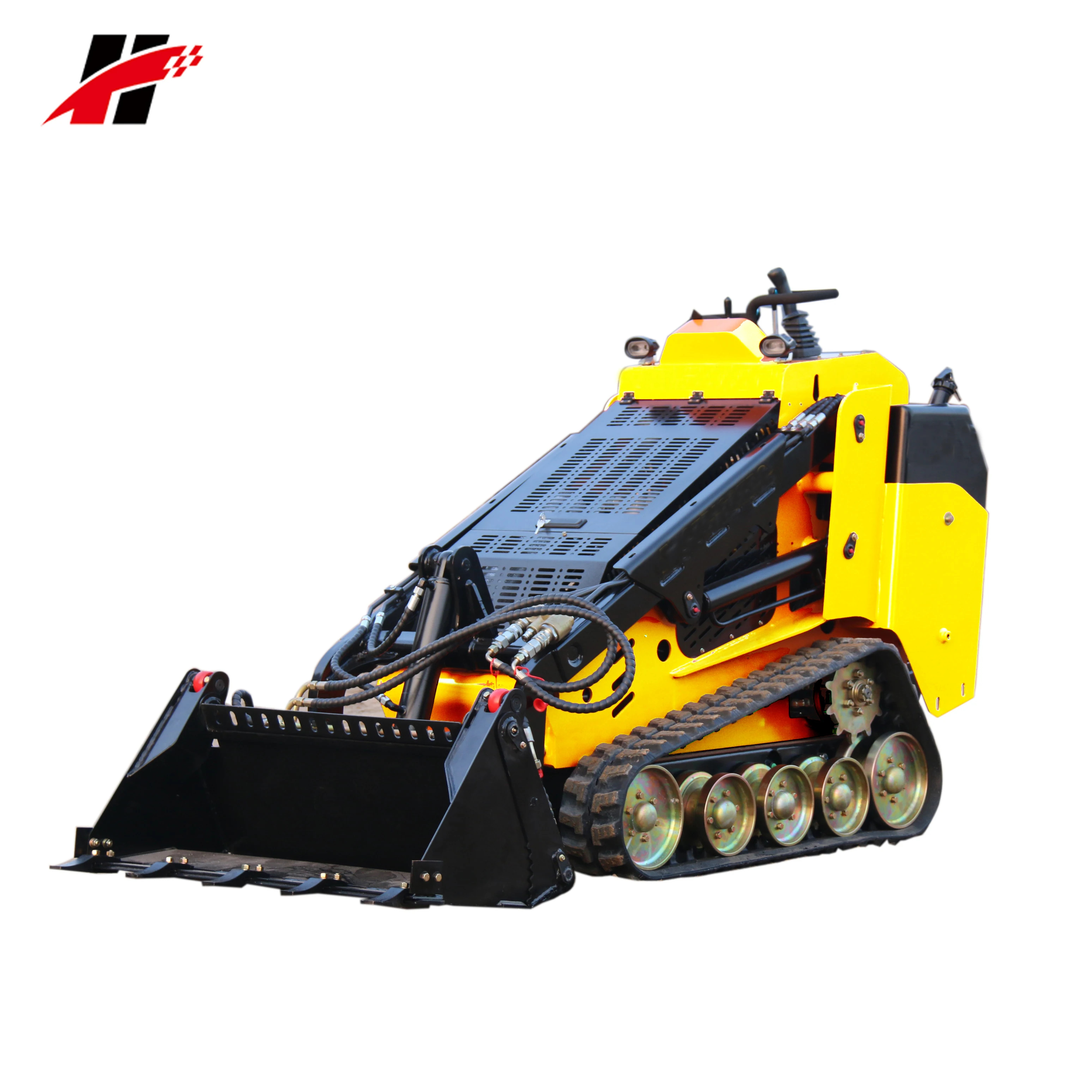

Diesel mini loader model TY-327

Diesel mini loader TY-327 with Perkins diesel engine has been a trusted companion amongst landscapers, builders, electricians, contractors, acreage owners and farmers lauch into Europe Australia, America, Canada.

TY-327 mini loader comes standard with many features that other machines will cost additional or are not available at all. Some include:

√ Perkins 27hp Diesel engine
√ Full Italian HC Hydraulic joystick
√ HANSA triple pump
√ U.S WHITE Hydraulic Drive motor
√ Donaldson Cyclonic 3-stage air filter
√ Hydra flow attachment valve
√ Auxiliary pump for trenching, drilling etc
√ Big Aluminum Oil cooler
√ Electrophoresis painting
√ Nipples on all friction points
√ Italian DNP Flat faced oil couplings
√ High departure angle for rough terrain
√ LED Head lights
√ Universal quick hitch plate

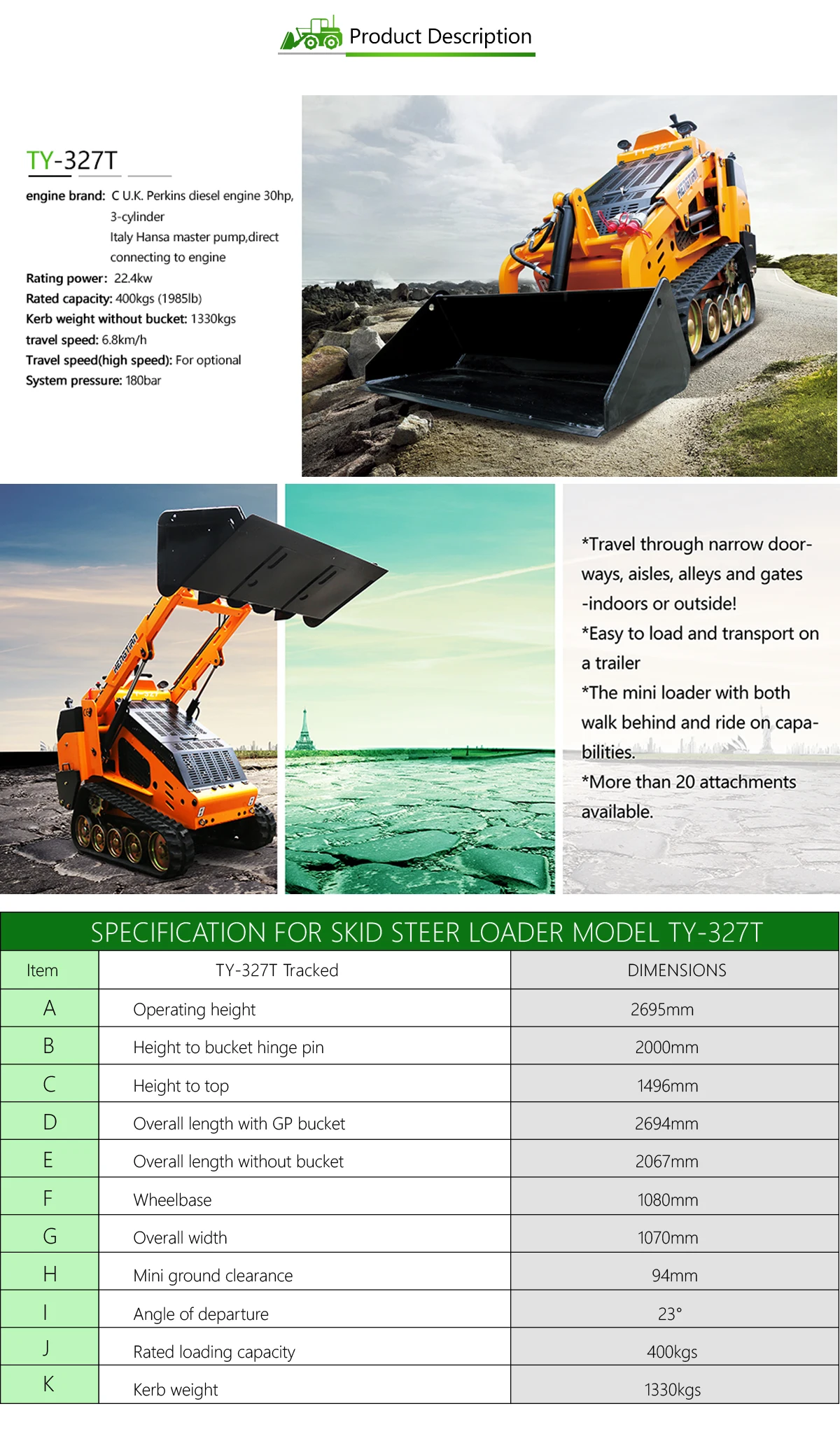

SPECIFICATIONS FOR TY-327 diesel mini loader

Engine
Engine model
Perkins engine diesel
No. of cylinders
3 cylinder
Net Power
30hp
Dimensions
Operating height
2695mm
Height to bucket hinge pin
2000mm
Height to top
1496mm
Overall length with GP bucket
2694mm
Overall length without bucket
2067mm
Wheelbase
1080mm
Overall width
1070mm
Mini ground clearance
94mm
Angle of departure
23°
Rated loading capacity
400kgs
Kerb weight
1330kgs
Hydraulic system
working system pressure
250 bar
working system Flow rate
62.4 L/min
Driving System pressure
250 bar
Driving system Flow rate
62.4 L/min

Main Features

-400kgs loading capactiy.

- High track rough terrain driving.

-Big fluid output

-Engine drive master pump directly much torque to support power.

- Multifunctional attachments including stump grinder, trencher, backhoe.

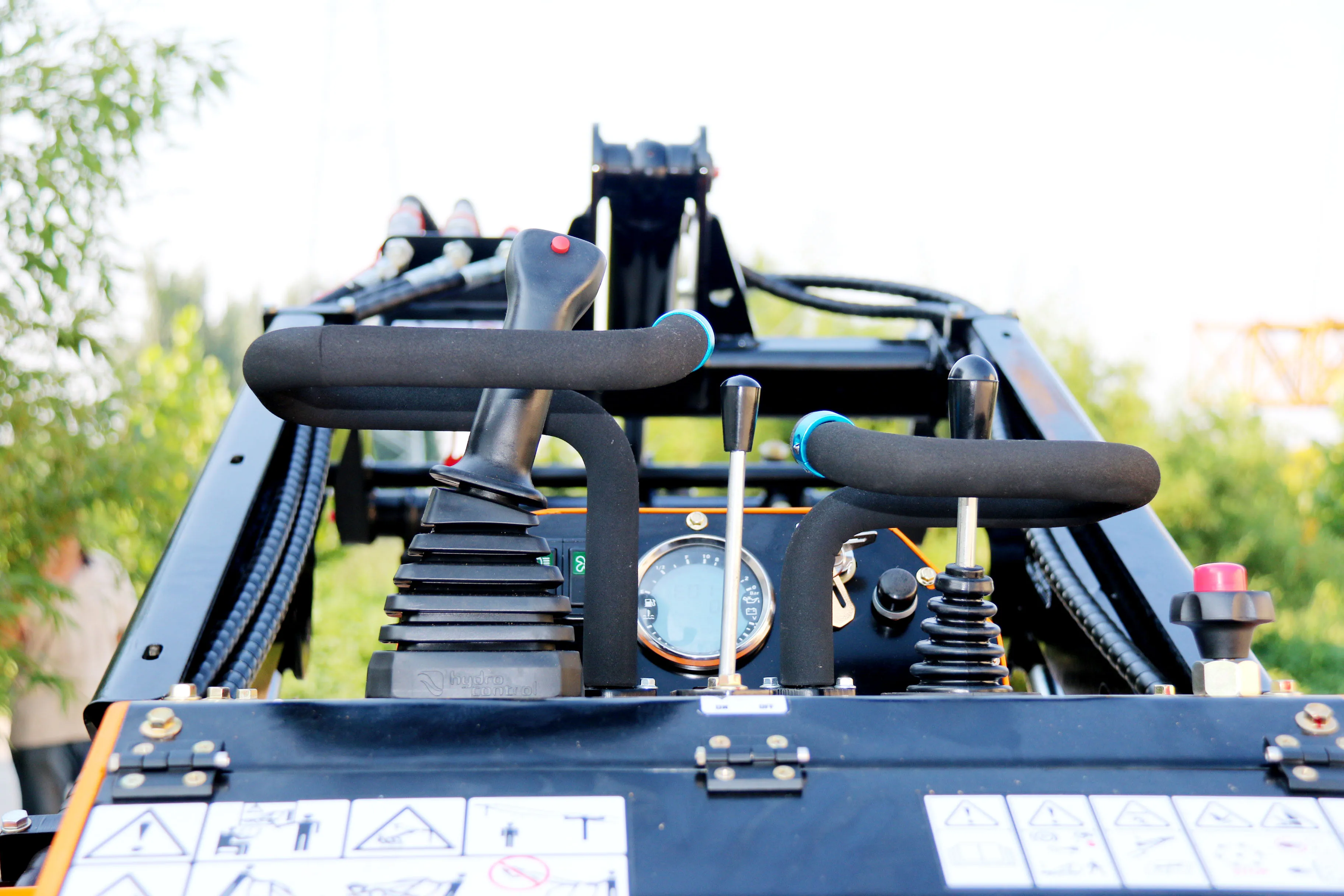

Operating Joystick controls.

 pedal including:
-Two hand lever, drive machine and work lifting arm and bucket.
-One middle lever,
operating various accessories
- Hydraulic oil temperature meter
-Ammeter
-Hour meter
-Driving light button
- Voltage meter
-Hand throttle

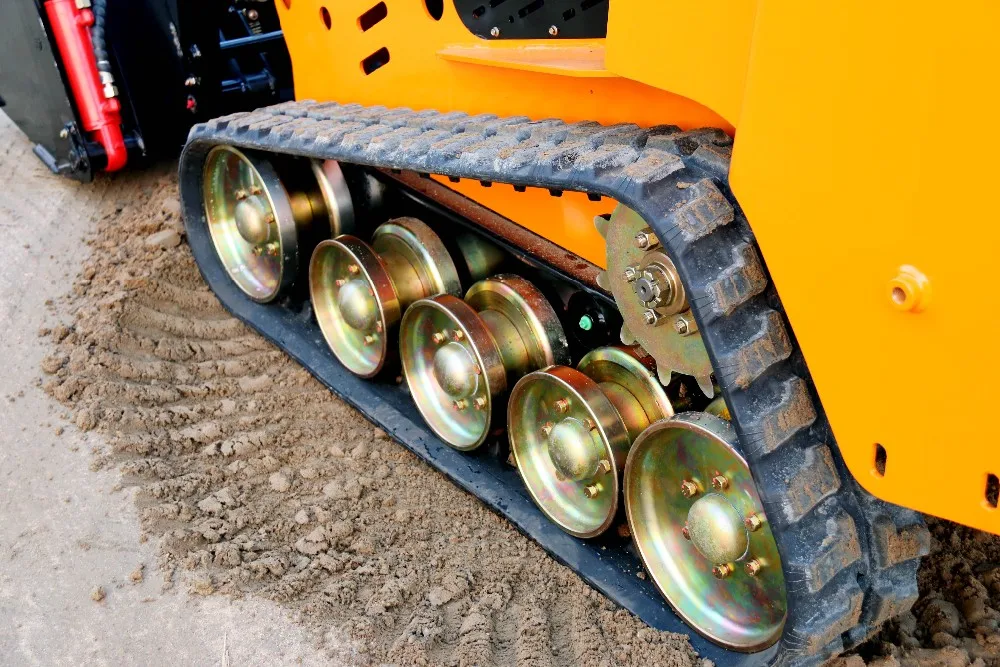

High track rubber crawler .

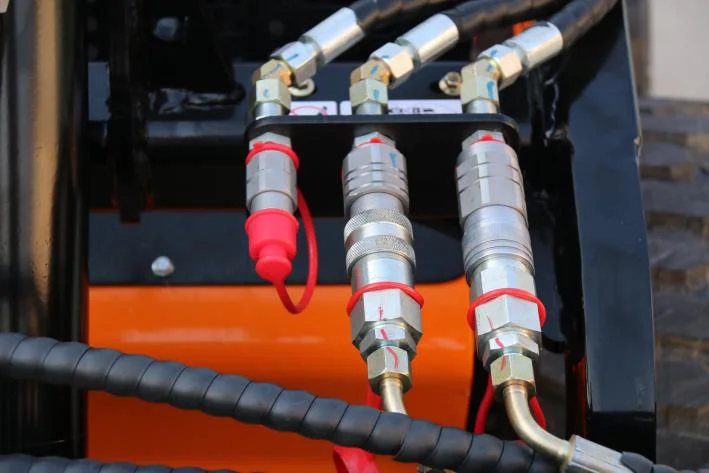

Attachment connector:
- It is Italian DNP flat-faced connector,
ISO standard coupler.
Landscapers:-Levelling bar to level the ground
-Grab bucket food for moving mulch, transporting trees, branches for removal.-cement/concrete mixer-pallet fork
Electricians-trencher / trench filler -backhoe / simple backhoe-breaker
Fencing contractors-Auger and bit -cement ,concrete mixer
Clean road:- snow blower -sweeper / angle broom-snow blade.

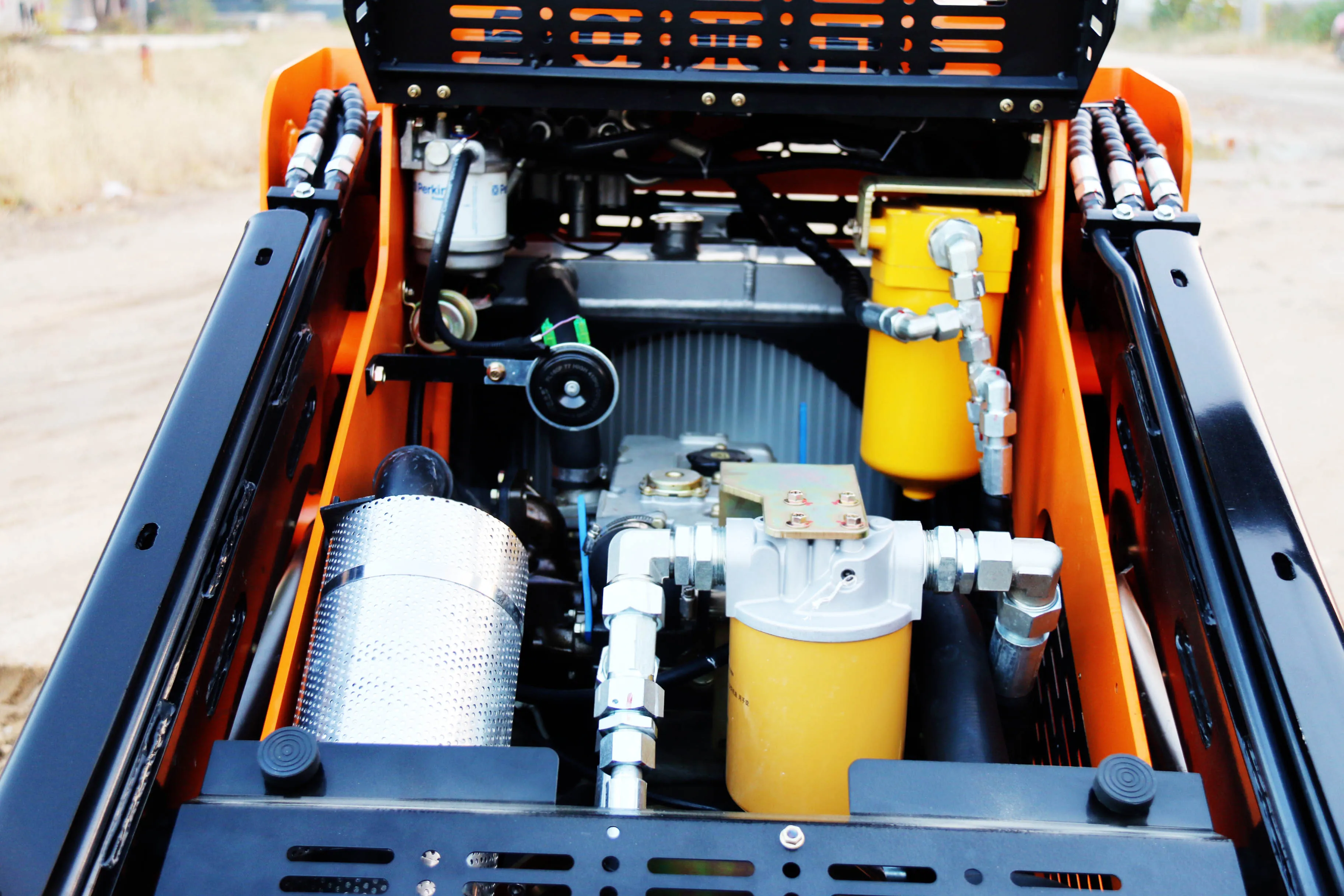

Easy daily check.

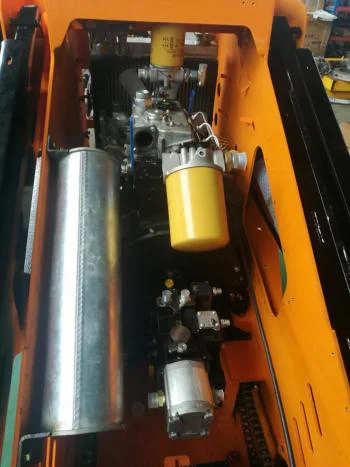

All- Alumium engine cooler :
- The engine radiator is all-Aluminum, good for engine cooling.
-It is easier for get touch into motor ,pumps as
Swing -out the cooler.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2m *1.1m*1.5m
Weight
1600kgs



Packaging Details
4-6 units /20'ft container

6-8 units /40'ft container .
Packaging
Size
2m *1.1m*1.5m
Weight
1800kgs



Packaging Details
Shipped by LCL .
