Tobee Effluent Handling
$12,600

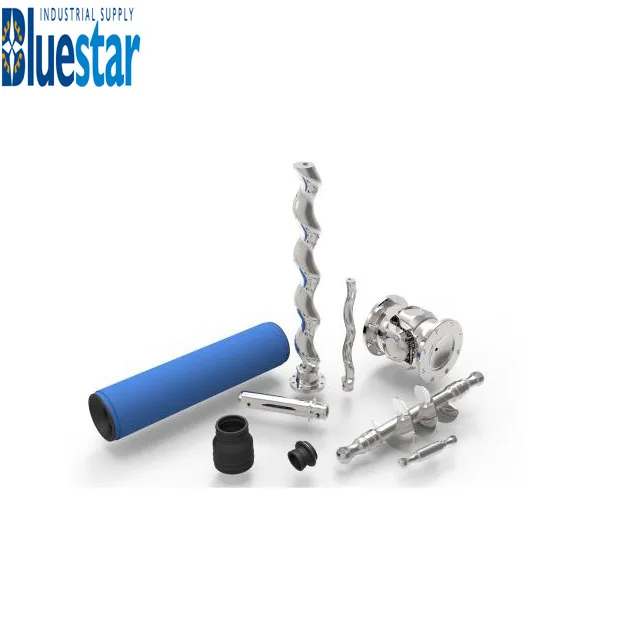

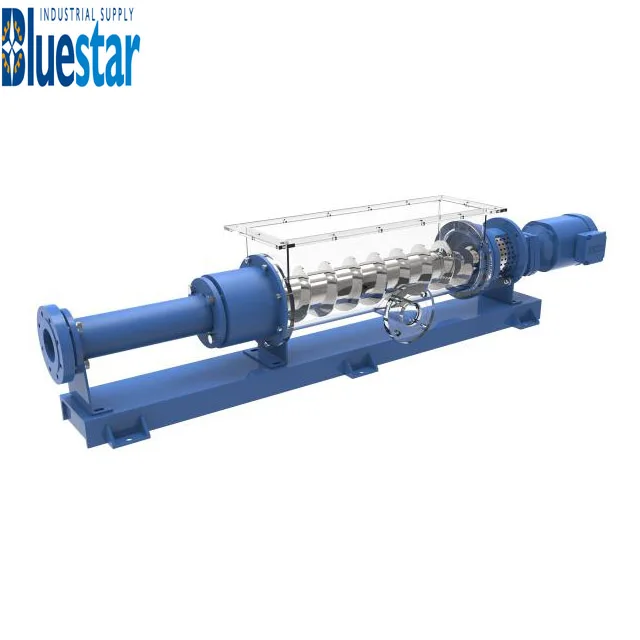

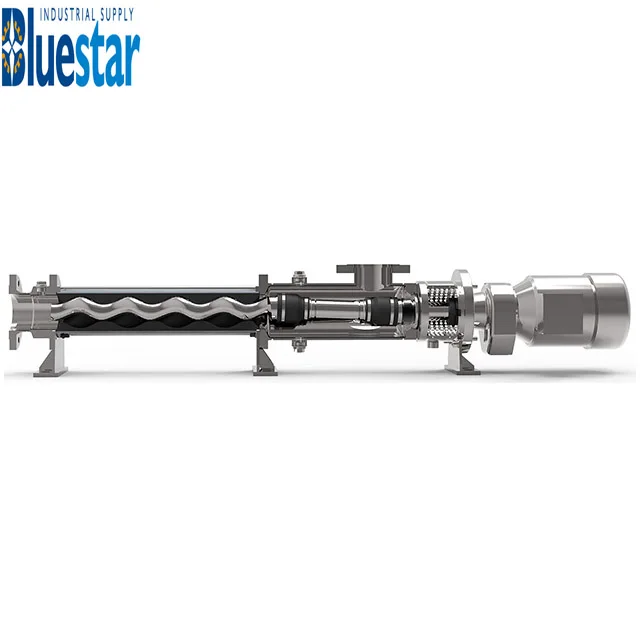

Progressive Cavity Pump
- Category: >>>
- Supplier: Dalian Bluestar Trading Co. Ltd.
Share on (60842479222):
Product Overview
Description
Product Description

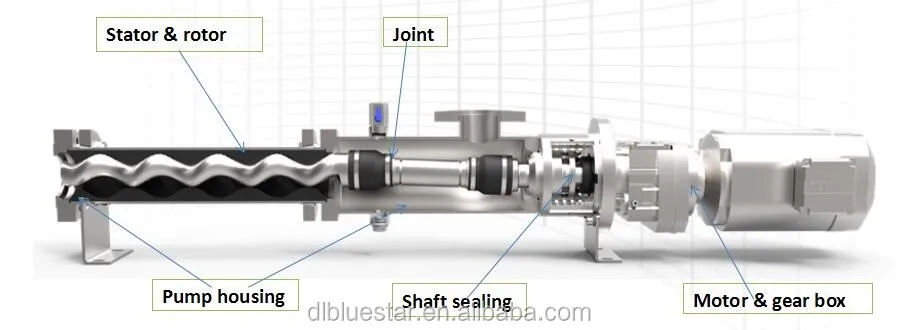

We are producing single screw pumps and providing products and services for manufactures of positive displacement pumps, mud-motors and spare parts especially for rotor and stator technology and applications always following the Moineau principals.
We are independent and our products are customized on demand - Confidentiality is our concept.
Our strength is to be experienced with this technology for moreover 25 years and to invite new ideas and technologies. Beside the wide knowledge of the functional principals and the applications of this technique we are using not only our own rubber formulations, we are designing and producing the rotor geometries with our own manufacturing know how.
A worldwide network of sub suppliers and resources lay the foundation of our state of the art solutions and products.
The introduction of new technologies and the support to introduce them to the market is our key element of support. That means - Technology and relationship to the current state of technology and the knowledge about were you will find engineered products to
•increase safety,
•decrease costs and
•maximize efficiency
Features
Based on German technology and imported core technology parts. Conveying - Volume between 0.02m3/h to 350m3/h, maximum pressure up to 4.8MPa,Special designs up to6.0MPa.
Customized products are our strength.
THESE PUMPS ARE MADE FOR:
•Waste water applications with a solid content up to 45%;
•Viscosities up to 100,000 mPaS;
•Fibers
•Shear stress sensible liquids;
•Conveying an mixtures of solids- liquids and gases.
ADVANTAGES ARE:
•Volumetric efficiency up to 96%, mechanical efficiency up to 70~80%
•No Pulsation, Dosing applications are possible and widely used
•Suction height up to 8 meters;
•Robust and simple design, easy maintenance without special tooling;
•Special flanges geometries for every customers demand.

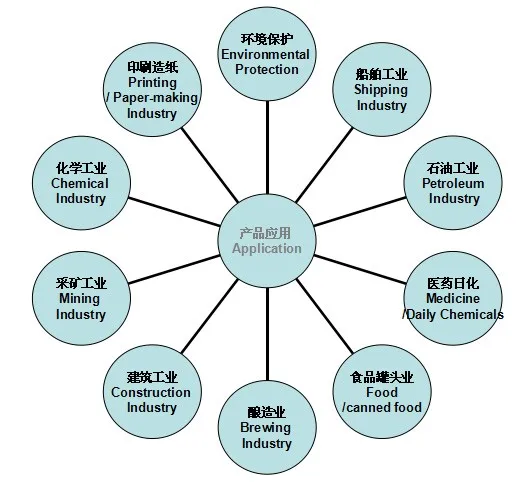

Application Field
For EXAMPLE: ENVIRONMENTAL PROTECTION INDUSTRY.
PC pump is commonly used for conveying waste water or dewatering sludge, of which maximum solid content can reach 45%.Metering and transportation of additives (PCM, PAM, lime milk, etc.) in sewage treatment industry.

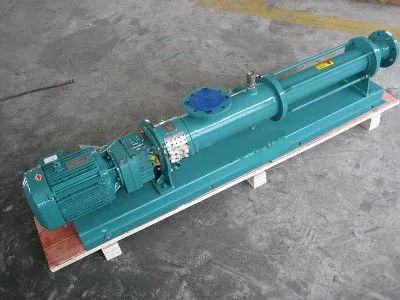

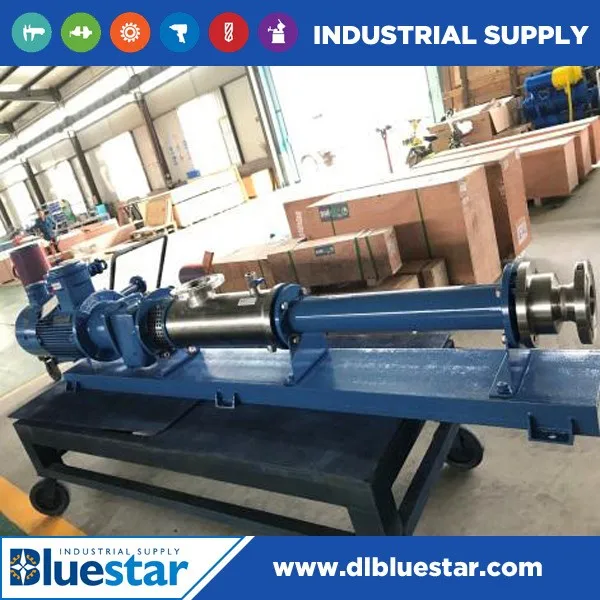

Picture pump: Type: VD050
Fluids: sewage
Capacity: 20M3/H
Pressure: 6Bar
Power: 14KW
Our advantage
Advantage NO.1 :

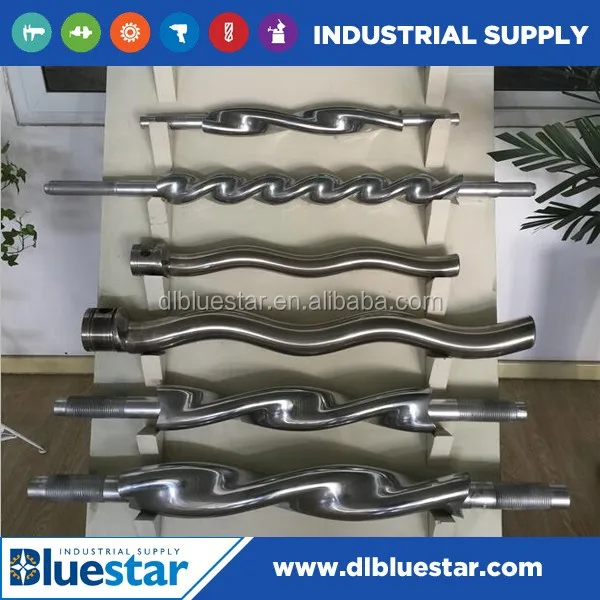

•Core spare parts, stators and rubber parts are imported with original packaging from Germany • The rotor ,stators and other spare parts we made can aslo be the spare parts of Netzsch ,Seepex pump.
•The products tailor made according to Customers' requirement
•The special designs can meet different work conditions in various application
Advantage N0.2:

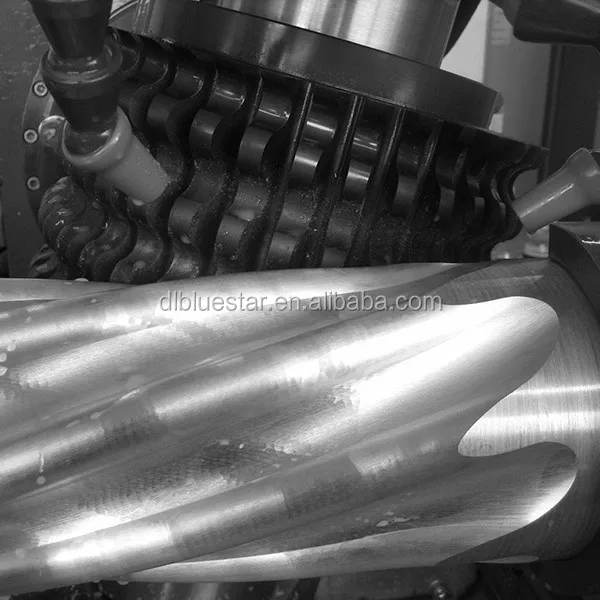

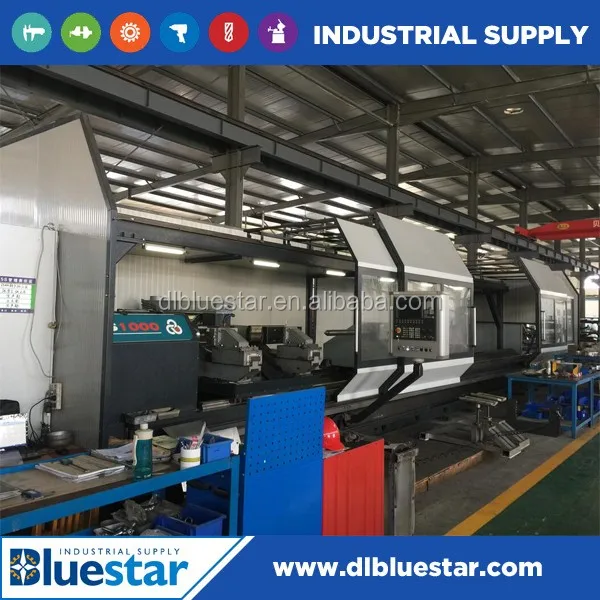

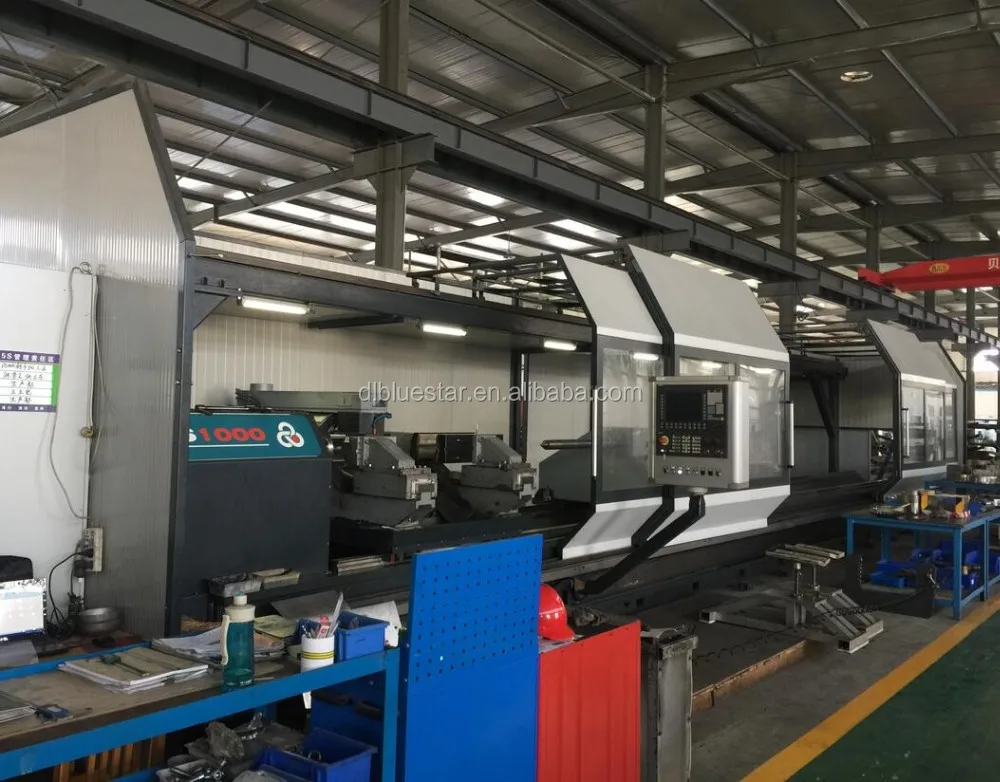

•PS1000 multifunctional helicoidal CNC
•We imported a professional rotor machining center from Germany, it has the largest specification and the highest machining precision in similar equipment in Asia at present.
•The maximum machining length is 10000mm.
•The maximum diameter of work piece is 300mm.
Advantage NO.3:
•Quality assurance
•ISO9001 Quality management system certification
•ISO14001Environment management system certificate of conformity
•OHSAS18001 Occupational Health&safety management system certificate of conformity
•our well-equiped facilities and excellent quality control throughout all production stages enables us to ensure total customer satisfaction.
Specification
Model: S Type VD-P06OH THE MAX WORKING PRESSURE: 18BAR | ||||||
MODEL | FLOW(M3/H) | SPEED(RPM) | MOTOR POWER(KW) | |||
VD040-005P06OHTS | 2-6 | 150-500 | 2.2-7.5 | |||
VD050-011P06OHTS | 3-11 | 110-400 | 3-15 | |||
VD060-019P06OHTS | 3-20 | 100-400 | 4-18.5 | |||
VD070-029P06OHTS | 5-32 | 100-400 | 7.5-30 | |||
VD090-053P06OHTS | 10-50 | 100-350 | 15-55 | |||
VD100-080P06OHTS | 10-70 | 180-300 | 15-55 | |||
VD120-120P06OHCS | 10-110 | 50-300 | 15-75 | |||
VD150-230P06OHCS | 15-160 | 30-250 | 18.5-110 | |||

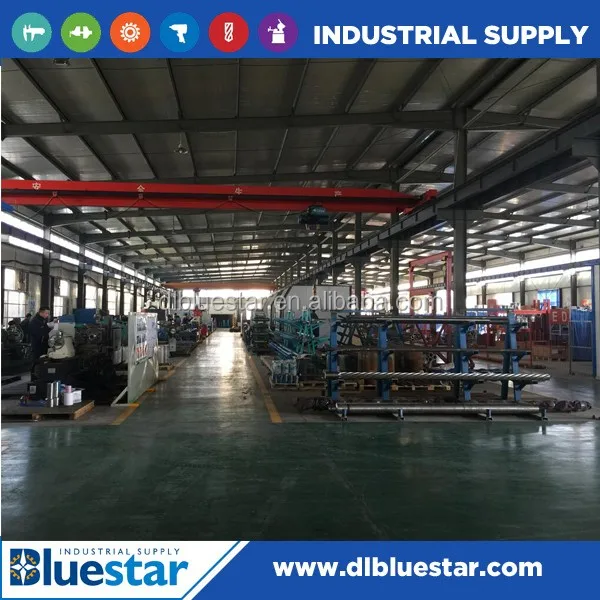

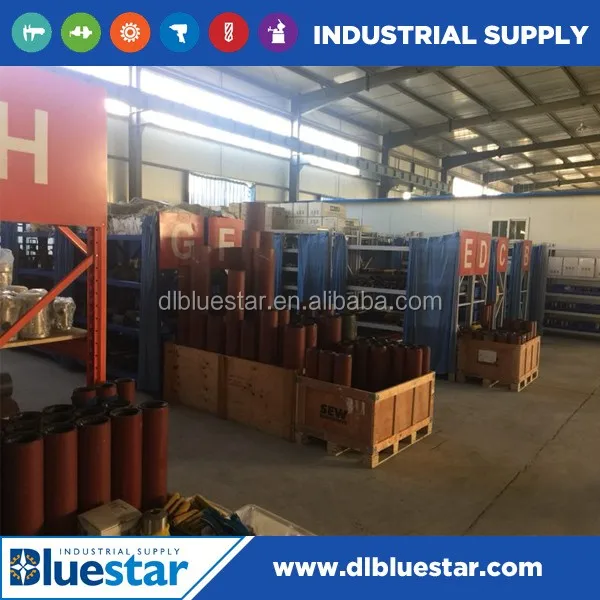

Workshop Overview
Contact Details
DALIAN BLUESTAR TRADING CO.,LTD.
Add: Room 508/509 Tower A, Hongtai Building, Hi-Tech Industrial Zone,Dalian,Liaoning China
Tel:+86-411-39972330 Fax:+86-411-39972331
Mobile:+86 138 4286 5798(Wechat&Whatsapp)
Skype:dutieping Mr.Simon Du
