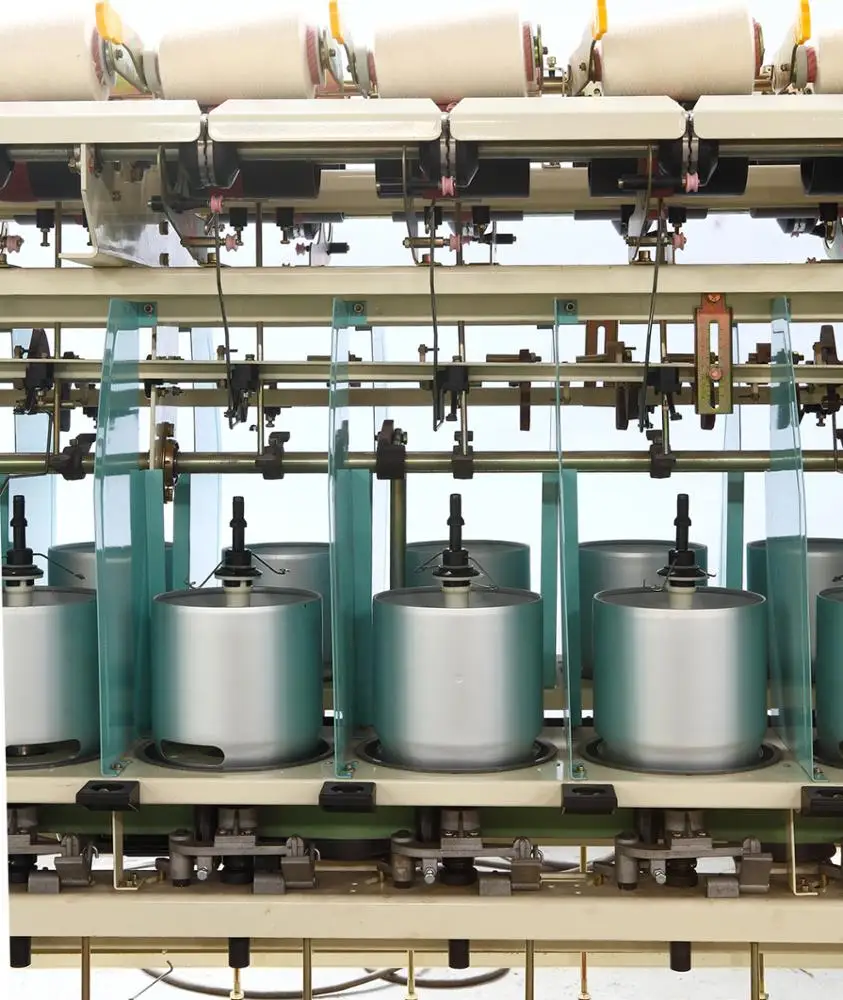

NF321 Staple Fiber TFO Twisting Machine
- Category: >>>
- Supplier: Shengzhou Nanfeng Machinery Co. Ltd.
Share on (60842502509):
Product Overview
Description
Product Description
Specification
Machine type | Double side single layer |
Spindle speed | MAX : 10000r/min |
Twist Range | 156-2027TPM |
Twist direction | S or Z |
Winding dia | Ø250 |
Winding speed | <=100m/min |
Power | Servo motor:1.88kw x 1 |
Gearing motor:2.2kwx1 | |
Main motor:22kw x1 | |
Dimension (LH) | L:2060+2045X9 +250 W:840MM H:1560mm |
Start model | Inverter start |
Automatic move up | Automatic move up |
Yarn cross angle | Any angle setting by computer |
Feeding bobbin | Ø37.2xØ43.5x230mm |
Take up bobbin | 170mm~175mm |

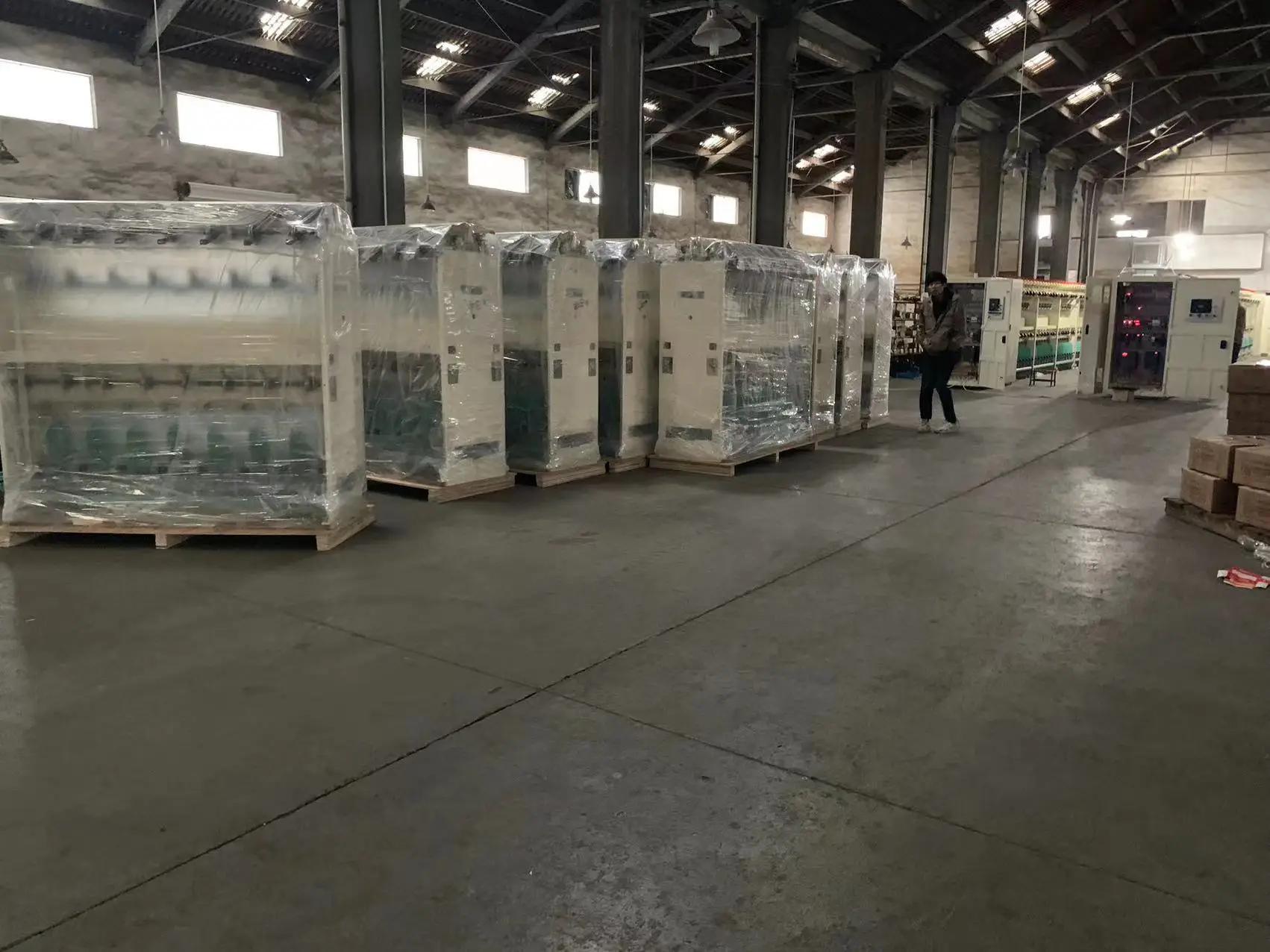

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
