Product Overview
Description

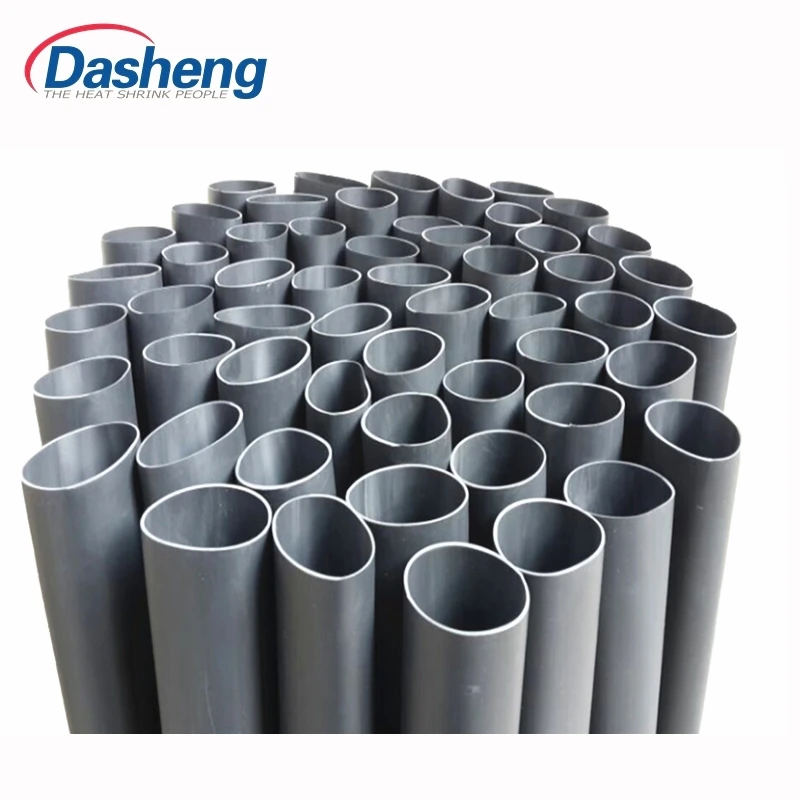

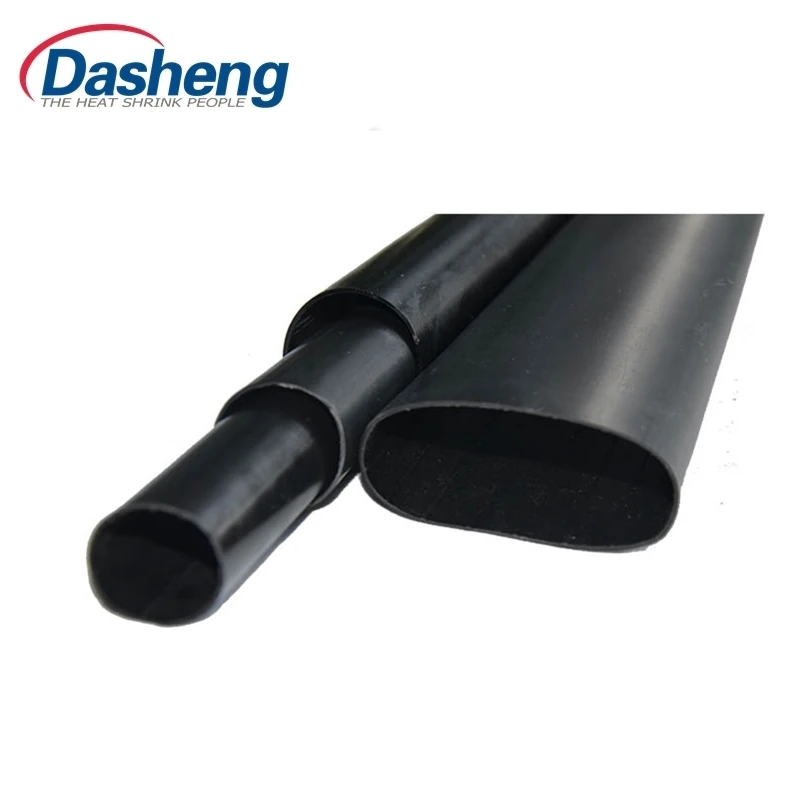

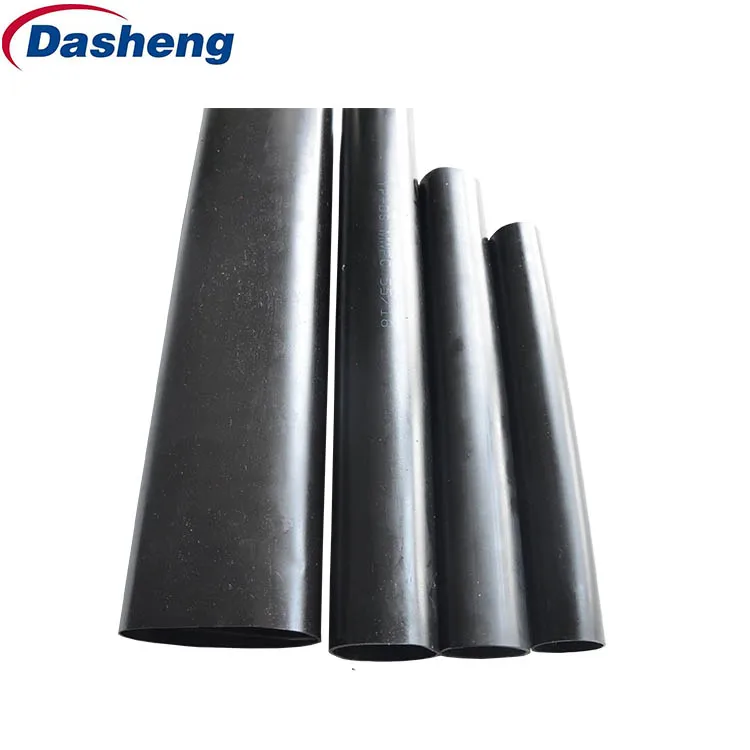

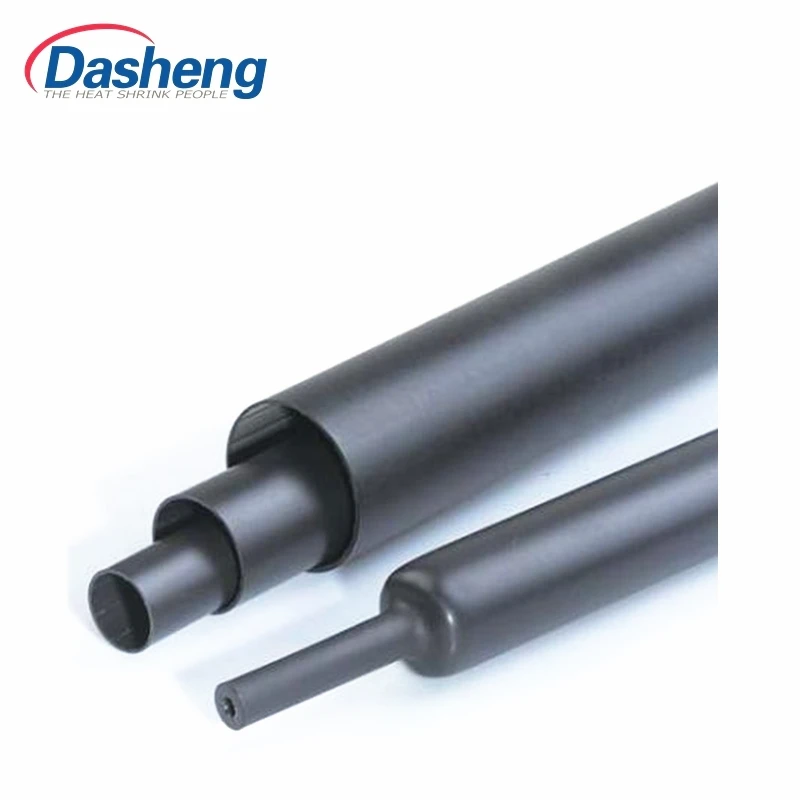

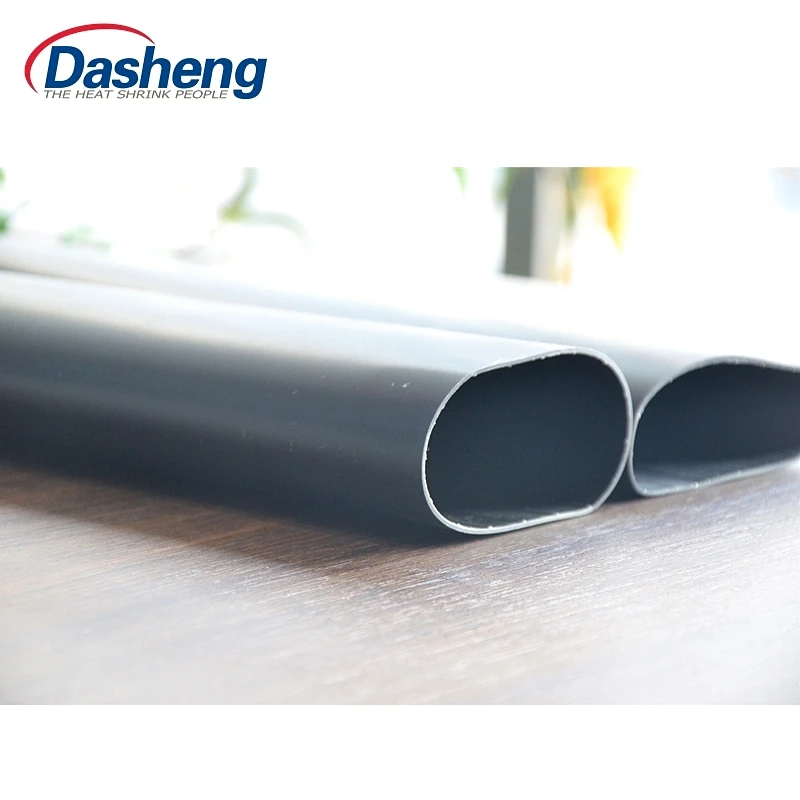

MPT/MPTC Dual wall, high shrink ratio heat-shrinkable tube with adhesive
Application
Mainly used for electrical insulation of power products in low or median voltage, and waterproof sealing at the parting of communication products.
Product facts
- Environmental sealing
- Excellent mechanical strength
- Abrasion resistance
Ordering information
MPT: no meltable adhesive liner

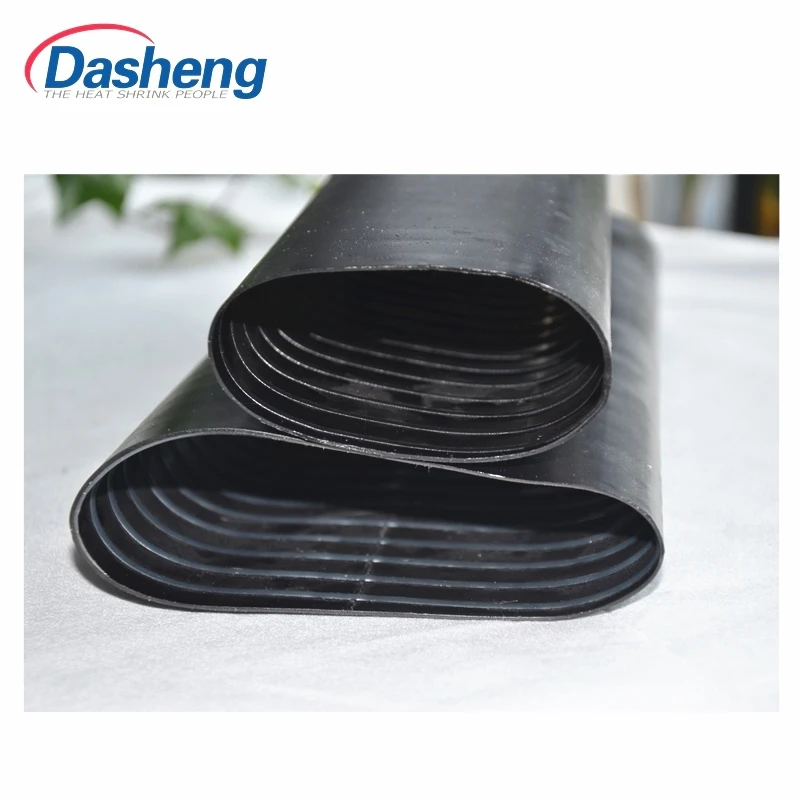

MPTC: has an integrally bonded meltable adhesive liner in screw shape
Standard color: black
Standard length: 1000mm, 1220mm.
*Special order sizes and colors are available upon request.
Specification
Specification(mm) | Inside diameter before shrink (mm) | Inside diameter after shrink (mm) | wall thickness after shrink | Standard package (mm/roll) |
30/12 | 30 | 8 | 2.5 | 1200 |
35/12 | 35 | 12 | 2.5 | 1200 |
50/16 | 50 | 16 | 2.7 | 1200 |
63/19 | 63 | 19 | 2.8 | 1200 |
75/22 | 75 | 22 | 3.0 | 1200 |
95/25 | 95 | 25 | 3.0 | 1200 |
115/34 | 115 | 34 | 3.0 | 1200 |
140/42 | 140 | 42 | 3.0 | 1200 |
160/50 | 160 | 50 | 3.5 | 1200 |
180/60 | 180 | 60 | 3.5 | 1200 |
200/65 | 200 | 65 | 3.5 | 1200 |
235/65 | 235 | 65 | 3.5 | 1200 |
*Dimensions are shown for reference purpose only. Specification subject to change. Products can be produced according to given specification. Please contact us for further information and confirmation.
