» High quality components.
» Full power, stable voltage & current output.
» Wide input voltage range 10-16vdc.
» Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
» Industry grade product 12v to 28v dc dc converter, efficiency up to 96%.
» Die-cast aluminum shell, epoxy potting.
» Non-Isolated Module.
Series NO. | WMX-D12D28 |
Model NO. | WMX-DSD12S2810 |

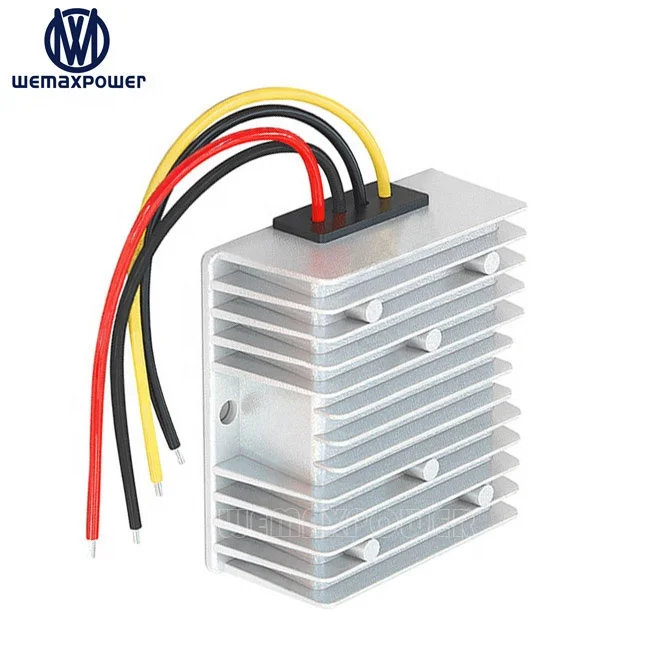

Product Name | 12v to 28v dc dc converter |
Input rated voltage | 12Vdc |
Input voltage range | 10-16Vdc |
Conversion Efficiency | 96% |
Output voltage | 28Vdc |
Output current | 10A |
Output rated power | 280W |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple (full load test) | < 150mV |
No-load current | < 20mA |
Working Temperature | -40°c ~ +80°c |
Waterproof rating | IP 67 |
Protections | Over-load, Over-current, Over-temperature, Over-voltage |

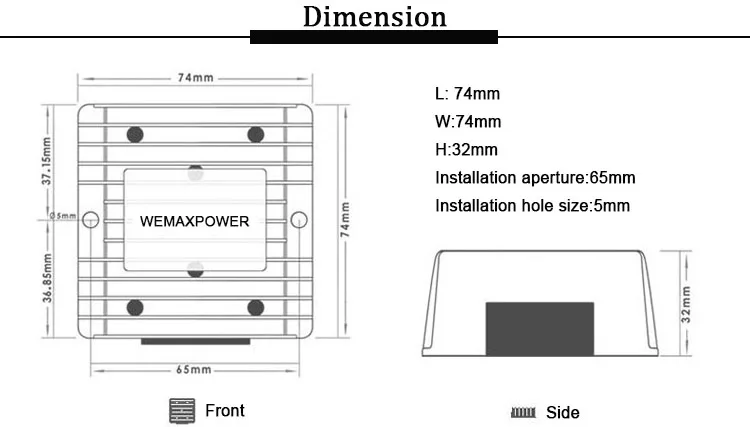

Machine size | 74*74*32mm |
N. Weight | 290g |
Cooling way | Free air convection |
Packing | White standard box |
Q: Why choose us?
A: Guangzhou Wemaxpower technology Co., Ltd is the dc dc converters manufacturer for more than 10 years.The performance of the converters are very stable,and the product technology is updated every year.
Q: Is there any requirement of the load?
A: Yes, the dc dc converters are with fixed voltage output, so it can not be used for charging the batteries directly. If you have any requirement for charging the batteries, you may choose the dc dc chargers.
Q: Why are other products cheaper than yours?
A: Because other suppliers use cheap components, the products are with not enough power output.Our products are used imported components, they can support long-term full load work.
Q: What about your after sales-service?
A: 1.Guarantee time: 1 year
2.Return policy: we can exchange goods if there is any quality problem within warranty period.
Q: Our Payment & Logistics
A: 1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypal.etc.
2.Shipping terms: By DHL, UPS, FedEX, TNT, EMS,Sea.etc
Q: What can you get from us?
A: 1.Excellent products (unique design, strict quality control )
2.Great service(OEM,ODM, after-sales services, fast delivery)
3.Professional business consultation.
Q: What is the MOQ of the 12v to 28v dc dc converter?
A: Low MOQ, 2~5 units for sample testing is available.
