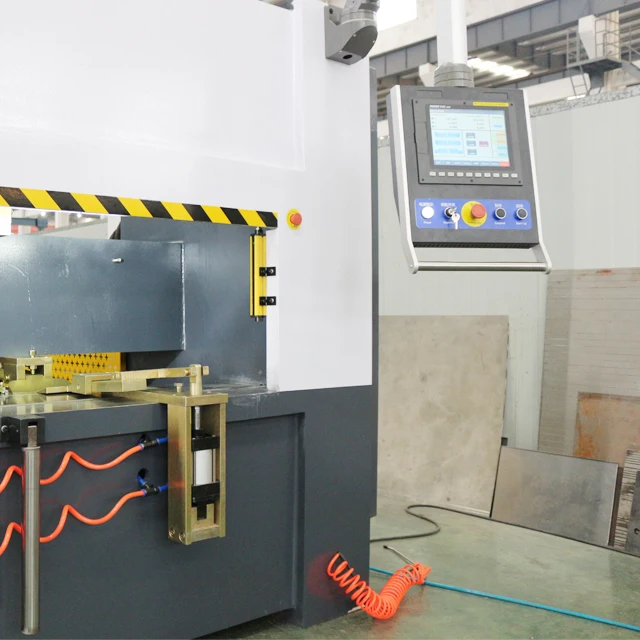

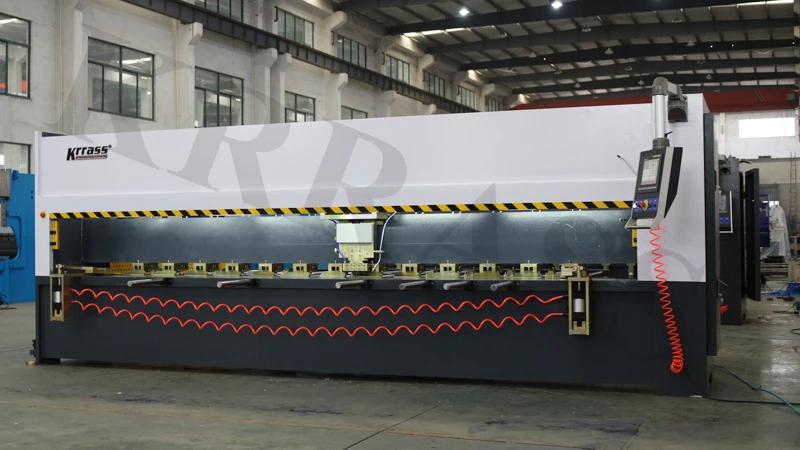

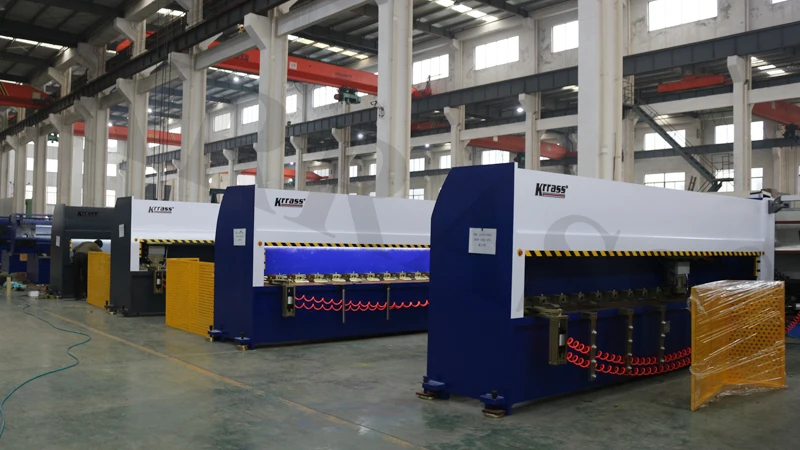

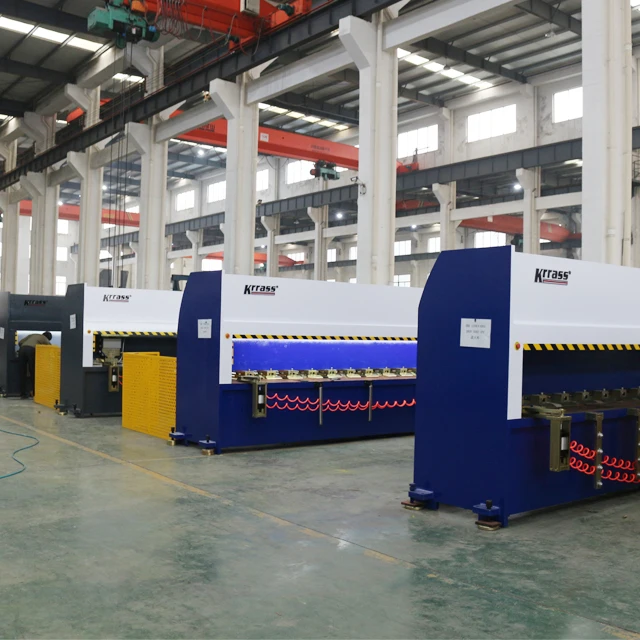

KRRASS High speed Vertical type V Groover Machine 4000mm CNC V grooving Machine

Product Overview

Description





1. Product Description





I. Main Features:

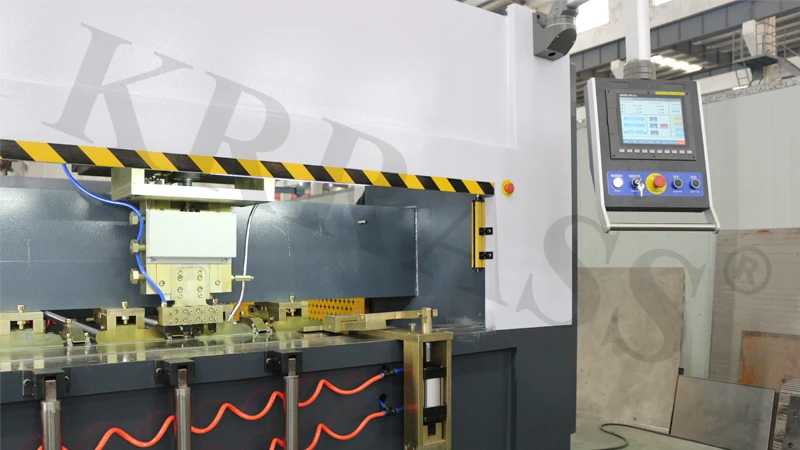

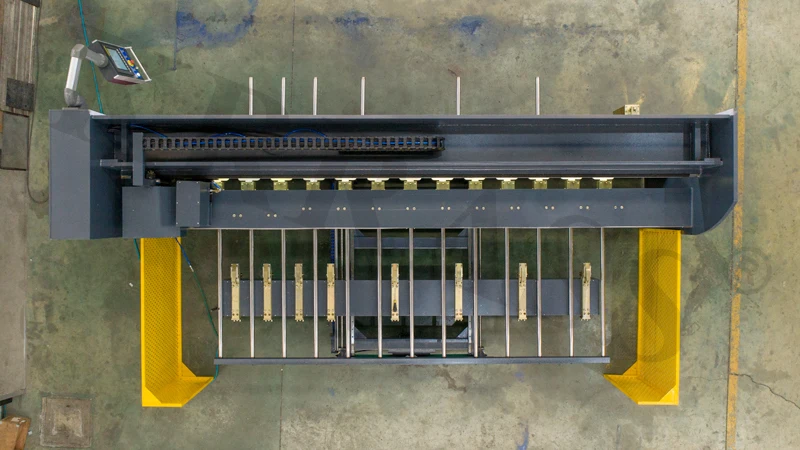

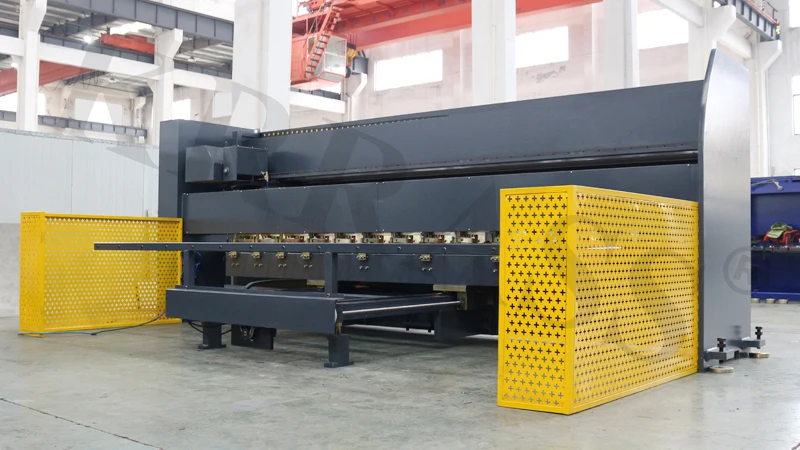

1. HRK series CNC metal grooving machine is compact in structure, reliable in performance, easy operation, no deformation forever.

The structure consists of three sets of servo motor drive system, pneumatic clamping system and main steel frame.

2. Y-axis System

The Y-axis system of the machine is composed of ECMA-F20830 main motor, AC servo motor, planetary reducer timing belt and timing wheel, high-precision gear rack and linear guide rail, etc.

The function of servo motor is to drive the cutter seat through planetary reducer to make rectilinear motion on the linear guide rail.

3. X-axis System

The X-axis system is composed of E21320 servo motor, timing belt, timing wheel, ball screw, linear guide rail, backgauge rack, clamping tools etc parts. The motor drives ball screw and backgauge rack to make rectilinear motion on guide rail, and provide the accurate positioning power for the backgauge mechanism.

4. Z-axis System

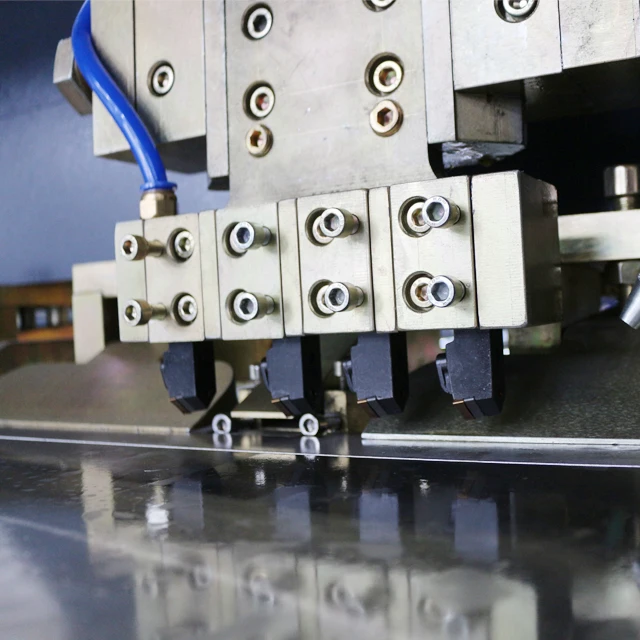

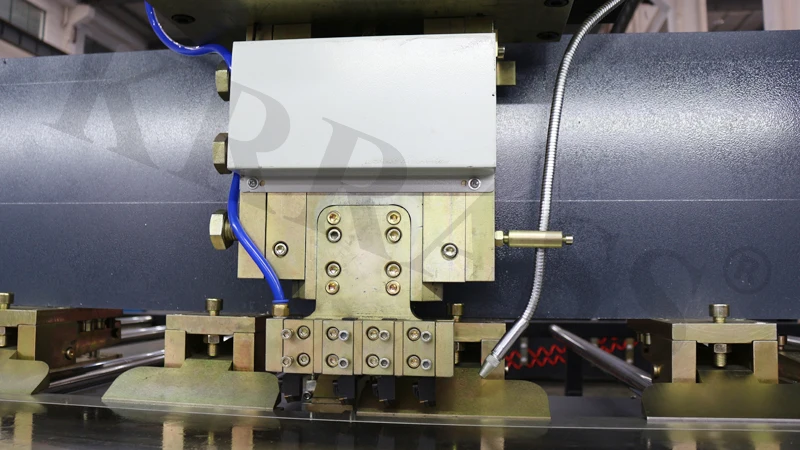

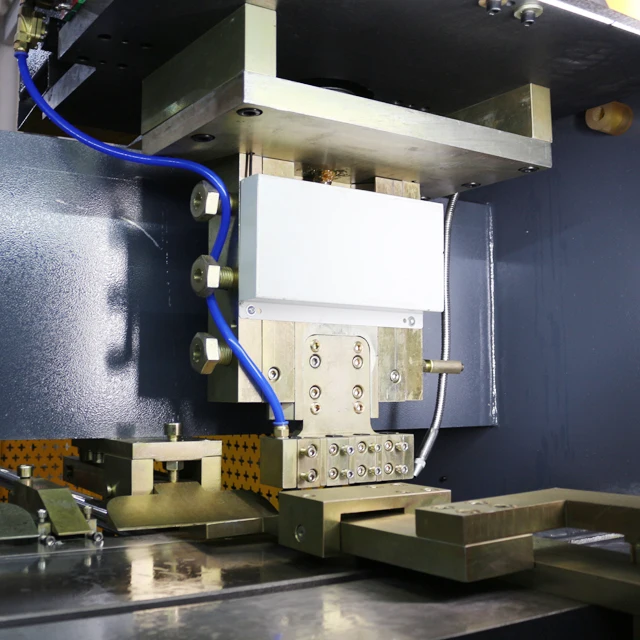

The Z-axis system is composed of C20604 servo motor, timing belt, timing wheel, ball screw, cutter holder and so on. Its function is to drive the ball screw and cutter seat make rectilinear motion through timing belt and timing wheel, and provide precise positioning power for the tool holder.

5. Pneumatic System

The pneumatic system is divided into two groups, and the pneumatic system if part of the backgauge.

Its function is to provide clamping force and tightly holding plate before grooving.

6. Electrical Control System

The electrical control system is composed of PLC, actuator, touch screen, electric control element, electrical cabinet, etc. the electrical cabinet is installed in the side wall of the machine, which is convenient for maintenance and higher protection performance. Any work can be realized by controlling the touch screen.



Watch Video on Youtube

https://www.youtube.com/watch?v=UfOQcaFgFmY&t=184s

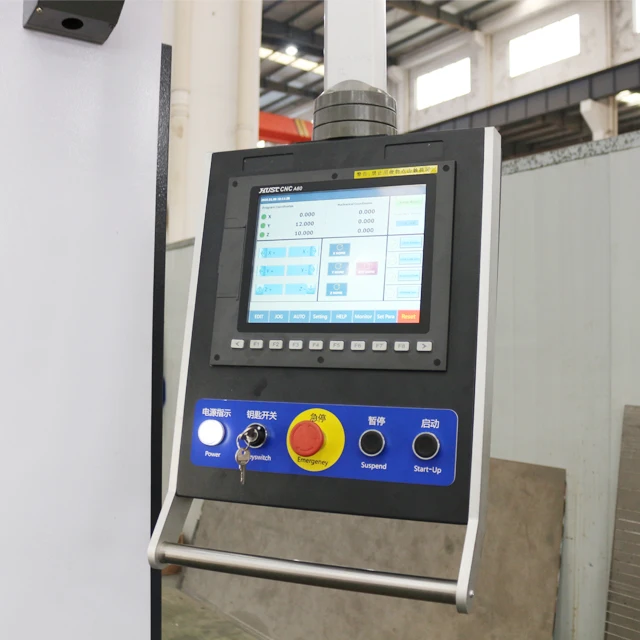

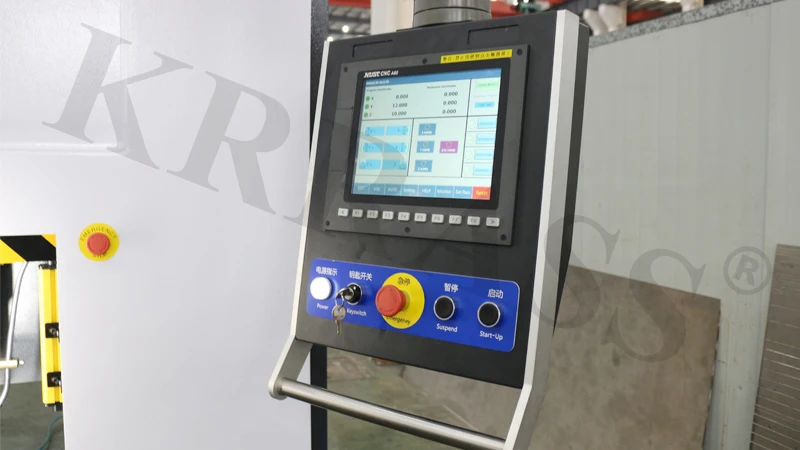

2. CNC Controller



1. Lower maintenance cost     2. Shorten training time

3. Avoid collision             4. In any axial direction can be installed with grating ruler

5. Responsive time for acceleration/deceleration: 0.5US

6. High-speed positioning of main shaft

7. With retraction function

8. Intellective fault alarm and troubleshooting function

9. PLC interrupt function: fixed scan time 10ms

10. All axes open-loop control with feedback function

11. The servo motor torque can be read and displayed

12. The acceleration and deceleration control curve is superior to other numerical control.

13. With DC power input module

14. With SSR external input signal plate

15. Easy wiring, low wiring cost

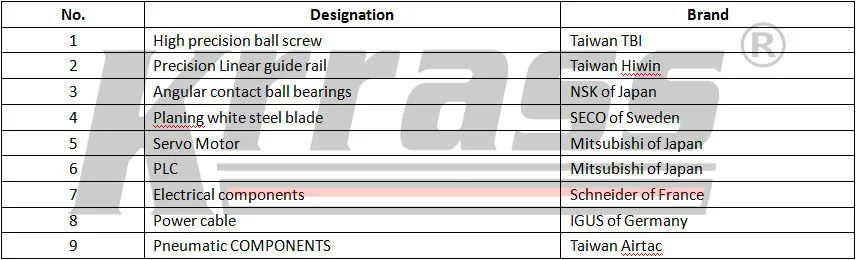

3. Configuration
