Stringing Equipment Conductor Sleeve Joint/Cover Joint

Product Overview

Description

Stringing Equipment Conductor Sleeve Joint/Cover Joint

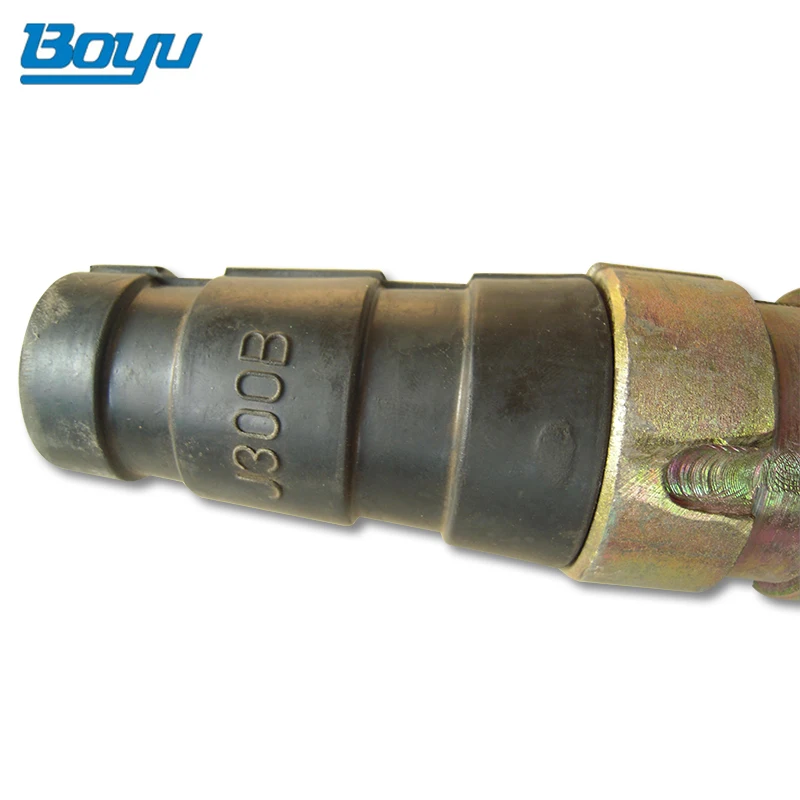

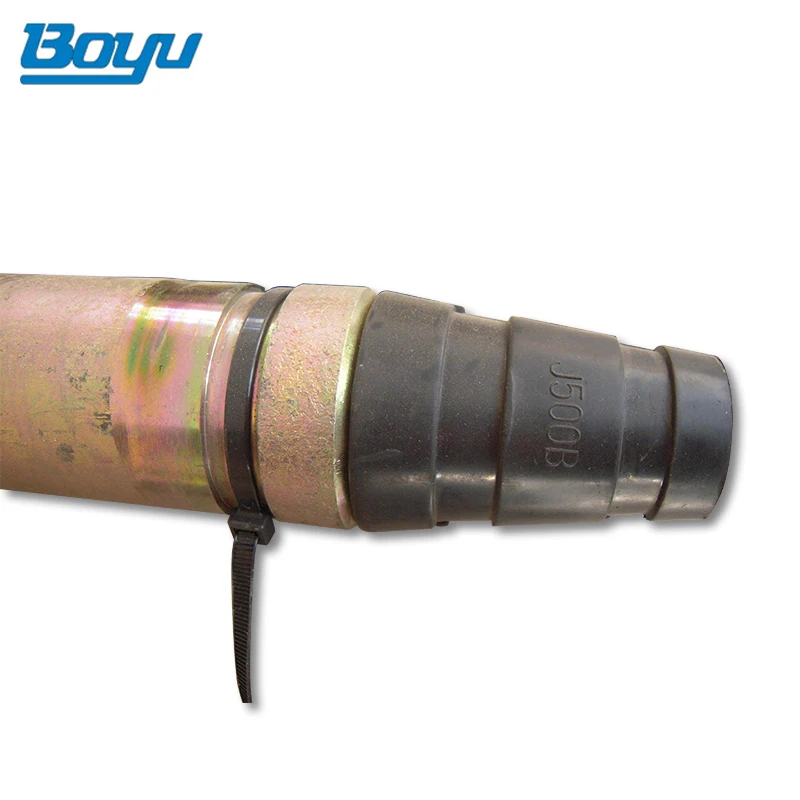

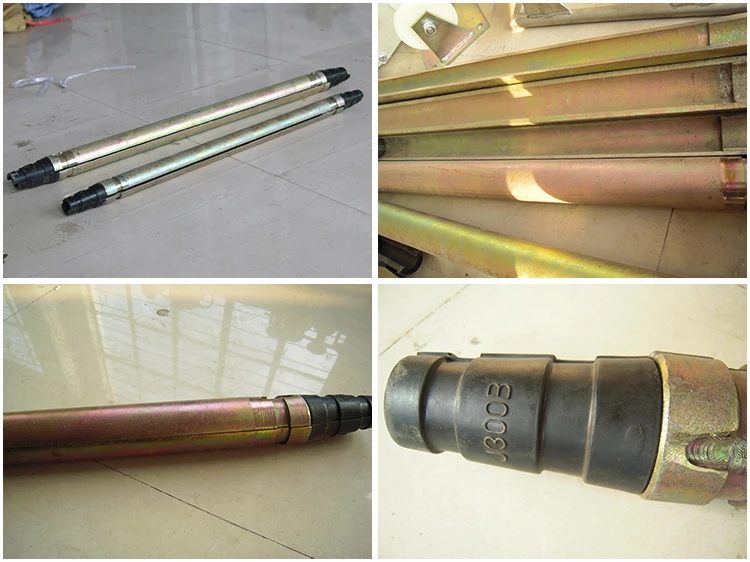

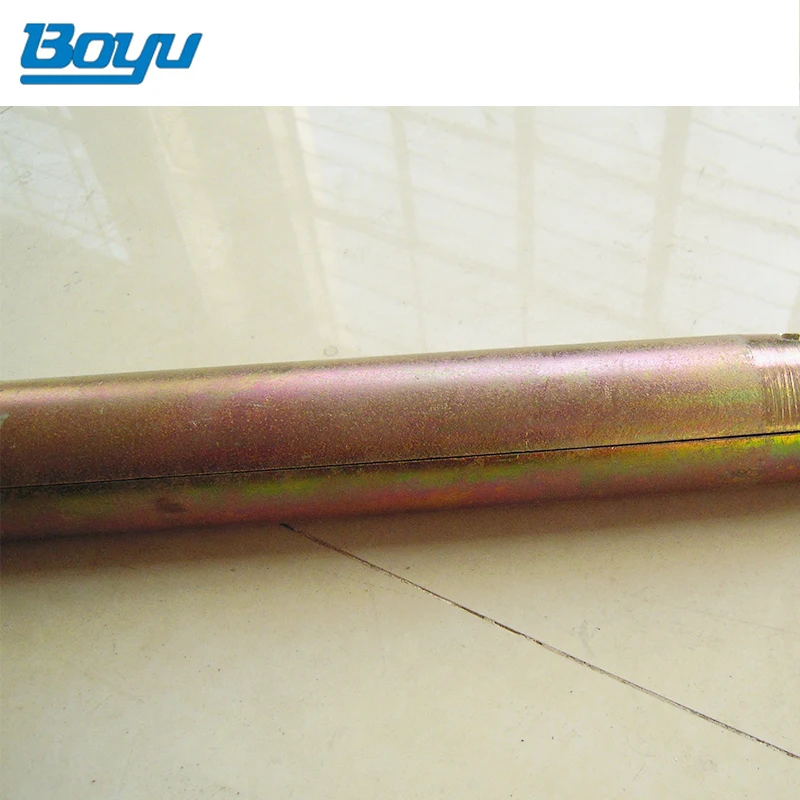

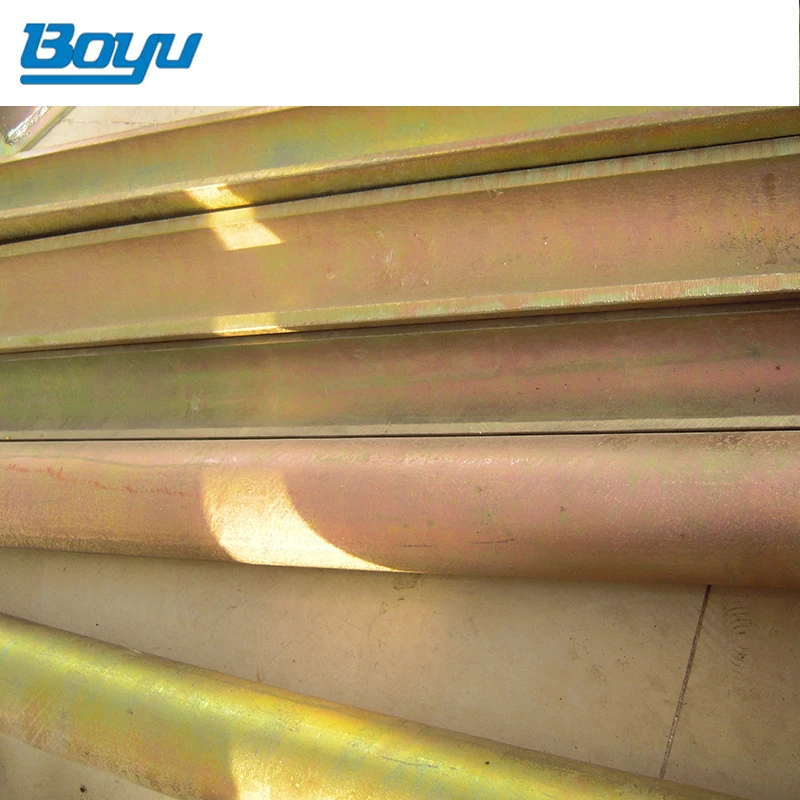

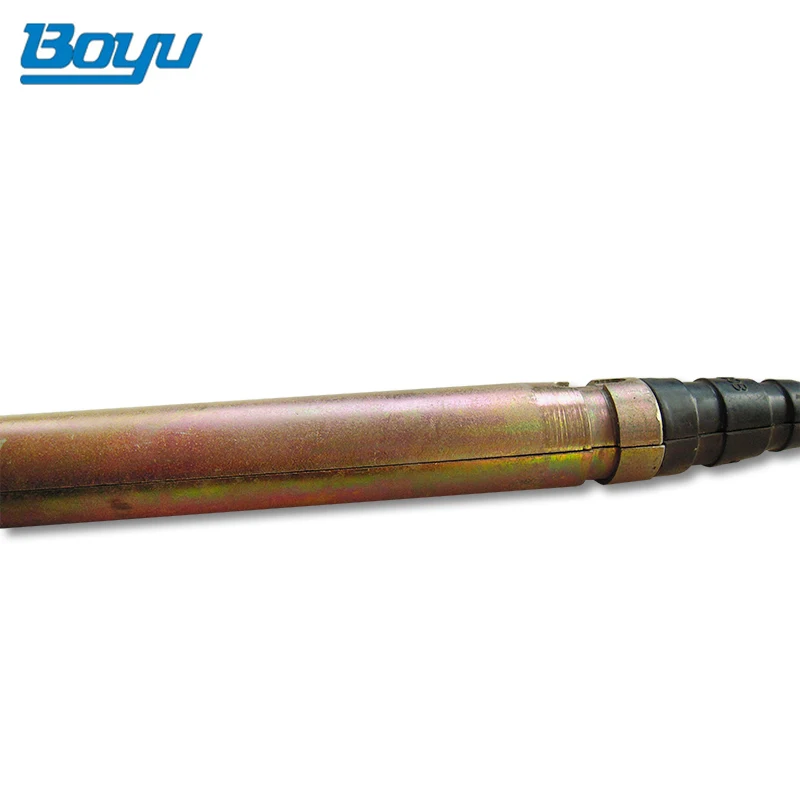

Joint protector made up of two galvanized steel shells. The ends are shaped to host the rubber protections. It is fit to limit the bending radius of the conductor during the passage in the running out blocks.



Model	Dimensions(mm)				Conductor(mm2)
	D	L	d	L1
J240	45	850	38	530	240
J300	51	940	43	600	300
J400	57	985	47	655	400
J500	68	1080	56	740	500
J630	83	1180	63	800	630
J720	83	1196	63	816	720
J900	89	1180	73	800	900
J1000	95	1400	75	1020	1000

Note: in the purchase order, please specify the following dimensions:

• D = joint protector external diameter


• L = total length


• d = conductor diameter


• L1 = length of the joint after pressing
