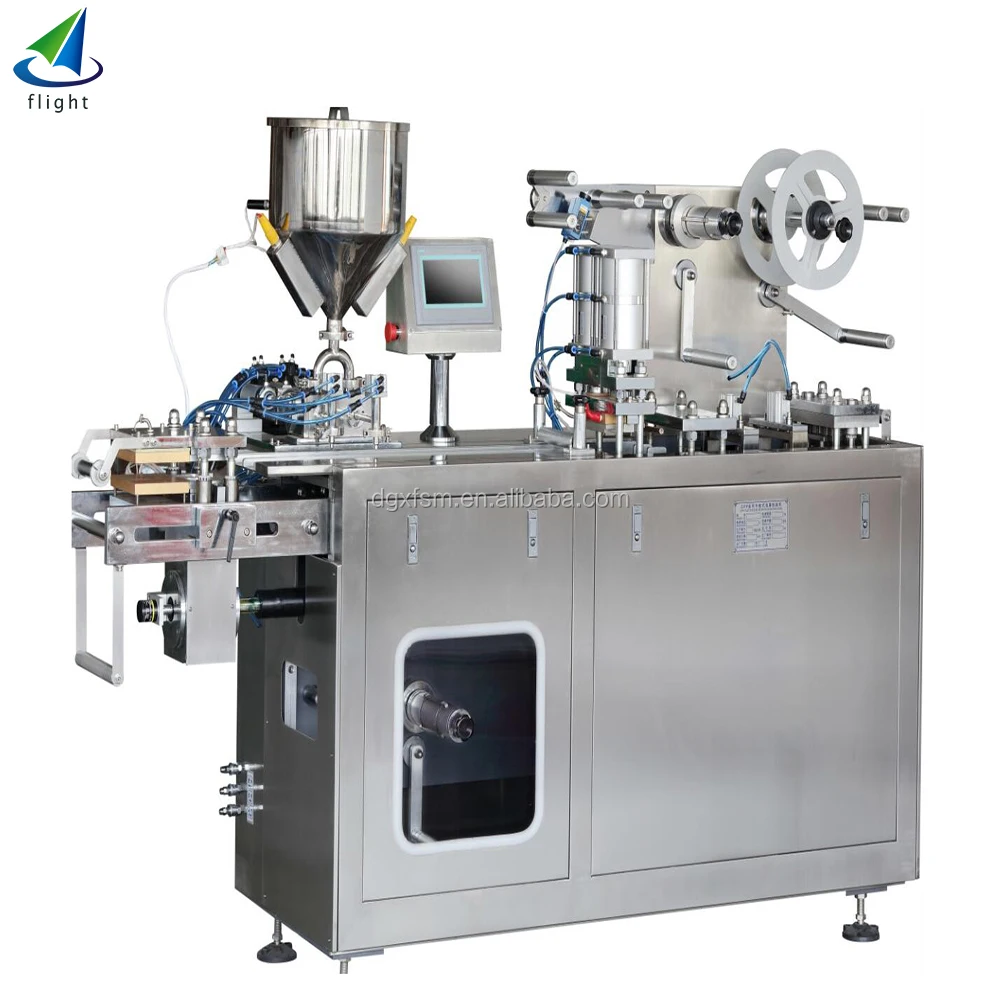

Professional Capsule Packing Blister Machine With Ce Certificate
- Category: >>>
- Supplier: Dandong Flight Trading Co. Ltd.
Share on (60843078415):
Product Overview
Description
Hot sale
——Hot Sale Products——
Click on the image
Wholesale Medical Soft Blister Package With High Quality
——Description——

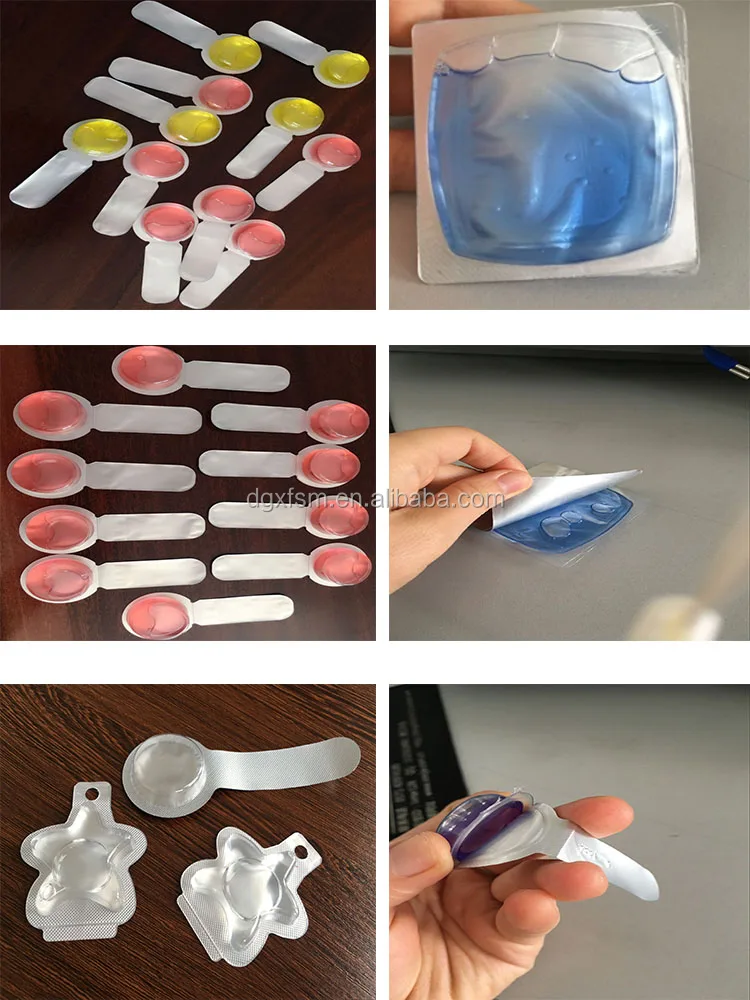

This machine is suitable for packing the liquid like chocolate, butter and jam etc.
This machine is widely used in foodstuff, pharmacy and chemical etc industries.
The features of liquid filling,
1. It adopts piston pump or peristaltic pump as metering pump for filling, it is high in precision, the structure of the pump is easy to install and uninstall, and convenient for cleaning and sterilizing.
2. PLC control system, color touch screen display.
3. The filling head has the anti-dropping device.
4. The filling precision is +- 0.5 % , the filling volume is 5 to 25 ml ( can be customized)
5. The frame of the machine and contact parts with material are made from stainless steel, it meets with the GMP completely.
Procedure:
l Forming film of reel support with automatic unwinding system.
l Paten heating system.
l Compressed air forming station.
l Automatic filling device.
l Cover foil reel support with automatic unwinding system cover foil unwinding system.
l Guide rails.
l Sealing station.
l Punching station
l Waste winding unit.
——FEATURE——

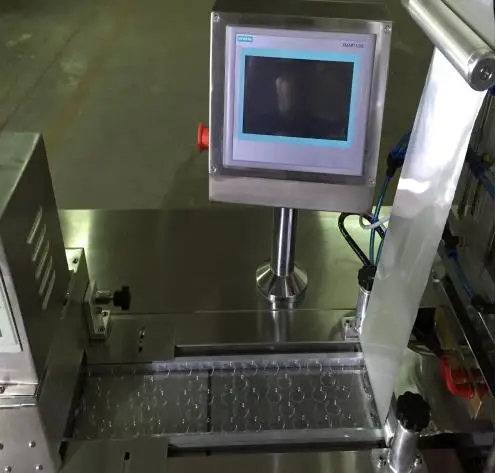

l PLC touch screen control system.
l It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
l Imported controlling system is adopted ; also it can be equipped with detecting and rejection function device(Omron Sensor) for number of medicines according to the user's requirement. It adopts imported frequency inverter.
l It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over-length distance and multi stations.
l It can be optional equipped with photocell correction device, imported stepper motor traction and image-character register to optimize packing grade.
l All materials contact parts are in S.S.316L, The main body of the machine is
Fabricated out of SS 304, Meet the GMP standard.
l With automatic liquid feeder.
l Compact and simple structure.
l Platen sealing.
l Automatic rejection of blisters.
l CE certificate.
Punching frequency | 10 – 35 times/min |
Production capacity | 1200 - 4200 plates/hour ( two plates one time) |
Max. forming area and depth | 130 x 100 ( standard thickness ≤ 15 mm) Max. depth : 26 mm |
Stroke range | 50 - 120 mm ( can be designed according to user's required) |
Standard plate size | 80 x 57 ( can be designed according to user's required) |
Clean compressed air | 0.4 - 0.6 MPa |
Air compressed capacity | ≥0.3 m3/min |
Power supply | AC, 380V/50HZ 3 phase |
Total power | 3.8 KW |
Main motor | 1.5 KW |
PVC hard film | |
PTP Aluminum foil | ( 0.02 - 0.035 ) x 150 mm |
Dialysis paper | ( 0.02 - 0.035 ) x 150 mm |
Mold cooling | Tap water or recycling water |
Overall size | 2315 x 635 x 1405 ( L x W x H) |
Net weight | 820 kg |
Gross weight | 890 kg |
Packing size | 2500 x 800 x 1780 ( L x W x H) |
Noise | < 75 dB |
Flow Chart
——Flow Chart——
Our advantages
Products advantages | 1. We always give top priority to quality 2. Strictly guarantee the precision of parts error 3. Reasonable processing technology coupled with advanced processing equipment |
Trade advantages | 1.Our company is a Gold Supplier on Alibaba. So we can provide Escrow Service on Alibaba. 2.Our company can do Trade Assurance Order for customers on Alibaba. |
Custom made advantages | 1.The company independent research and development, custom design exclusive for the series of products. 2. Mutual benefit with the best quality and service, and sincerely hope that friends from various circles at home and abroad sincere cooperation and mutual benefit and win-win situation. |
Company Introduction
——Our Company—
Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of
various pharmaceutical machineries in China. Our company has profuse designs with series
quality grade, and expressly, our price is very competitive, because we are manufactory.
Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000
quality system attestation, accord with GMP attestation request. All tasks from casting to
metal machining, and general assembly are accomplished ourselves.
We produce and export various pharmaceutical machineries, relevant medicament detecting
instruments and packing machinery, such as Rotary tablet press, Single punch tablet
press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling
machine, Capsule filing machine, Blister packing machine, and so on.
We have professional export office, with an experienced and professional team, they will
service in whole business. By excellent quality, reasonable price and perfect after-service,our
products have been sold in many countries and regions all over the world, Such as United
States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand
and Vietnam etc, these products are very popular with the customers there.
Try to do everything, let customer satisfaction, this is our company’s service tenet.
<<Welcome new and old customers come to discuss business>>
Buying Guides
——Our Customer——
Certificate
Packing & Shipping
——Packing & Shipping——
Delivery time | Within 30 days after receiving the payment. |
Payment methods | T/T or Western Union payment, and full payment before shipping |
Guarantee | One year quality guarantees and free with spare parts for one year. |
After sales service | The English user manual Circuit diagram |
