korean type Automatic PLA coated paper cup making machine with handle(MB-SH12)


Technical data: |
|
Paper Cup Size | 2.5-12 OZ |
Speed | 40-50pc/min |
Paper cup top diameter | 45mm -104mm |
Paper cup bottom diameter | 35mm-75mm |
Paper cup height | 35mm-115mm |
Raw material | 170-320gsm Single & double PE paper |
General power | 9kw |
Electricity | 380V |
Weight | 1500kg |
Measurement | 2600mm×1220mm×1700mm |
korean type Automatic PLA coated paper cup making machine with handle(MB-SH12) Specification:
automatic handle paper cup forming at one time.
Handle paper is feeding in roll form,easier and less preparation process.

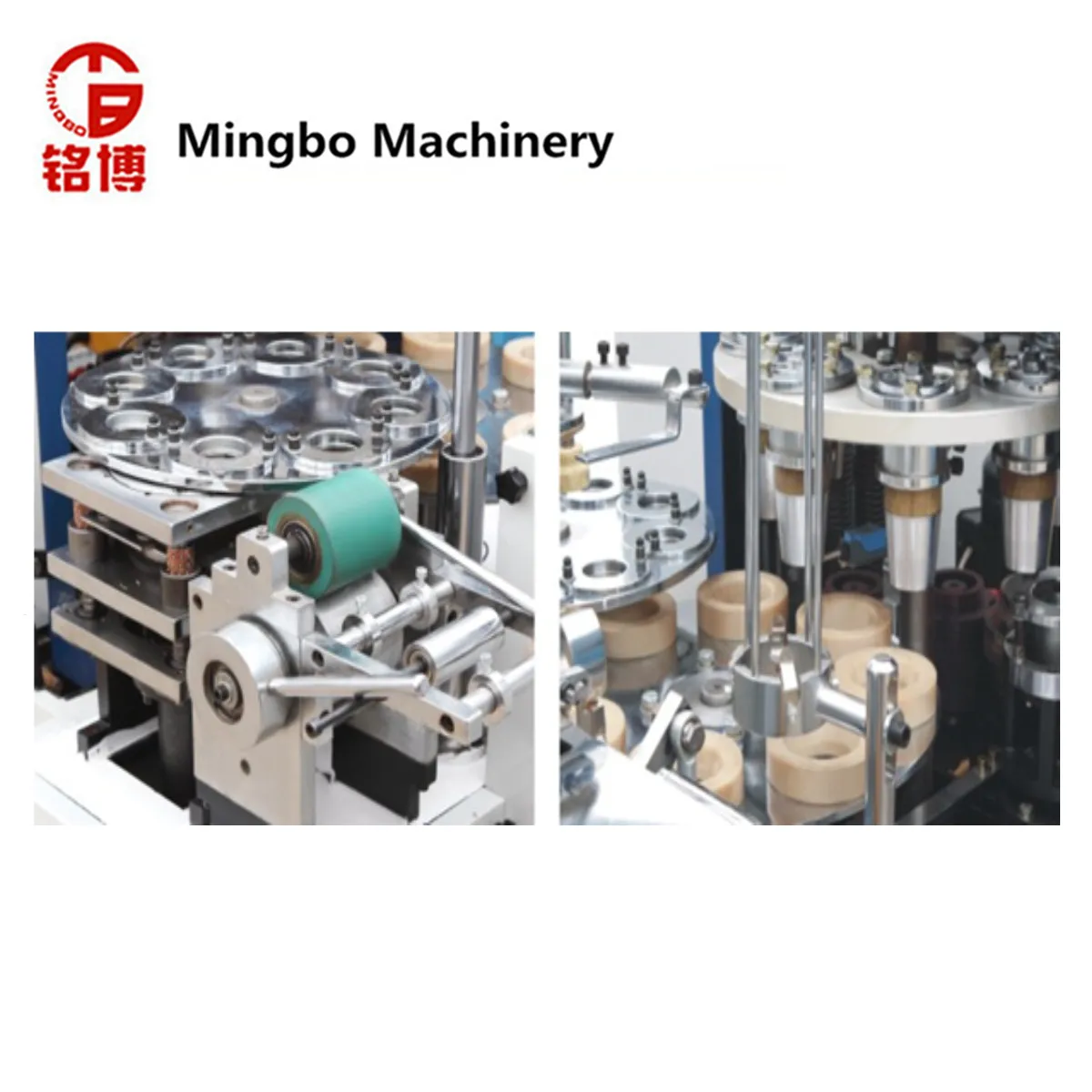

Paper cup body clamp system is controlled by 3 cams, more accurate and stable.
Paper cup bottom sealing by heating station.
It is easy to make cups of different size by changing molds.
Cup side sealing by ultrasonic.
Single side PE coating paper cups for hot drink only.

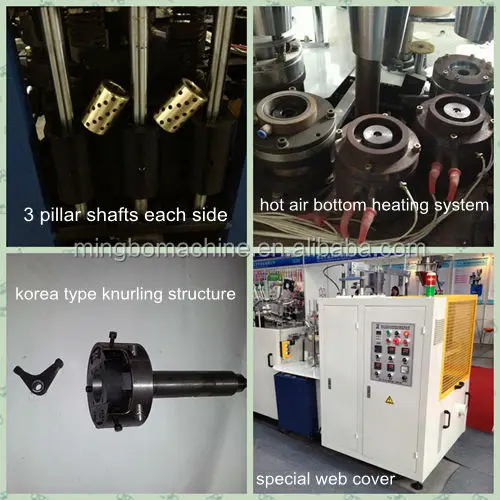

With robotic arm and 3 pillar shafts each side.
With advanced single shaft bottom knurling system as is named ’bird-like’ knurling set, which ensures the high quality of paper cup.
We have total 8 cams in one paper cup machine, more durable, and others maybe only 6 cams.
Sucker import from Taiwan, which can reach 100 million times’ life span.
All the machine covers could be taken down in 2 minutes, very convenient for repair and maintenance.

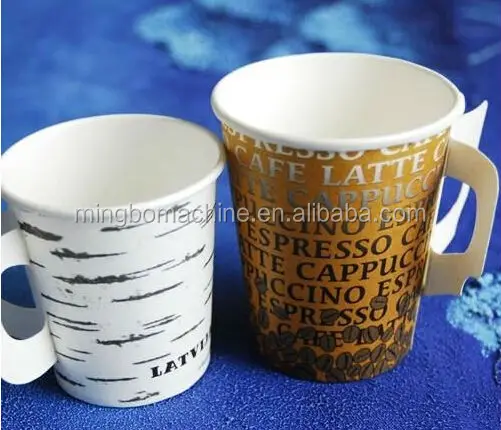

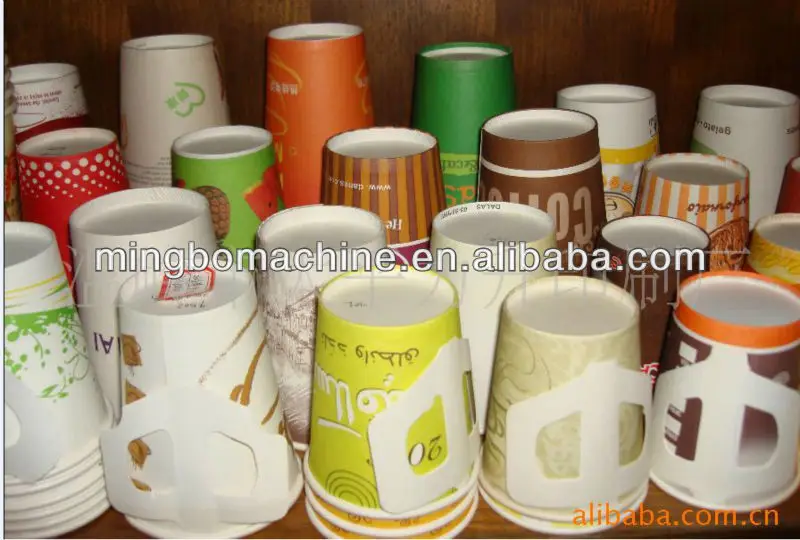

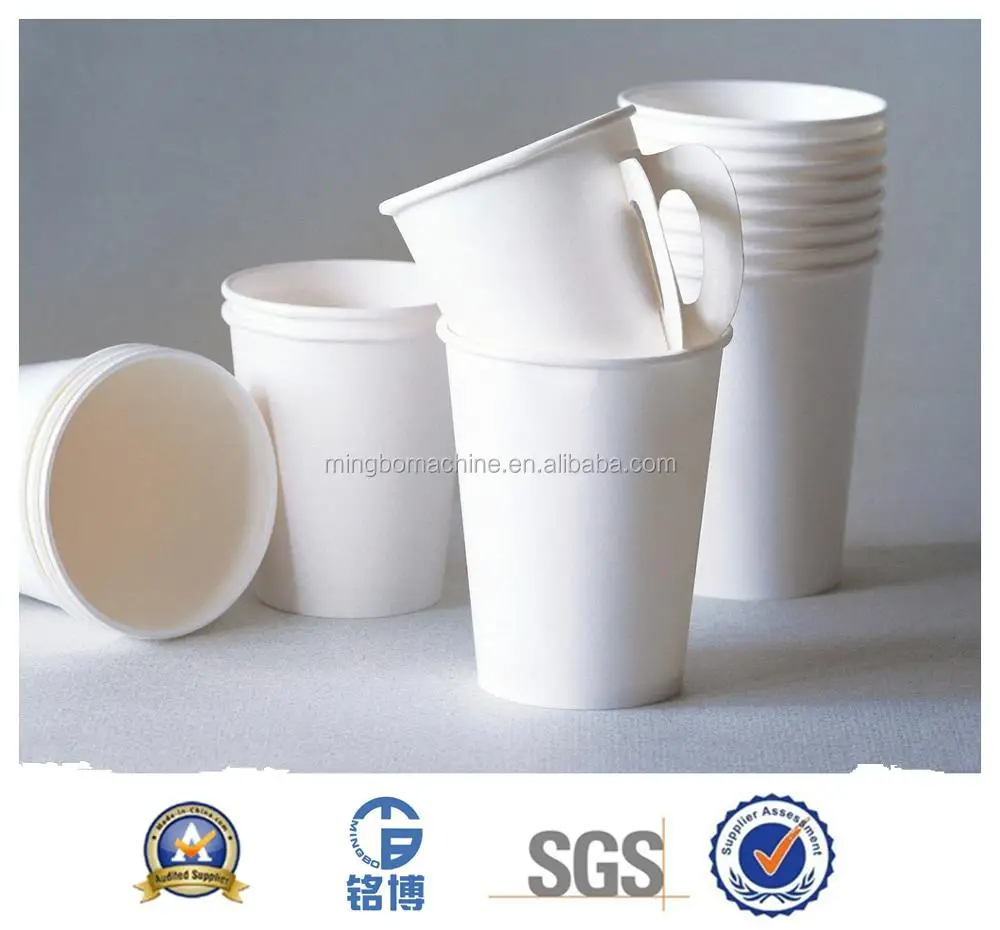

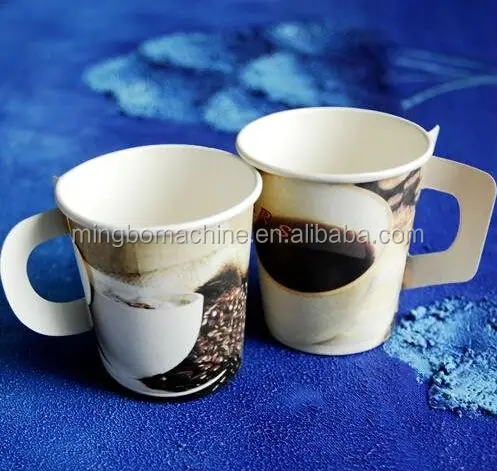

korean type Automatic PLA coated paper cup making machine with handle(MB-SH12) finished product




More machine working video,please refer to the following online website link:

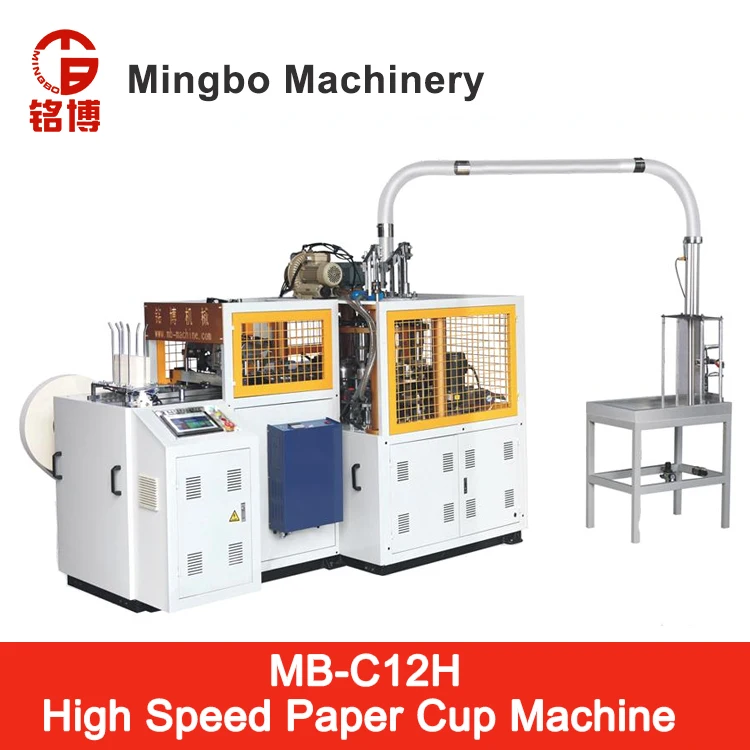

MB-C12H HIGH SPEED PAPER CUP MACHINE:https://youtu.be/U3hp4_aH6zg
MB-C12A MEDIUM SPEED PAPER CUP MACHINE WITH HEATER SEALING:https://youtu.be/xgHpGVRysKA
MB-C12 MEDIUM SPEED PAPER CUP MACHINE:https://www.youtube.com/watch?v=EjC8M8xy3Z0
ZKT-09 DOUBLE WALL CUP MACHINE:https://youtu.be/1J1Y3OBnQ2M

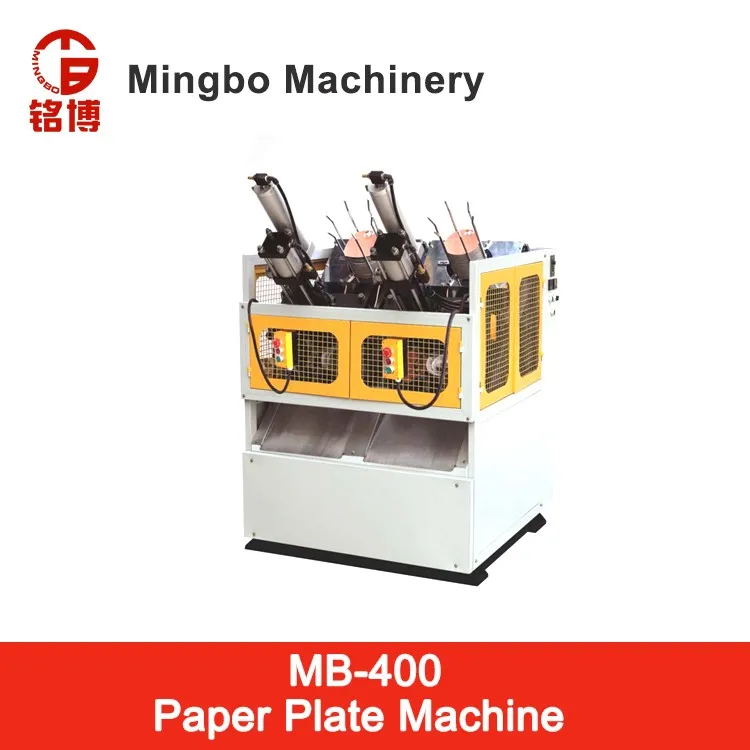

MB-400 PAPER PLATE MACHINE:https://www.youtube.com/watch?v=3Nia-CDqaYQ
MB-520 PAPER CUP PACKING MACHINE:https://youtu.be/pVJgOqncDbg
About mingbo machinery:
Mingbo machinery is one of the leading manufacturer of paper cup machine, paper bowl machine, paper plate machine die cutting machine and also the cup lid machine as well as the burger box machine. its high quality machinery leads customer to create more profit and trouble free.

all of our machinery shall be packed well with film to be water proof, and then loading and fix in a wooden case
1. ARE YOU MANUFACTURE FACTORY OR TRADING COMPANY ?
we are one of the leading manufacturer of the paper cup machine die cutting machine, cup lid machine paper plate machine and also the burger box machine in China.

2. WHAT KIND OF CERTIFICATE DO YOU HAVE?
WE HAVE GOT THE CE, SGS, BV VERIFIED CERTIFICATE FOR OUR MACHINE AND FACTORY.
3. WHERE IS YOUR FACTORY LOCATION?
WE ARE LOCATE IN LINSIYANG INDUSTRIAL ZONE, FEIYUN STREET, RUIAN CITY, ZHEJIANG PROVINCE, CHINA. OUR NEAREST HIGH WAY EXIT IS FEIYUN, OUR NEAREST TRAIN STATION IS RUIAN STATION, OUR NEAREST AIRPORT IS WENZHOU AIRPORT.
4. WHAT ABOUT YOUR MACHINE DELIVER TIME ?
FOR NORMAL SPEED PAPER BOWL MACHINE 30 DAYS, FOR MEDIUM SPEED CUP MACHINE 45 DAYS.
WELCOME TO CONTACT US WHENEVER YOU NEED US.
SHARON ZHOU +86-15382586988 (WHATSAPP/SKYPE/WECHAT)
BETTY ZHENG +86-18058300938 (WHATSAPP/SKYPE /WECHAT)
SWEET YE +86-15381553287 (WHATSAPP/SKYPE /WECHAT)
Our service:
Our machine quality is guaranteed for one year.
We will offer spare parts for you which is enough for one year running.
And we can also send the technician to customer's factory to help installation at the cost of buyer.
And other than the above, we also supply the 24 hours online service.
You can contact me via the whatsapp: +8615381553287
We will offer the most professional suggestion to help you start and expand your business!
We assure you of our best service at all times.
