Numerical Control Lathe CK6150 CNC Lathe Fanuc

Name: Numerical Control Lathe CK6150 CNC Lathe Fanuc
SKU: 60843300604
Availability: InStock

Price:

Quantity:

Products Description

Numerical Control Lathe CK6150 CNC Lathe Fanuc

Main Feature:

★Widening high stability bed

★Two gear spindle speed,stepless in gear

★Wider layor board

★Intergrated automatic lubrication system

Main Specification:

\t Items	\t Specification
\t Max.swing over bed	\t 500mm
\t Max.swing over cross slide	\t 250mm
\t Center Distance	\t 1500mm
\t Bed Width	\t 400mm

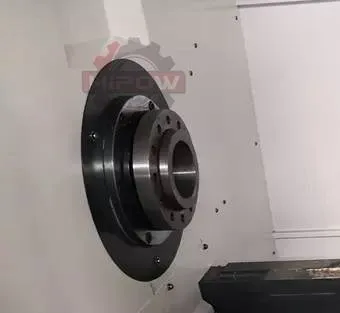

\t Spindle hole	\t 82mm
\t Spindle nose	\t ISO-A2-8
\t Spindle taper	\t MT8
\t Spindle speed steps	\t High/Middle/Low (3 STEPS)
\t Spindle speed	\t 70-2000rpm
\t X/Z axis rapid travel speed	\t 6000/8000mm/min
\t Max.travel of X/Z axis	\t 250/1400mm

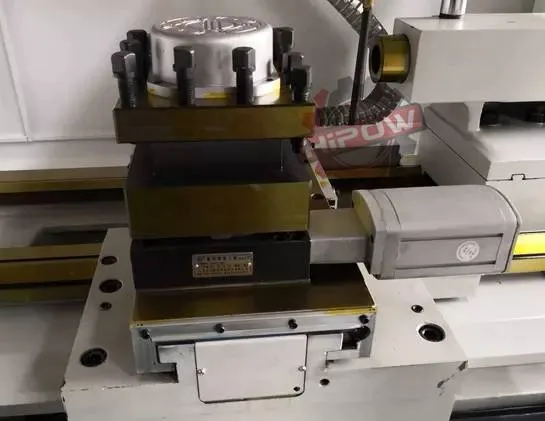

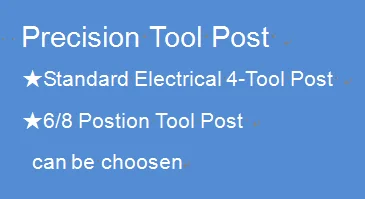

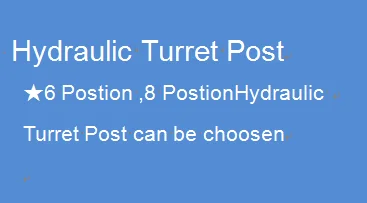

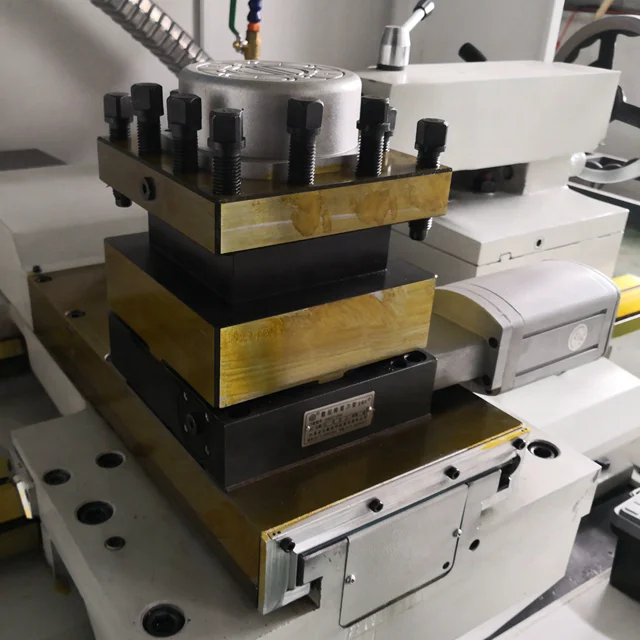

\t Number of tool post	\t 6 electrical tool post
\t Max.size of toolshank	\t 25*25mm
\t Positioning accuracy	\t 0.015mm
\t Repeat positioning accuracy	\t 0.01mm
\t The smallest unit	\t 0.001mm

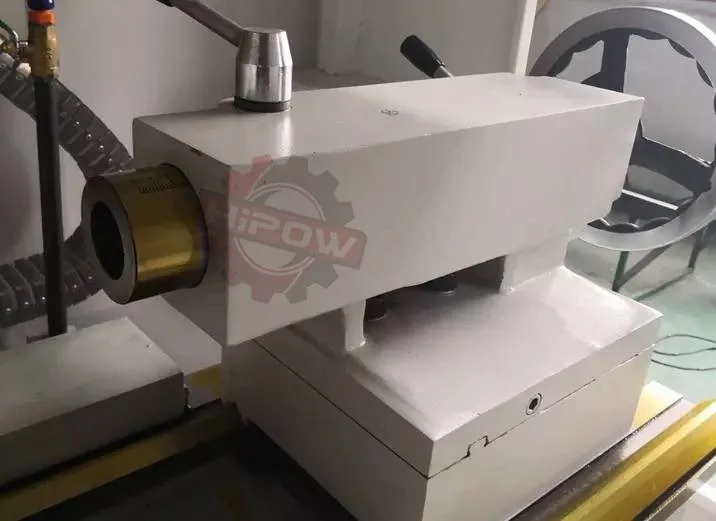

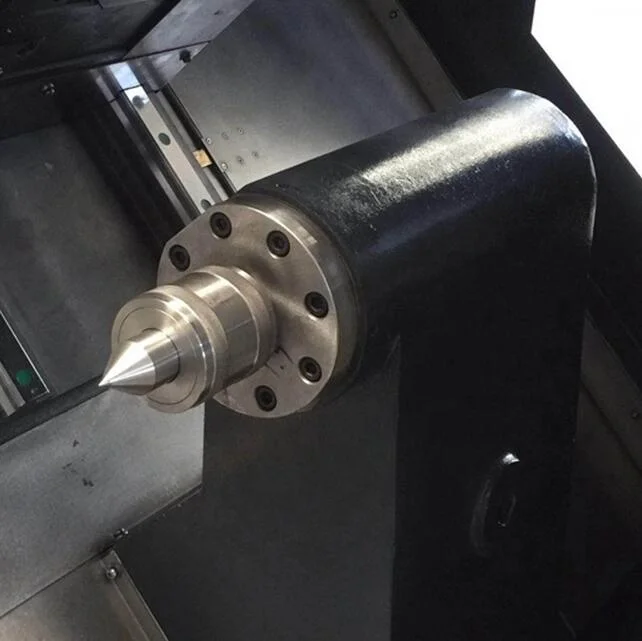

\t Dia.of tailstock sleeve	\t 65mm
\t Taper of tailstock sleeve	\t MT5
\t Max.travel of tailstock	\t 140mm
\t Main drive motor	\t 5.5KW
\t Coolant pump motor	\t 120W
\t Package Size	\t 300165205cm
\t N.W/G.W	\t 2150/2300kg

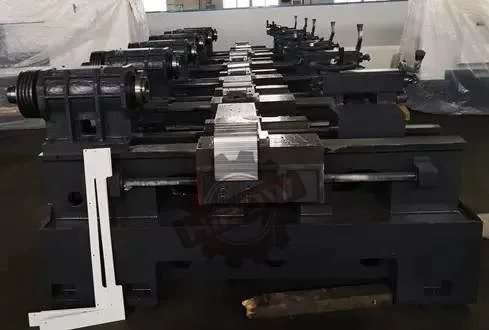

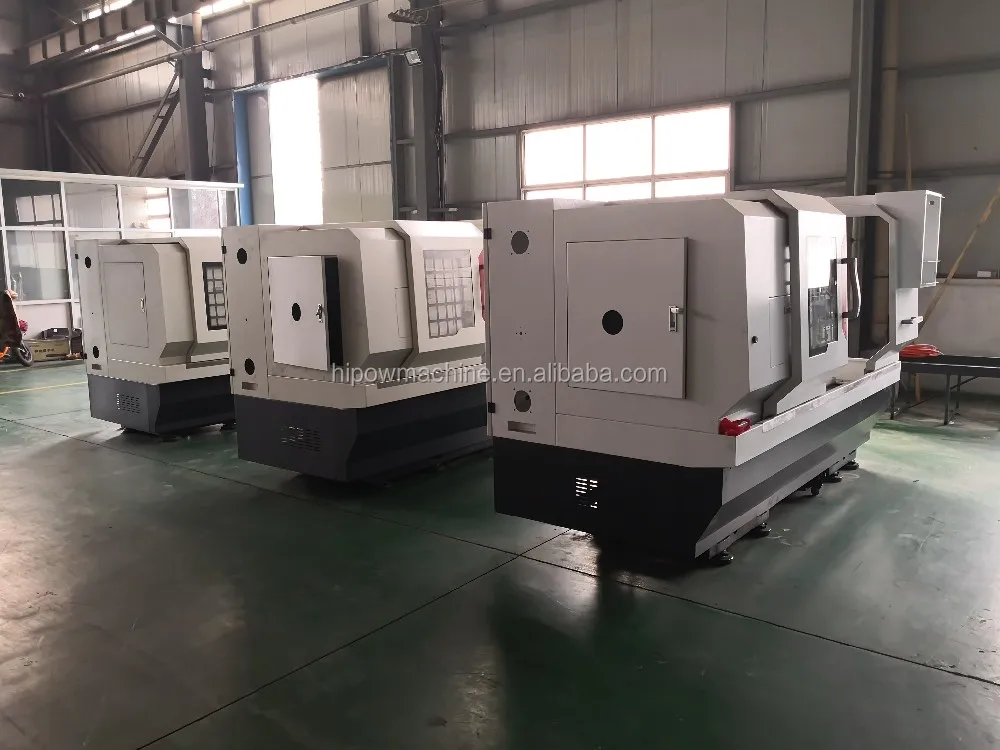

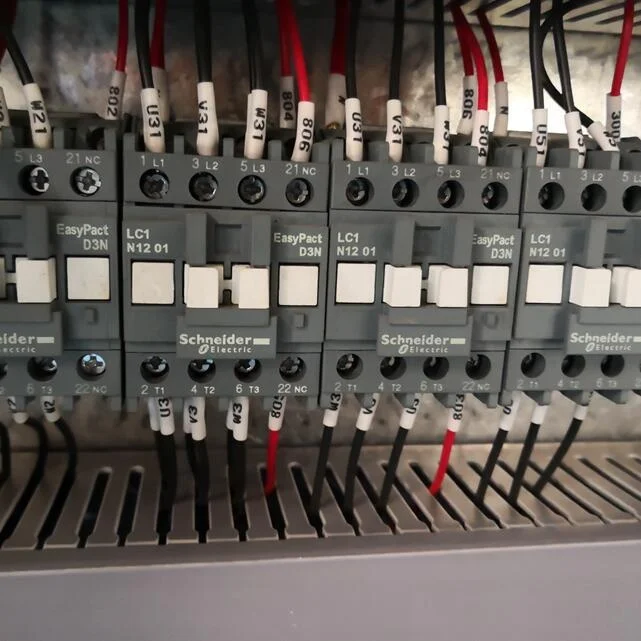

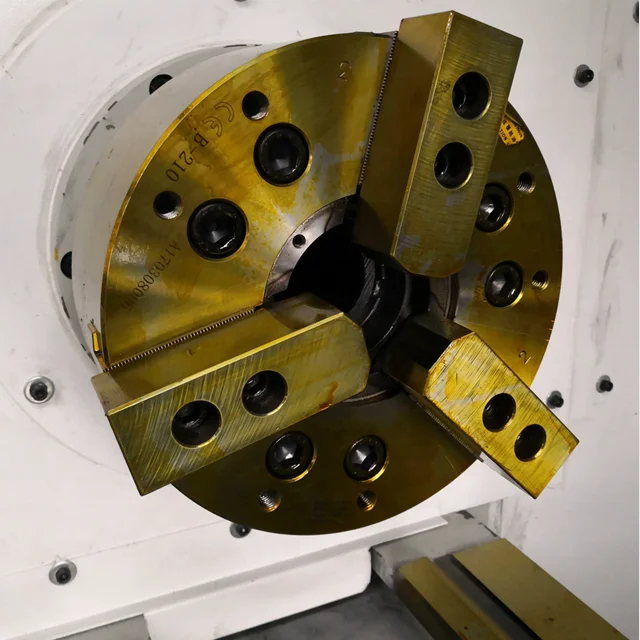

Detailed Imagine

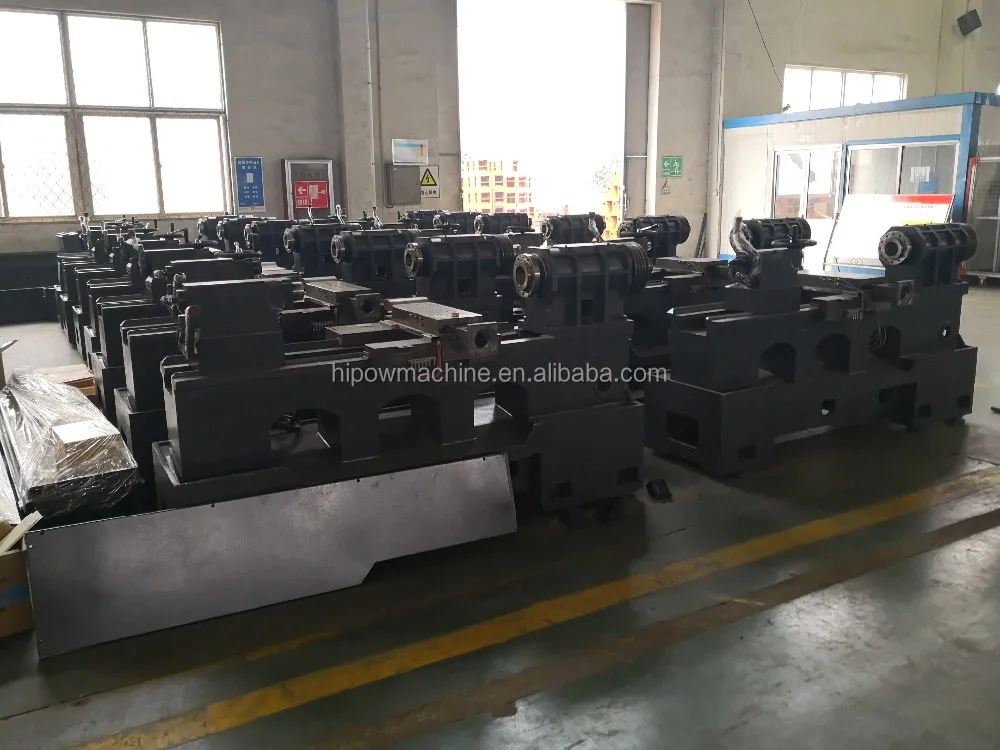

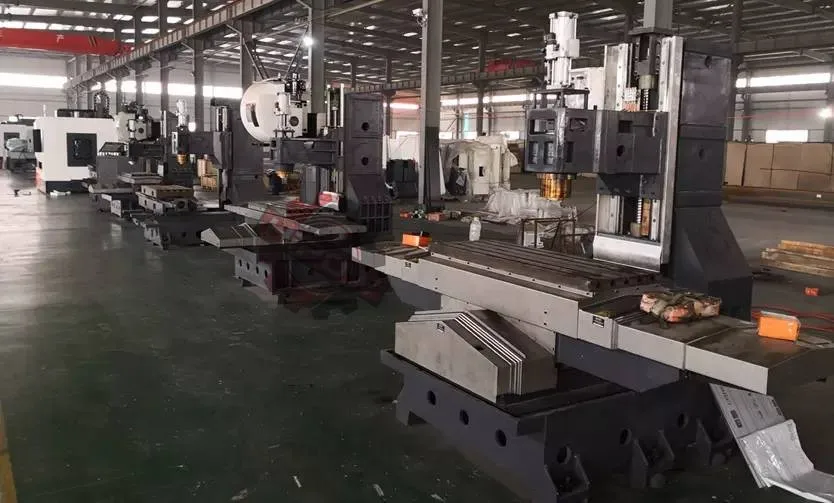

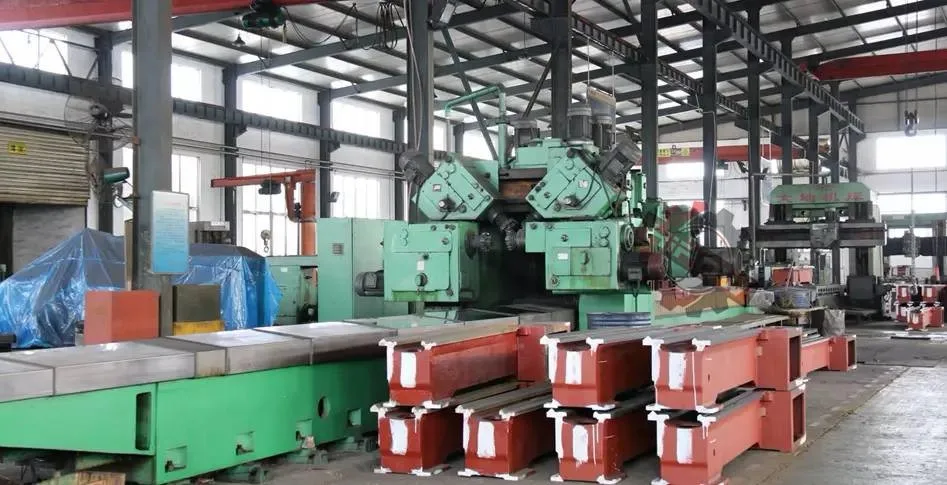

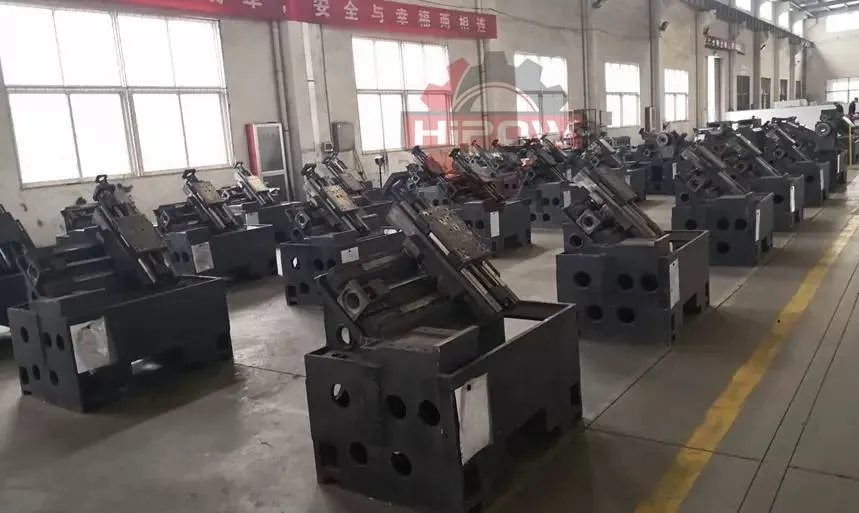

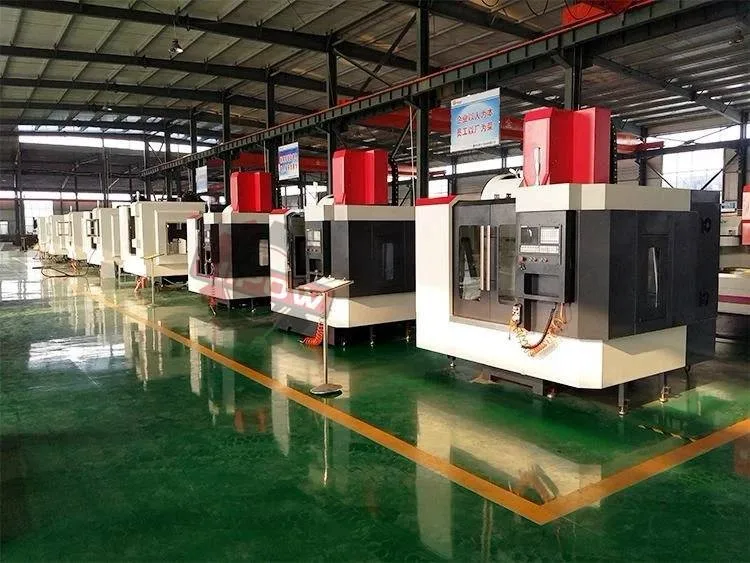

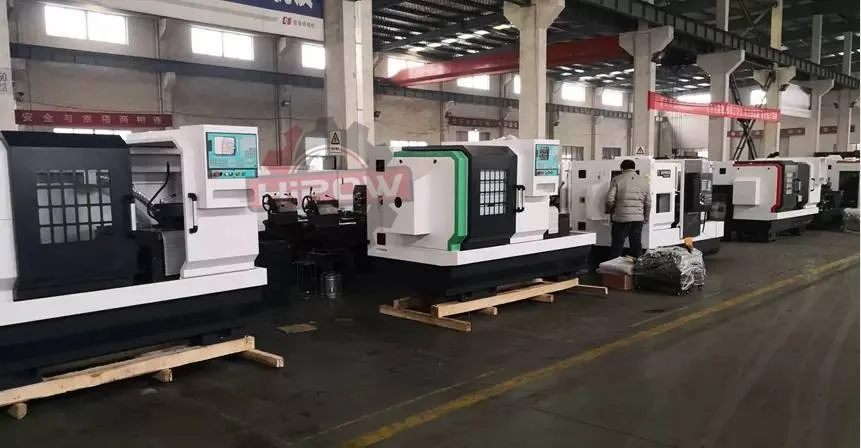

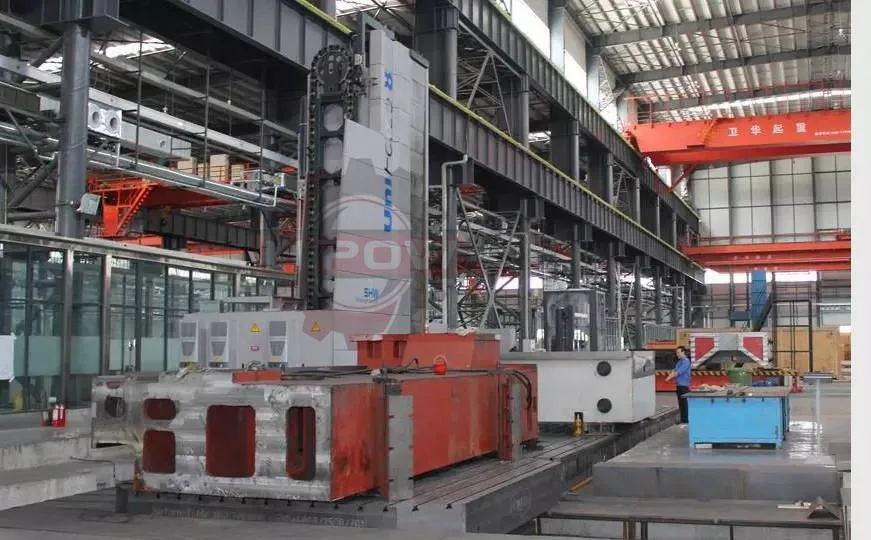

Company Equipment

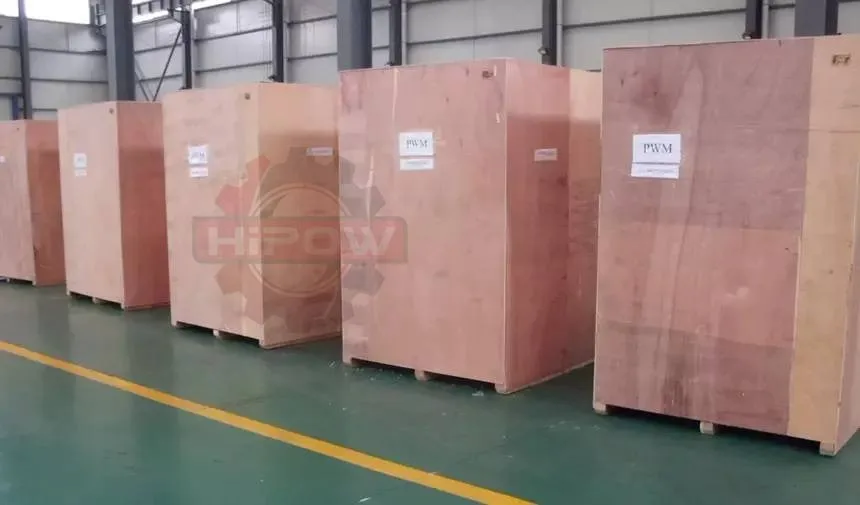

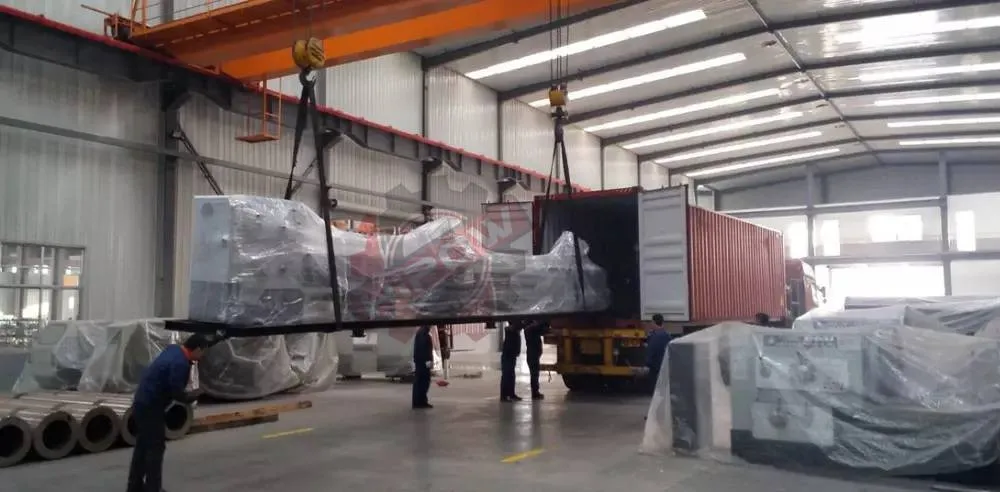

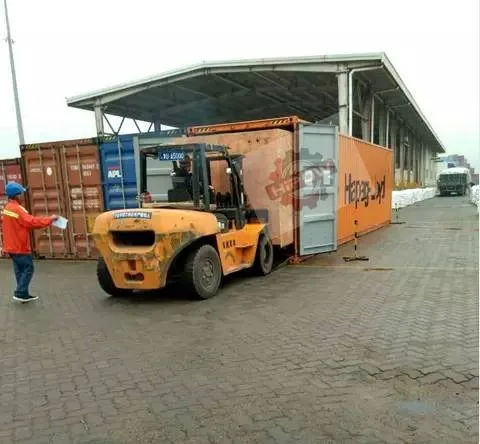

Packing & Delivery
