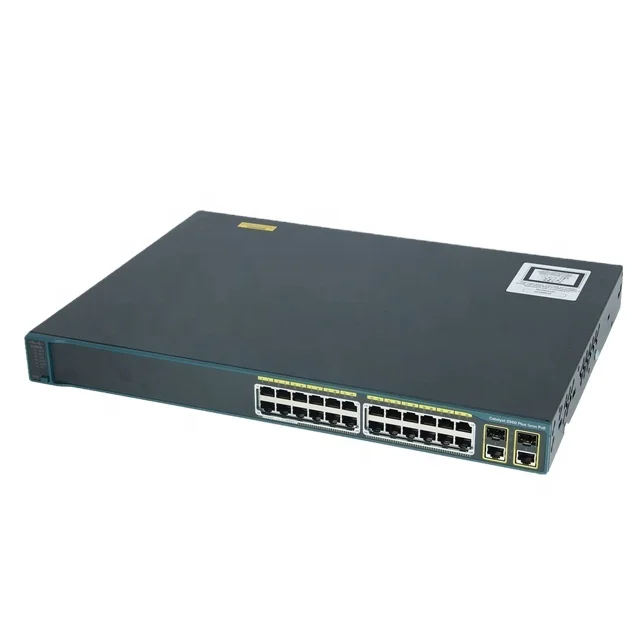

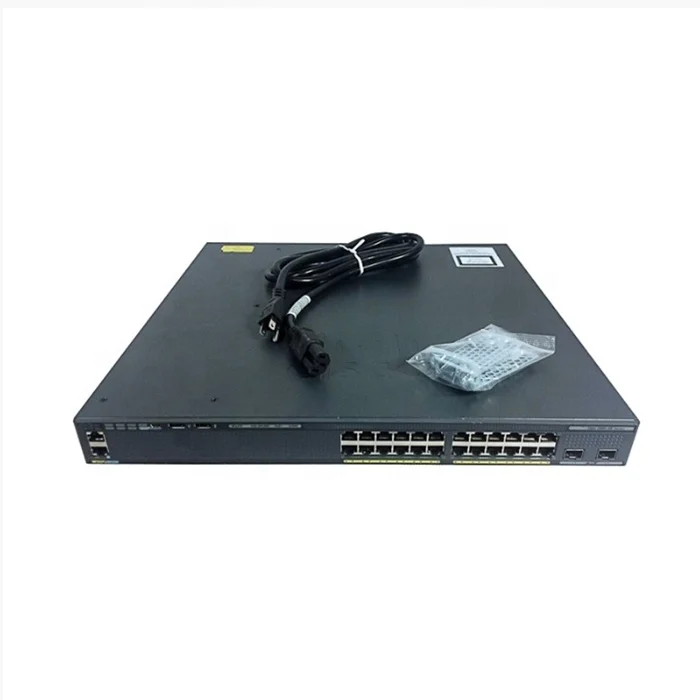

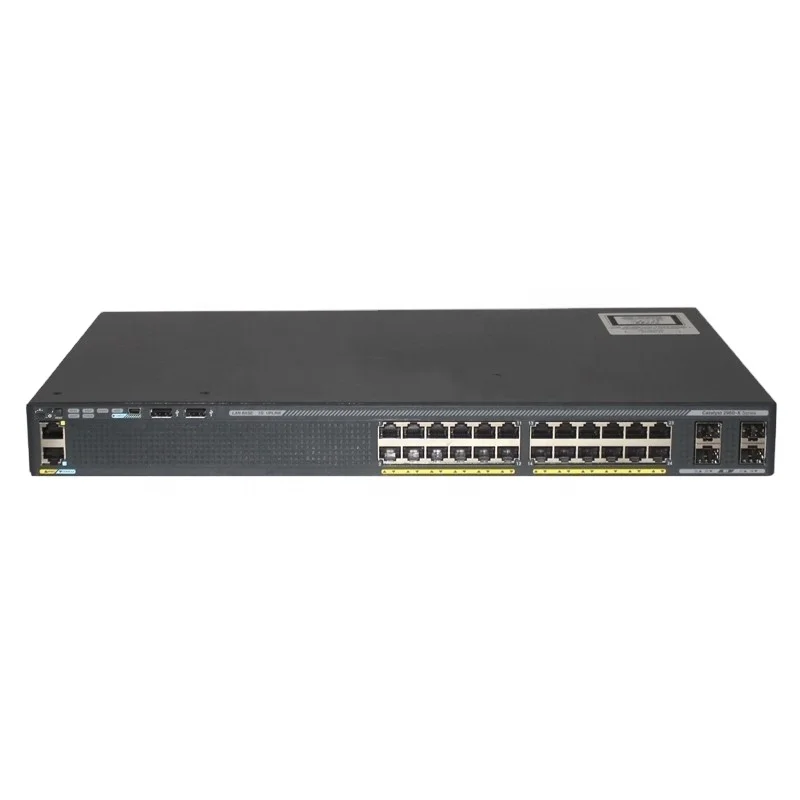

WS C2960XR 24PD I Original Cat alyst 2960XR 24port PoE Gigabit Ethernet SFP IP Lite switch
- Category: >>>
- Supplier: Beijing Xuyang Entrepreneurial Network Technology Co. Limited
Share on (60843310207):
Product Overview
Description
Product Description
WS-C2960XR-24PD-I Ca talyst 2960XR 24port PoE SFP IP Lite switch
| Capacity | |
| Type | Virtual interfaces (VLANs) |
| Value | 1023 |
Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 16.1 in |
| Height | 1.8 in |
| Weight | 13.67 lbs |
Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
Flash Memory | |
| Installed Size | 128 MB |
Header | |
| Compatibility | PC |
| Manufacturer | Systems |
| Packaged Quantity | 1 |
| Product Line | Catalyst |
| Model | 2960XR-24PD-I |
| Brand | |
Interface Provided | |
| Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Qty | 2 |
| Connector Type | Type B |
| Comments | PoE+ |
| Type | Management (LAN) |
Miscellaneous | |
| Compliant Standards | BSMI CNS 13438 Class A, CB, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, EN55024, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, KN22, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Authentication Method | RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 322,740 hours |
| Height (Rack Units) | 1 |
Networking | |
| Type | Switch |
| Connectivity Technology | Wired |
| Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators | Link/activity, Port duplex mode, Port status, Port transmission speed, System |
| Ports Qty | 24 |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Fast EtherChannel, Class of Service (CoS), DHCP snooping, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, IGMP snooping, IPv6 support, Layer 2 switching, Layer 3 load balancing, Link Aggregation Control Protocol (LACP), MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Strict Priority Queuing (SPQ), Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Storm Control, VLAN support |
| Routing Protocol | HSRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP |
| Stackable | Stackable |
| Max Units In A Stack | 8 |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | PoE+ |
| Advanced Switching | Layer 3 |
| Manageable | Yes |
| Form Factor | Desktop, Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| Subtype | Gigabit Ethernet |
| PoE Budget | 370 W |
Performance | |
| Type | Switching capacity |
| Value | 216 Gbps |
Ports | |
| Qty | 24 |
| Type | 10/100/1000 (PoE+) |
Ports (2nd) | |
| Qty | 2 |
| Type | SFP+ |
Power Device | |
| Frequency Required | 50/60 Hz |
| Power Provided | 640 Watt |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Type | Internal power supply |
| Hot-Plug | Hot-plug |
Processor | |
| Installed Qty | 1 |
| Manufacturer | ARM |
| Clock Speed | 600 MHz |
RAM | |
| Installed Size | 512 MB |
Software | |
| Type | IOS IP Lite |
