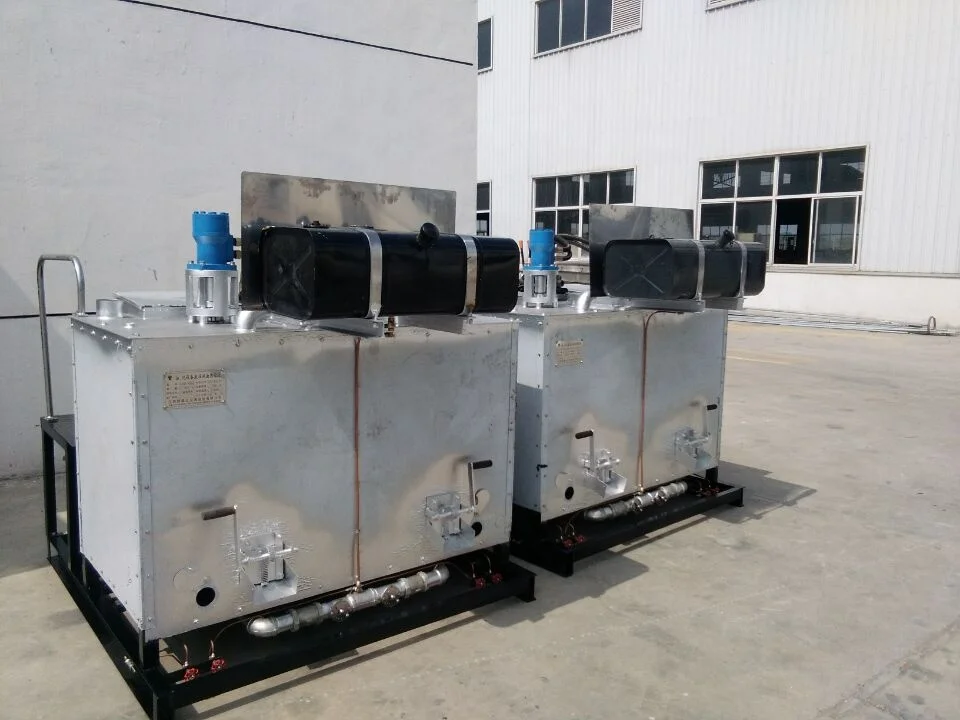

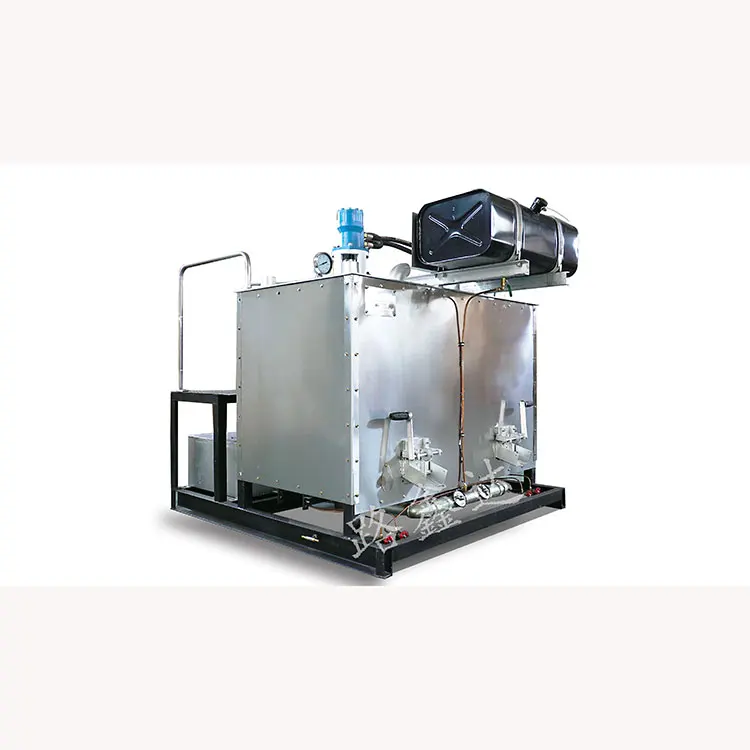

LXD1200T/B hydraulic double cylinder thermoplastic preheater( Diesel & LPG)

Specification

It is updated from the LPG thermoplastic preheater,which has the advantage of convenient,economical and high efficient. especially suitable for the area with strong wind.

Engine:

15PS electric strat water-cooled diesel engine (LXD1200B: 16PS electric start air-cooled diesel engine)

Stirring system:

Hydraulic stirring system with protective device, can stir clockwise or anti-clockwise.

Paint tank capacity:

600KG×2

Paint tank:

LXD1200T: Made of Boiler iron(LXD1200B: Made of special stainless steel )

Heating mode:

LPG(gas tank suggest 50KG) or Diesel ,Dual purpose type energy-efficient burner

Hydraulic oil tank:

70L

Diesel tank:

60L

Thermometer:

Each container is equipped with  thermometer with heating resistance and shock resistance.

Operation Control:

The manual dual control valves respectively control two stirrers in the two cylinders.

Ventilating exhaust system:

Suction-type chimneys at the top of cylinder

Discharge Outlet:

Lockable discharge trough and the close inter meshing type discharge system.

Heating temperature:

0~300℃

Heat preservation:

double layer heat insulating material is fixed between inner container and outer layer

Structure:

Frame structure,Integrative welded structure with high stength,heating resistance and oxidation resistance.

Size and  Weight:

1980×1610×1650mm   1100kg
