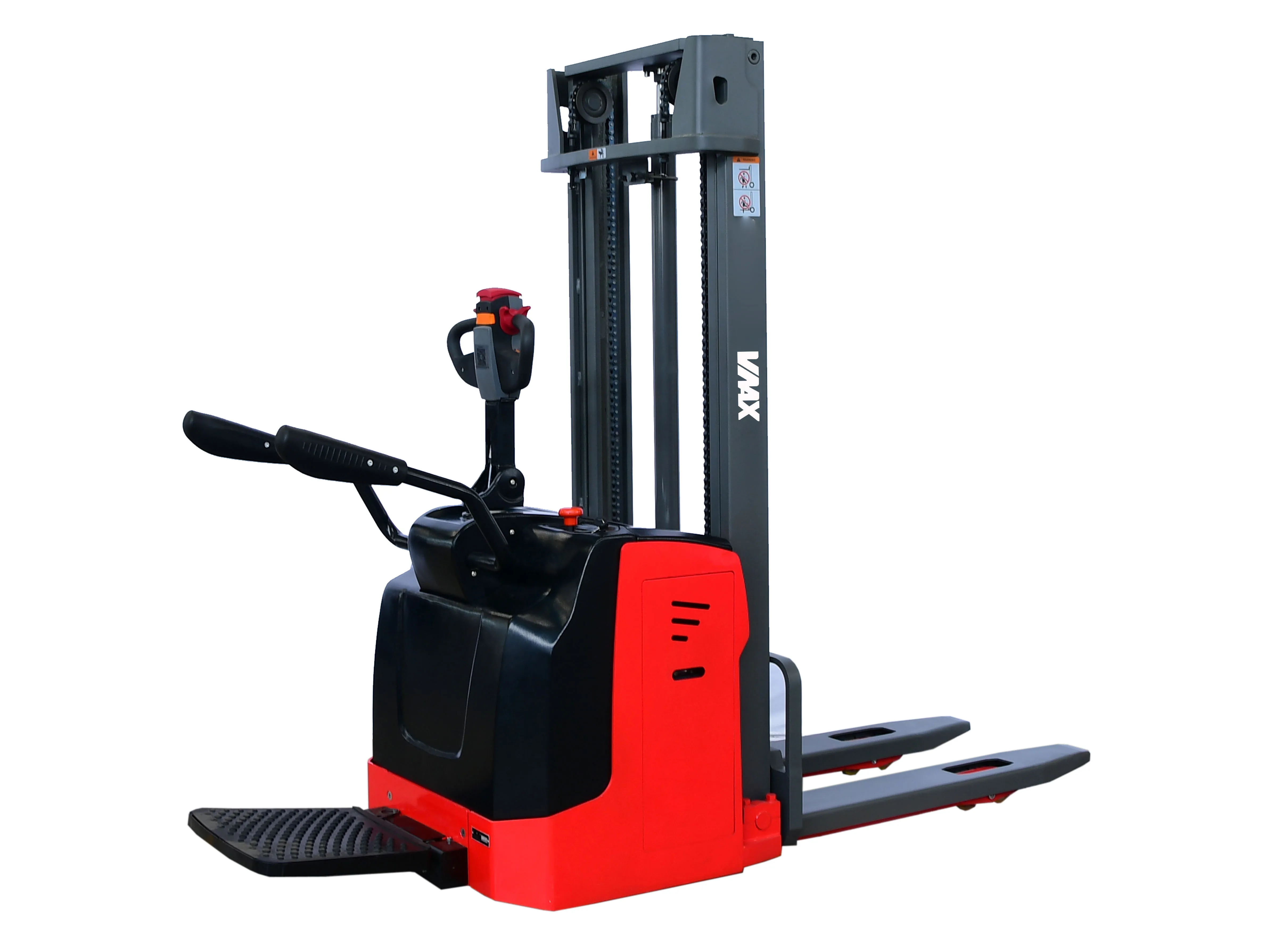

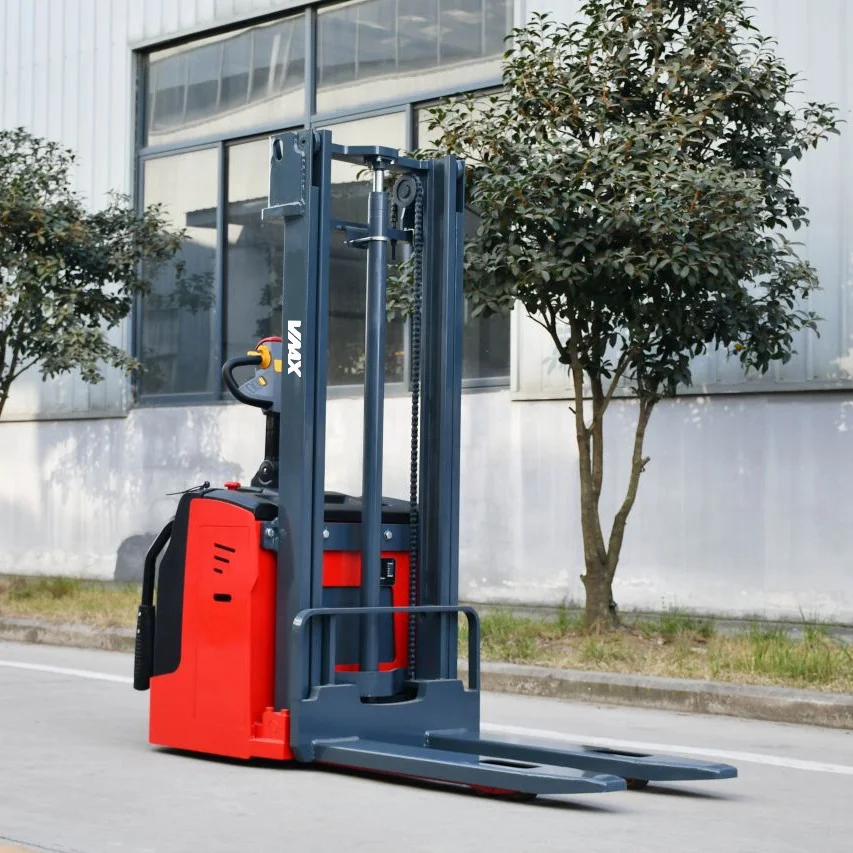

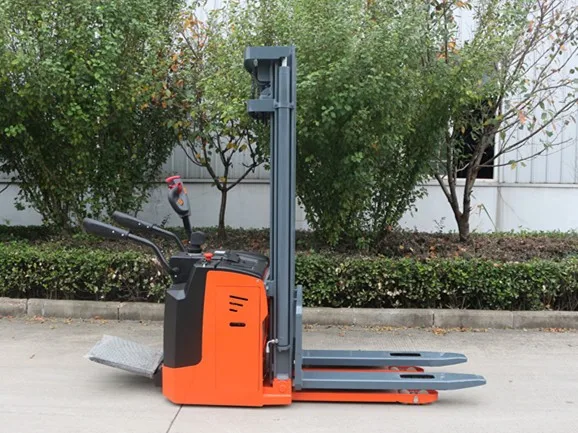

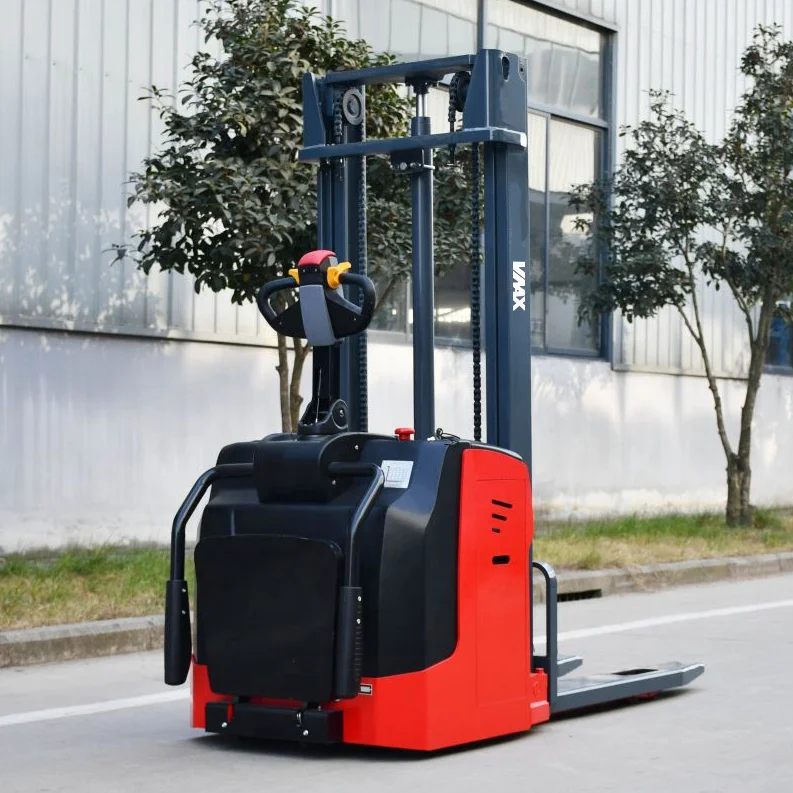

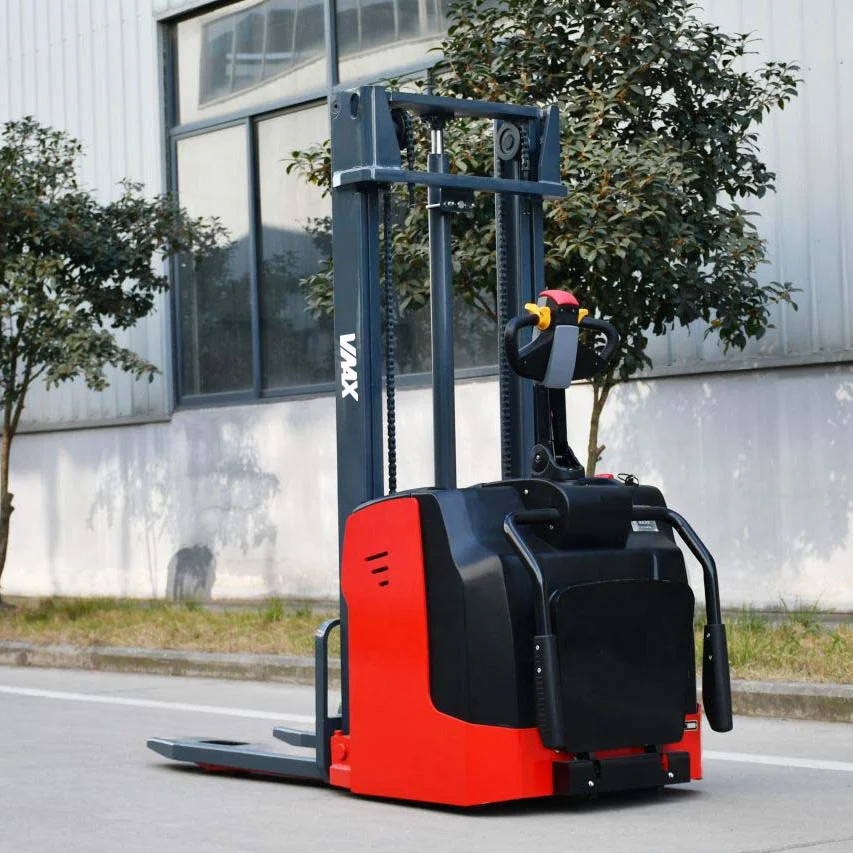

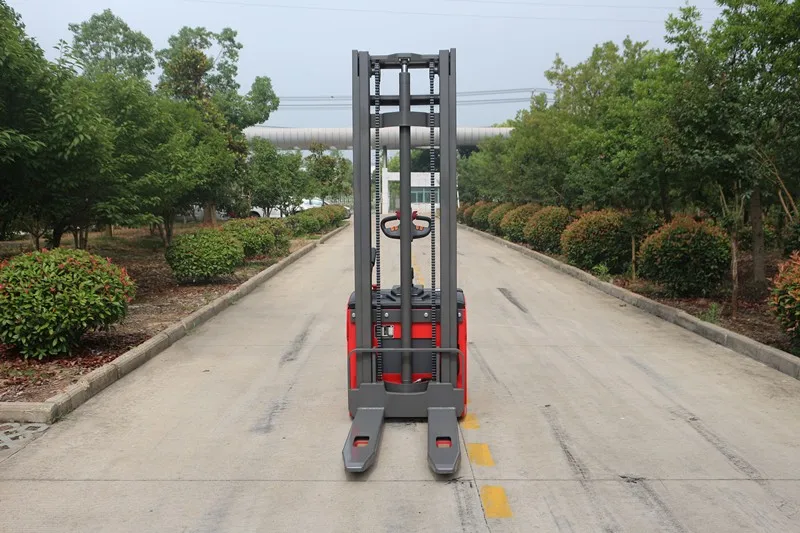

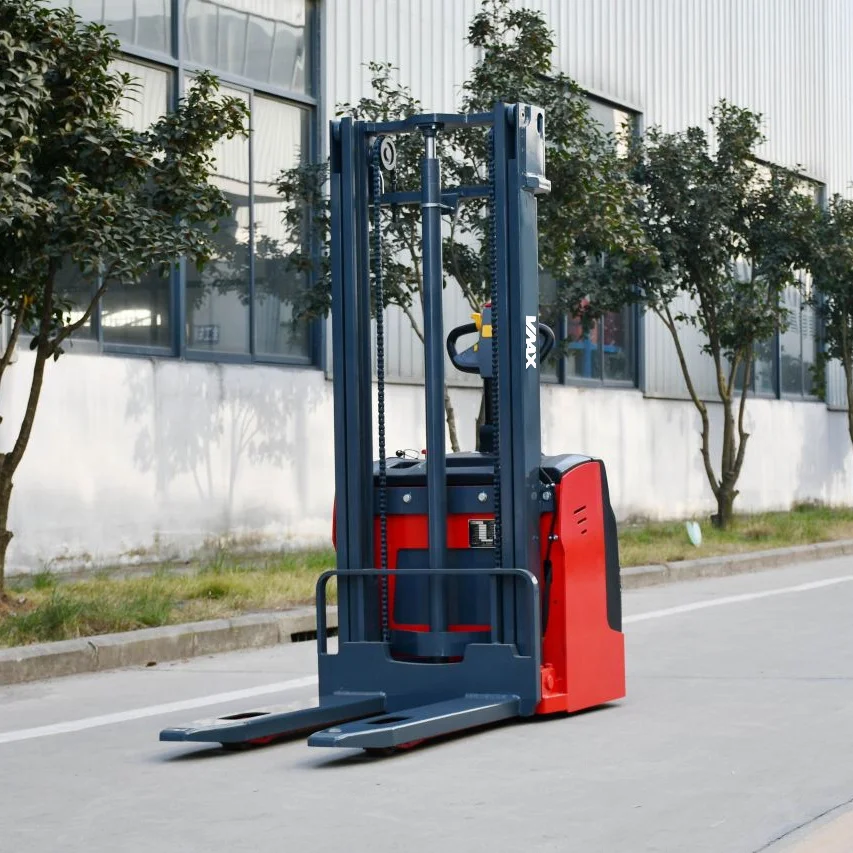

CE 1ton 1.5ton 2ton 2.5ton BPS Electric Pallet Stacker 24V/210Ah/270Ah Battery Trustful Quality Factory Sale Price Made in China
- Category: >>>
- Supplier: Anhui Vmax Heavy Industry Co. Ltd.
Share on (60843360975):
Product Overview
Description
Product Description

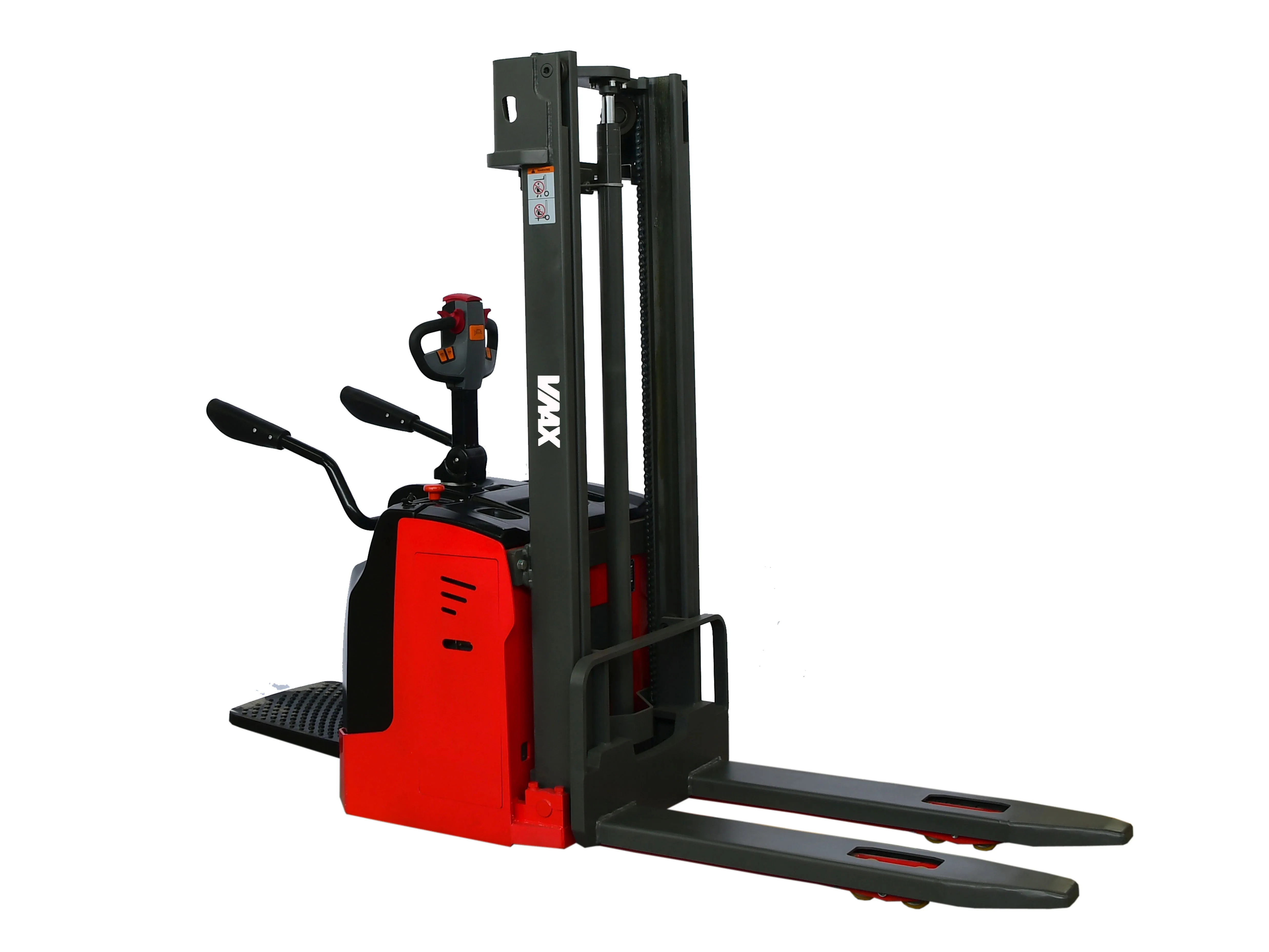

Product value--Electric Pallet Stacker
Full new handle design: based on ergonomic principles, optimize belly switch and other key components, due to 300000 times strengthening test, makiing operation more excellent.
High safty: lower center gravity, more safe stacking; when forks are in the high position, vehicle speed automatically reducess, more safe and stable, TB(M).
Safety protection: TB(M): when armrest does not raise, travel speed is lower than normal speed, can effectiively protect the safety of operator; turning speed effectively reduces steering speed, preventing the possibility of rollover;
Curve automatically reduces speed function, preventing rollover, operation is more safe.
Vertical dirve, special using gearing box for stacker, it can keep away from dust and steam, good heat dispersion, long time working.
EPS, standard confirguatation with EPS, steering is more conveniently and operation is more comfort.
Specification for 2ton electic pallet stacker | ||||||
Standard | Brand | VMAX | ||||
Power type | battery | |||||
Operation type | Stand-on | |||||
Rated capacity | Q(kg) | 2000 | ||||
Load center | mm | 500 | ||||
Tyre & Rim | Tyre( front/rear) | PU | ||||
Tyre size, front | 80x70 | |||||
Tyre size, rear | 230x75 | |||||
Mast type | Duplex mast | |||||
Lift height | mm | 3000 | ||||
Height mast lowered | mm | 2025 | ||||
Height mast extended | mm | 3506 | ||||
Min ground clearance of fork | mm | 90 | ||||
Overall length pedal extended/closed | mm | 2518/2065 | ||||
Overall width | mm | 850 | ||||
Forks dimension | mm | 1150x190x56 | ||||
Distance between fork arms | mm | 680 | ||||
Aisle with for pallet 1000x1200mm | mm | 2956/25110 | ||||
Turning radius-pedal extended closed | mm | 2125/1655 | ||||
Travel speed, laden/unladen | km/h | 5.0/6.0 | ||||
Max Gradeability, laden/unladec | mm | 8/10 | ||||
Driver motor | kw | AC 1.5 | ||||
Lift motor | kw | DC 2.0 | ||||
Battery capacity | V/Ah | 24v/210Ah | ||||
Steering/ braking | Battery weight | kg | 200 | |||
Service weight( incl. battery) | kg | 1115 | ||||
Steering type | EPS | |||||
Parking type | Electromagnetic | |||||
Parking operation type | Handle operation | |||||
Asistance braking type | Electromagnetic | |||||
Certifications
Detailed Images
Machine Parts

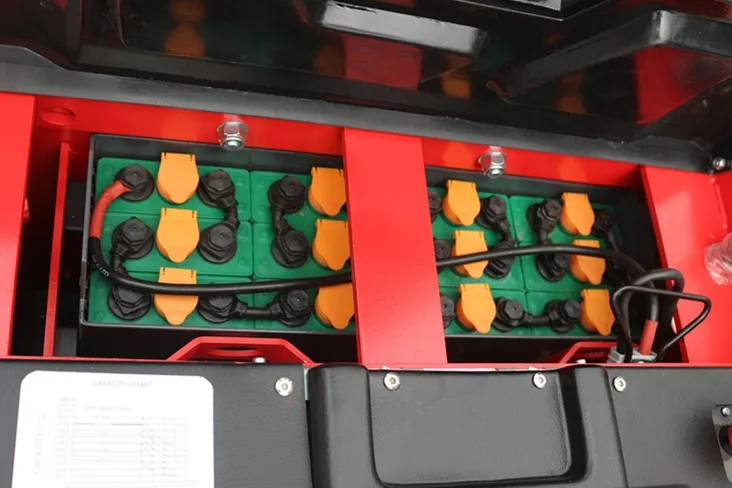

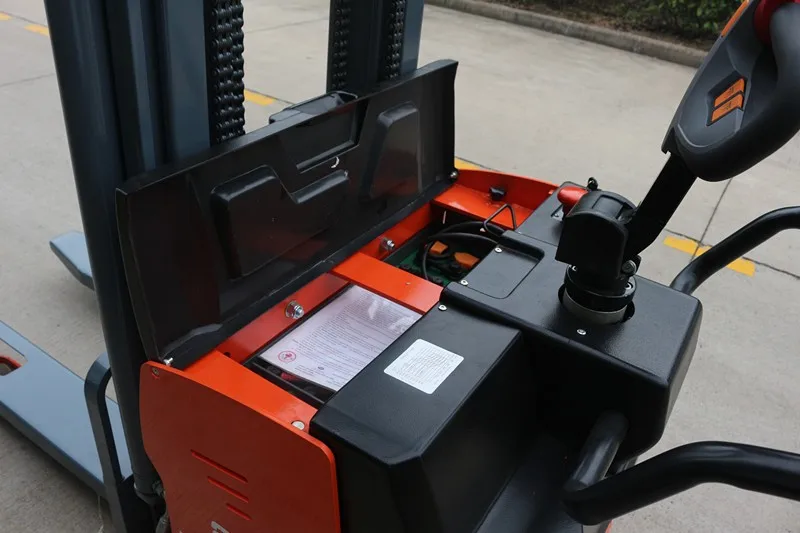

Name: Lead Acid battery
Brand: Torch
Original: China
China Top brand battery, with 1500 charging times. 24V/210Ah & 280Ah capacity, side pull battery optional, etc..
Main Features

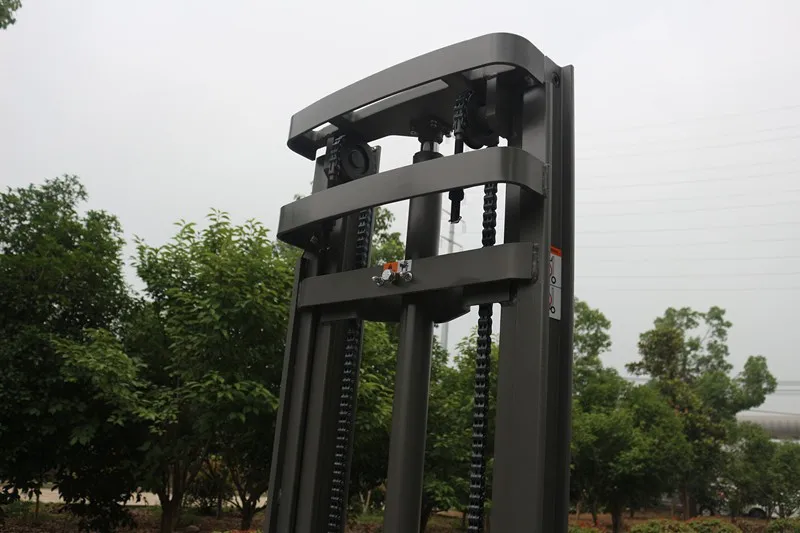

Name: Wide view mast
Single, duples & triplex mast optional, with strong steel mast, harsh chains, well sealed cylinders, etc..
Machine Parts

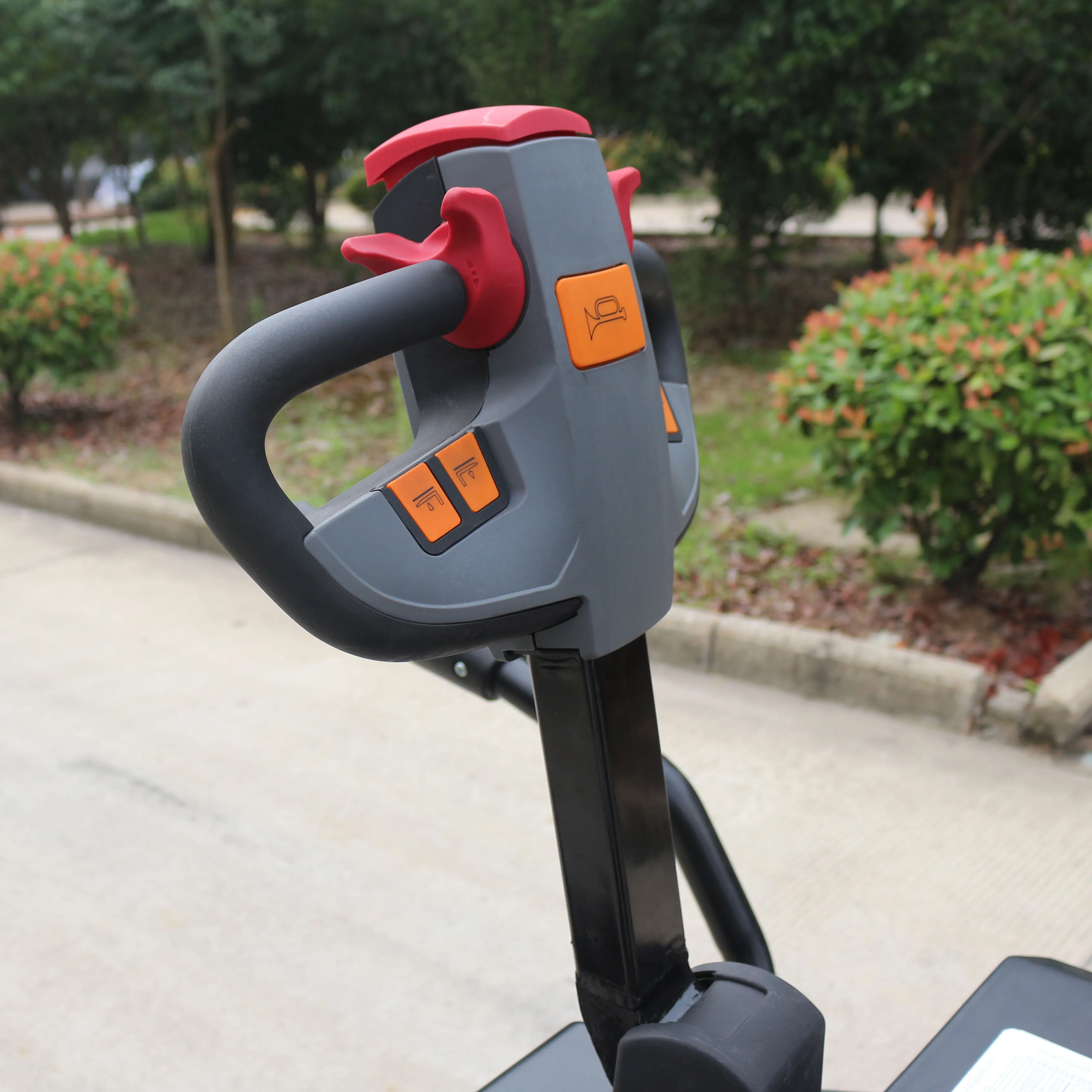

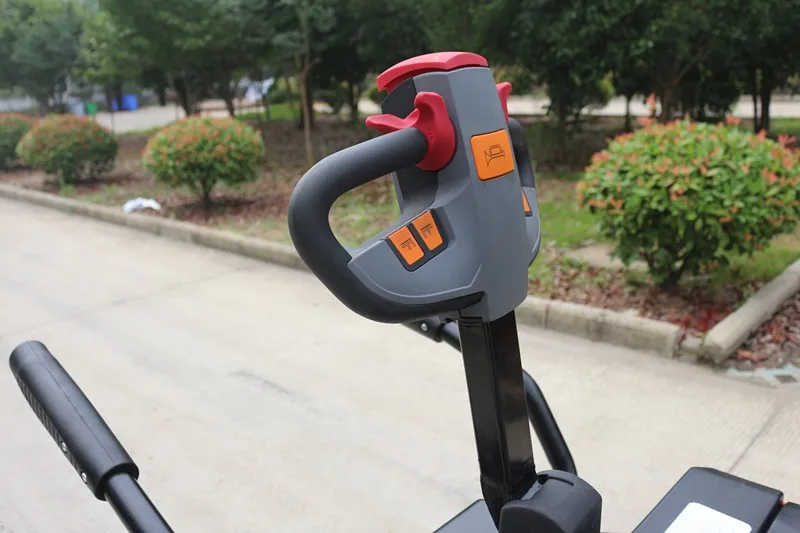

Name: Operation handler
Original: China
Manual steering, Electric power steering are optionals. With strong arm rest for safety.
Main Features

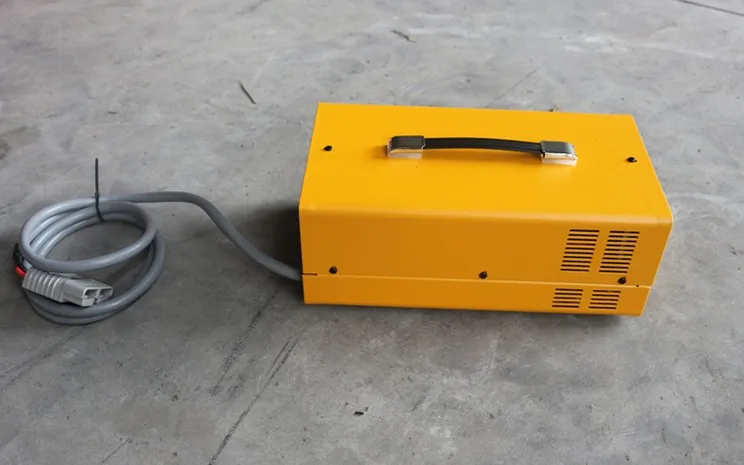

Name: Charger
Original: China
Different phase chargers are optionals, life long service, harshness wiring, etc..

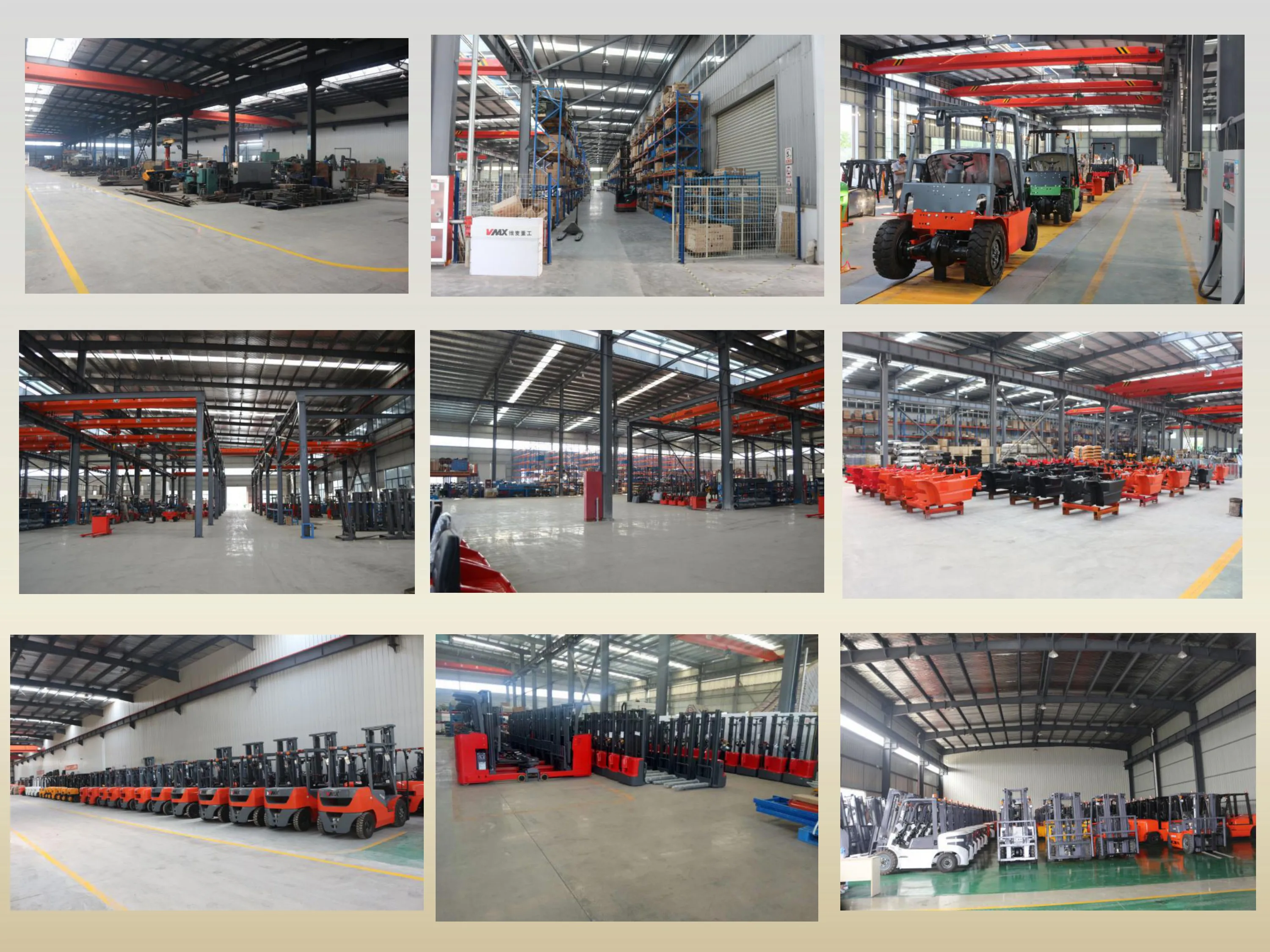

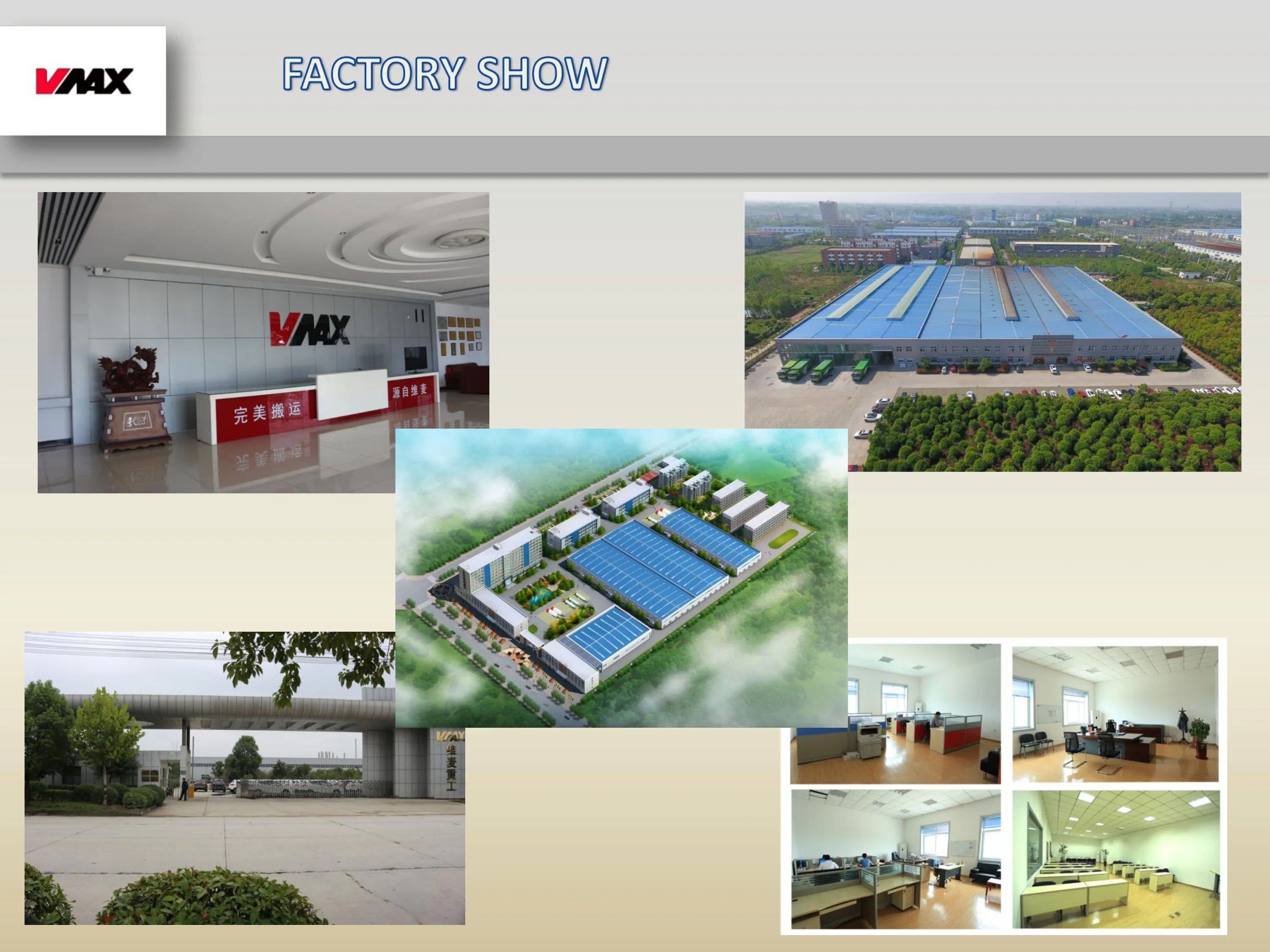

Our factory
Our Service
Theory Studies
Samples: Bangladesh port theories training after bidding.
After sales training
Domestic forklift driving training
Packing & Delivery
Packaging | ||
Size | 2100 (L) * 850(W) * 2030 (D) | |
Weight | 1120 | |
Packaging Details | Paking with foam plastic & paper cardboard etc.. | |
Packaging | ||
Size | 2100 (L) * 850(W) * 2030 (D) | |
Weight | 1120kg | |
Packaging Details | Paking with foam plastic & paper cardboard etc.. | |
