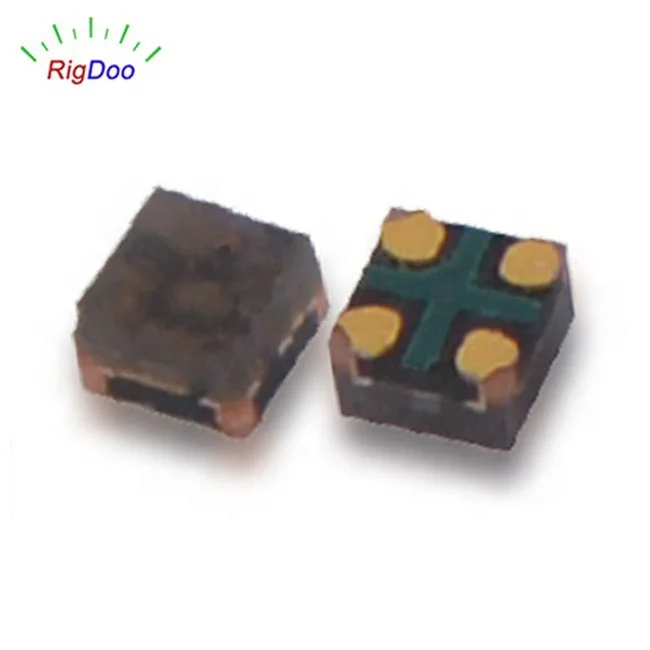

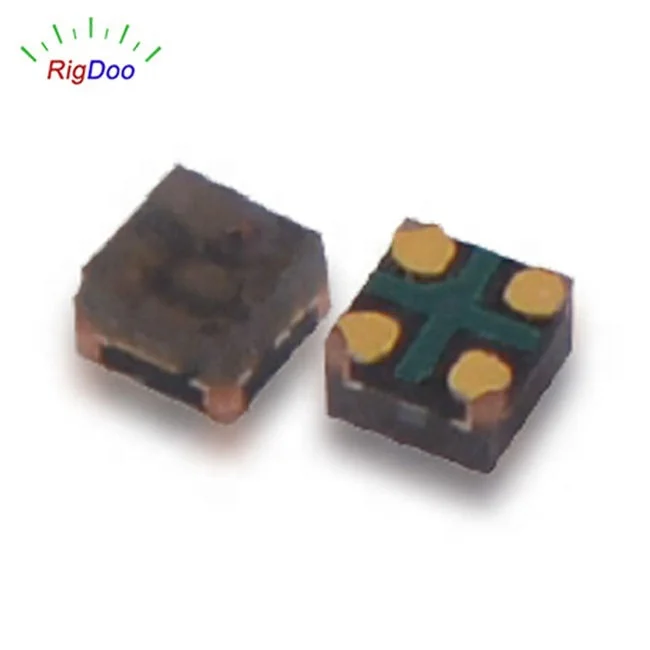

High Quality Low Price In Stock 1010 SMD RGB Mini LED Full Color Light Emitting Diode Tri-Color Chip LED For LED Display Screens
Product Description
Features

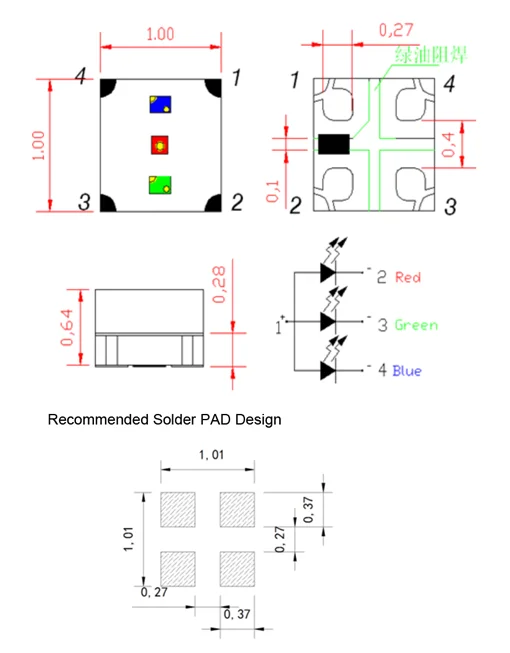

Package ( L/W/H ) : 1.0×1.0×0.64 mm Color : Ultra High Bright RGB Lens: Black Diffused Flat Mold EIA STD Package Meet ROHS, Green Product Compatible With SMT Automatic Equipment Compatible With Infrared Reflow Solder Process
Absolute Maximum Ratings At Ta=25℃
Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
R
45
mW
G
45
B
25
Peak Forward Current
IFP
R
60
mA
(1/10 Duty Cycle, 0.1ms Pulse Width)
G
60
B
60
DC Forward Current
IF
R
10
mA
G
5
B
5
Reverse Voltage
VR
R
5
V
G
5
B
5
Operating Temperature Range
Topr
-30C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 90C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds
Electrical Optical Characteristics At Ta=25℃
Parameter
Symbol
Colors
Min.
Typ.
Max.
Unit
Test Condition
Luminous Intensity
IV
R
50
mcd
IF=10mA
G
160
IF=5mA
B
50
IF=5mA
Dominant Wavelength
λd
R
620
630
nm
IF=10mA
G
520
525
IF=5mA
B
460
470
IF=5mA
Peak Wavelength
λp
R
625
IF=10mA
G
525
IF=5mA
B
465
IF=5mA
Forward Voltage
VF
R
1.8
2.6
V
IF=20mA
G
2.8
3.6
IF=5mA
B
2.8
3.6
IF=5mA
Reverse Current
IR
R
5
uA
VR=5V
G
5
VR=5V
B
5
VR=5V
Viewing Angle
2θ1/2
120
deg
IF = 10mA
Packing
Product Categorie
Certificates
Application
Company Information
Company Profile
Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China with more than 18 years experience in LED industry. RigDoo specially R&D, manufacture and sales LED, SMD LED, Through Hole LED and High Power COB integrated LED.
We have hundreds of machines of Crystal Bonders (ASM), Wire Bonders (ASM, K&S), Dispensing Machines (Musashi), Molding Machines (Single Well), Slicing Machines (DISCO), Sorting Machines (Ka Large, Single Well, Tripod) and Tape Loading Machines (Mason, Ka Large, Single Well and Tripod) etc..
For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, in Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB, RGBW, RGBWW etc..
For DIP LED (Lamp LED, Through Hole LED), we have 3mm, 5mm, 8mm and 10mm Single color, Bi-color and RGB Tri-Color, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc..
For High Power COB integrated LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.
Our factory are with certificates of ISO9001 and ISO14000. Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
