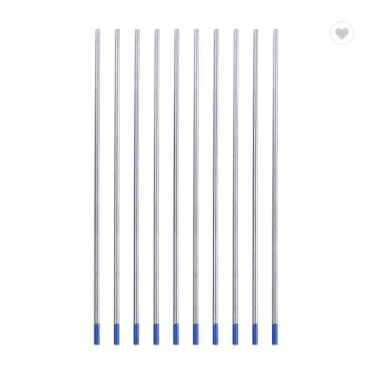

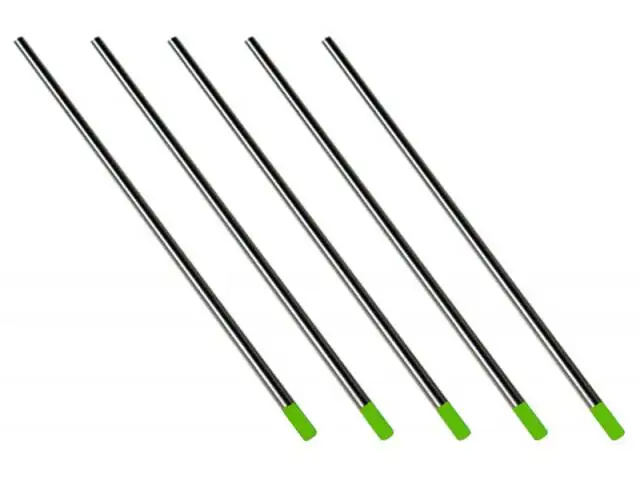

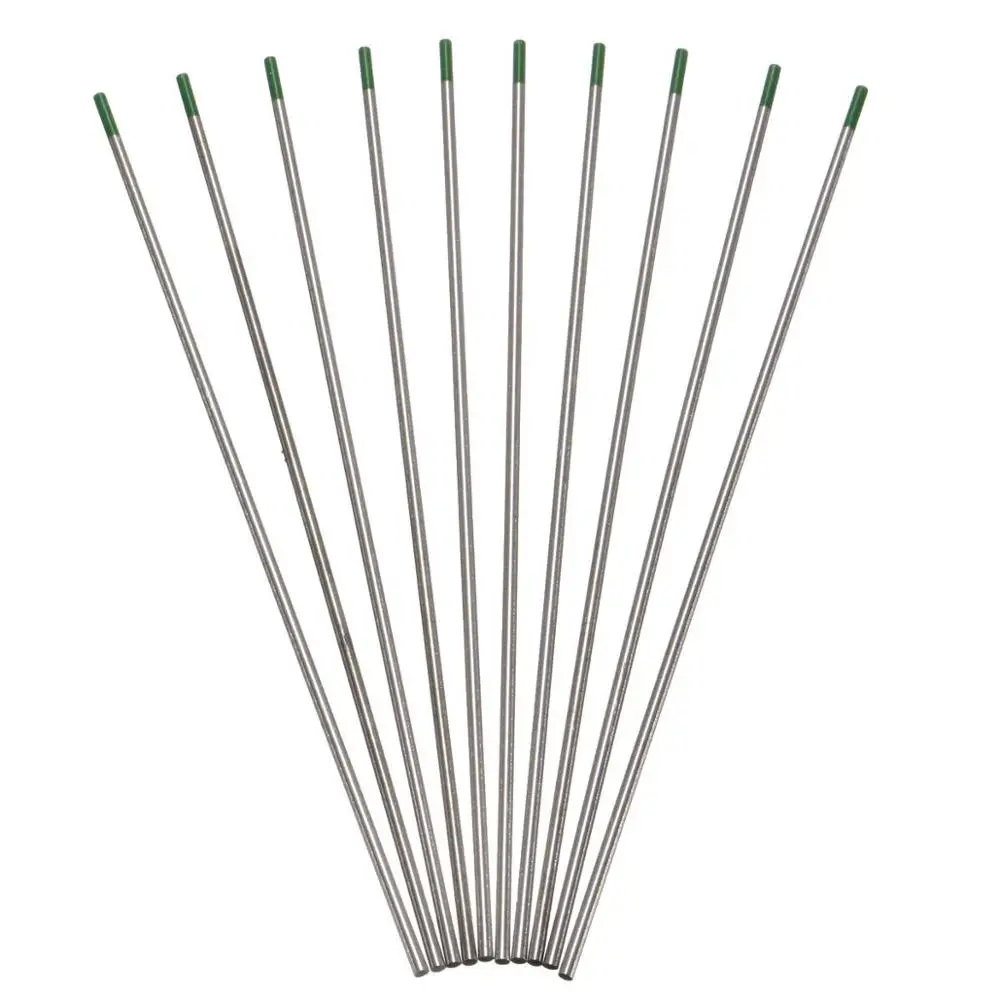

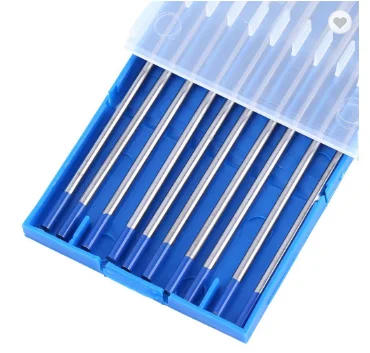

Wt20 2.4mm 2% Thoriated Rod TIG Welding Wolfram Tungsten Electrode

Product Overview

Description

Wt20 2.4mm 2% Thoriated Rod TIG Welding Wolfram Tungsten Electrode

 Sample free!!!



Product Description

Lanthanum-Tungsten Electrode is well known its good welding performance. It is the electrode added with 1-2% of LaO.

The power of its electronic transgression is 2.7-2.8ev. Bearing the closest features to those of thorium-tungsten electrode.

Its arc features and burn spoilage endurance are better when used in small or medium currents condition.

Lanthanum-Tungsten Electrode is the most promising substitution product of thorium-tungsten electrode because

of its nonradiation. Its another advantage is the endurance of high current but low burn spoilage rate.

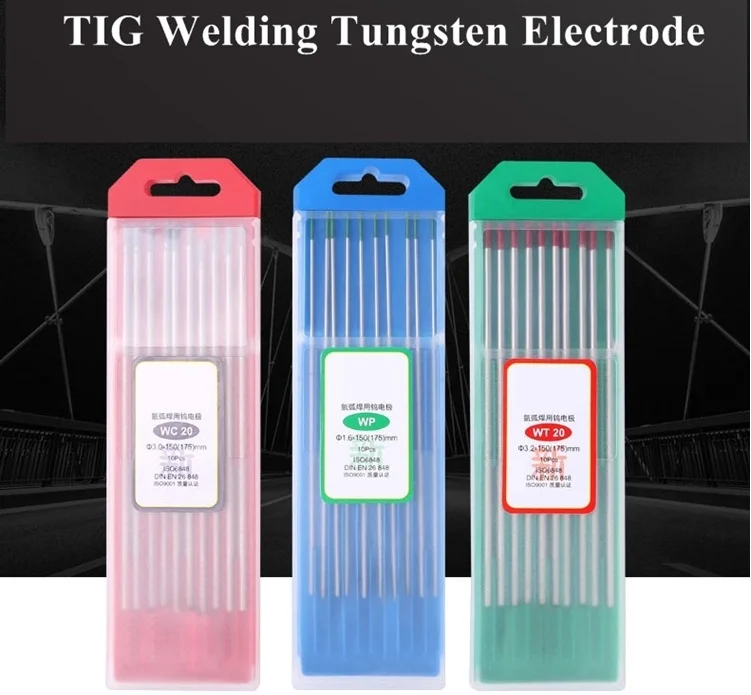

Type	Designation	Current	Welding Method	Application
1% Lanthanated-Tungsten electrode	WL10	DC Small Current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
1.5% Lanthanated-Tungsten electrode	WL15	DC Small Current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
2% Lanthanated-Tungsten electrode	WL20	AC/DC Small/Large Current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
2% Thoriated- Tungsten Electrode	WT20	DC Large current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
2% Ceriated-    Tungsten electrode	WC20	DC Small current	Manual welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
0.8% Zirconium-Tungsten electrode	WZ8	AC current	Manual welding, automatic welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc
Pure Tungsten electrode	WP	AC current	Manual welding, automatic welding	Aluminum alloy, copper alloy, thermal spraying, special light source anode, etc
2% Yttrium- Tungsten electrode	WY20	AC Large current	Manual welding	Non alloy and low alloy steel, stainless steel, titanium alloy, nickel alloy, copper alloy, anode and cathode of thermal spraying special light source, etc

Composition of tungsten electrode

Tungsten electrode specifications

Diameter:1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/4.8/5.0/6.0/6.4/8.0/10.0mm

Length:50mm,75mm,150mm,175mm



Model

WL10 WL15 WL20 WT20











Application

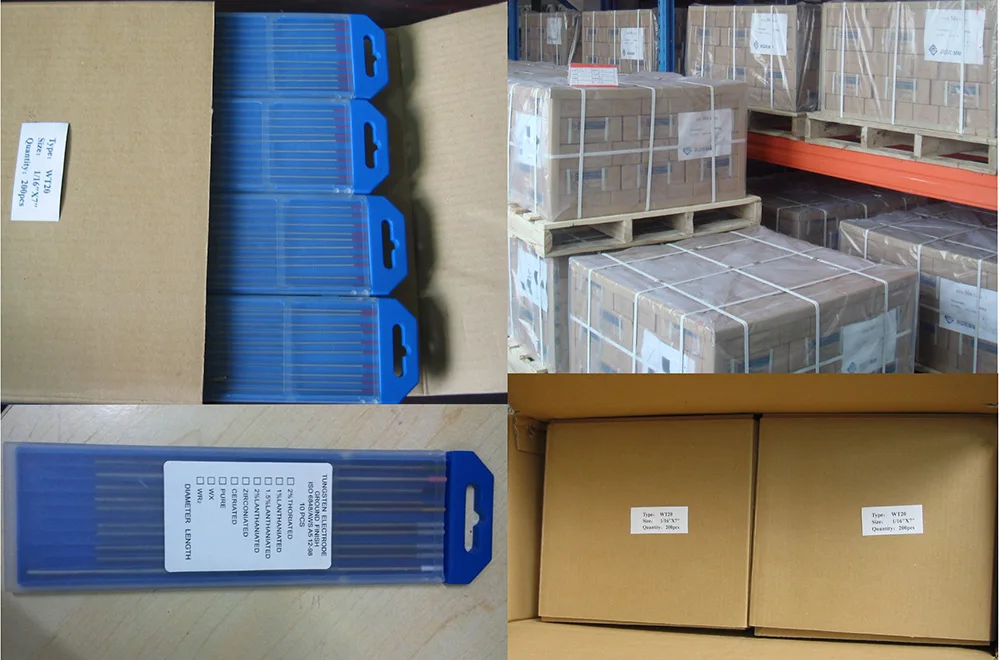

Packing & Delivery

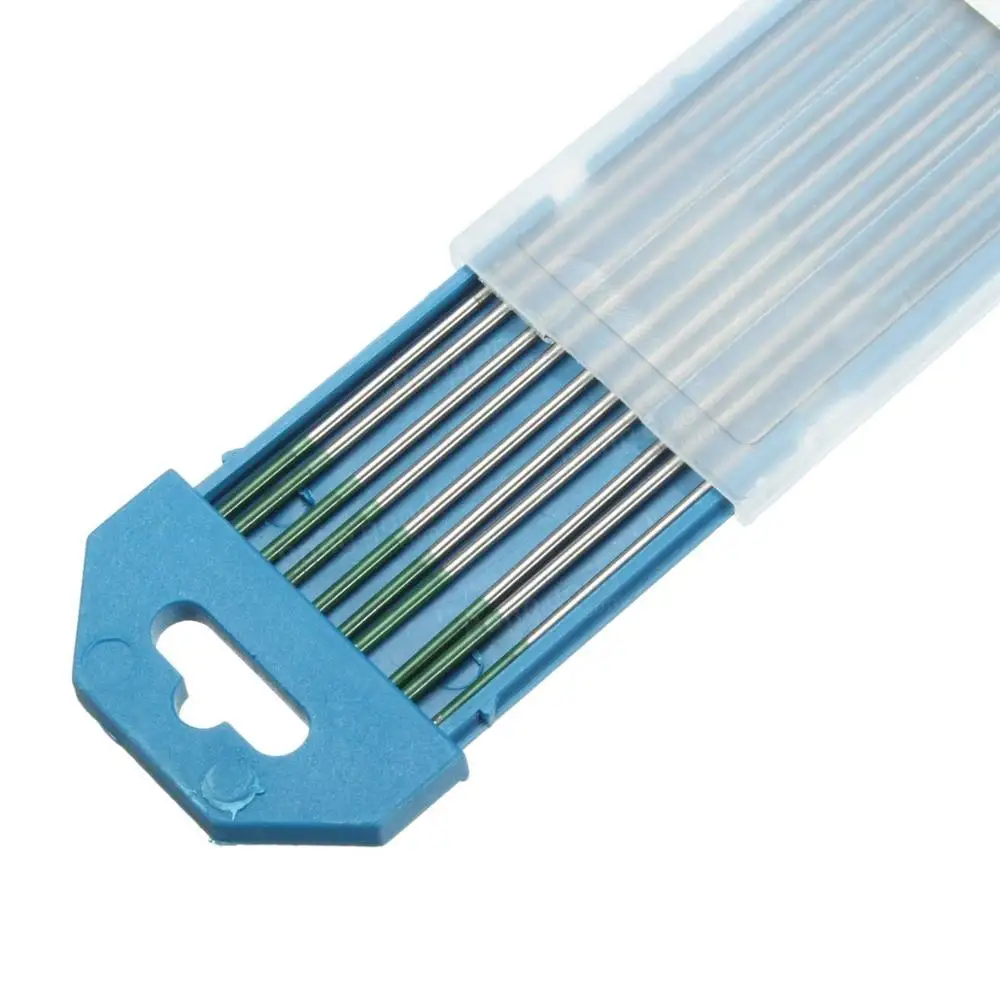

Packing: 1.10PCS to one plastic box.
                2. 20 plastic boxes to one packet.
                3. 6 packets to one carton

Delivery:15 days after order confirmed





Our Service

* 24 hours online service
* One year warranty
* Sample can be suuplied in 3 days
* OEM and ODM are available
* Trial order are availabe



Our Company

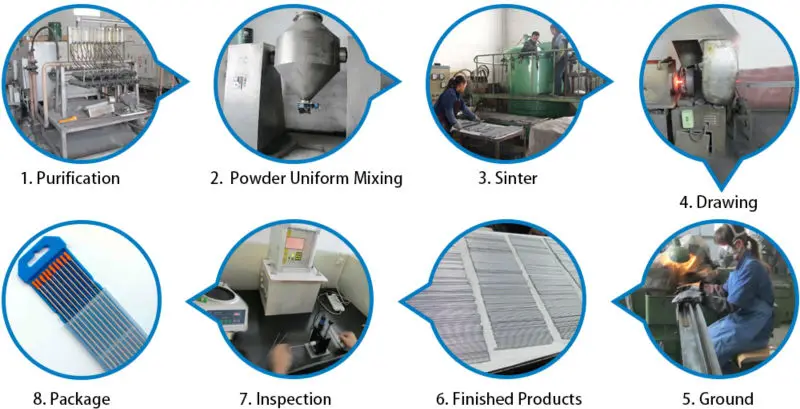

Our compamy is a specialized manufacturer of welding products registered in 1996, the annual production capacity exceeding 5000tons.

The main products of our company are welding electrodes,  welding wires and welding accessories. With more than 20 years’ working

experience, we have strict quality testing and perfect service system.
