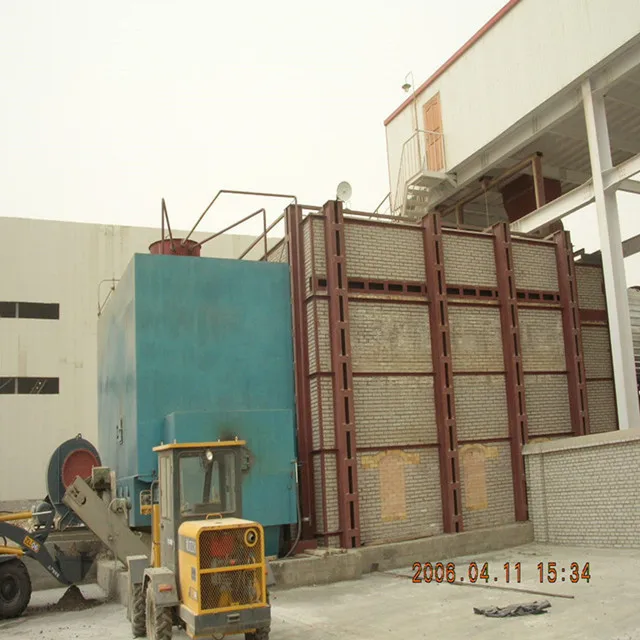

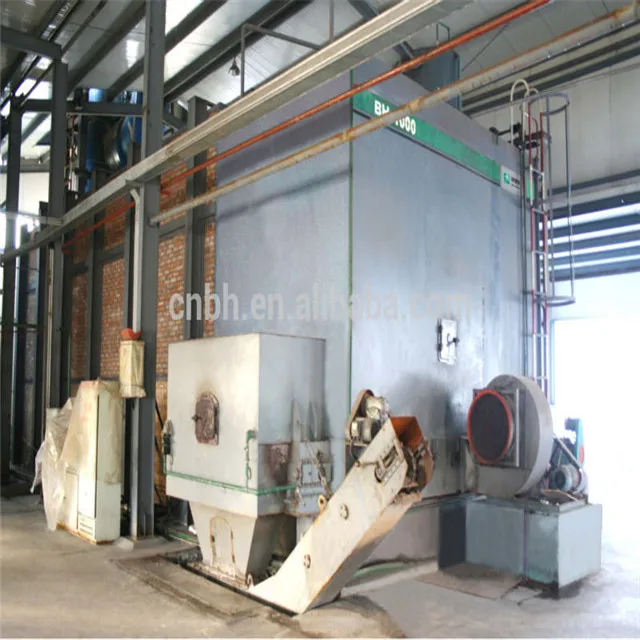

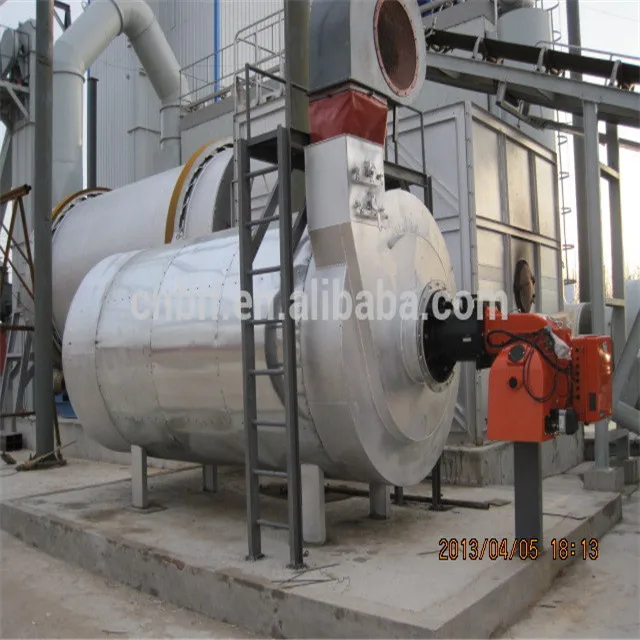

The coal fired hot air furnace for drying ceramics

BHL-Z1 consists of BHL coal-fired machine, combustion chamber and air mixing chamber. The bituminous coal is lifted to the burning bucket (located at one side of the coal-fired machine) by the coaling machine. When get to a certain height, the coal is sent to the combustion chamber at a constant speed by the chain grate stoker. The flue gas (1000℃) generated by the burning coal is mixed with a certain amount of cold air. When get to about 650℃, the hot air enters into the spray tower to dry the material. The temperature of the hot air can be adjusted according to different technical requirements, and the fluctuation range of the continuous hot air temperature is ±5℃. The coal slag is discharged from the other side of the coal-fired machine to the slag discharging machine, and then sent out by the automatic scraper slag machine.

Favorable Comment

1. Low heating cost. Use bituminous coal as fuel and the thermal efficiency is more than 93%. The coal consumption of 1 ton base powder is about 70-90kg, saving energy of 15-20% compared with CWS furnace.

2. There's no black smoke in the hot air and the dust content is less than 120mg/Nm3. The hot air pipe is easy to clean, and no coking is produced. All the hot air enters into the spray tower, and no secondary pollution during the production.
3. The hot air temperature is adjustable, from 200 to 800℃, and the fluctuation range is ±10℃.
4. The equipment is of strong durability, easy maintenance and low operating cost, and under high security, no danger of explosion.
5. It can be designed as your requirement.

FAQ

Q: Are you trading company or manufacturer ?

A: Banghua International Granulation Engineering Co.,Ltd is specialized in the hot air furnace,heat exchanger technology research,development,design,production,installation,commissioning and other engineering contract.Relying on our own scientific and technological strength,we always commit to advanced stove,heat exchangers and other equipment design and manufacturing technology development. Self-developed direct coal (biomass)-fired hot air furnace and indirect coal (biomass)-fired hot air furnace which has hit the leading domestic level,are widely used in heating,drying,reaction,calcined and other industries.

The company has been passed the ISO9001:2008 international quality system certification.The company has completed product development system,quality management system and professional construction team,succeeded at home and abroad in undertaking hundreds of sets of hot air equipment design,manufacture,installation and commissioning.

Realistic,pragmatic,hard-working,enterprising,"Banghua"uphold "Honesty,cooperation and win-win"business philosophy,and always provide our customers with advanced technology,first-class products,quality service.We not only adhere to create more value for customers,but also to save energy,clean environment,promote human harmony with the environment to do our best.

Q: How long is your delivery time?

A: Generally it is 30-90, it is according to your details capacity demands and our factory busy situation.

Q: Do you provide client site case for investigation?

A: Yes, we have many domestic and overseas site cases could for your investigation.

Q: What is your terms of payment ?

40% T/T in advance, 50% balance before shippment, 5% after installation and commissioning acceptance, 5% within 10 working days from the date of the expiration of warranty period of one year .
