Термоизоляционные блоки из пенопласта и стекла для сотового стекла 150 мм
- Category: Other Heat Insulation Materials >>>
- Supplier: Tianjin Huali Thermal Insulation Building Material Co. Ltd.
Share on (60844172894):
Product Overview
Description

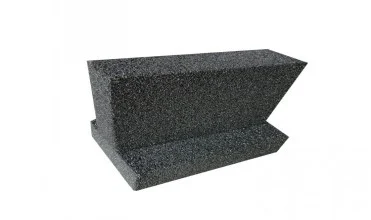

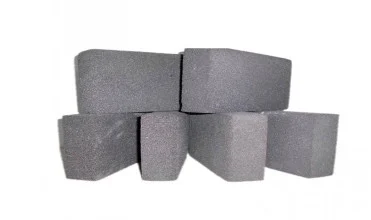

CELLULAR GLASS

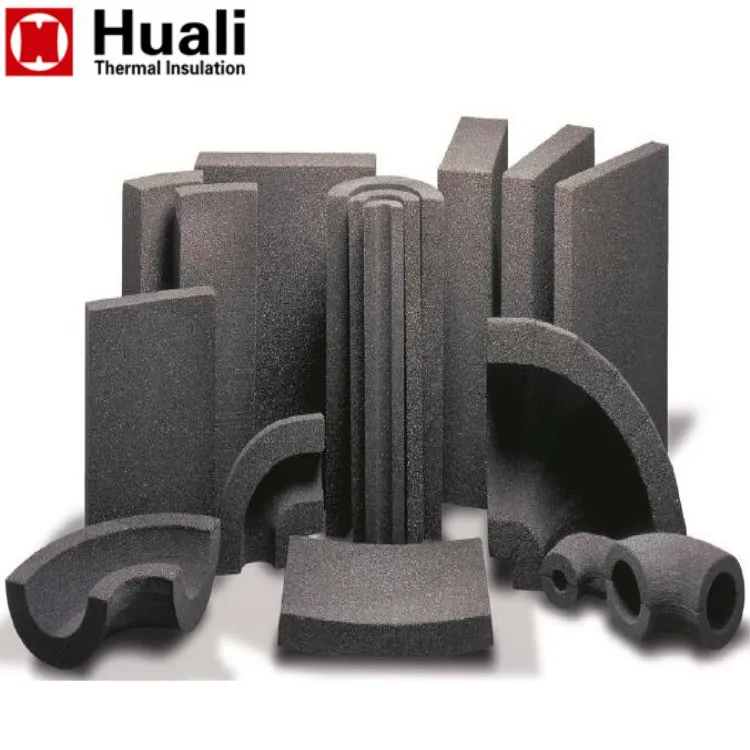

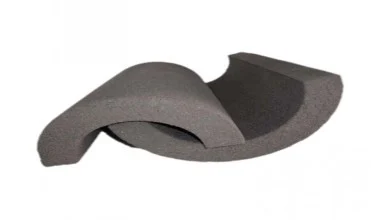

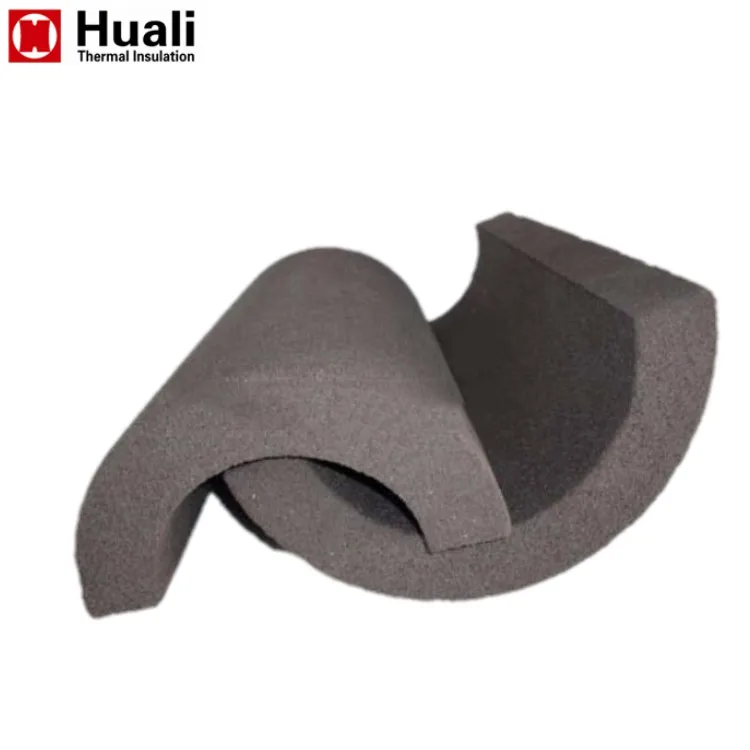

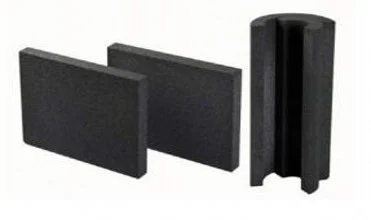

foam glass insulation is a lightweight, rigid material composed of millions of completely sealed glass cells. Foamglass insulation is manufactured by Huali in a block form and then fabricated into a wide range of shapes and sizes to satisfy industrial and commercial insulation requirements.

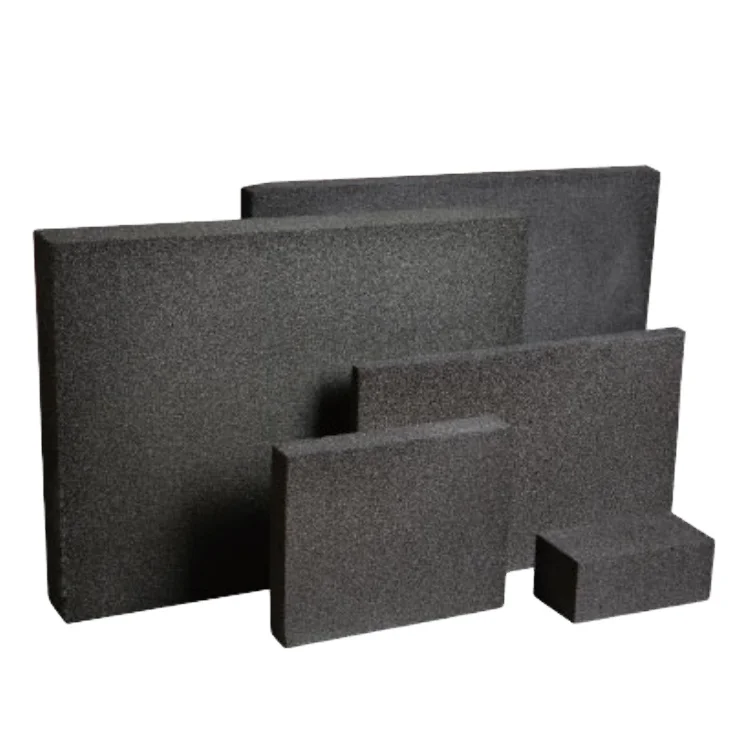

LNG tank foamglass thermal and cold insulation foam glass board cellular glass 150mm blocks
Item | Unit | Data |
Density | kg/m3 | 120-220 |
Thermal conductivity | W/(m . k) | ≤ 0.078 |
Block Size ( L* W) | mm | 600 * 450 |

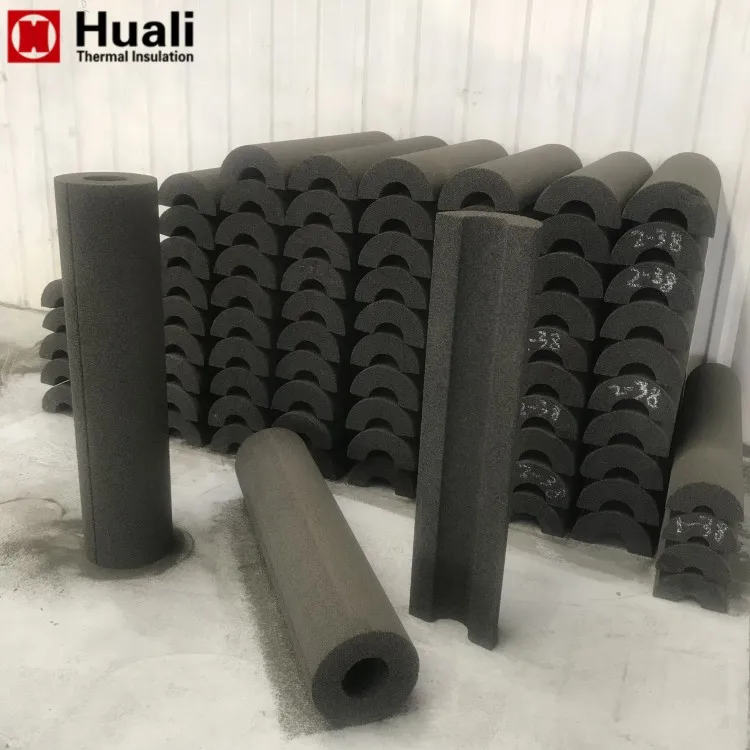

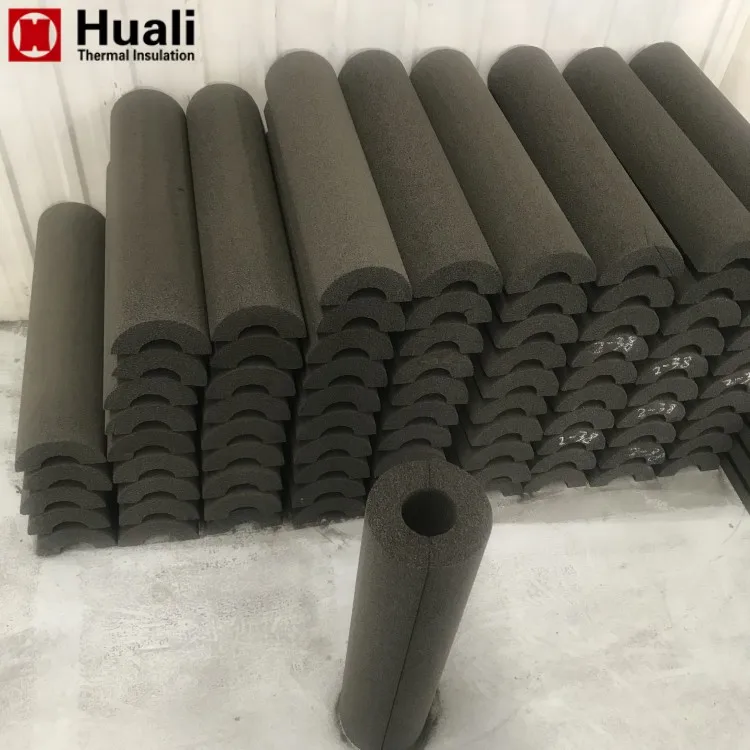

Pipe Size ( ID) | mm | ≥22mm |
Thickness | mm | 25-150mm |
Standard | ASTM C552 |
LNG tank foamglass thermal and cold insulation foam glass board cellular glass 150mm blocks

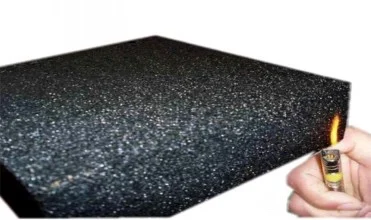

NONCOMBUSTIBLE
foam glass insulation is 100% glass and contains no binders or fillers – it cannot burn. It will not absorb flammable liquids or vapors.
CORROSION RESISTENT
foam glass insulation is unaffected by common chemicals and by most corrosive atmospheres. It does not promote metal corrosion and its moisture resistance will help keep water from reaching equipment and piping.
VERMIN RESISTANCE
Cellular glass insulation is resistant to vermin, as well as microbes and mold.
COMPRESSIVE STRENGTH
Cellular glass insulation can withstand loads which crush most other insulating materials. In a properly designed piping system, it eliminates the need for special treatment at pipe cradles. It provides a fire base for roof membranes, jacketing or vapor retarders, and can prolong their life.
INSULATING EFFICIENCY
foam glass insulation has a homogeneous, closed cell glass structure that resists moisture in both liquid and vapor forms and results in long term, constant insulating efficiency.
DIMENSIONAL STABILITY
foam glass insulation is not affected by temperature differentials and humidity. It will not swell, warp, shrink or otherwise distort. The integrity of the insulation remains intact even at the extremes of cryogenic service.
ECOLOGICALLY FRIENDLY
foam glass insulation is free of CFC's and HCFC's and has been formally recognized as an ecologically friendly, sustainable construction material.
foam galss insulation systems provide solutions for a wide range of piping and equipment applications at operating temperatures from -268 to 482 C (-450 to 900 F)
---Cryogenic systems
---Low temperature pipe, equipment, tanks and vessels
---Medium and high temperature pipes and equipment
---Hot oil and hot asphalt storage tanks
---Heat transfer fluid systems
---Hydrocarbon processing systems
---Chemical processing systems
---Above ground and underground steam and chilled waterpiping
---Commercial piping and ductwork
Located in Tianjin, China, Huali Insulation was established in 1995. Currently, the company owns asset of CNY 200 million and a total crew of more than 300 employees, including more than 80 management staff, a professional insulation construction team and another 40 technicians.
Huali has successfully been promoted to "the first tier" of Cryogenic Insulation engineering company in China with the performance in Ichthys project, Wheastone Project, Nyhamna project and also Yamal project.
RELATED PRODUCTS

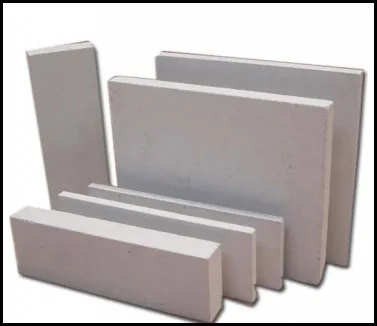

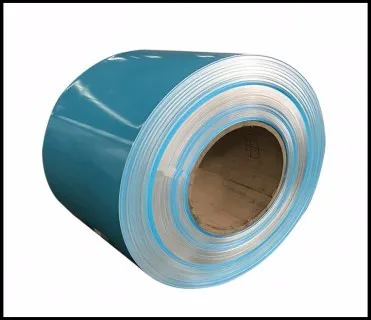

Calcium Silicate Products Aluminum Cladding with polysurlyn

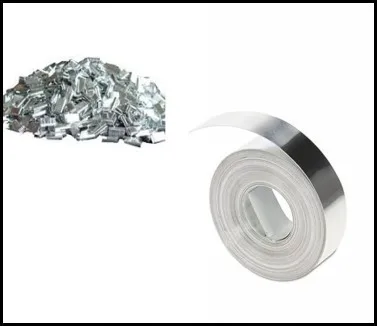

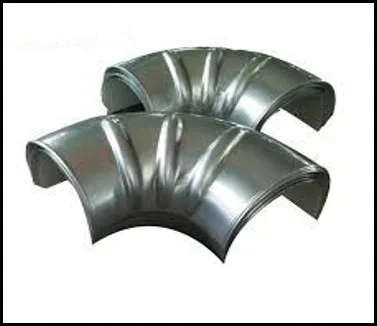

Aluminum elbow Stainless steel band & clip
