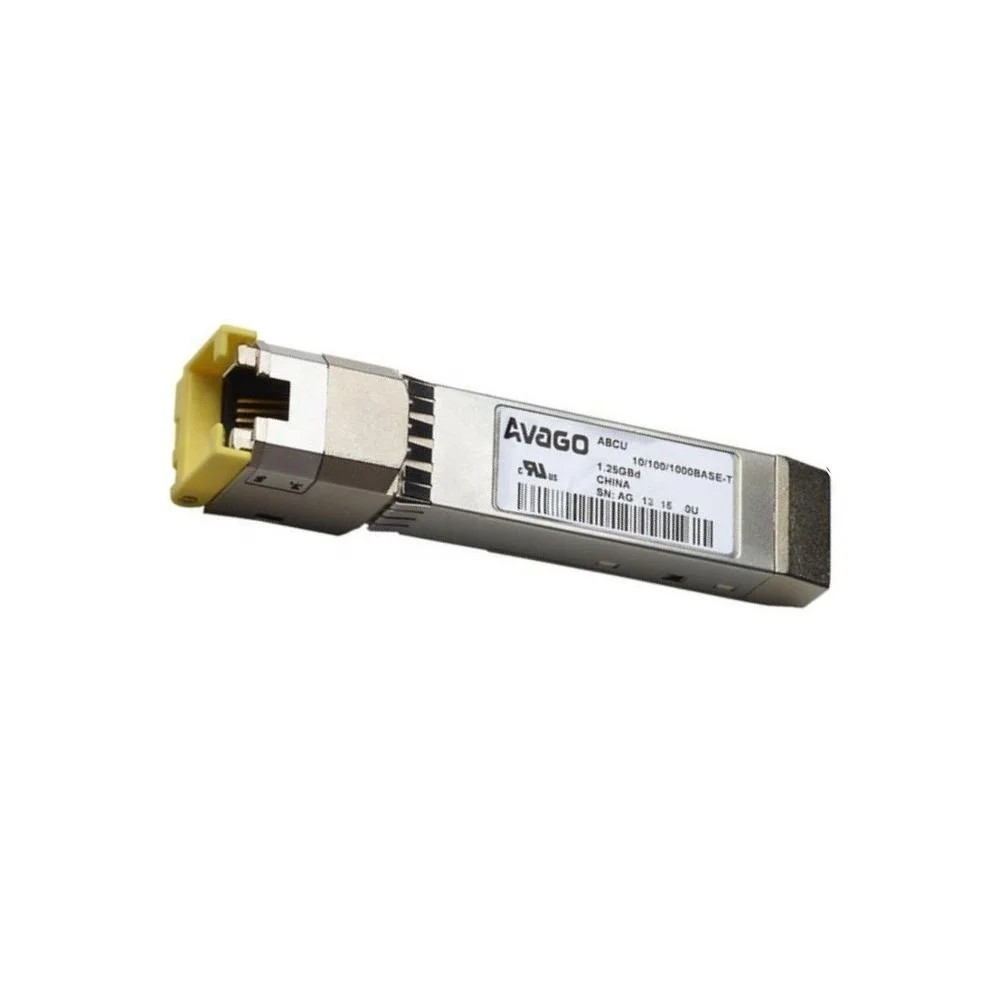

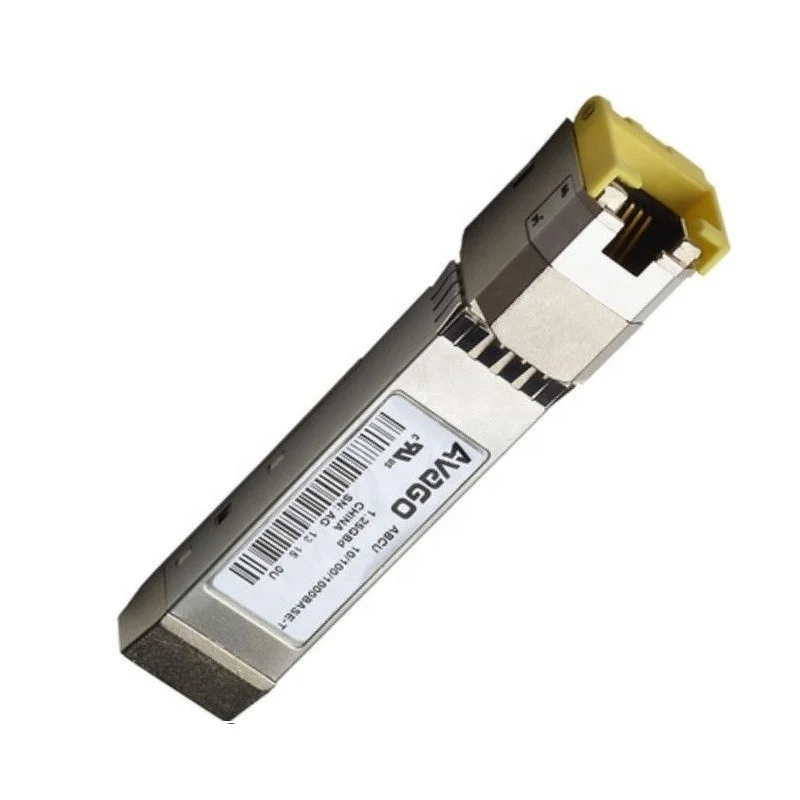

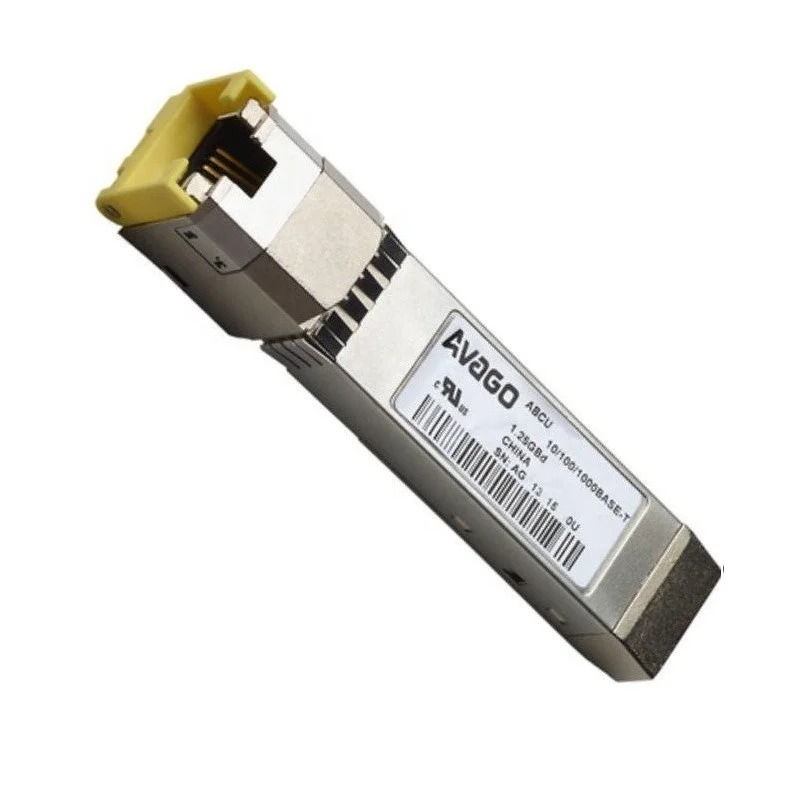

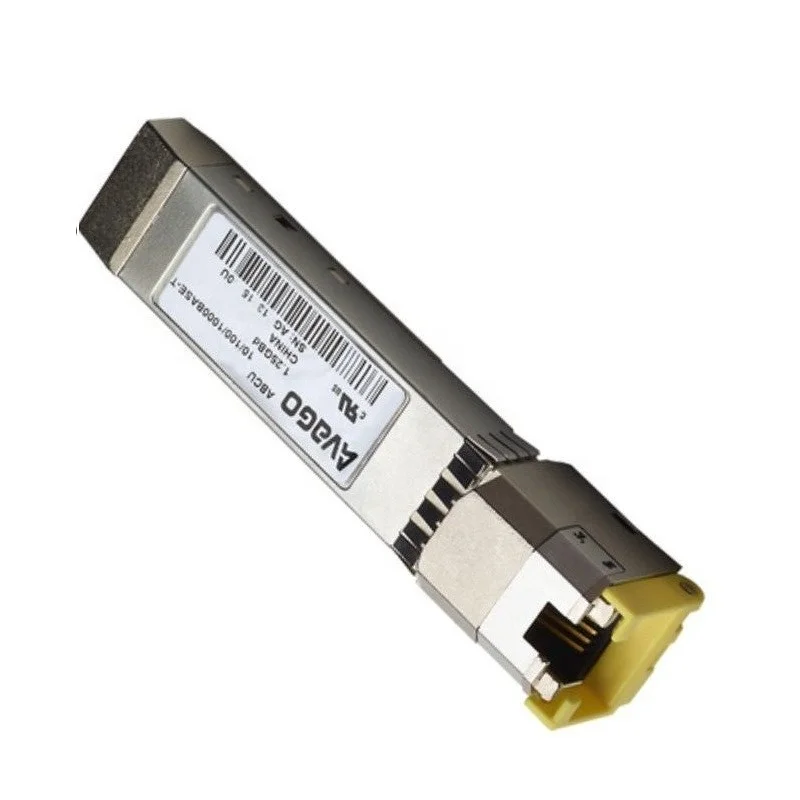

AVAGO ABCU 5730ARZ ,10/100/1000BASE T 1.25 GBd SFP Electrical Transceiver over Category 5 Cable, RJ 45 Copper
- Category: >>>
- Supplier: Shenzhen Datastor Co. Ltd.
Share on (60844242417):
Product Overview
Description
AVAGO ABCU-5730ARZ ,10/100/1000BASE-T 1.25 GBd SFP Electrical Transceiver over Category 5 Cable, RJ-45 Copper connector
ABCU-57XXXXZ Family 10/100/1000BASE-T 1.25 GBd Small Form Pluggable Low Voltage (3.3 V) Electrical Transceiver over Category 5 Cable
Product Description
The ABCU-57xxxxZ family of electrical transceivers from Avago Technologies off er full-duplex throughput of 1000Mbps by transporting data over shielded and unshielded twisted pair category 5 cable with 5-level PAM (Pulse Amplitude Modulation) signals.
The Avago Technologies 1000BASE-T module takes signals from both the twisted pair category 5 cable and the SerDes interface. Pin count overhead between the MAC and the PHY is minimized, and Gigabit Ethernet operation is achieved with maximum space savings.
Product Ordering Information
ABCU-5730RZ -5~70 RX_LOS enabled
ABCU-5740RZ -5~70 RX_LOS disabled
ABCU-5730GZ -5~70 RX_LOS enabled & Isolated ground
ABCU-5730ARZ -40~85 RX_LOS enabled
ABCU-5740ARZ -40~85 RX_LOS disabled
ABCU- 5740AGZ -40~85 RX_LOS disabled & Isolated ground
ABCU-5731ARZ -40~85 SGMII RX_LOS enabled
ABCU-5741ARZ -40~85 SGMII RX_LOS disabled
ABCU-5741AGZ -40~85 SGMII RX_LOS disabled & Isolated ground
ABCU-5731RZ -5~70 SGMII RX_LOS enabled
ABCU-5741RZ -5~70 SGMII RX_LOS disabled
Related Products
AFBR-5710Z Family of 850nm +3.3V SFP optical transceivers for Gigabit Ethernet
AFCT-5710Z Family of 1310nm +3.3V SFP optical transceivers for Gigabit Ethernet
Features
- RoHS-6 Compliant (see Table 1)
- Designed for Industry-Standard, Small Form Factor Pluggable (SFP) Ports
- Compliance with IEEE 802.3:2005
- Custom RJ-45 connector with integrated magnetics
- Link lengths at 1.25 Gbd: up to 100 m per IEEE802.3
- Low power, high performance 1.25 Gbd SerDes integrated in module
- Single +3.3 V power supply operation
- Auto-negotiation per IEEE 802.3:2005 Clause 28 (Twisted Pair) and Clause 37 (1000BASE-X)
- Compatible to both shielded and unshielded twisted pair category 5 cable
- Available in Commercial Temperature (-5~70 °C) and Industrial Temperature (-40~85 °C)
- 10/100/1000BASE-T operation available with SGMII host systems.
Applications
- Switch to switch interface
- Switched backplane applications
- File server interface
Packaging & Shipping
1.Packing in factory box/retail box
2.All the products are 100% tested before shipment.
3.When you order, We will ship the products within 1-3 working days(depending on Qty) after the payment is received.
4.We can ship to you by DHL/TNT/UPS/EMS/UPS/Fedex... Please contact us directly and we will ship as you required.
Payment
We accept HSBC,Trade assurance, MoneyGram, Western Union,Paypalm,VISA,MasterCard,Bank of China,D/P,L/C,D/A,T/T.
Welcome wholesale!!!
More QTY, better price.
Our Services
We provide 1 year free warranty service.
Only provide 1 year free warranty service for impersonal factor failure or damaged products.
Buyer must bear the freight of the free warranty products at his own expense.
PS:
Faulted or damage of product in the following cases shall not covered by the free warranty service
1.Product is faulted or damaged in the non-specified working environment (temperature, humidity, voltage, current, internal cleanliness of the machine)
2.Product is faulted or damaged due to improper maintenance (e.g. virus infection, water intake, extrusion, etc.)
3.Product is faulted or damaged caused by customers' unauthorized disassembling the parts.
4.Product is faulted or damaged caused by fire, flood, lightning, earthquake or other force majeure events.
